Ref.: 487218 10
Levelling swivel castor – Blickle height adjustable wheel
nylon, max. load 150 kg, Ø x W 80 x 32 mm
Wheel material
Ref.: 487218 10
Levelling swivel castor – Blickle height adjustable wheel
nylon, max. load 150 kg, Ø x W 80 x 32 mm
nylon, max. load 150 kg, Ø x W 80 x 32 mm
Wheel material
€ 221.00
Price / item (Excl. VAT)
Delivery time: 12-14 Working Days
Good reasons to purchase products from us
- Guarantee of up to 15 years
- 30 day right of return
- Free delivery from Germany
- Fast delivery
We will be happy to help you
1 800 677 300
Monday-Friday 8am-5pm
Do you have any questions about this product?€ 221.00
Price / item (Excl. VAT)
Product description
- Primarily for stationary use
- Mobility with height adjustment
- Height adjustable wheel, fixed locking foot
- Very stable
- Rotating activation lever
Housing made of electrolytically zinc plated sheet steel, blue passivated, with dual ball bearings in the live ring, with live ring seal. Locking foot made of steel.

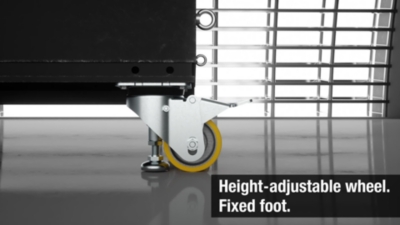

Stable footing due to fixed locking foot. Mobility provided by height adjustment of the wheel using the rotating activation lever.
Stable footing due to fixed locking foot. Mobility provided by height adjustment of the wheel using the rotating activation lever.
High maximum load
Non-marking
Technical data
| Wheel diameter | 80 mm |
|---|---|
| Structure | swivel castor |
| Type of mounting | with top plate |
| Housing material | steel |
| Max. load at 4 km/h | 150 kg |
| Overall height | 122 mm |
| Swivel castor offset | 52 mm |
| Screw hole diameter | 9 mm |
| Model | levelling castors |
| Swivel castor plate dimensions | 100 x 85 mm |
| Screw hole spacing | 80 x 60 mm |
| Housing surface | zinc plated |
| Product type | swivel castors |
| Supplied | assembled |
| Wheel material | plastic – nylon |
| Material of rim | nylon |
| Wheel width | 32 mm |
| Wheel bearing | plain bearing |
| Temperature resistance | –25 °C to +80 °C |
| Shore hardness | 70 D |
| Feature | low wear low rolling resistance |
| Weight | 1.46 kg |
