Ref.: 188964 10
Ball bearing race for turntable steering for transport equipment up to 30 km/h
max. load 700 kg
This label from kaiserkraft evaluates products based on a wide range of sustainability criteria
Ref.: 188964 10
Ball bearing race for turntable steering for transport equipment up to 30 km/h
max. load 700 kg
max. load 700 kg
€ 429.00
Price / item (Excl. VAT)
Only 1 available
Good reasons to purchase products from us
- Guarantee of up to 15 years
- 30 day right of return
- Free delivery from Germany
- Fast delivery
We will be happy to help you
1 800 677 300
Monday-Friday 8am-5pm
Product description
For flange Ø up to 500 mm, we recommend 4 – 6 bolts, for larger Ø at least 8 bolts.
All M 10 – M 12, rigidity class 8.8. Both flange rings without bore holes.
Caution!

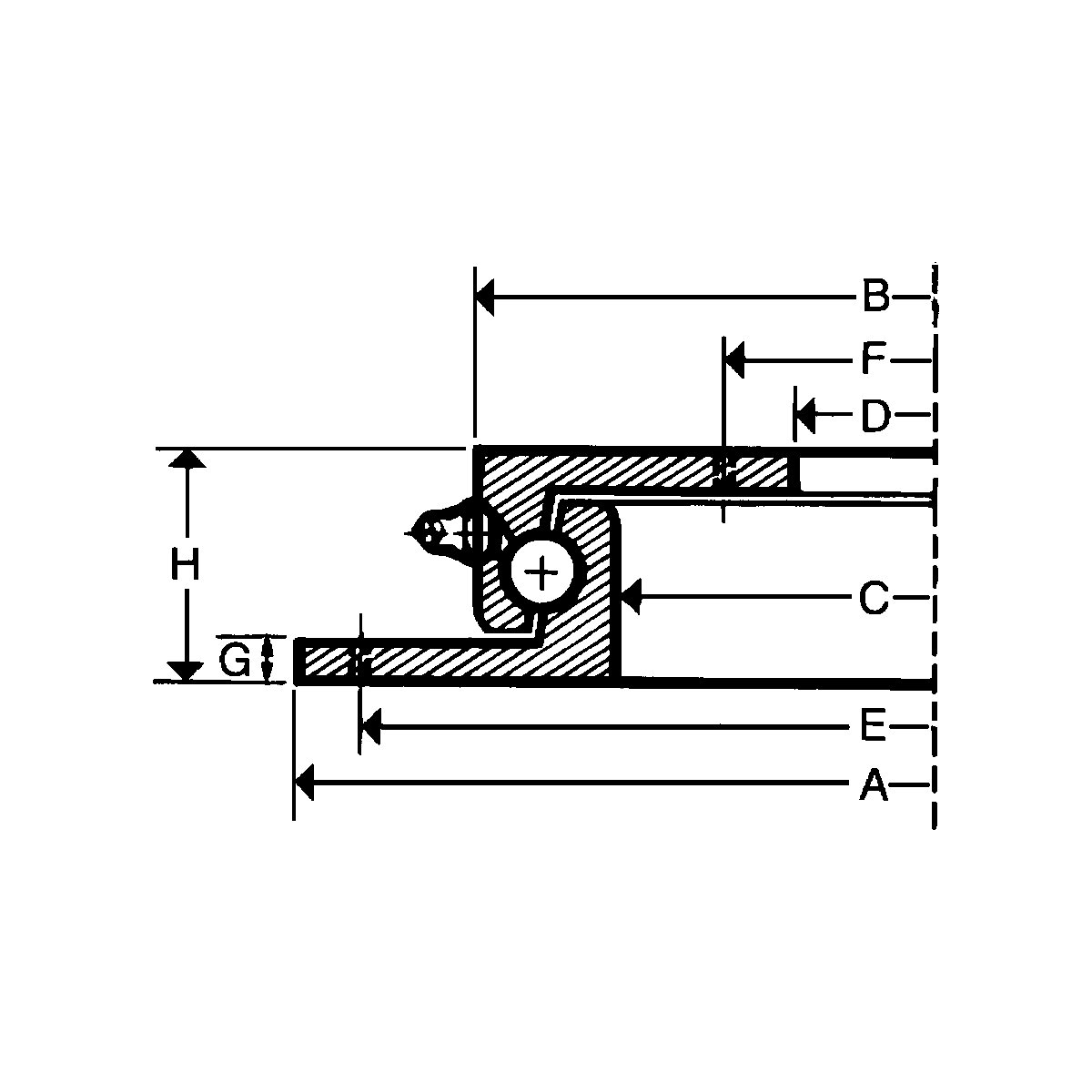

Dimension D (inner top ring Ø) is subject to manufacturing tolerances of +2 mm / –15 mm. For dim. A, manufacturing tolerances of 0 to +5 mm. Check tolerances to ensure smooth running fit.
Holes to be drilled by customer as required.
All M 10 – M 12, rigidity class 8.8. Both flange rings without bore holes.
Caution!
Dimension D (inner top ring Ø) is subject to manufacturing tolerances of +2 mm / –15 mm. For dim. A, manufacturing tolerances of 0 to +5 mm. Check tolerances to ensure smooth running fit.
Holes to be drilled by customer as required.
- For transport equipment up to 30 km/h
- For turntable steering
- 2 steel rings with ball bearing races
- Precision steel ball bearings
- Lubrication nipple
- Black primed surface
Technical data
Flange thickness | 8 mm |
---|---|
Product type | ball bearing races |
Supplied | assembled |
Flange diameter | 400 mm |
Max. load axial | 700 kg |
Outer diameter upper ring | 342 mm |
Inner diameter lower ring | 292 mm |
Inner diameter upper ring | 230 mm |
Hole circle diameter, lower ring | 375 mm |
Hole circle diameter, upper ring | 260 mm |
Overall height | 45 mm |
Weight | 11 kg |
