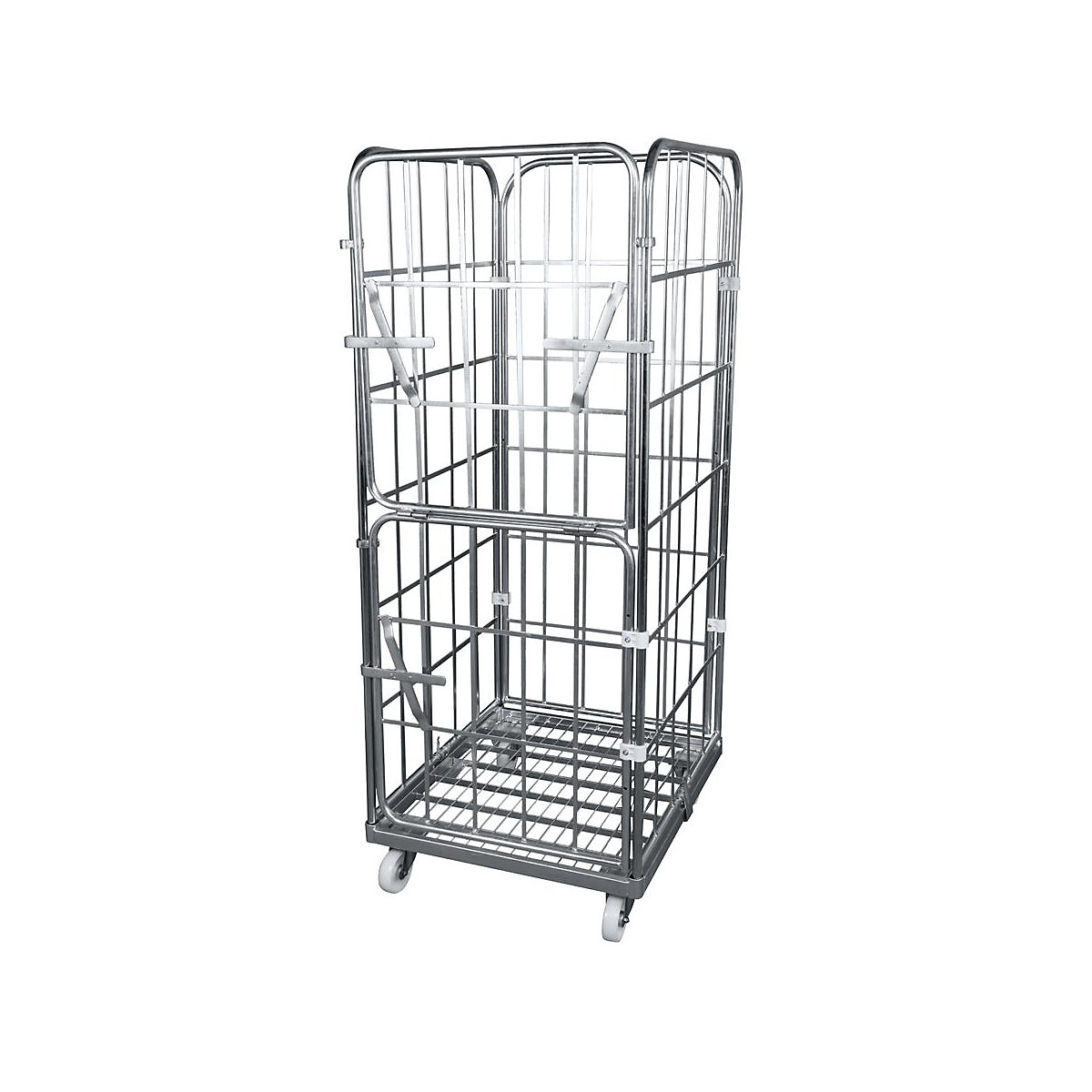

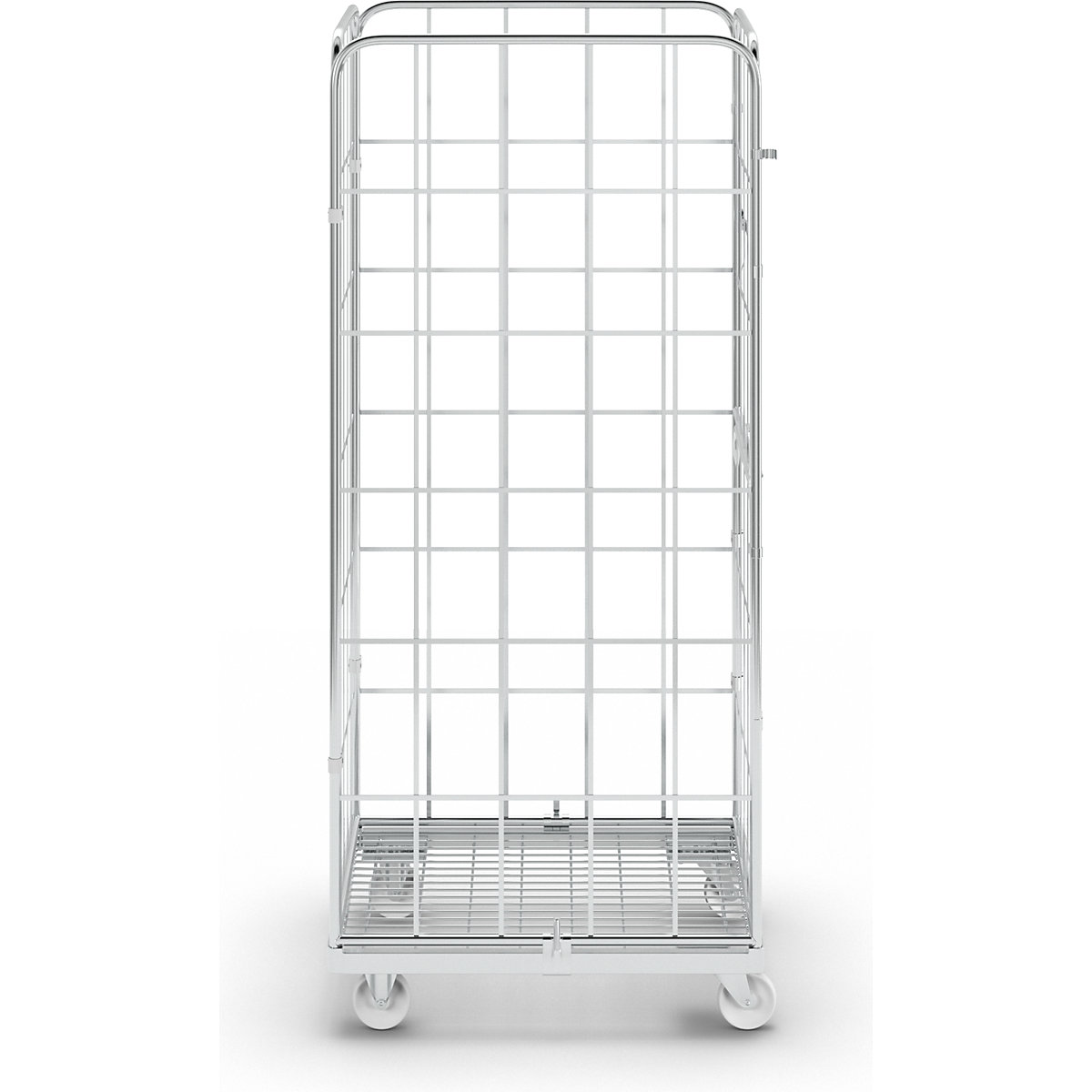

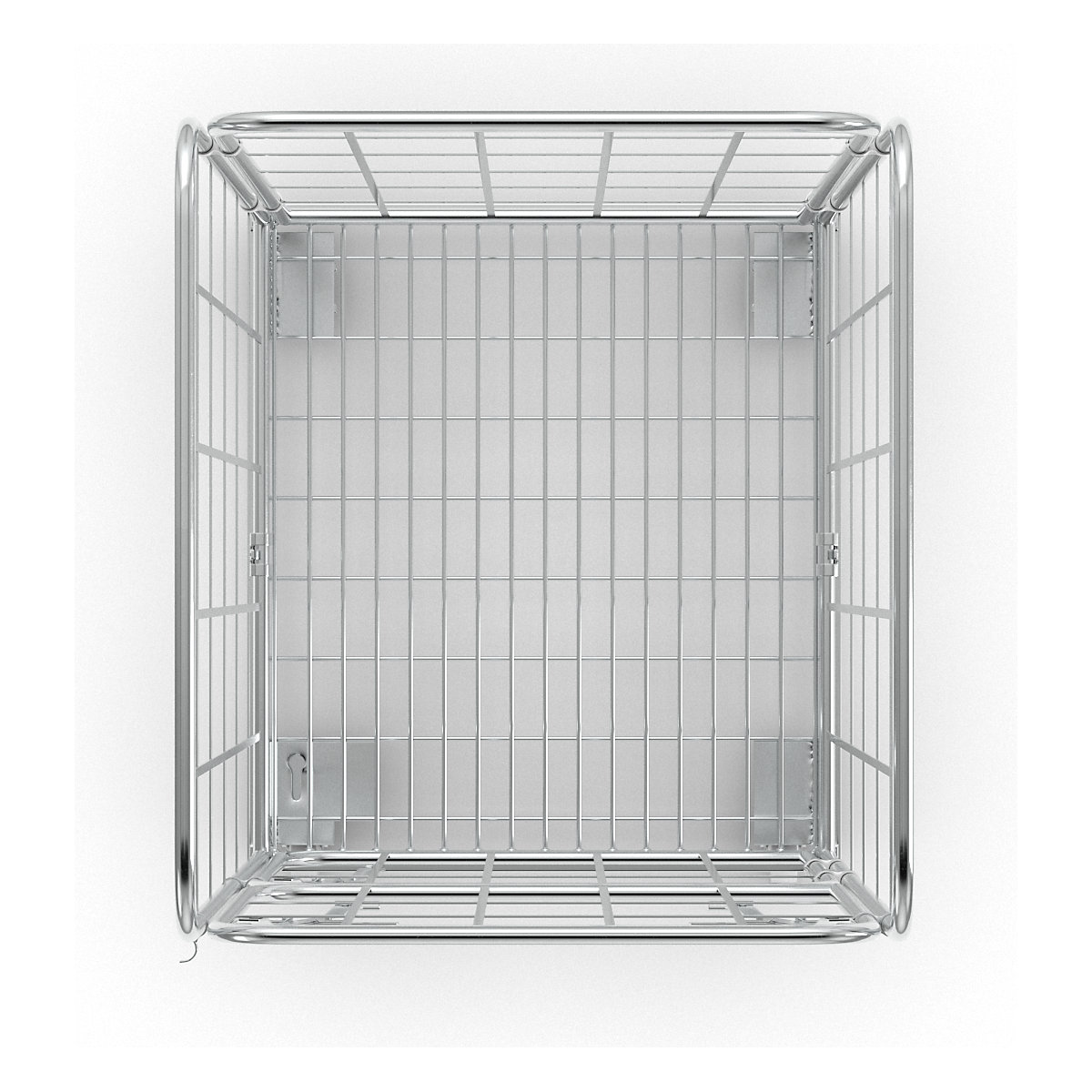

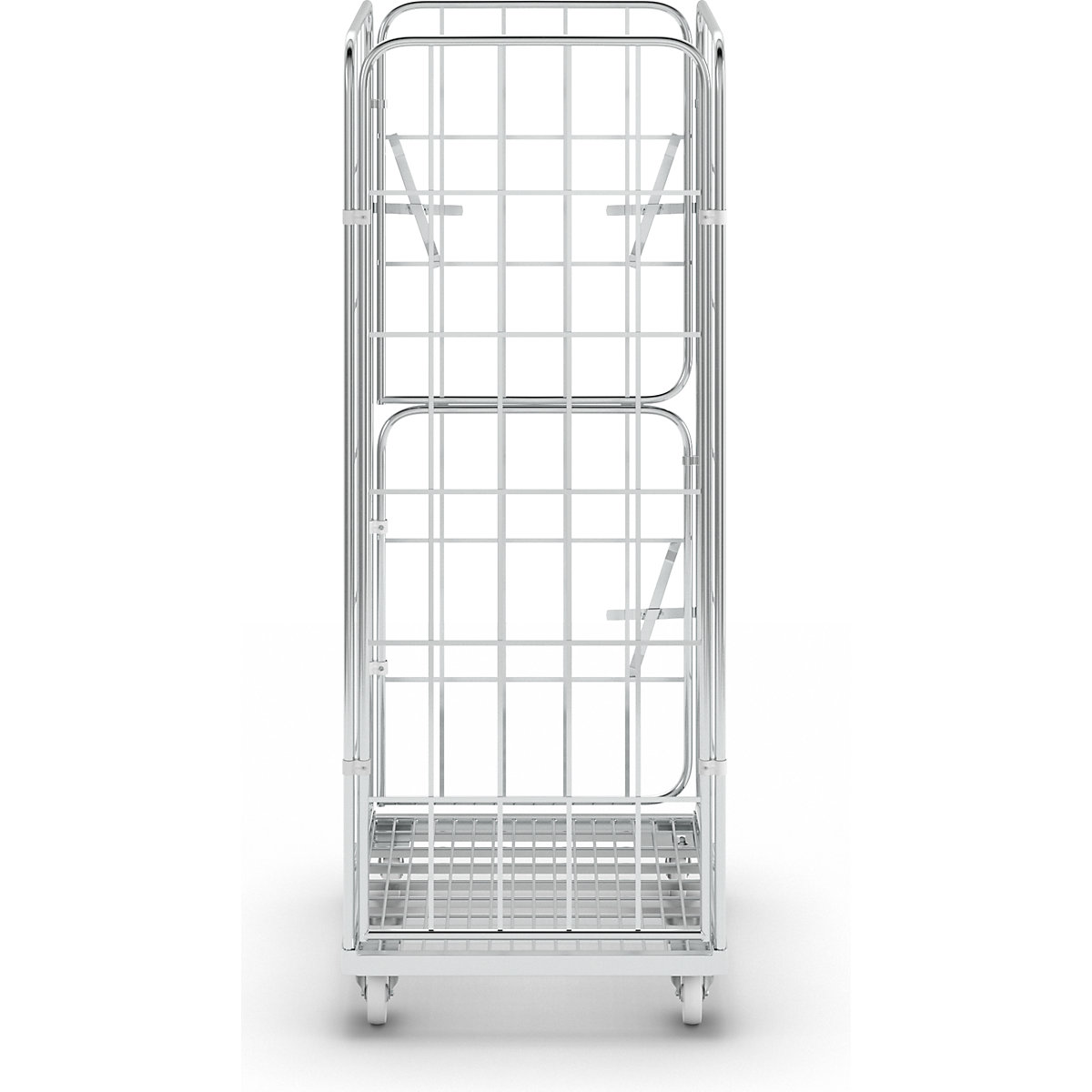

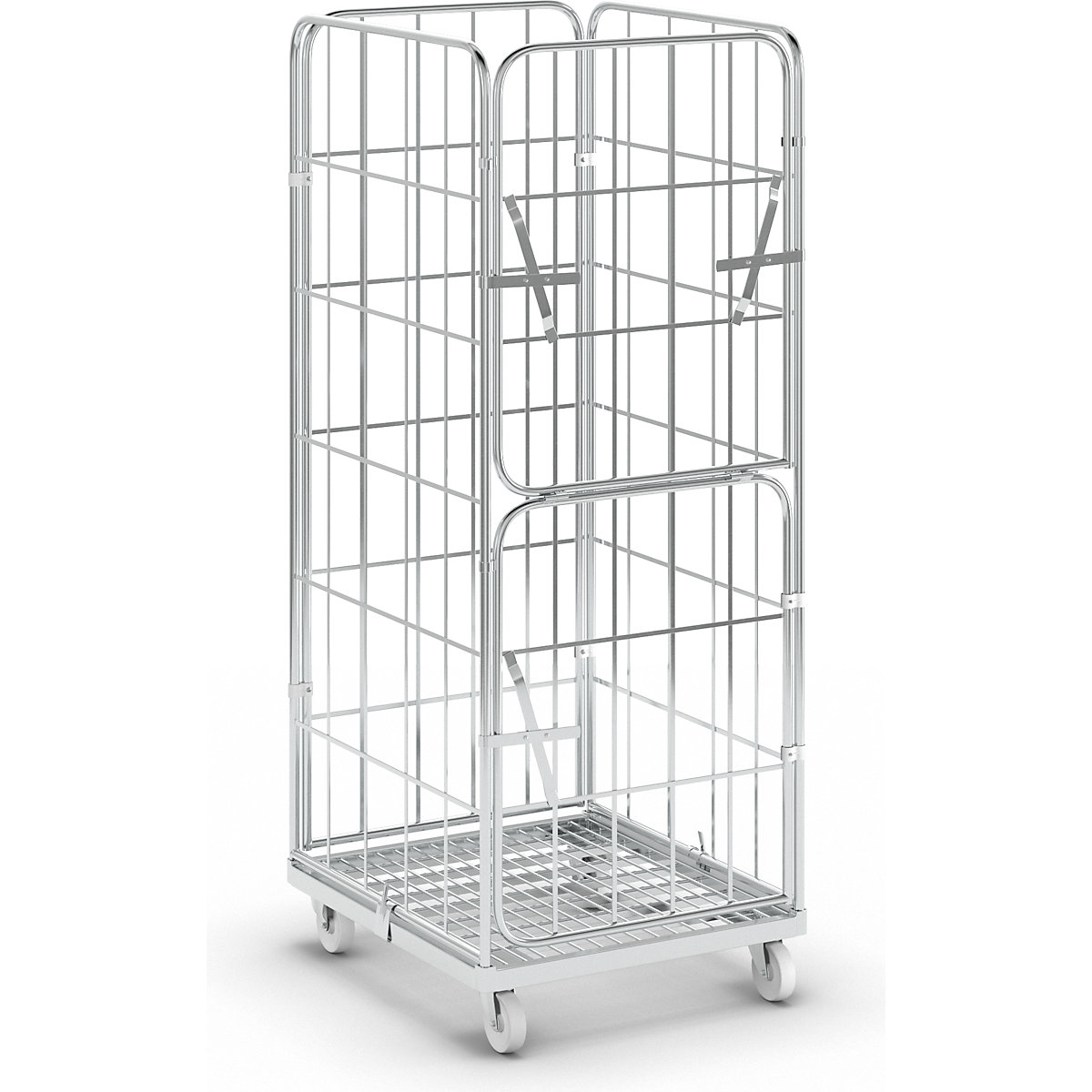

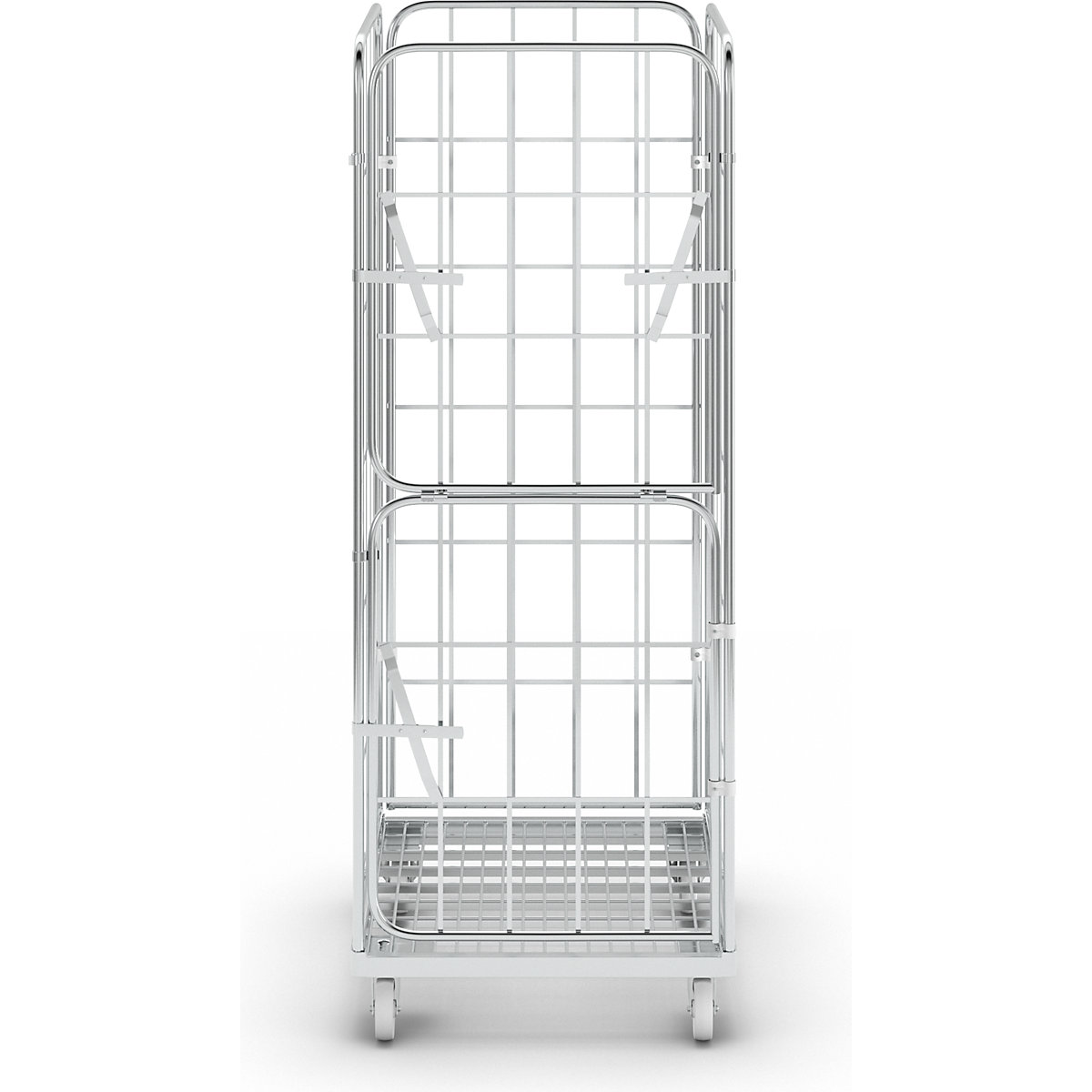

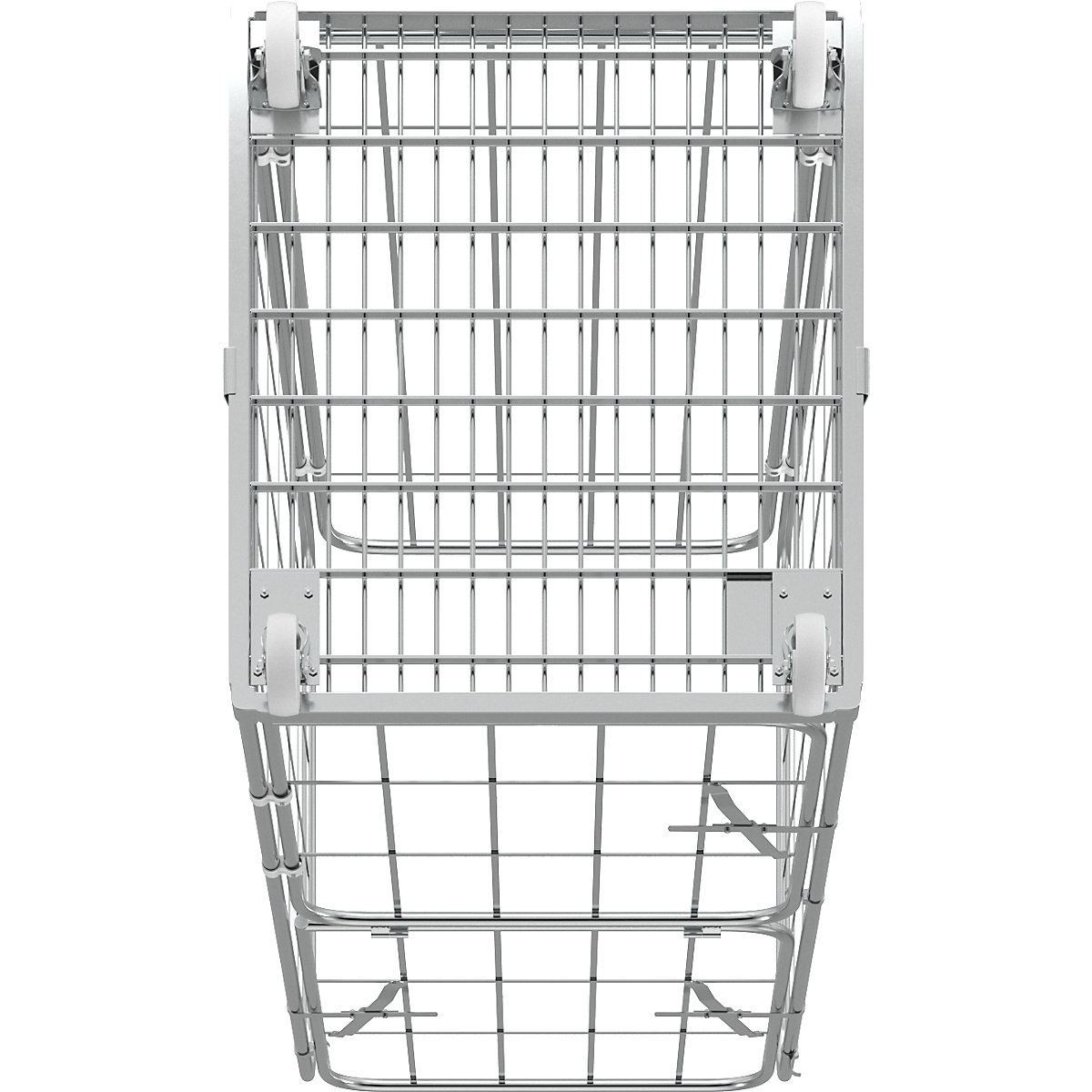

Steel roll container 4-sided, overall height 1830 mm

Ref.: 177701 10
Steel roll container, 4-sided, overall height 1830 mm, 1 front panel, hinged and half folding
Price / items (Excl. VAT)
€ 515.00


Product description
Surface: electrolytically zinc plated in blue
Consists of:
One steel dolly made of a tubular steel frame of 40 x 20 mm, 6 flat iron supports 40 x 4 mm and 16 wire rods with a diameter of 5 mm.
This construction guarantees a max. load of up to 500 kg with evenly distributed loads.
The 4-sided tubular base frame is rounded at the bumpers, suitable for mounting standard side mesh panels with tubular steel frame of 22 mm diameter.
The castors are bolted at 4 points.

2 side mesh panels (up to 5 shelves possible)
1 rear panel incl. 4 plastic clamps with screws and nuts for connection to the side mesh panels
1 front panel
Bracing for the side mesh panel and rear panel:
4 x vertical flat irons 12 x 3 mm
5 x horizontal flat irons 12 x 3 mm
Technical data
Max. load500 kg
Width710 mm
Depth800 mm
Height1830 mm
Finishzinc plated by galvanization
Wheel fittings2 swivel castors, 2 fixed castors
Wheel typepolypropylene
Wheel diameter108 mm
Transport dolly materialsteel
Material of meshsteel
Mesh height1650 mm
Internal width660 mm
Internal depth740 mm
Internal height1650 mm
Product typeroll containers
Suppliedassembled
