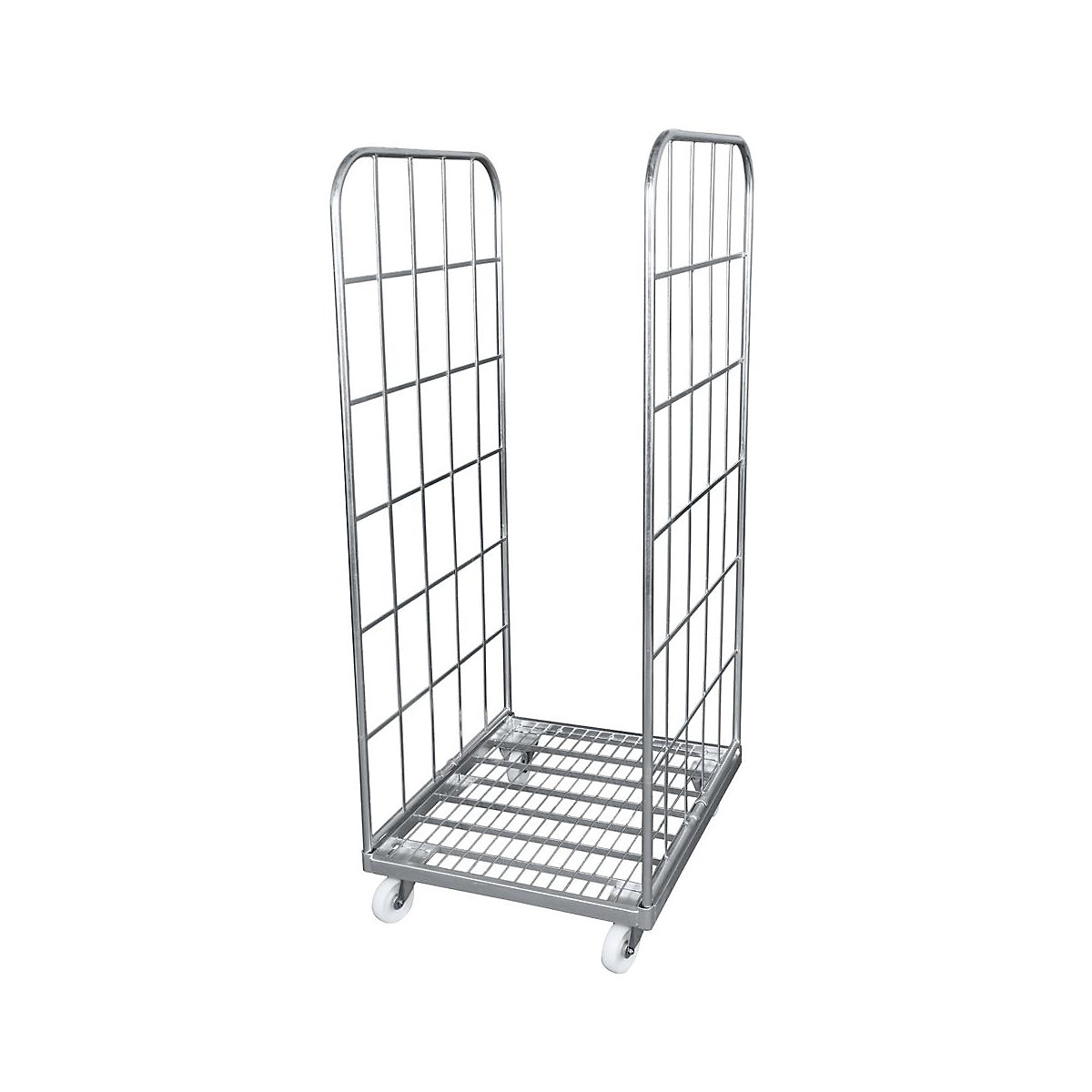

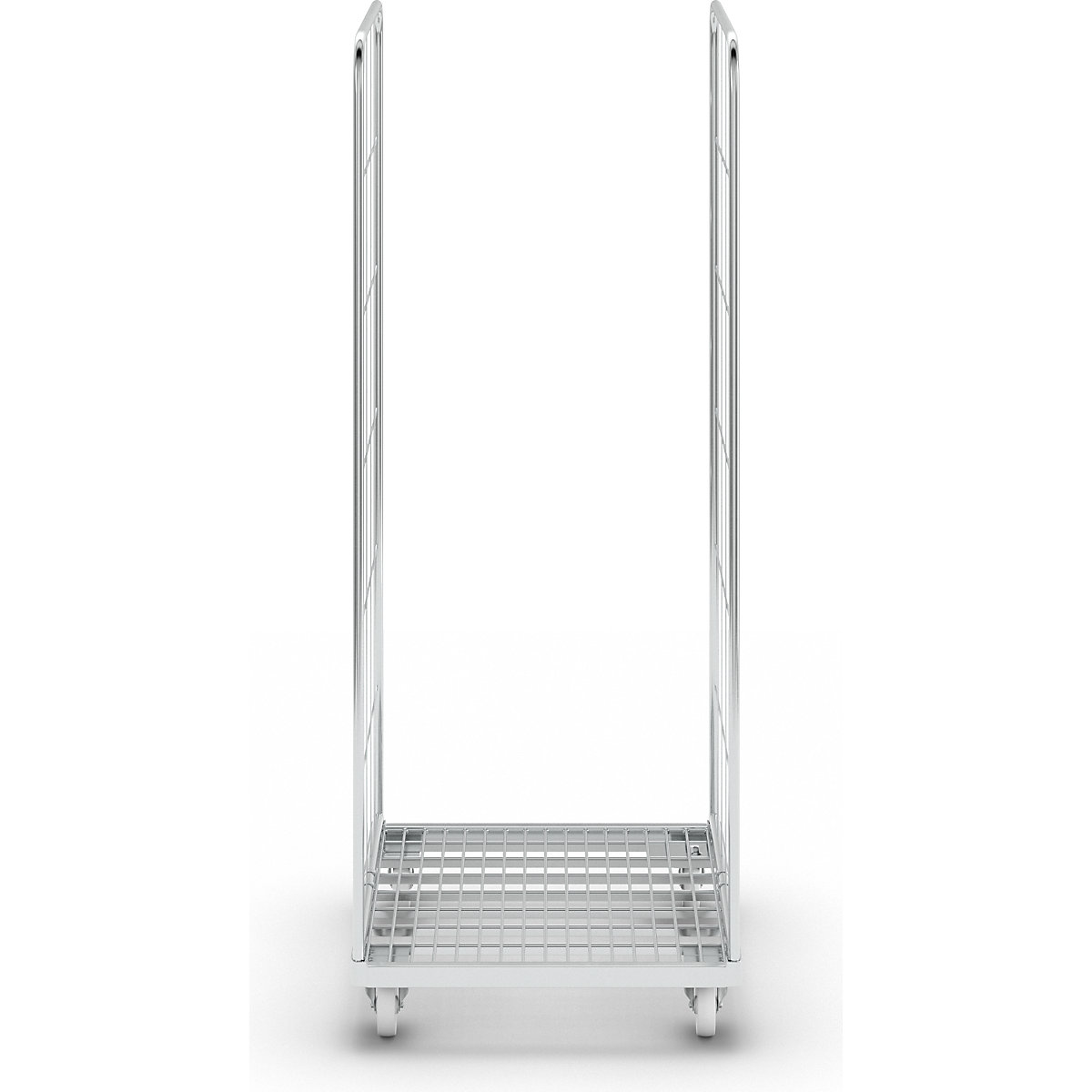

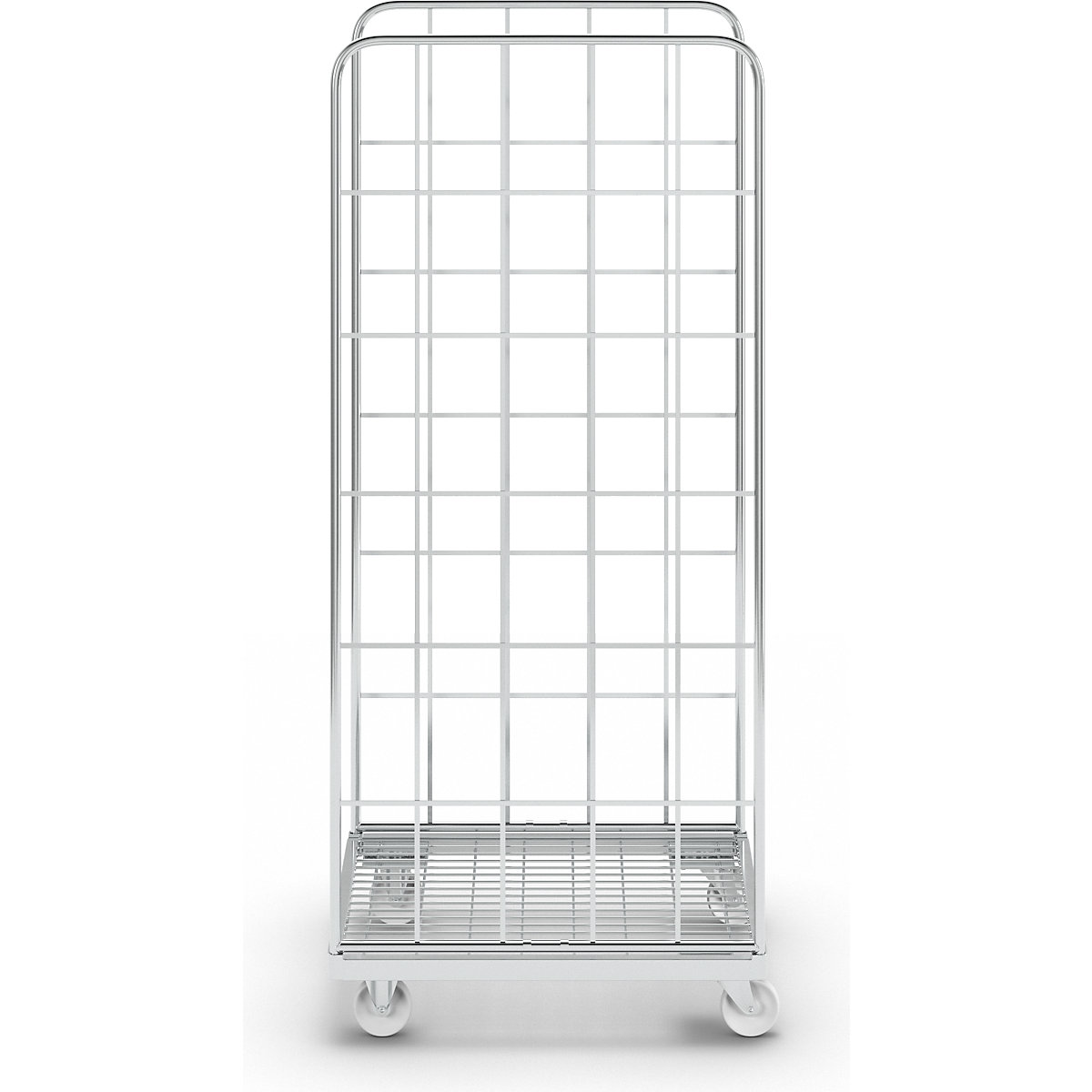

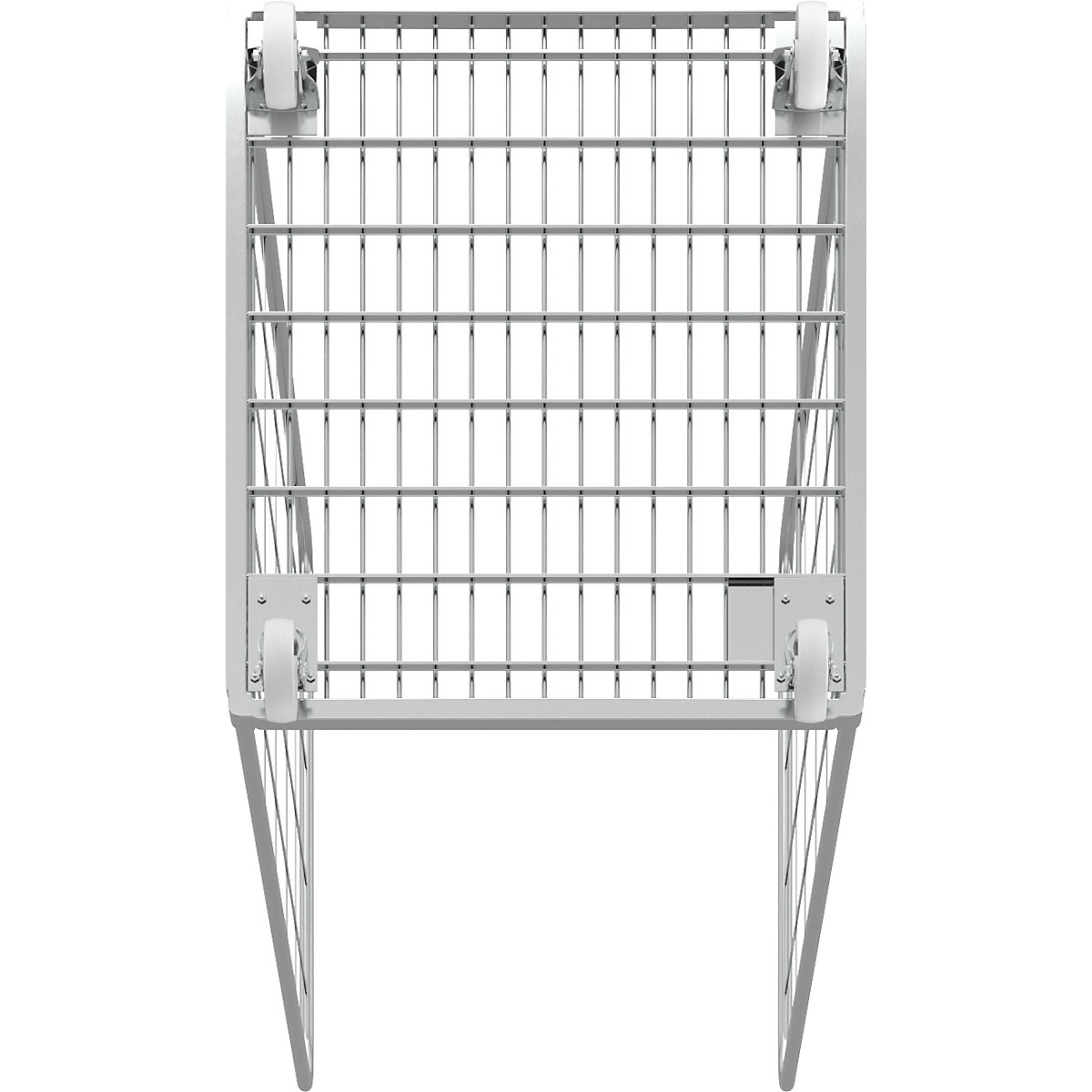

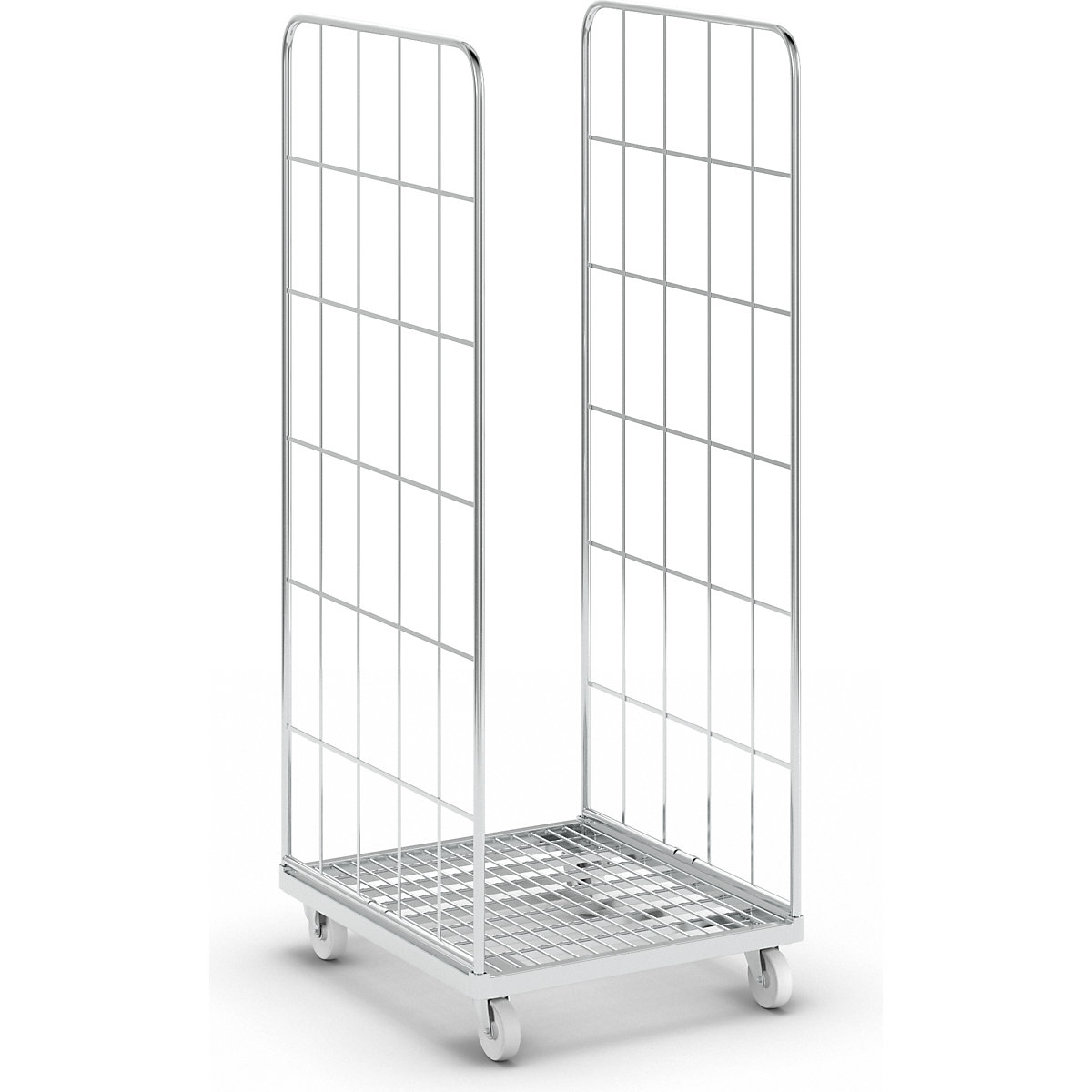

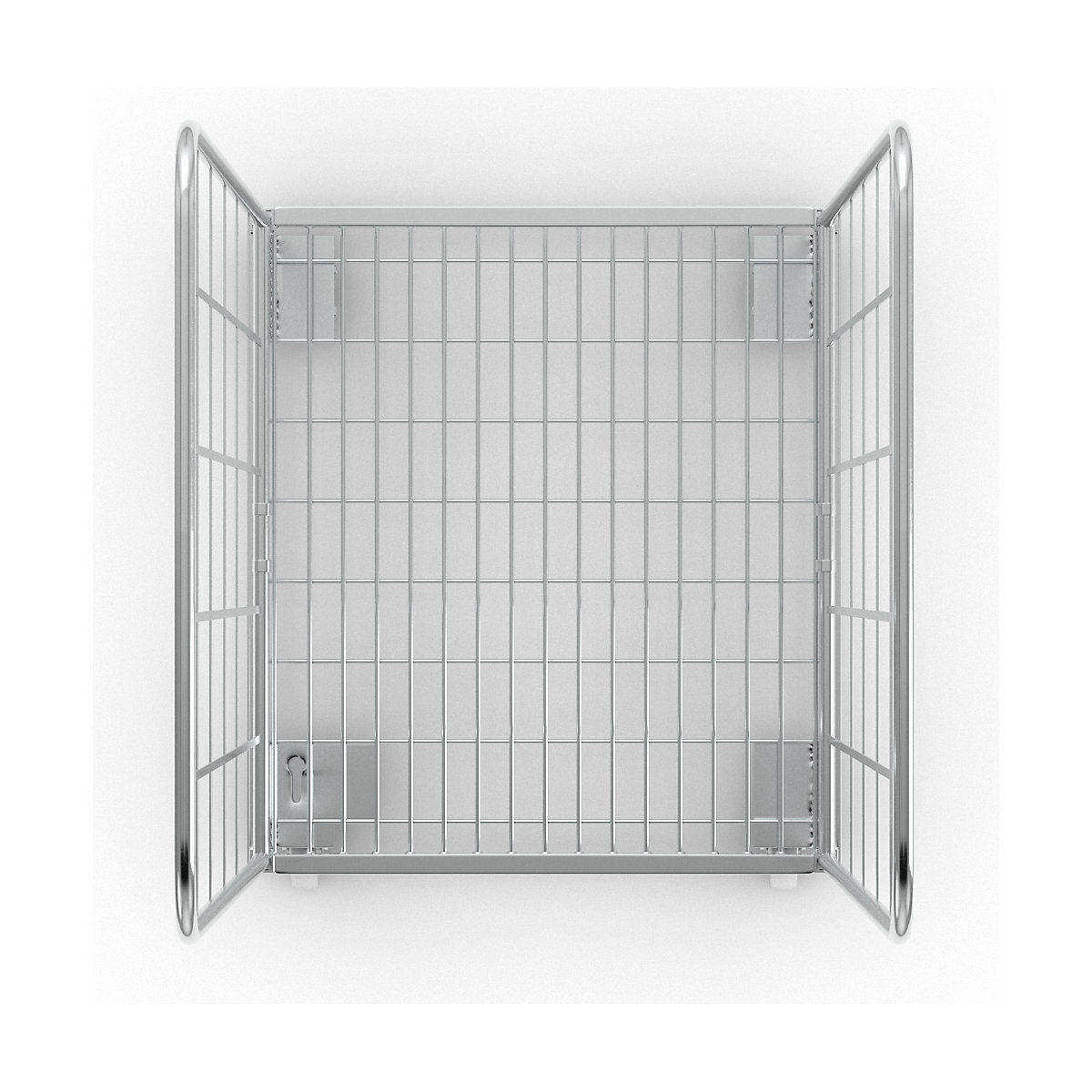

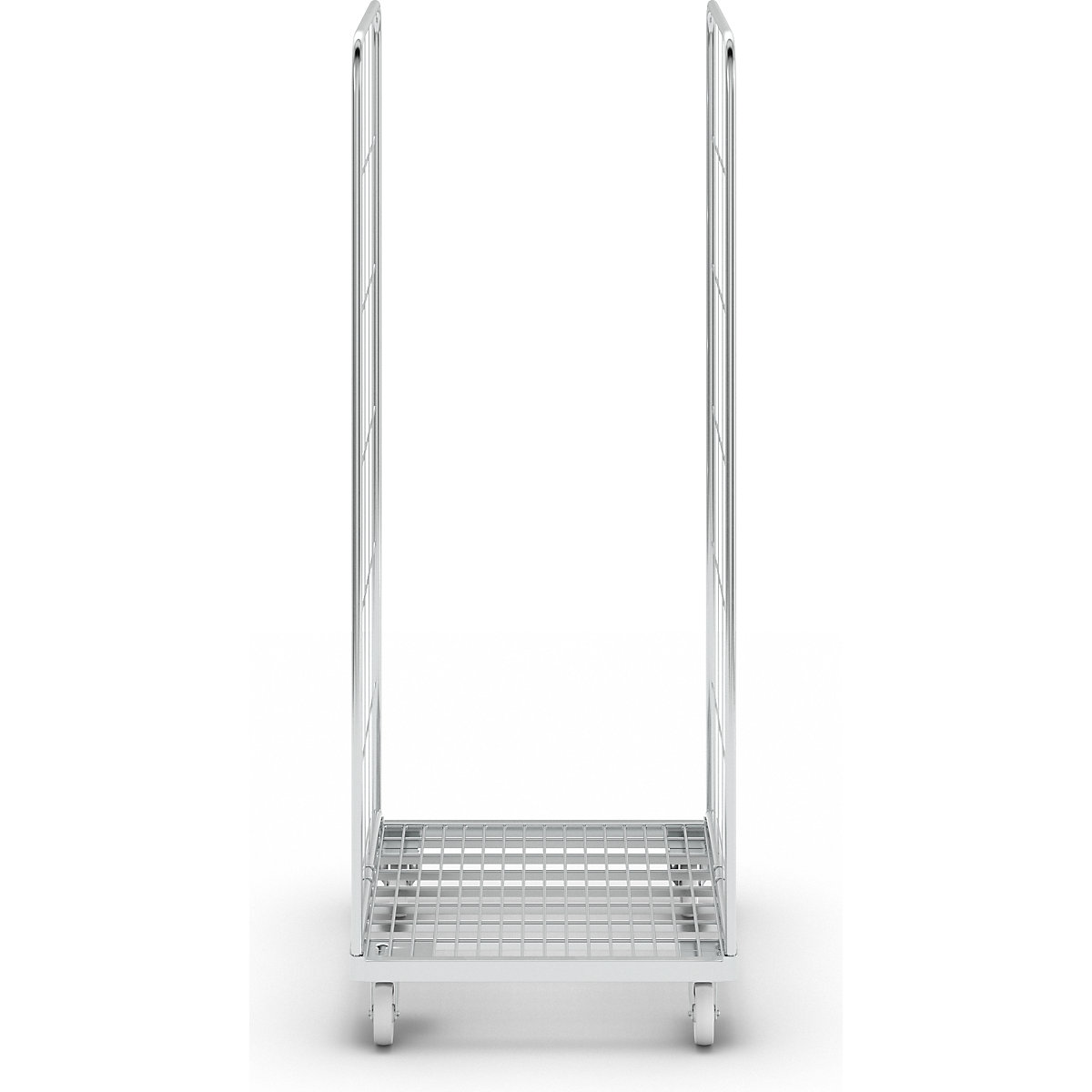

Steel roll container 2-sided, overall height 1830 mm
Ref.: 177699 10
Steel roll container, 2-sided, overall height 1830 mm, weight 27.4 kg
Price / items (Excl. VAT)
€ 295.00
Product description
Surface: electrolytically zinc plated in blue
Consists of:
One steel dolly made of a tubular steel frame of 40 x 20 mm, 6 flat iron supports 40 x 4 mm and 16 wire rods with a diameter of 5 mm.
This construction guarantees a max. load of up to 500 kg with evenly distributed loads.
The 4-sided tubular base frame is rounded at the bumpers, suitable for mounting standard side mesh panels with tubular steel frame of 22 mm diameter.
The castors are bolted at 4 points.
2 side mesh panels (up to 5 shelves possible)
Bracing for the side mesh panel and rear panel:
4 x vertical flat irons 12 x 3 mm
5 x horizontal flat irons 12 x 3 mm
Consists of:
One steel dolly made of a tubular steel frame of 40 x 20 mm, 6 flat iron supports 40 x 4 mm and 16 wire rods with a diameter of 5 mm.
This construction guarantees a max. load of up to 500 kg with evenly distributed loads.
The 4-sided tubular base frame is rounded at the bumpers, suitable for mounting standard side mesh panels with tubular steel frame of 22 mm diameter.
The castors are bolted at 4 points.
2 side mesh panels (up to 5 shelves possible)
Bracing for the side mesh panel and rear panel:
4 x vertical flat irons 12 x 3 mm
5 x horizontal flat irons 12 x 3 mm
Technical data
| Max. load | 500 kg |
|---|---|
| Width | 710 mm |
| Depth | 800 mm |
| Height | 1830 mm |
| Finish | zinc plated by galvanization |
| Wheel fittings | 2 swivel castors, 2 fixed castors |
| Wheel type | polypropylene |
| Wheel diameter | 108 mm |
| Transport dolly material | steel |
| Material of mesh | steel |
| Mesh height | 1650 mm |
| Internal width | 660 mm |
| Internal depth | 800 mm |
| Internal height | 1650 mm |
| Roll container model | 2-sided |
| Weight | 27.4 kg |
| Product type | roll containers |
| Supplied | assembled |
