Ref.: 177699 10

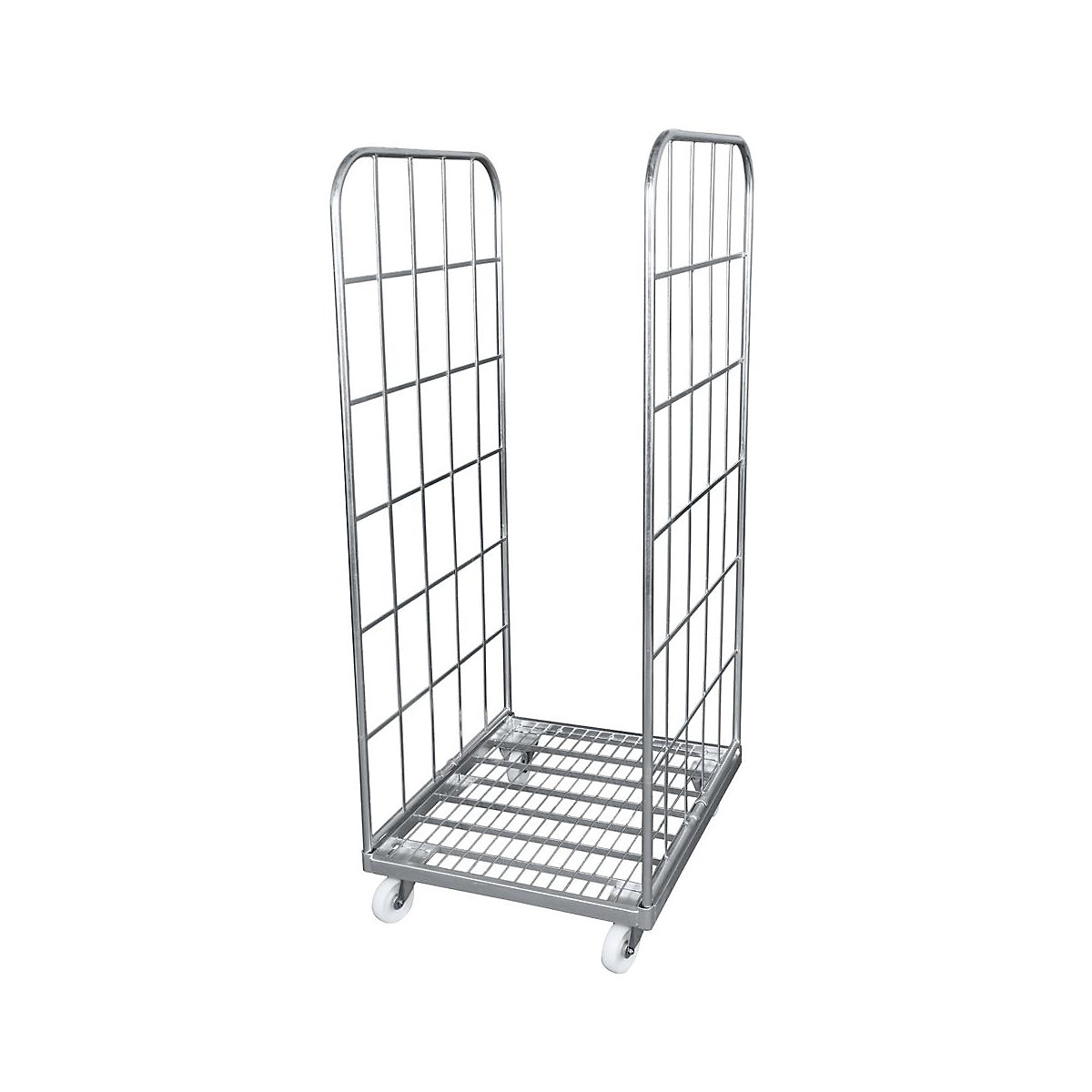

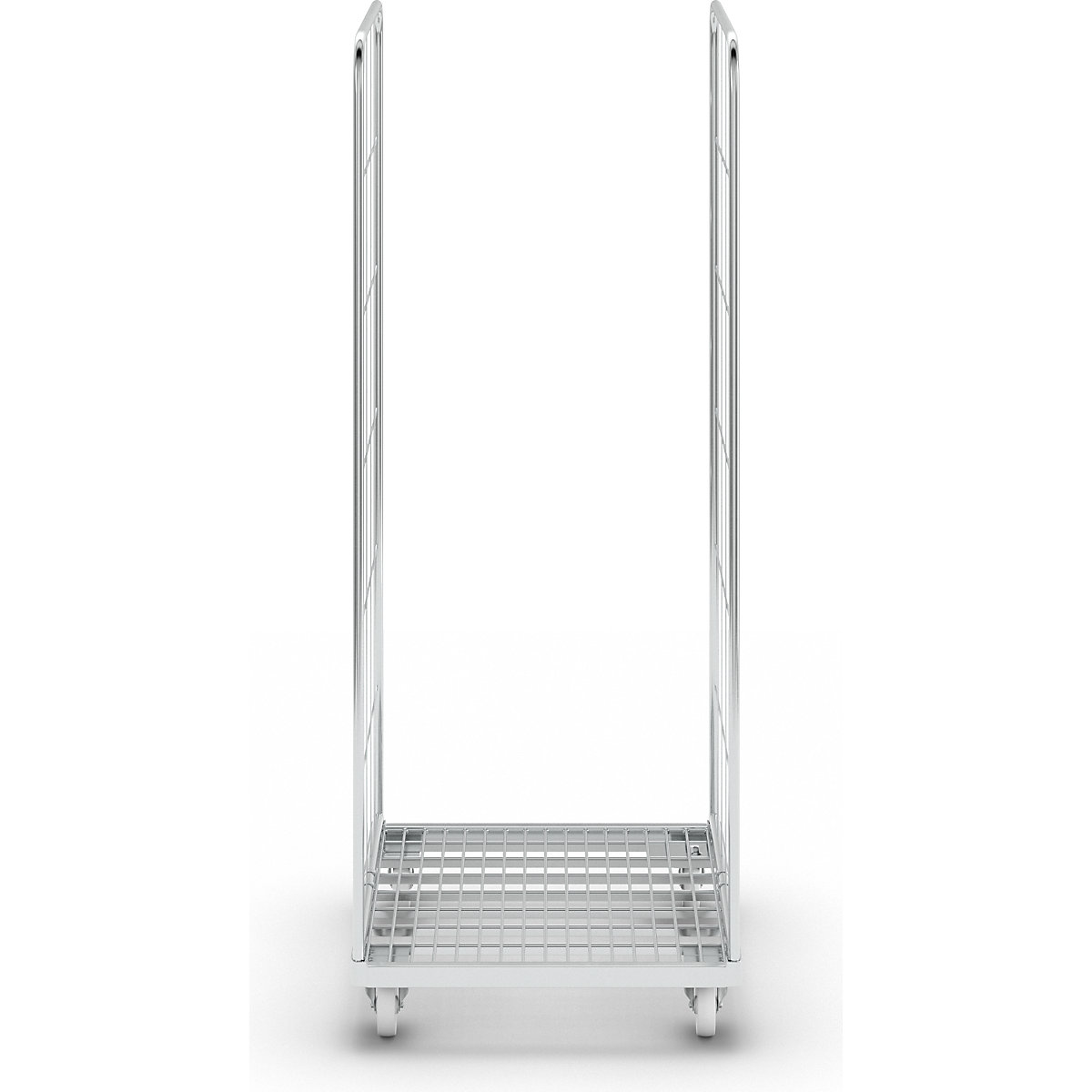

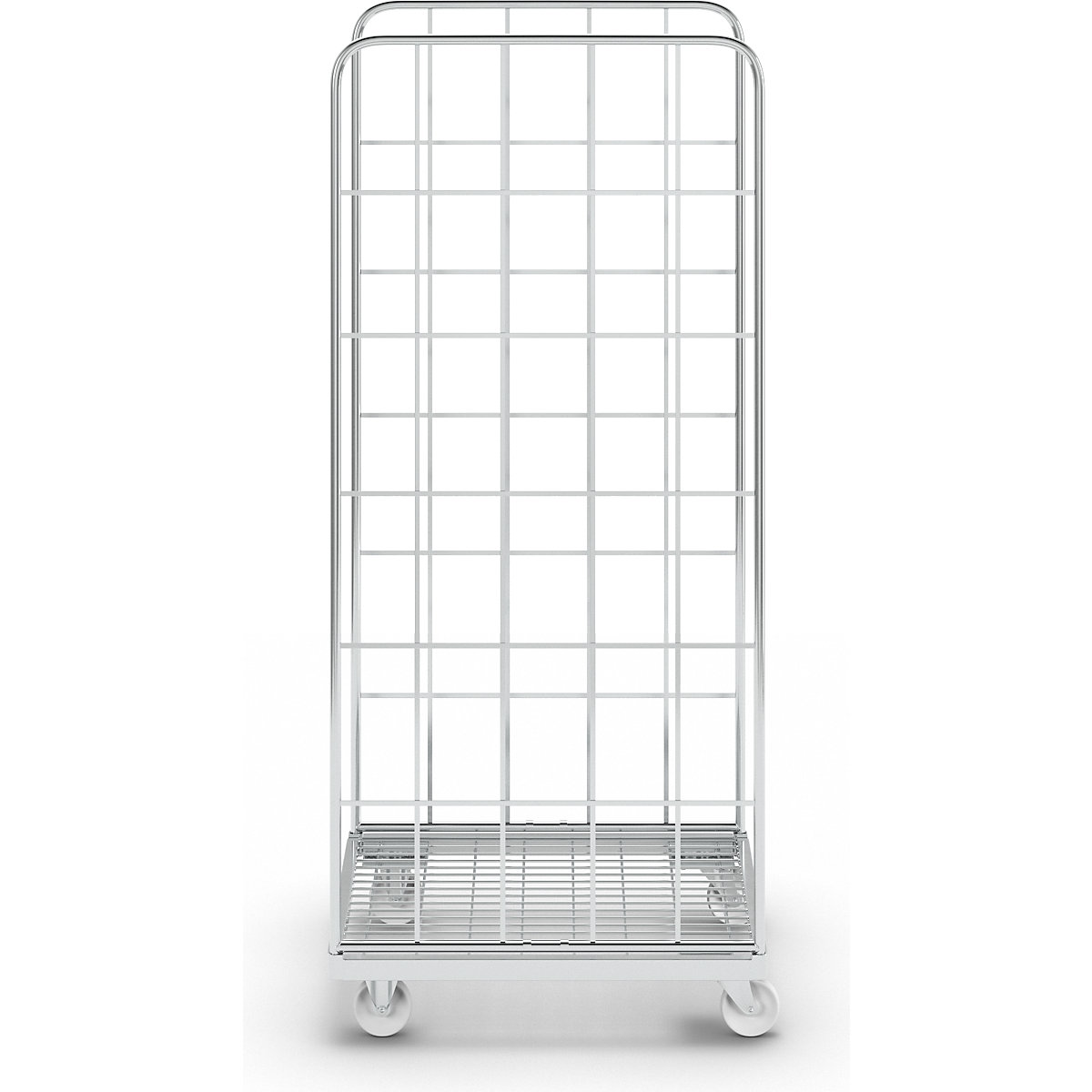

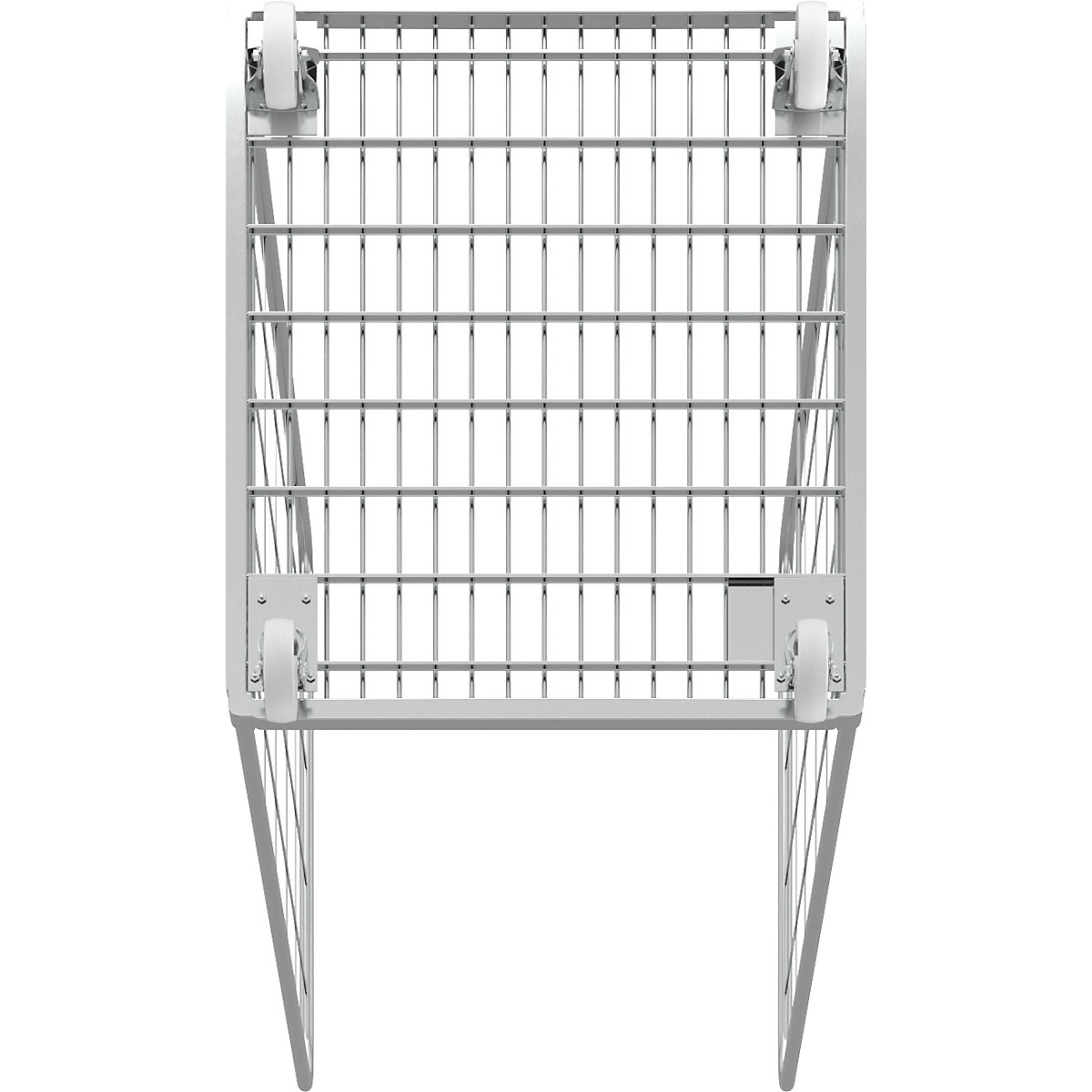

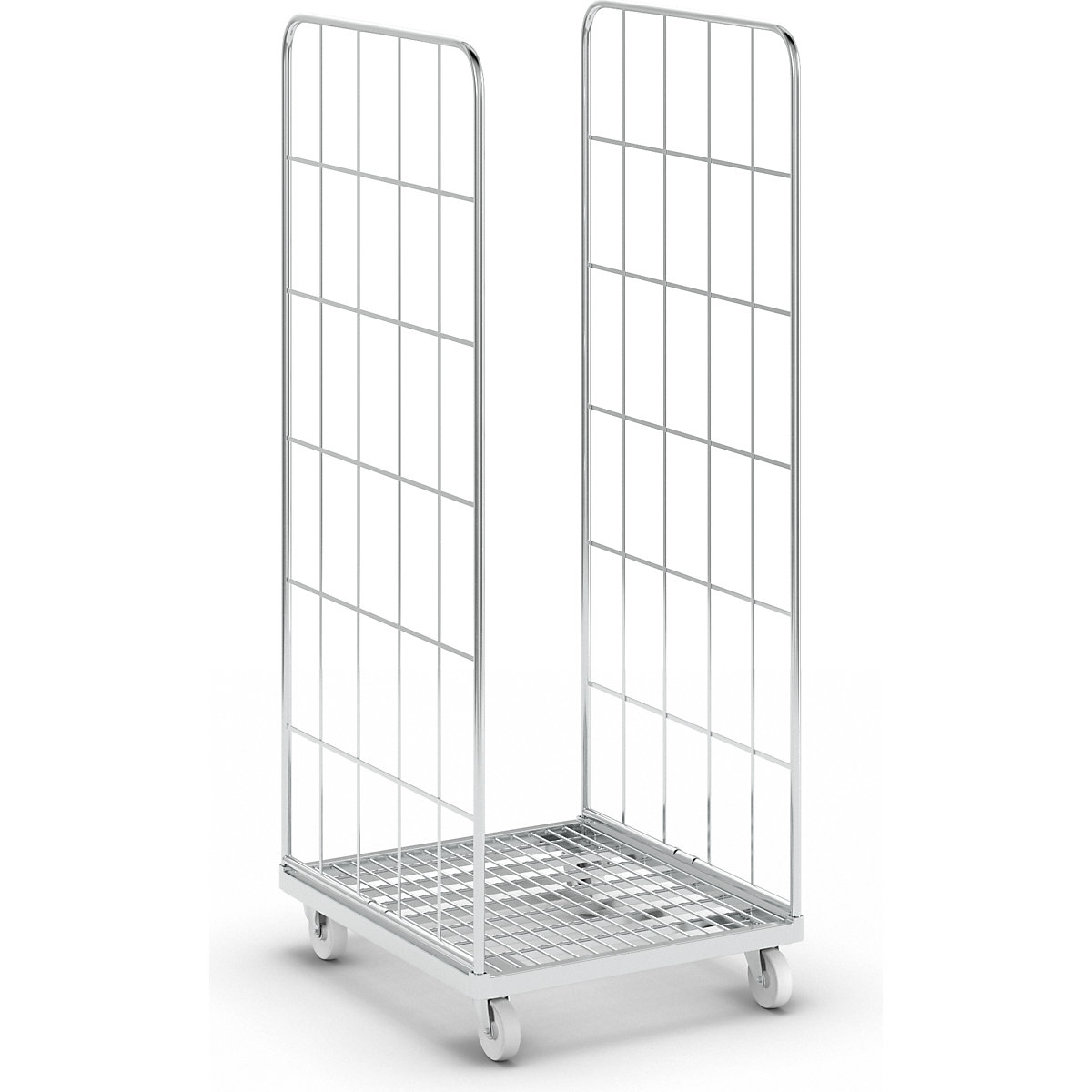

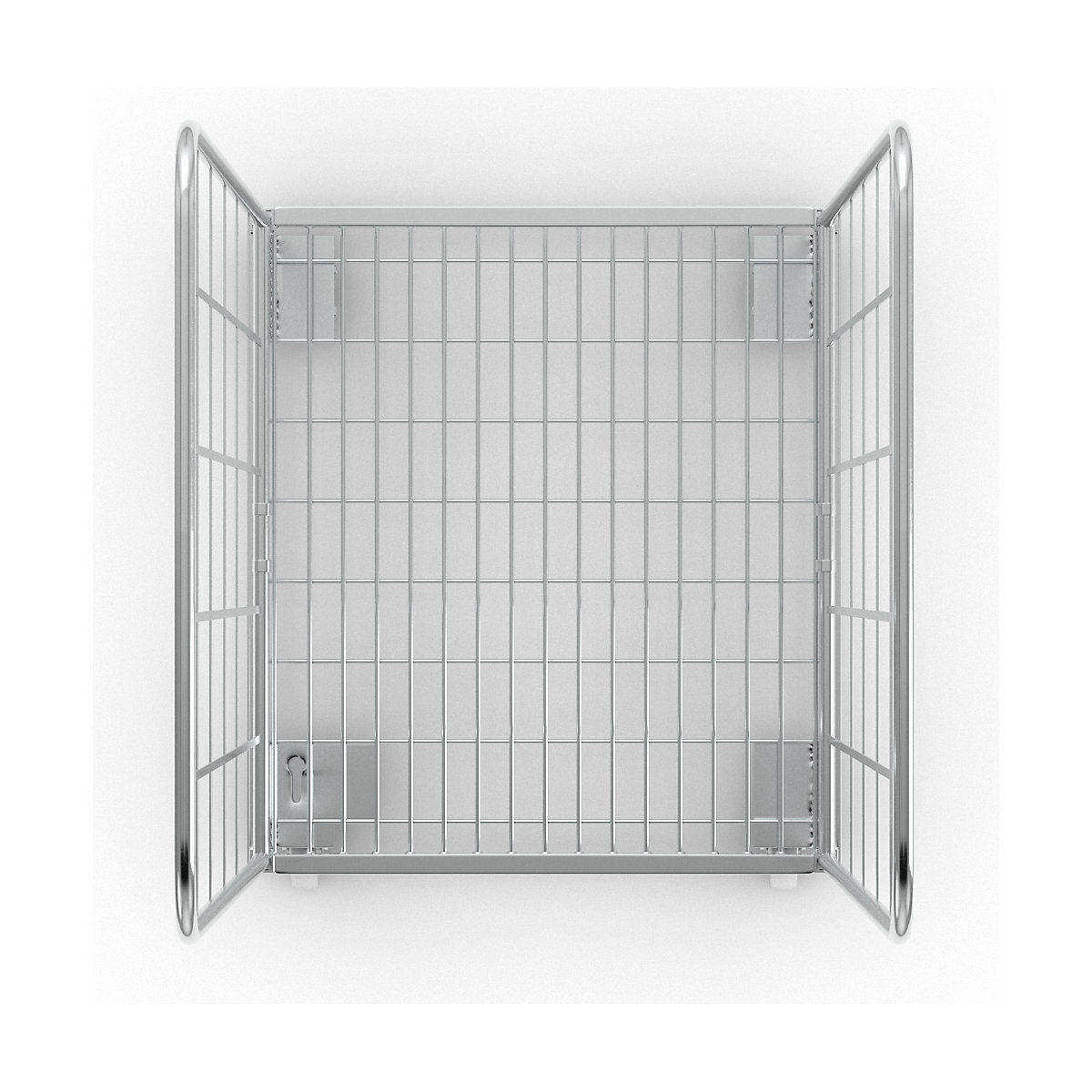

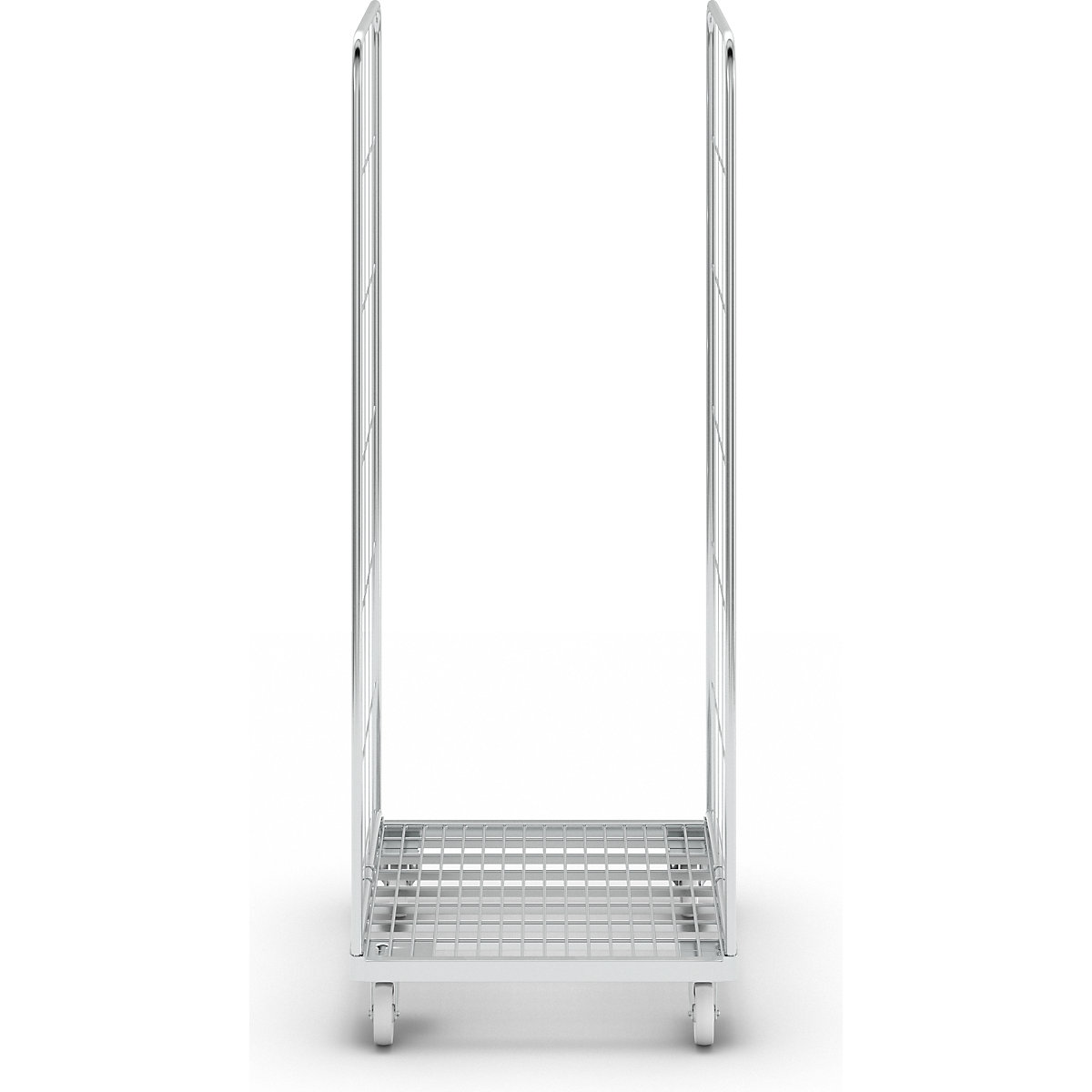

Steel roll container 2-sided, overall height 1830 mm
weight 27.4 kg
Ref.: 177699 10
Steel roll container 2-sided, overall height 1830 mm
weight 27.4 kg
weight 27.4 kg
€ 295.00
Price / item (Excl. VAT)
Delivery time: 12-14 Working Days
Good reasons to purchase products from us
- Guarantee of up to 15 years
- 30 day right of return
- Free delivery from Germany
- Fast delivery
We will be happy to help you
1 800 677 300
Monday-Friday 8am-5pm
Do you have any questions about this product?€ 295.00
Price / item (Excl. VAT)
Product description
- Mesh panels on 2 sides helps secure loads
- Zinc plating increases the level of corrosion protection
- Swivel castors and fixed castors make it flexible to move to the place of use
- Ready for immediate use as it is delivered fully assembled
Surface: electrolytically zinc plated in blue
Consists of:
One steel dolly made of a tubular steel frame of 40 x 20 mm, 6 flat iron supports 40 x 4 mm and 16 wire rods with a diameter of 5 mm.
This construction guarantees a max. load of up to 500 kg with evenly distributed loads.
The 4-sided tubular base frame is rounded at the bumpers, suitable for mounting standard side mesh panels with tubular steel frame of 22 mm diameter.
The castors are bolted at 4 points.
2 side mesh panels (up to 5 shelves possible)
Bracing for the side mesh panel and rear panel:
4 x vertical flat irons 12 x 3 mm
5 x horizontal flat irons 12 x 3 mm
Consists of:
One steel dolly made of a tubular steel frame of 40 x 20 mm, 6 flat iron supports 40 x 4 mm and 16 wire rods with a diameter of 5 mm.
This construction guarantees a max. load of up to 500 kg with evenly distributed loads.
The 4-sided tubular base frame is rounded at the bumpers, suitable for mounting standard side mesh panels with tubular steel frame of 22 mm diameter.
The castors are bolted at 4 points.
2 side mesh panels (up to 5 shelves possible)
Bracing for the side mesh panel and rear panel:
4 x vertical flat irons 12 x 3 mm
5 x horizontal flat irons 12 x 3 mm
Technical data
| Roll container model | 2-sided |
|---|---|
| Max. load | 500 kg |
| Width | 710 mm |
| Depth | 800 mm |
| Height | 1830 mm |
| Finish | zinc plated by galvanization |
| Wheel fittings | 2 swivel castors, 2 fixed castors |
| Wheel type | polypropylene |
| Wheel diameter | 108 mm |
| Platform material | steel |
| Mesh height | 1650 mm |
| Internal width | 660 mm |
| Internal depth | 800 mm |
| Internal height | 1650 mm |
| Frame material | steel |
| Weight | 27.4 kg |
| Product type | roll containers |
| Supplied | assembled |
