Ref.: 649460 10

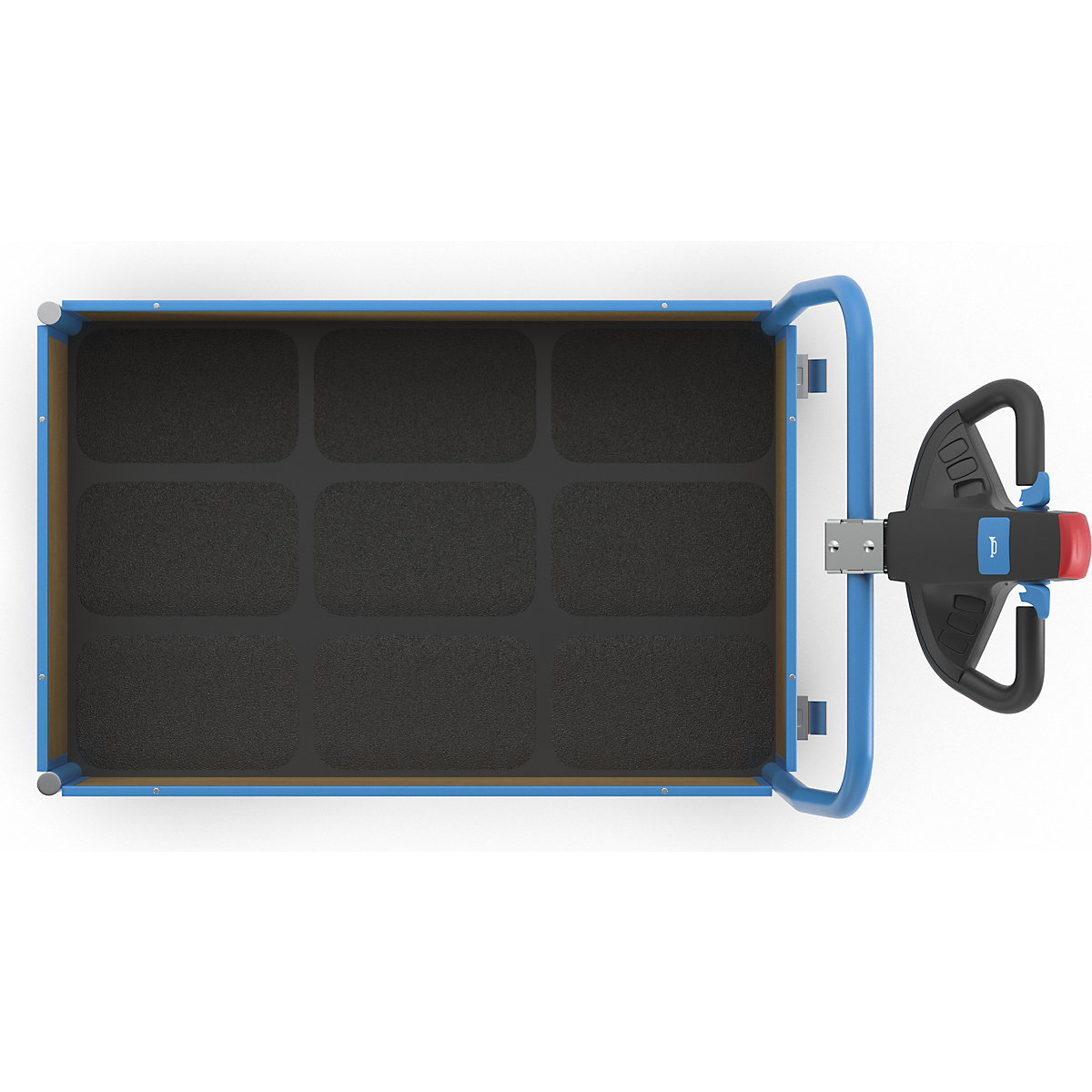

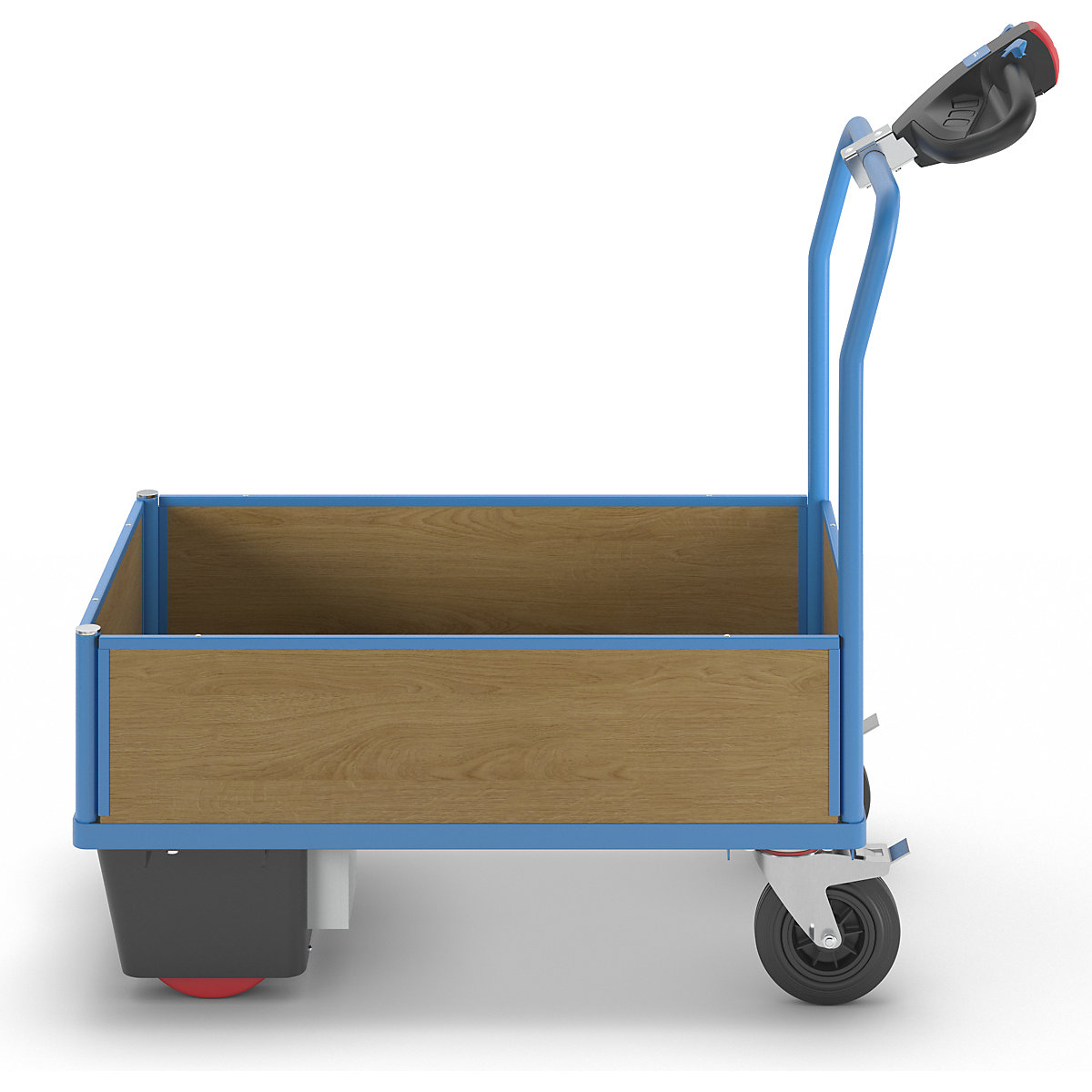

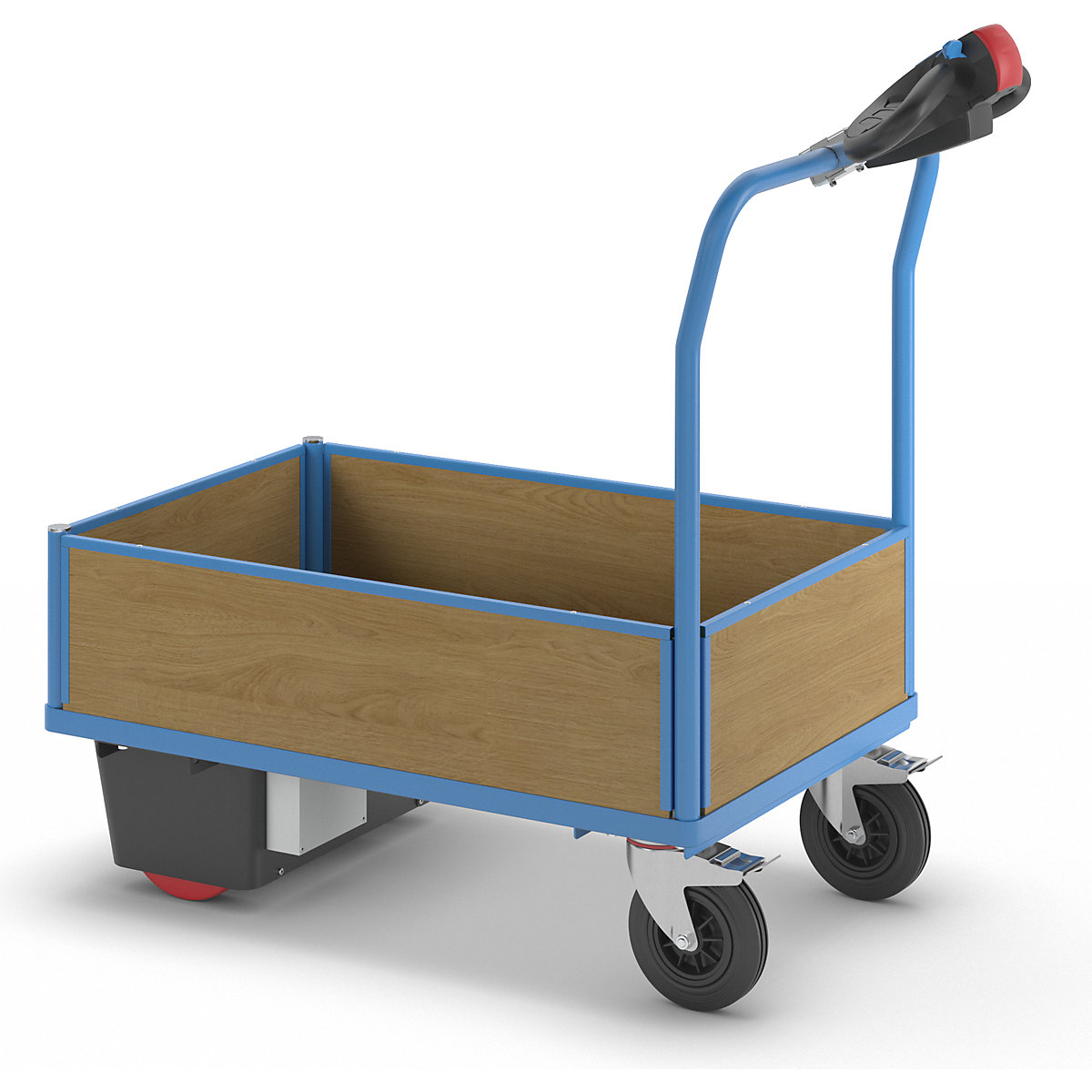

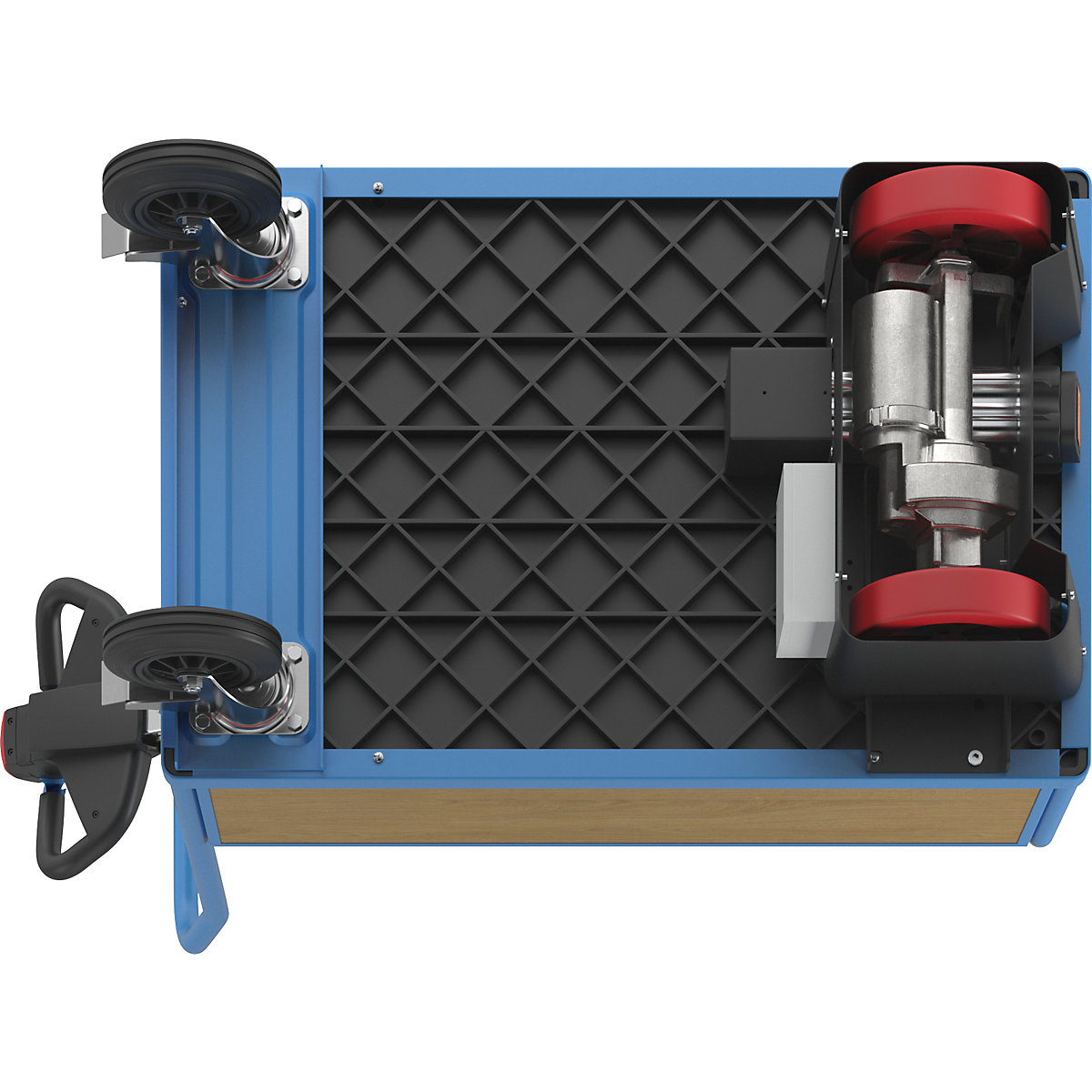

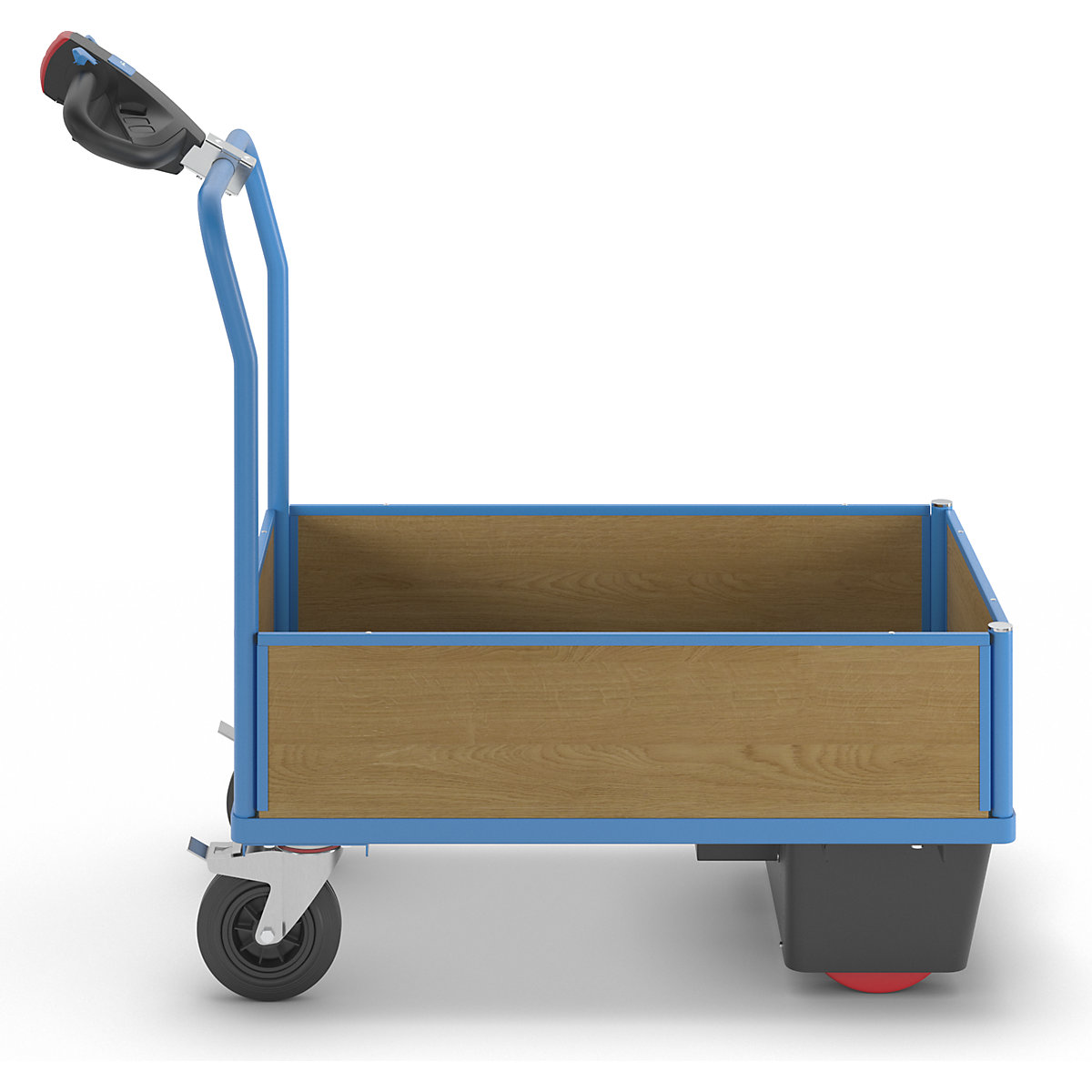

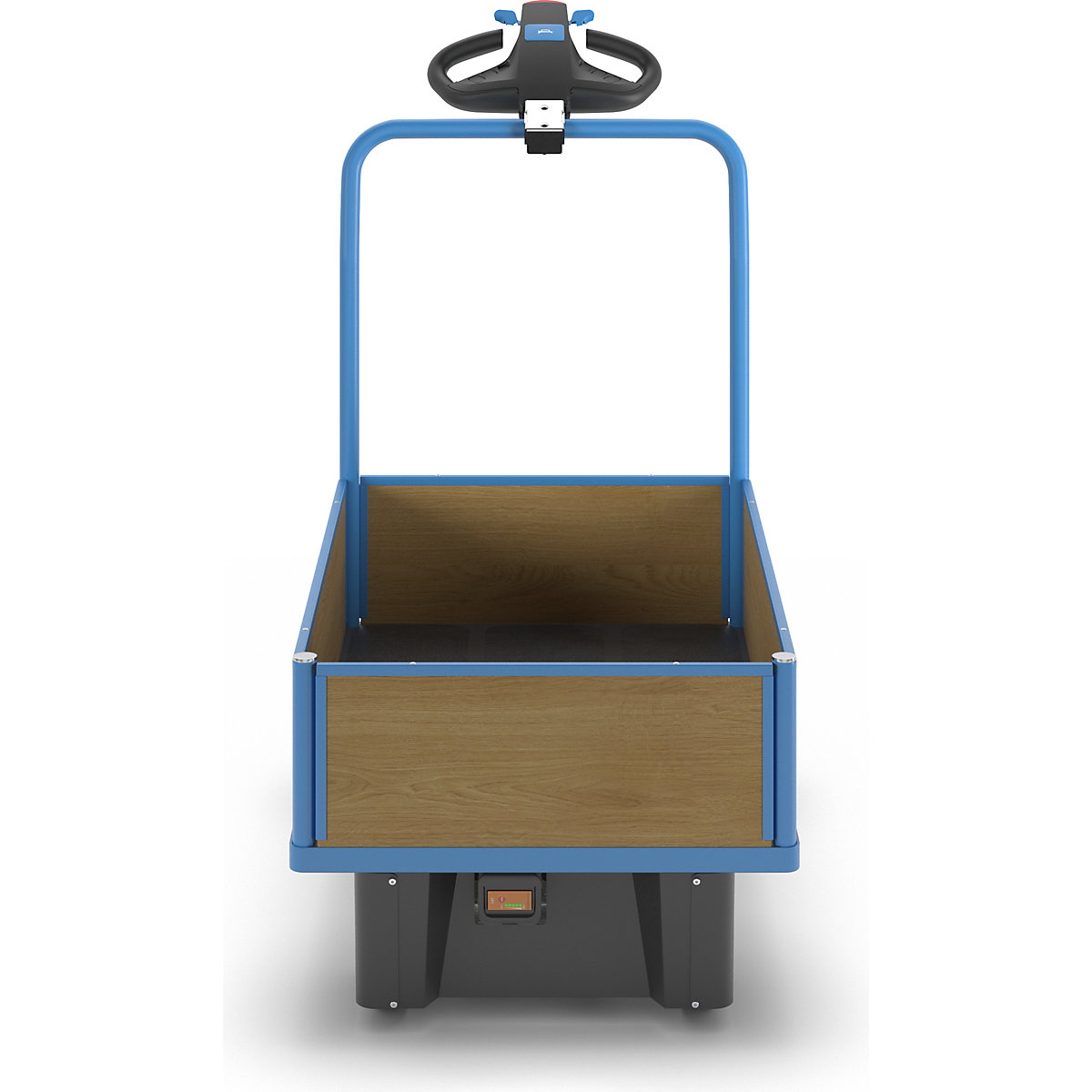

Platform truck with electric drive – eurokraft pro 4 half height MDF panels
LxWxH 1370 x 700 x 1300 mm
Platform length [mm]
Preferred RAL colour*
*Colours shown in the product image may vary.
Ref.: 649460 10
Platform truck with electric drive – eurokraft pro 4 half height MDF panels
LxWxH 1370 x 700 x 1300 mm
LxWxH 1370 x 700 x 1300 mm
€ 4,150.00
€ 3,690.00
Price / item (Excl. VAT)
Delivery time: 5-6 Week Delivery
Good reasons to purchase products from us
- Guarantee of up to 15 years
- 30 day right of return
- Free delivery from Germany
- Fast delivery
We will be happy to help you
1 800 677 300
Monday-Friday 8am-5pm
Product description
- Full half-height edges protect loads
- Highly versatile use due to modular design
- The replaceable, rechargeable battery system allows unlimited operating time
- Intuitive operation, perfect steering control
- Drawbar head with precise speed control, creep speed button, belly switch and horn
- Integrated foot protection on the e-module
The electric module is easy to retrofit to equip platform trolleys with an electric drive. Complete with powerful lithium ion rechargeable battery and battery charger. Wireless – the control panel controls the drive via Bluetooth.
Easy assembly: highly versatile modular design
Drive battery: replaceable lithium-ion battery
Charging status: indicated visually and acoustically by a battery level indicator
Full mobility: up to 8 h of operation with one battery charge
Replaceable battery system: simply replace the drained battery with a fully charged one to ensure continuous operation
Pairing: via Bluetooth, wireless, fleet operation possible
Charging time: 6 h until fully charged
Easy navigation
Fatigue-free operation: due to ergonomically shaped, multifunctional drawbar head
Easy steering: due to sturdy tubular handles
Infinitely adjustable speed control: using two thumb keys (maximum speed is 4 km/h)
Creep speed: can be activated as required, for high precision forward and reverse motion
Warning function: horn on drawbar head
Safety belly switch: prevents entrapment when reversing
Integrated foot protection: prevents being caught under the drive unit
For everyone: no certificate of competence (driver's licence) required
Protection against theft: access control by means of lock
Easy assembly: highly versatile modular design
Drive battery: replaceable lithium-ion battery
Charging status: indicated visually and acoustically by a battery level indicator
Full mobility: up to 8 h of operation with one battery charge
Replaceable battery system: simply replace the drained battery with a fully charged one to ensure continuous operation
Pairing: via Bluetooth, wireless, fleet operation possible
Charging time: 6 h until fully charged
Easy navigation
Fatigue-free operation: due to ergonomically shaped, multifunctional drawbar head
Easy steering: due to sturdy tubular handles
Infinitely adjustable speed control: using two thumb keys (maximum speed is 4 km/h)
Creep speed: can be activated as required, for high precision forward and reverse motion
Warning function: horn on drawbar head
Safety belly switch: prevents entrapment when reversing
Integrated foot protection: prevents being caught under the drive unit
For everyone: no certificate of competence (driver's licence) required
Protection against theft: access control by means of lock
All specified max. loads apply with uniform load distribution.
Available in most RAL colours. Only 10 % extra.
10 year guarantee

Technical data
Max. load | 500 kg |
---|---|
Fittings | 4 half-height panels |
Loading height | 285 mm |
Height | 1300 mm |
Push handle height | 1130 mm |
Frame colour | light blue RAL 5012 |
Wheel type | solid rubber / polyurethane |
Wheel diameter | 200 / 230 mm |
Wheel bearing | roller bearing |
Wheel fittings | 2 swivel castors with brakes, 2 drive wheels |
Platform colour | black |
Platform material | plastic |
Frame material | steel |
Panel height | 235 mm |
Side panel material | MDF panel |
Battery capacity | 12 Ah |
Mains voltage | AC 100 – 240 V |
Charging time | 6 hrs |
Power | 0.25 kW |
Voltage | 24 V |
Max. speed | 5 km/h |
Product type | platform trucks with electric drive |
Supplied | partially assembled |
Platform length | 1010 mm |
Platform width | 660 mm |
Length | 1370 mm |
Width | 700 mm |
Weight | 71 kg |
