Ref.: 529516 10

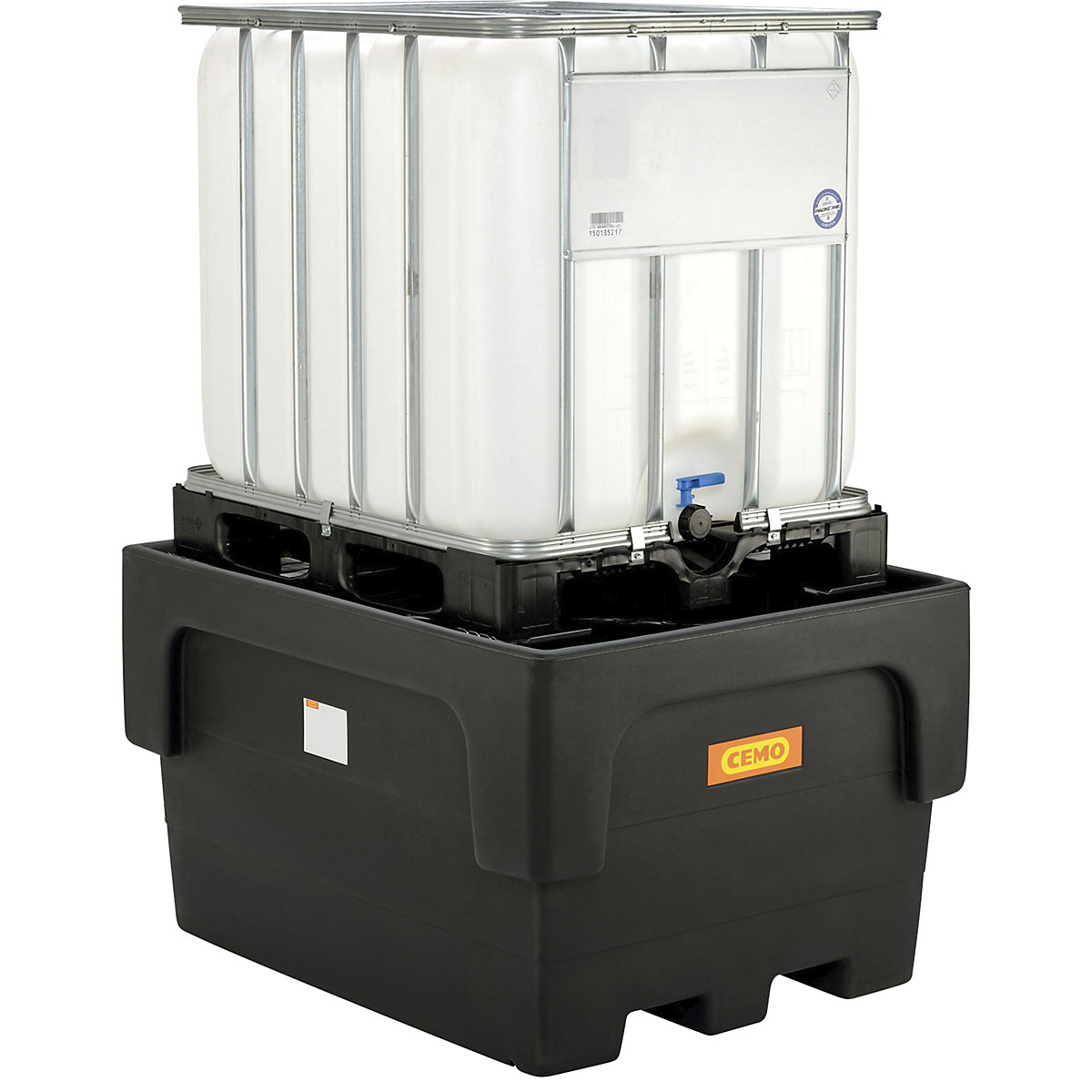

PE sump tray for IBC/CTC tank containers – CEMO for 1 x IBC/CTC

(1)
PE sump tray for IBC/CTC tank containers – CEMO
With PE cross brace

with PE cross brace

Type of grate
€ 1,080.00
Price / item (Excl. VAT)
Delivery time: 5-6 Week Delivery
Product description
  • For the compliant indoor storage of aggressive and water-polluting liquids
  • Made of high-quality polyethylene (LDPE), highly resistant to aggressive media, acids, alkalis, oils etc.
  • Can be accessed from 2 sides with a stacker and pallet truck (transport only when empty – without IBC/KTC)
  • With a platform (support cross/grate) for easy and safe placement of the tank containers
  • Stackable – for transport or storage (without cross brace / grate)
  • With national technical approval of the DIBt, Berlin (Z-40.22-564)
Tank containers can be placed directly on the integrated cross brace or either on the steel grate or the PE perforated panel.
Sump capacity 1100 litres.
High max. load and resilience due to an integrated, sturdy PE cross brace – the weight is transferred directly onto the floor. Max. load 1500 kg per storage space.

Sump trays can only be transported when empty – without IBC/CTC.
The cross brace is supplied partly assembled – easy self-assembly.
For water hazardous liquids
For water hazardous liquids
Resistant to aggressive, corrosive chemicals
Resistant to aggressive, corrosive chemicals
Technical data
Sump capacity1100 l
Length1460 mm
Width1170 mm
Materialpolyethylene
Colourblack
1000 l container capacity1 pcs.
Max. load1500 kg
Test symbolwith general certification from the DIBt (German Institute for Construction Technology) Berlin
For mediawater hazardous dangerous goods chemicals, acids and alkalis oils
Hazard classfor corrosive and water hazardous liquids in accordance with GHS
Featurestackable clearance for forklift
Certificationwith
Product type1000 l sump trays
Suppliedpartially assembled
Type of gratewith PE cross brace
Height850 mm
Weight43 kg
