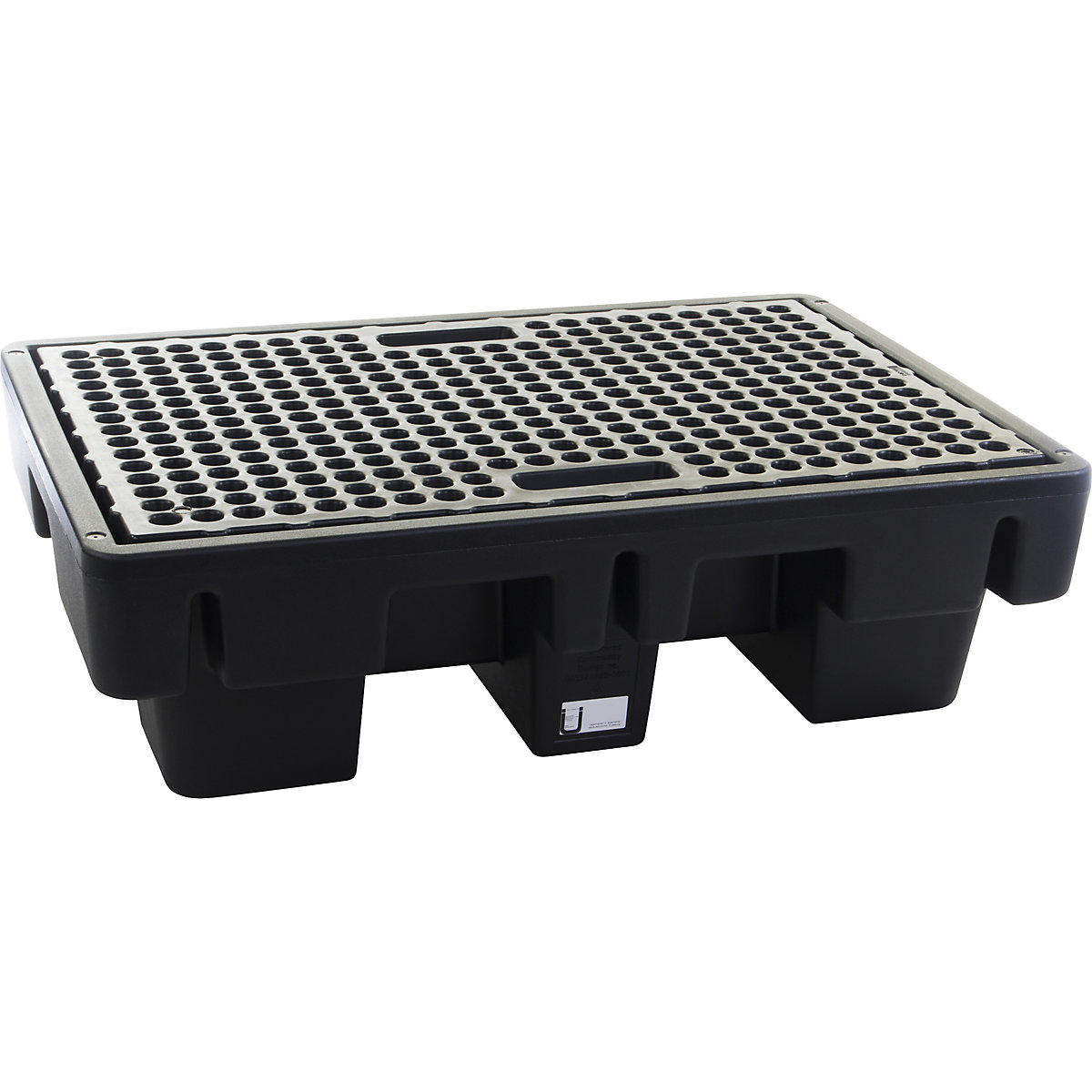

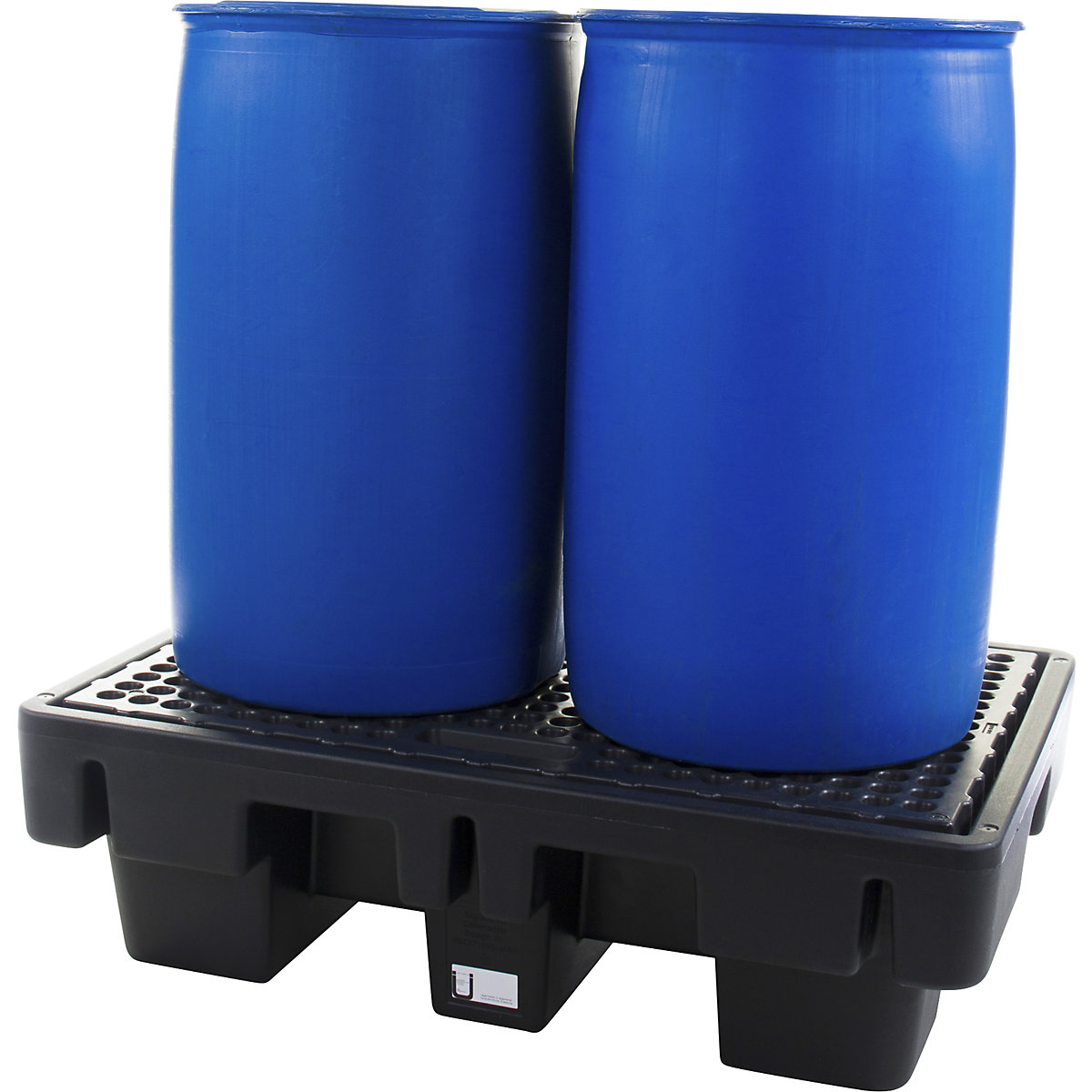

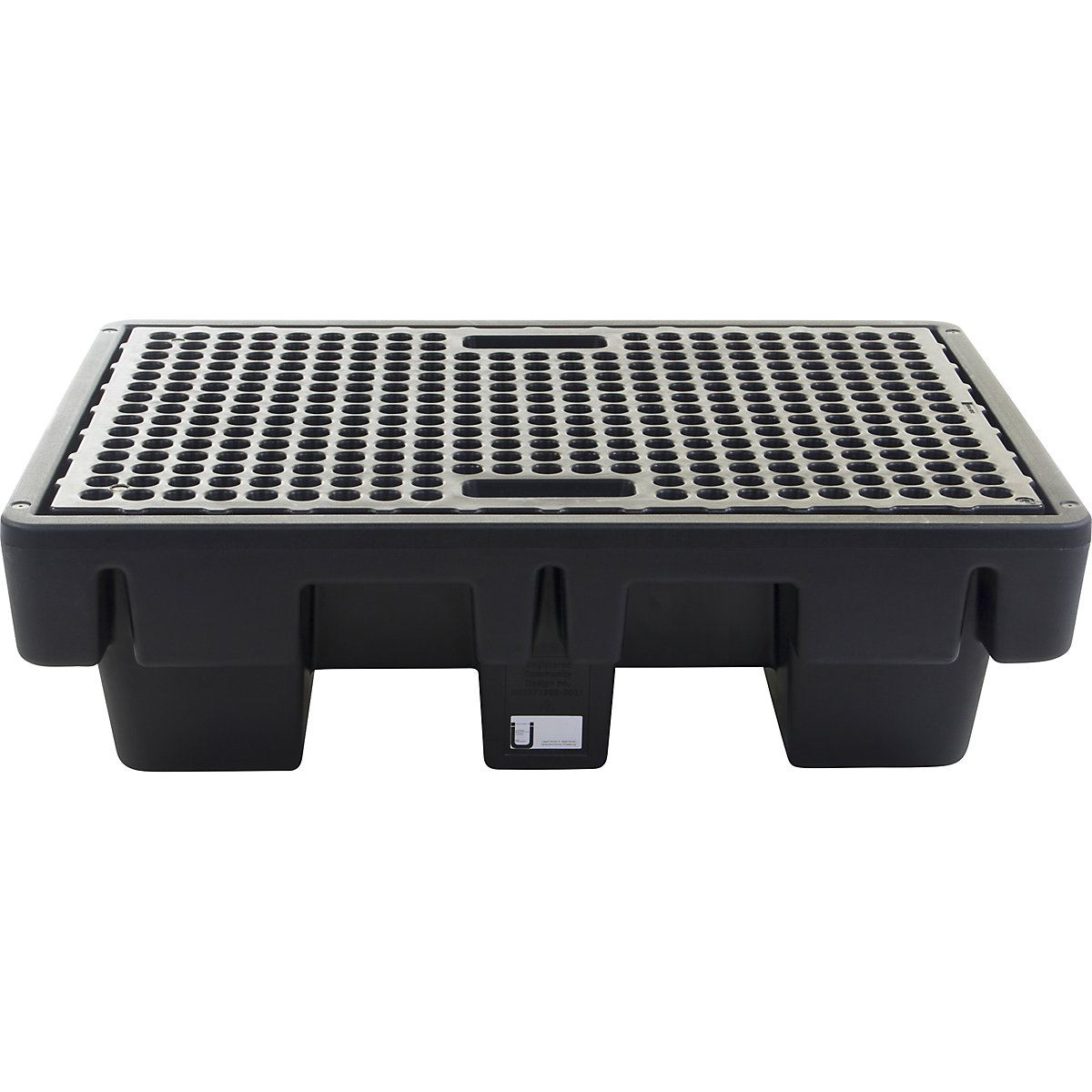

PE drum sump for 2 x 200 l drums sump capacity 220 l, with PE grate

  • For regulation compliant indoor storage of aggressive and water hazardous liquids in GHS categories 1 – 4
  • With general certification from the DIBt (German Institute for Construction Technology), Berlin (Z-40.22-380)
  • Accessible from two sides with forklift and pallet truck
  • Sumps in Euro pallet size – drums can be placed directly on the tray grate or on pallets for storage
  • Sump and grate made entirely of polyethylene – highly resistant to oils, acids, alkaline solutions, chemicals etc.
Resistant to aggressive, corrosive chemicals
Resistant to aggressive, corrosive chemicals
For water hazardous liquids
For water hazardous liquids
New
Ref.: 546855 10
PE drum sump for 2 x 200 l drums, sump capacity 220 l, with PE grate, LxWxH 910 x 1310 x 380 mm
Quantity discount from 3
Price / items (net)
€ 309.00

Product description
+
Sturdy construction made of chemical and UV resistant, hardwearing polyethylene (MDPE). Can be stacked to save space.

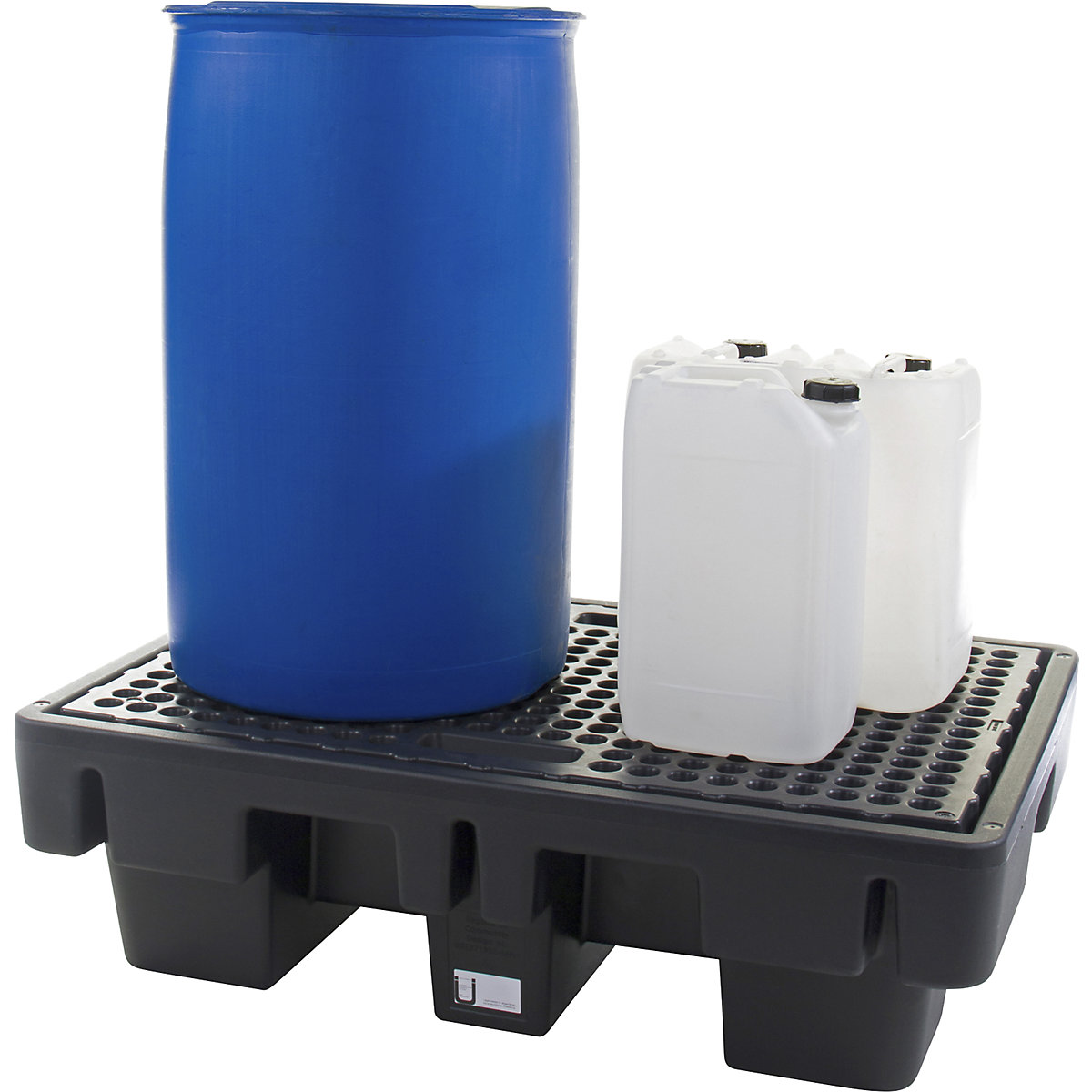

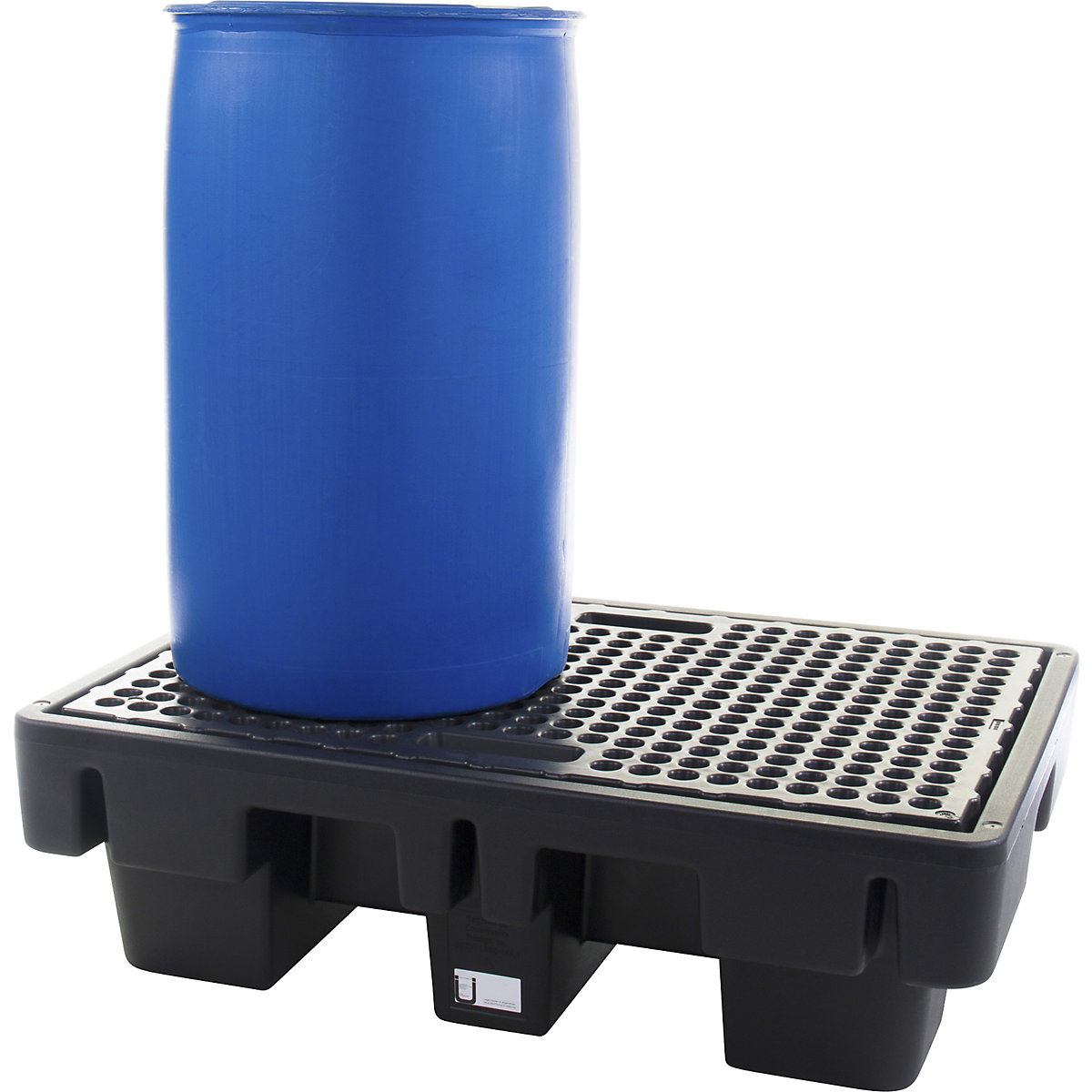

Drum sump with a PE grate – drums and small containers can be placed directly on the tray grate or on pallets with a Euro pallet size of 1200 x 800 mm for storage. Accessible from two sides (forklift pockets on long side 220 mm each, spacing 170 mm).
  • For regulation compliant indoor storage of aggressive and water hazardous liquids in GHS categories 1 – 4
  • With general certification from the DIBt (German Institute for Construction Technology), Berlin (Z-40.22-380)
  • Accessible from two sides with forklift and pallet truck
  • Sumps in Euro pallet size – drums can be placed directly on the tray grate or on pallets for storage
  • Sump and grate made entirely of polyethylene – highly resistant to oils, acids, alkaline solutions, chemicals etc.
Resistant to aggressive, corrosive chemicals
Resistant to aggressive, corrosive chemicals
For water hazardous liquids
For water hazardous liquids
Technical data
+
Sump capacity220 l
Pallet capacity1 Euro
Length910 mm
Width1310 mm
Height380 mm
Materialpolyethylene
Drum capacity2 x 200 l
Type of gratewith PE grate
Colourblack
Max. load500 kg
Clearance height90 mm
Weight27.6 kg
Distributed load500 kg
Forklift pocket spacing170 mm
Fork pocket dimensions220 x 90 mm
Certificationwith
Suppliedassembled
