Hazardous goods storage container for water hazardous media, cold-insulated – LaCont external HxWxD 2585 x 5075 x 6300 mm
zinc plated
Ref.: 523501 10
Hazardous goods storage container for water hazardous media, cold-insulated – LaCont external HxWxD 2585 x 5075 x 6300 mm
zinc plated
zinc plated
Non-icing and condensation free
For water hazardous liquids
Score: 2.8/5.9€ 46,300.00
Price / item (Excl. VAT)
Delivery time: 9-10 Week Delivery
Good reasons to purchase products from us
- Guarantee of up to 15 years
- 30 day right of return
- Free delivery from Germany
- Fast delivery
€ 46,300.00
Price / item (Excl. VAT)
€ 46,300.00
Price / item (Excl. VAT)
Delivery time: 9-10 Week Delivery
Good reasons to purchase products from us
- Guarantee of up to 15 years
- 30 day right of return
- Free delivery from Germany
- Fast delivery
Product description
- Frost-free, regulation-compliant and flexible outdoor storage of temperature-sensitive hazardous substances
- Thermally insulated containers protect valuable media against the effects of frost and low temperatures
- Approved for water hazardous liquids in GHS categories 1 – 4
- Walls, roof and doors are lined on the inside with 60 mm thick, non-combustible insulation material
- Heated with non-explosion-protected electric heater
- Robust, zinc plated steel construction
- Can be moved at any time when empty – crane eyelets, forklift access
- With double doors as standard
- Hot dip galvanised sump tray with grate, max. load 1000 kg/m² with evenly distributed load
- Can be used as small container storage in conjunction with shelving (accessory)
Hazardous substance storage container for water-hazardous media – thermally insulated for frost-free hazardous substance storage
The cold-insulated hazardous substance storage container for water-hazardous media reliably protects temperature-sensitive liquids from frost and low outdoor temperatures. As a thermally insulated hazardous substance container, it combines a robust steel construction with effective insulation and is suitable for water-hazardous liquids of GHS categories 1 to 4.

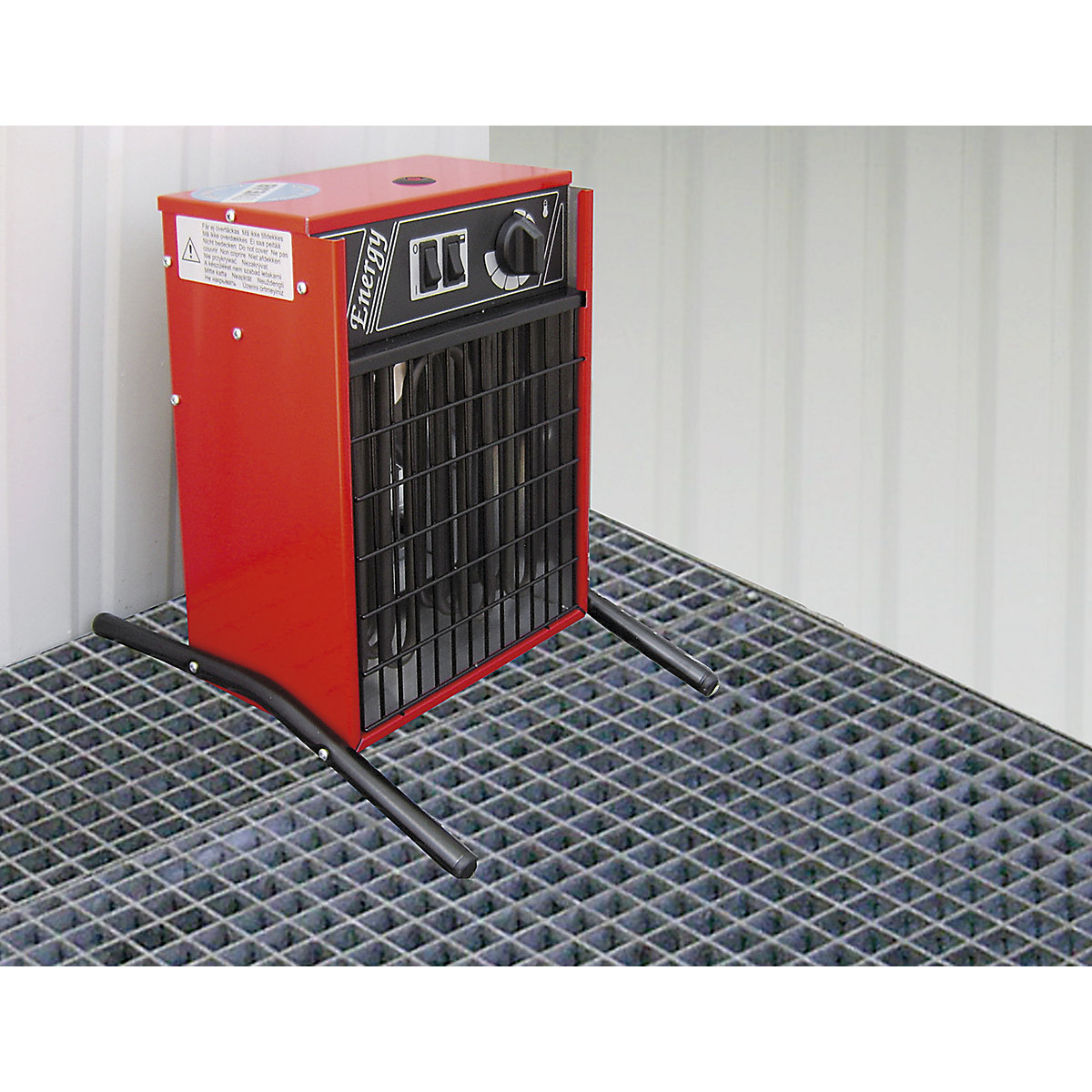

Walls, roof and doors are lined on the inside with 60 mm thick, non-combustible insulating material. A factory-fitted recirculating air heater supports frost-free hazardous substance storage. It is wired to the external control box and designed for 230 volts. The heater is not explosion-proof.
Zinc plated, profiled wall and roof panels made of sheet steel as well as reinforced roof and floor frame profiles ensure high stability. Weather-protected ventilation openings are located in the doors and the rear wall. Double doors with a safety lock allow convenient and controlled access.
Hot dip galvanised sump trays with a grate collect leaking liquids. All-round fluid guiding plates – except in the door area – support targeted retention. The grate can withstand a maximum load of 1000 kg/m² with an evenly distributed load.
Even open containers can be stored in the thermally insulated hazardous substance container. Opening, filling and emptying during storage are also possible. With optional shelving, the container can be used as a walk-in small container store. Crane eyes and compatibility with a stacker also enable the empty container to be moved flexibly for mobile, compliant outdoor storage of hazardous substances.
Options at an extra cost
Insulation of the sump tray
Exterior painting in sky blue RAL 5015
Snow load: 150 kg/m²
According to DIN EN 1055
The cold-insulated hazardous substance storage container for water-hazardous media reliably protects temperature-sensitive liquids from frost and low outdoor temperatures. As a thermally insulated hazardous substance container, it combines a robust steel construction with effective insulation and is suitable for water-hazardous liquids of GHS categories 1 to 4.
Walls, roof and doors are lined on the inside with 60 mm thick, non-combustible insulating material. A factory-fitted recirculating air heater supports frost-free hazardous substance storage. It is wired to the external control box and designed for 230 volts. The heater is not explosion-proof.
Zinc plated, profiled wall and roof panels made of sheet steel as well as reinforced roof and floor frame profiles ensure high stability. Weather-protected ventilation openings are located in the doors and the rear wall. Double doors with a safety lock allow convenient and controlled access.
Hot dip galvanised sump trays with a grate collect leaking liquids. All-round fluid guiding plates – except in the door area – support targeted retention. The grate can withstand a maximum load of 1000 kg/m² with an evenly distributed load.
Even open containers can be stored in the thermally insulated hazardous substance container. Opening, filling and emptying during storage are also possible. With optional shelving, the container can be used as a walk-in small container store. Crane eyes and compatibility with a stacker also enable the empty container to be moved flexibly for mobile, compliant outdoor storage of hazardous substances.
Options at an extra cost
Insulation of the sump tray
Exterior painting in sky blue RAL 5015
Snow load: 150 kg/m²
According to DIN EN 1055
Please enquire about additional models such as containers with air conditioning and fire protection containers.
Pre-assembled, final assembly by customer.
Technical data
| Width | 5075 mm |
|---|---|
| Depth | 6300 mm |
| Height | 2585 mm |
| Place of use | outdoor use |
| Sump capacity | 3600 l |
| Position of hinged door | short side |
| Internal height | 1910 mm |
| Internal width | 4840 mm |
| Internal depth | 6040 mm |
| Material | sheet steel |
| Finish | zinc plated |
| Door clearance width | 1950 mm |
| Door clearance height | 1900 mm |
| Max. snow load | 150 kg/m² |
| Door type | double hinged doors |
| For media | water hazardous dangerous goods |
| Type of floor | hot dip galvanised sump tray with grate, max. load 1000 kg/m² with evenly distributed load |
| Heat output | 5 kW |
| Colour | zinc plated |
| Hazard class | for water hazardous liquids in GHS categories 1 – 4 |
| Test symbol | with general certification from the DIBt (German Institute for Construction Technology) Berlin |
| Lock type | security lock |
| Product type | cold insulated hazardous goods containers |
| Supplied | pre-assembled, final assembly by customer |
| Weight | 3980 kg |
| Instructions | |
| Manufacturer / EU responsible Person (GPSR) |
