Hazardous goods storage container for water hazardous media external HxWxD 2605 x 5075 x 6560 mm
zinc plated
- Regulation compliant, versatile and mobile active outdoor storage of water hazardous media (opening, refilling/filling the containers) – approved for water hazardous media in GHS categories 1 – 4
- Robust, zinc plated steel construction, integrated sump tray with grate
- Can be moved at any time when empty – crane eyelets, forklift access
- Can be used as small container storage in conjunction with shelving (accessory)
- With double doors as standard
- Hot dip galvanised sump tray with grate, max. load 1000 kg/m² with evenly distributed load
For water hazardous liquids
Ref.: 605311 10
Good reasons to purchase products from us
- Guarantee of up to 15 years
- 30 day right of return
- Free delivery
- Fast delivery
We will be happy to help you
1 800 677 300
Monday-Friday 8am-5pm
Product description
Zinc plated, particularly stable, profiled wall and roof panels made of sheet steel.
Reinforced roof and floor frame profiles, all round drainage rails (except for doors).
Weather protected ventilation openings in the doors and rear wall.
Additional exterior paintwork in sky blue RAL 5015 at extra cost – other colours on request.
Snow load in accordance with DIN EN 1055.
Double doors

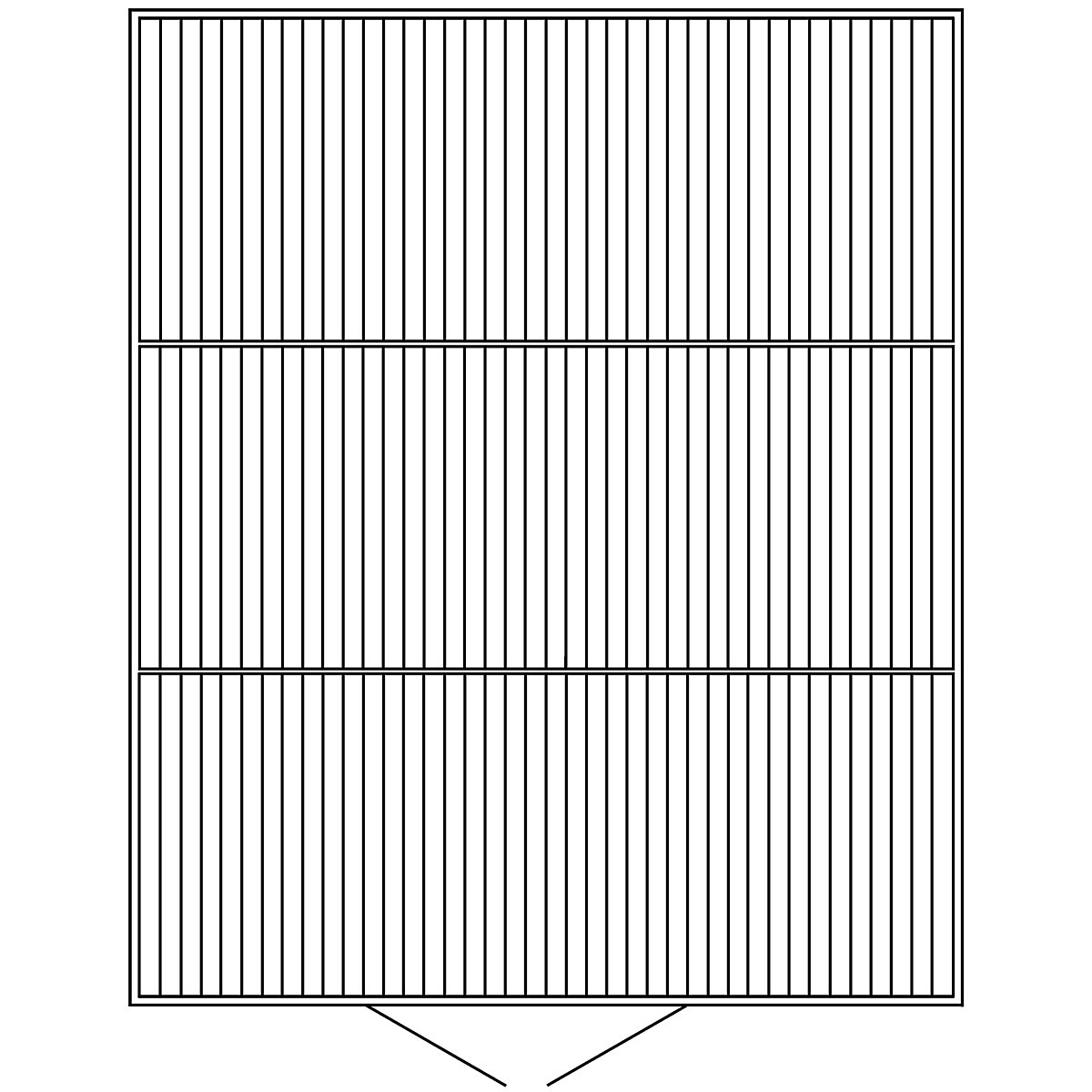

See line drawings for size and position. Alternative door positions on request. With security lock.
The unloading point must be accessible for a HGV trailer.
A crane or forklift must be available on site for unloading. If not available, please ask for crane/forklift unloading (see accessories) when ordering.
Reinforced roof and floor frame profiles, all round drainage rails (except for doors).
Weather protected ventilation openings in the doors and rear wall.
Additional exterior paintwork in sky blue RAL 5015 at extra cost – other colours on request.
Snow load in accordance with DIN EN 1055.
Double doors
See line drawings for size and position. Alternative door positions on request. With security lock.
The unloading point must be accessible for a HGV trailer.
A crane or forklift must be available on site for unloading. If not available, please ask for crane/forklift unloading (see accessories) when ordering.
Please ask for details of fire protection containers.
- Regulation compliant, versatile and mobile active outdoor storage of water hazardous media (opening, refilling/filling the containers) – approved for water hazardous media in GHS categories 1 – 4
- Robust, zinc plated steel construction, integrated sump tray with grate
- Can be moved at any time when empty – crane eyelets, forklift access
- Can be used as small container storage in conjunction with shelving (accessory)
- With double doors as standard
- Hot dip galvanised sump tray with grate, max. load 1000 kg/m² with evenly distributed load
For water hazardous liquids
Technical data
| Place of use | outdoor use |
|---|---|
| External height | 2605 mm |
| External width | 5075 mm |
| External depth | 6560 mm |
| Sump capacity | 3900 l |
| Material | sheet steel |
| Finish | zinc plated |
| Position of double doors | short side |
| Door type | double hinged doors |
| Internal height | 1900 mm |
| Internal width | 4980 mm |
| Internal depth | 6440 mm |
| Type of floor | hot dip galvanised sump tray with grate, max. load 1000 kg/m² with evenly distributed load |
| For media | water hazardous dangerous goods |
| Max. snow load | 150 kg/m² |
| Door width | 1950 mm |
| Door height | 1900 mm |
| Hazard class | for water hazardous media in GHS categories 1 – 4 |
| Test symbol | with general certification from the DIBt (German Institute for Construction Technology) Berlin |
| Product type | hazardous goods containers |
| Lock type | security lock |
| Weight | 3180 kg |
| Supplied | pre-assembled, final assembly by customer |
| Instructions |
