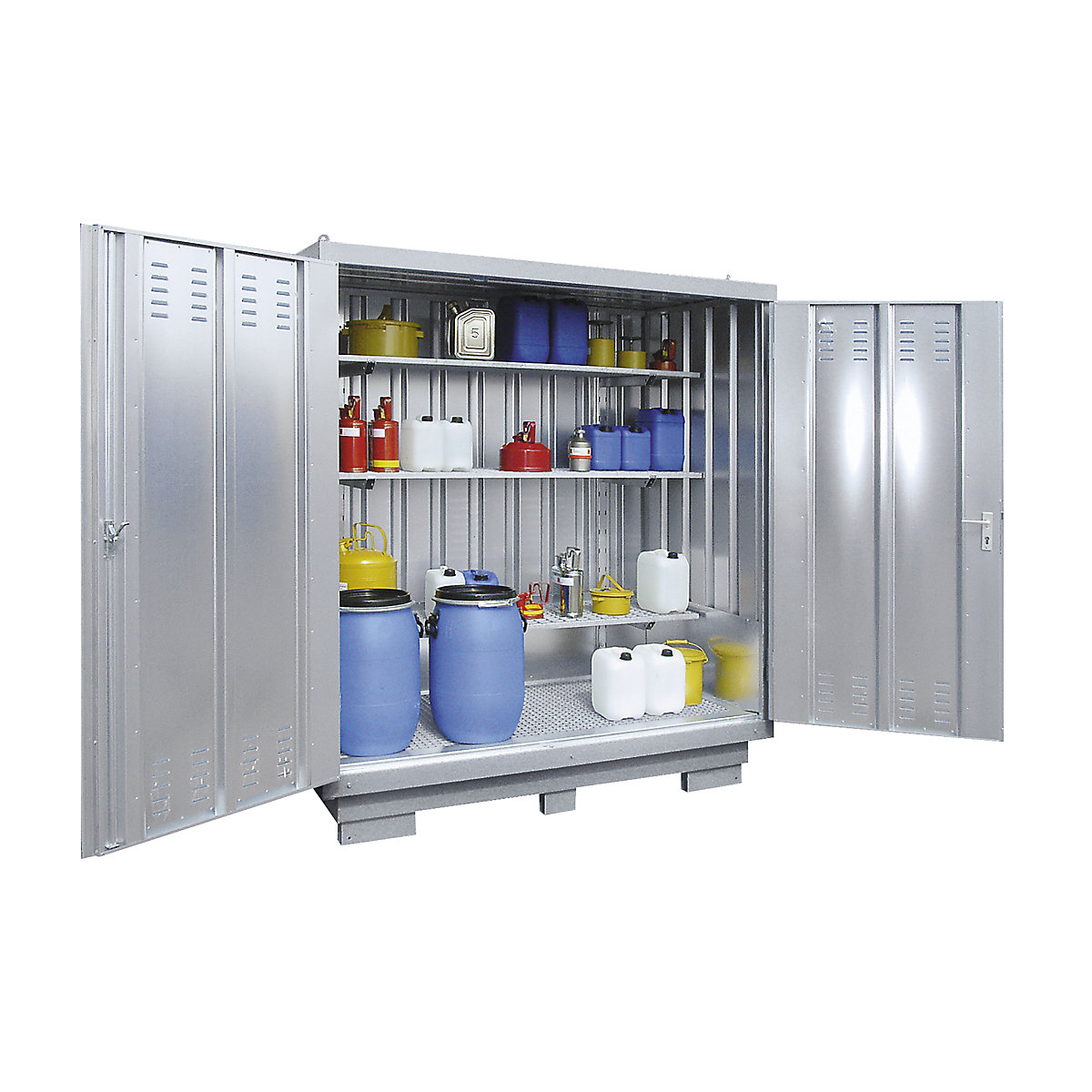

Hazardous goods storage container for water hazardous media external HxWxD 2385 x 5075 x 2075 mm

  • Regulation compliant, versatile and mobile active outdoor storage of water hazardous media (opening, refilling/filling the containers) – approved for water hazardous media in GHS categories 1 – 4
  • Robust, zinc plated steel construction, integrated sump tray with grate
  • Can be moved at any time when empty – crane eyelets, forklift access
  • Can be used as small container storage in conjunction with shelving (accessory)
  • With double doors as standard
  • Hot dip galvanised sump tray with grate, max. load 1000 kg/m² with evenly distributed load
For water hazardous liquids
For water hazardous liquids
Ref.: 605284 10
Hazardous goods storage container for water hazardous media, external HxWxD 2385 x 5075 x 2075 mm, zinc plated
Price / items (net)
€ 6,900.00

Product description
+
Zinc plated, particularly stable, profiled wall and roof panels made of sheet steel.
Reinforced roof and floor frame profiles, all round drainage rails (except for doors).
Weather protected ventilation openings in the doors and rear wall.
Additional exterior paintwork in sky blue RAL 5015 at extra cost – other colours on request.

Snow load in accordance with DIN EN 1055.

Double doors

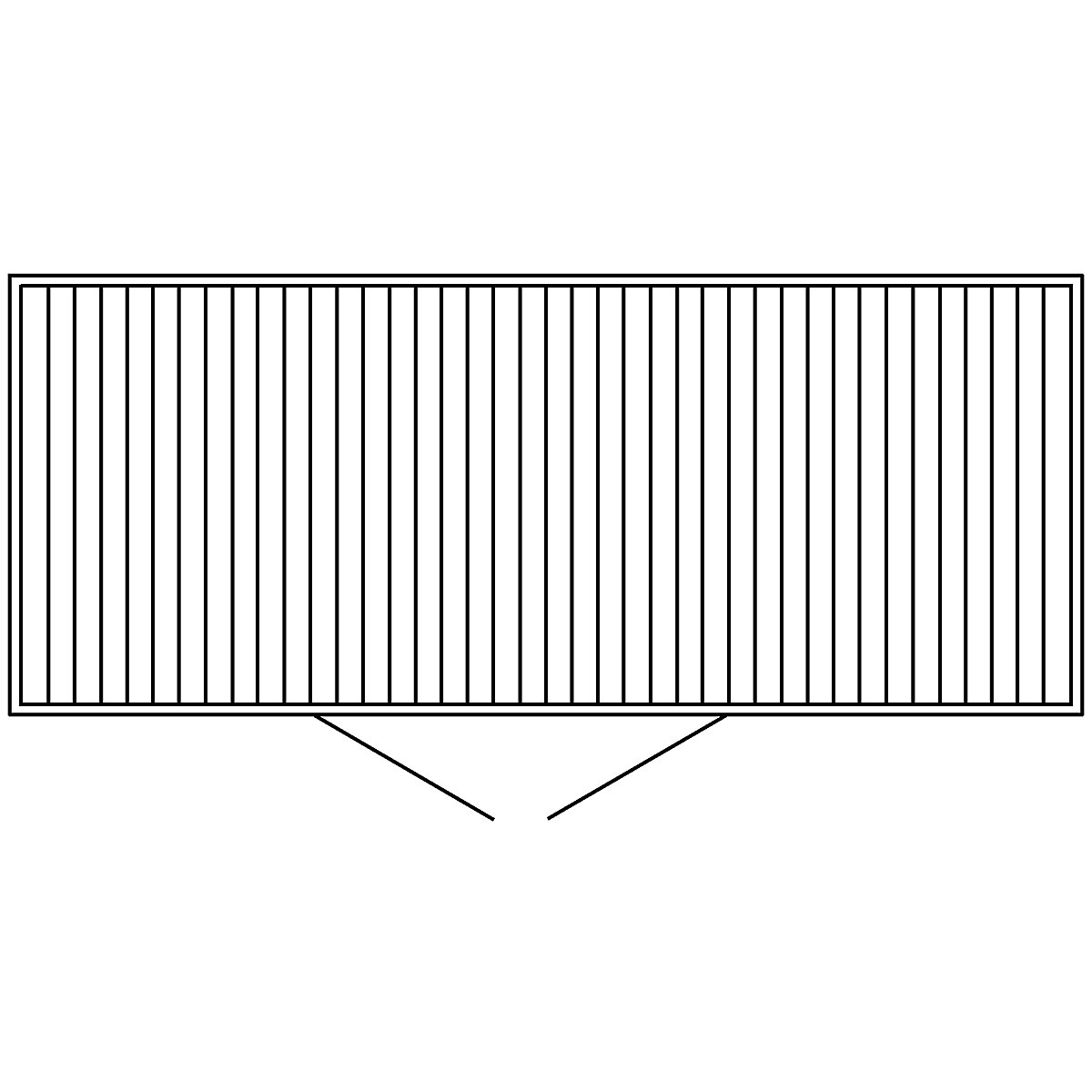

See line drawings for size and position. Alternative door positions on request. With security lock.

The unloading point must be accessible for a HGV trailer.
A crane or forklift must be available on site for unloading. If not available, please ask for crane/forklift unloading (see accessories) when ordering.
Please ask for details of fire protection containers.
  • Regulation compliant, versatile and mobile active outdoor storage of water hazardous media (opening, refilling/filling the containers) – approved for water hazardous media in GHS categories 1 – 4
  • Robust, zinc plated steel construction, integrated sump tray with grate
  • Can be moved at any time when empty – crane eyelets, forklift access
  • Can be used as small container storage in conjunction with shelving (accessory)
  • With double doors as standard
  • Hot dip galvanised sump tray with grate, max. load 1000 kg/m² with evenly distributed load
For water hazardous liquids
For water hazardous liquids
Technical data
+
Place of useoutdoor use
External height2385 mm
External width5075 mm
External depth2075 mm
Materialsteel profile
Sump capacity1300 l
Position of double doorslong side
Internal height1970 mm
Internal width4980 mm
Internal depth1980 mm
Type of floorhot dip galvanised sump tray with grate, max. load 1000 kg/m² with evenly distributed load
Lock typesecurity lock
Max. snow load200 kg/m²
Finishzinc plated
Door typedouble hinged doors
Door width1950 mm
Door height1900 mm
Test symbolwith general certification from the DIBt (German Institute for Construction Technology) Berlin
Hazard classfor water hazardous media in GHS categories 1 – 4
Suppliedassembled
Weight1160 kg
Items subject to surcharges & services available
Extra cost for anti-condensation coating

for WxD 5075 x 2075 mm

€ 729.00
Ex. VAT
Extra cost for skylight

single walled

€ 255.00
Ex. VAT
