Hazardous goods container for the passive storage of flammable media external HxWxD 2570 x 3075 x 2075 mm
zinc plated
- Regulation compliant, versatile and mobile passive outdoor storage of hazardous flammable media (no opening/refilling/filling the containers) – approved for flammable substances in GHS categories 1 – 3
- Permanent natural ventilation through all round ventilation openings
- Robust, zinc plated steel construction, integrated sump tray with grate
- Can be used as small container storage in conjunction with shelving (accessory)
- With double doors as standard
- Hot dip galvanised sump tray with grate, max. load 1000 kg/m² with evenly distributed load
- Can be moved at any time when empty – crane eyelets, forklift access
For water hazardous liquids
For flammable liquids
Ref.: 605279 10
Good reasons to purchase products from us
- Guarantee of up to 15 years
- 30 day right of return
- Free delivery
- Fast delivery
We will be happy to help you
1 800 677 300
Monday-Friday 8am-5pm
Product description
Zinc plated, particularly stable, profiled wall and roof panels made of sheet steel.
Reinforced roof and floor frame profiles, all round drainage rails (except for doors).
Weather protected ventilation openings in the doors and rear wall.
Additional exterior paintwork in sky blue RAL 5015 at extra cost – other colours on request.
Snow load in accordance with DIN EN 1055.
Double doors

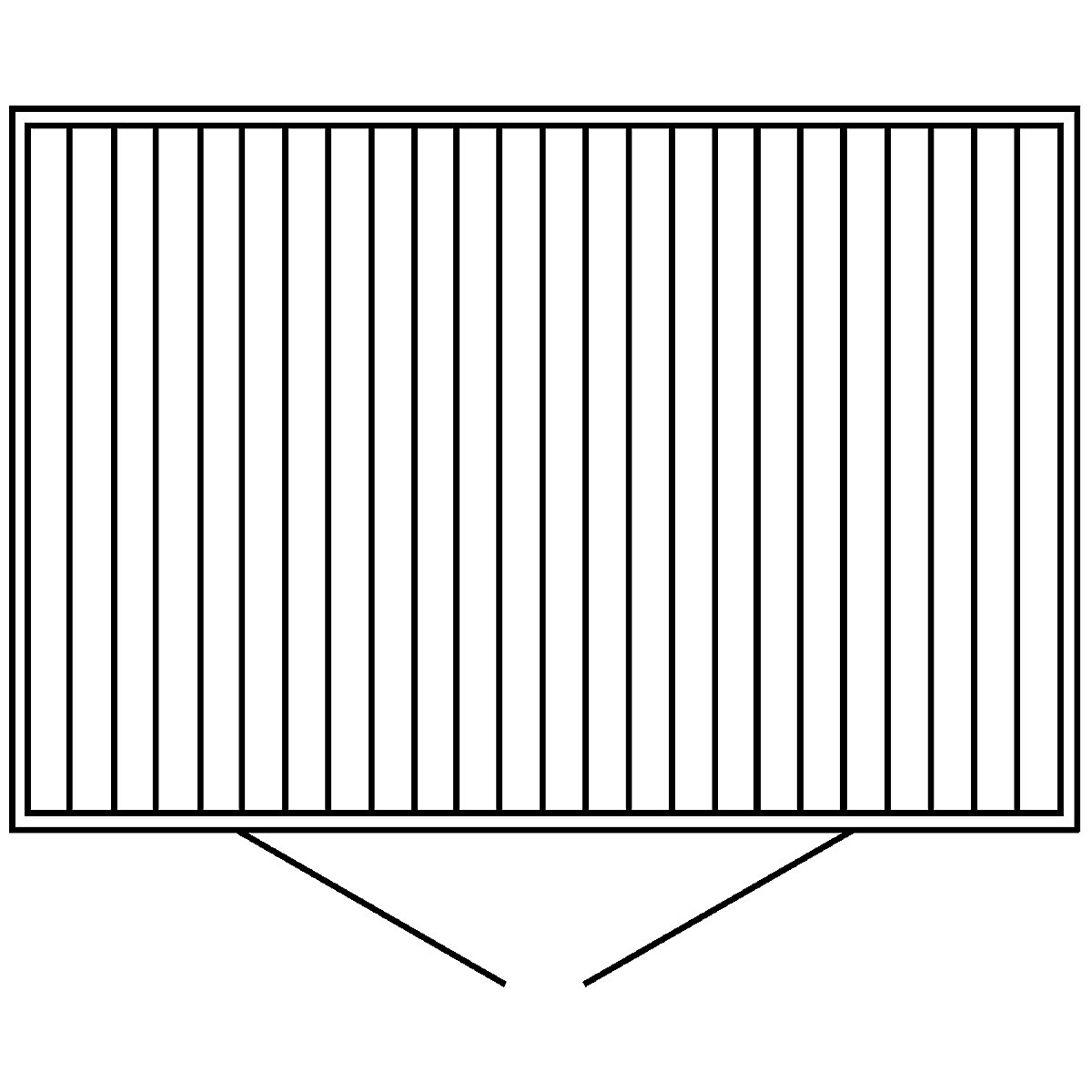

See line drawing for size and position. Alternative door positions on request. With security lock.
The unloading point must be accessible for a HGV trailer.
A crane or forklift must be available on site for unloading. If not available, please ask for crane/forklift unloading (see accessories) when ordering.
For storing tightly sealed containers.
Not approved for opening, filling or emptying containers in storage.
Permanent natural ventilation through all round ventilation openings.
Reinforced roof and floor frame profiles, all round drainage rails (except for doors).
Weather protected ventilation openings in the doors and rear wall.
Additional exterior paintwork in sky blue RAL 5015 at extra cost – other colours on request.
Snow load in accordance with DIN EN 1055.
Double doors
See line drawing for size and position. Alternative door positions on request. With security lock.
The unloading point must be accessible for a HGV trailer.
A crane or forklift must be available on site for unloading. If not available, please ask for crane/forklift unloading (see accessories) when ordering.
For storing tightly sealed containers.
Not approved for opening, filling or emptying containers in storage.
Permanent natural ventilation through all round ventilation openings.
Please ask for details of fire protection containers.
- Regulation compliant, versatile and mobile passive outdoor storage of hazardous flammable media (no opening/refilling/filling the containers) – approved for flammable substances in GHS categories 1 – 3
- Permanent natural ventilation through all round ventilation openings
- Robust, zinc plated steel construction, integrated sump tray with grate
- Can be used as small container storage in conjunction with shelving (accessory)
- With double doors as standard
- Hot dip galvanised sump tray with grate, max. load 1000 kg/m² with evenly distributed load
- Can be moved at any time when empty – crane eyelets, forklift access
For water hazardous liquids
For flammable liquids
Technical data
| Place of use | outdoor use |
|---|---|
| External height | 2570 mm |
| External width | 3075 mm |
| External depth | 2075 mm |
| Sump capacity | 1000 l |
| Material | sheet steel |
| Finish | zinc plated |
| Position of double doors | long side |
| Door type | double hinged doors |
| Internal height | 2150 mm |
| Internal width | 2980 mm |
| Internal depth | 1980 mm |
| Type of floor | hot dip galvanised sump tray with grate, max. load 1000 kg/m² with evenly distributed load |
| For media | flammable liquids |
| Max. snow load | 200 kg/m² |
| Door width | 1750 mm |
| Door height | 1900 mm |
| Hazard class | for the passive storage of flammable substances in GHS categories 1 – 3 |
| Test symbol | with general certification from the DIBt (German Institute for Construction Technology) Berlin |
| Product type | hazardous goods containers |
| Lock type | security lock |
| Weight | 800 kg |
| Supplied | assembled |
| Instructions |
