Ref.: 116166 10

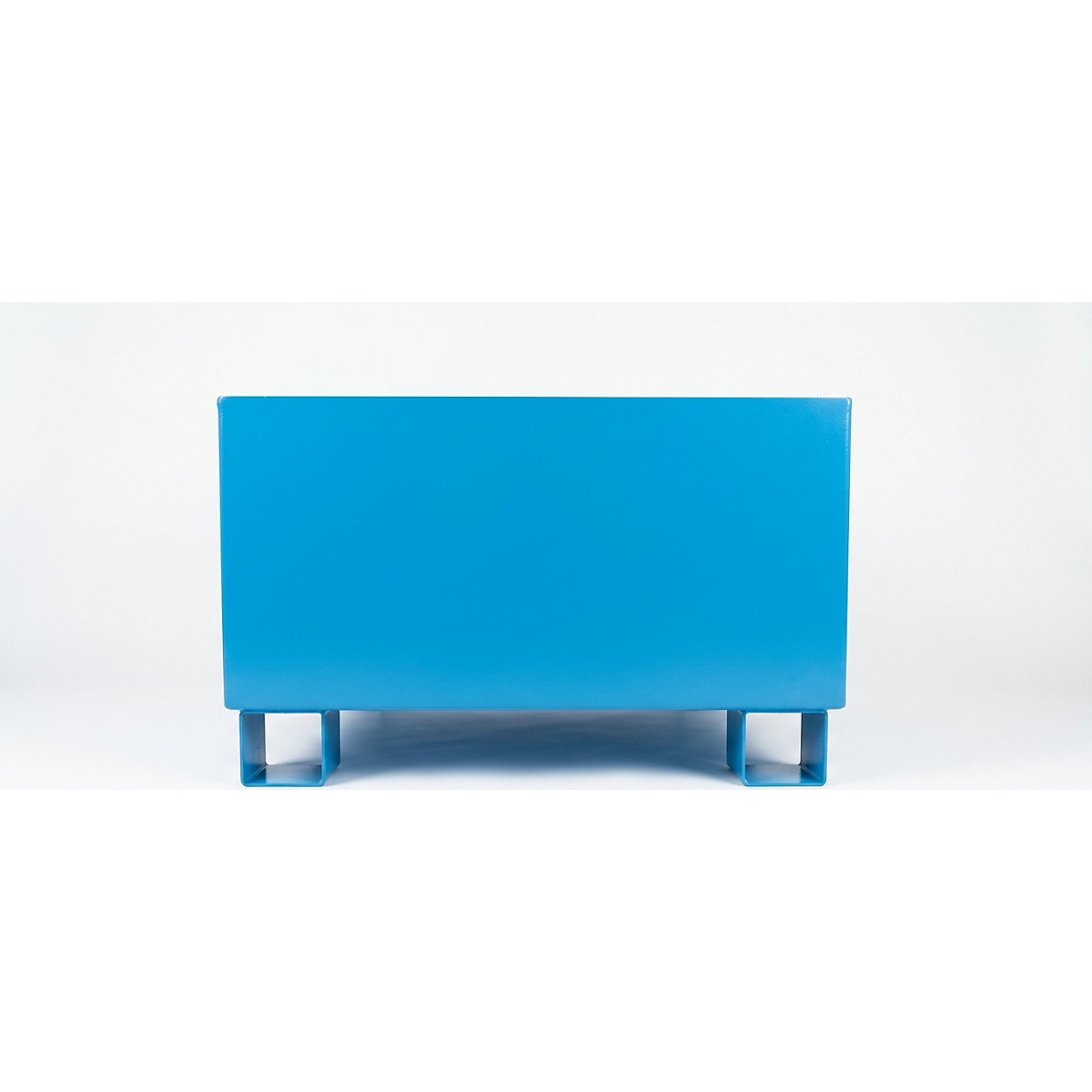

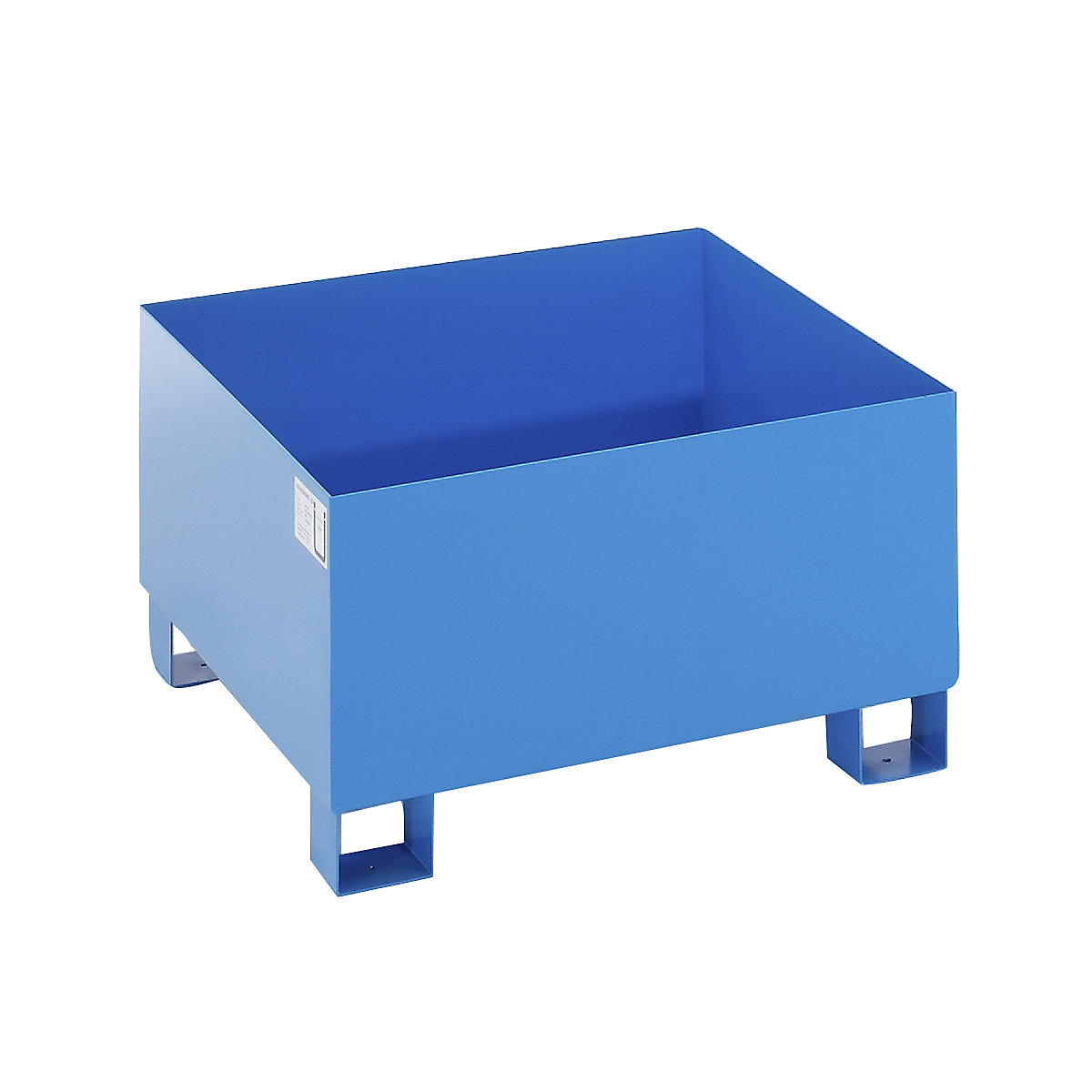

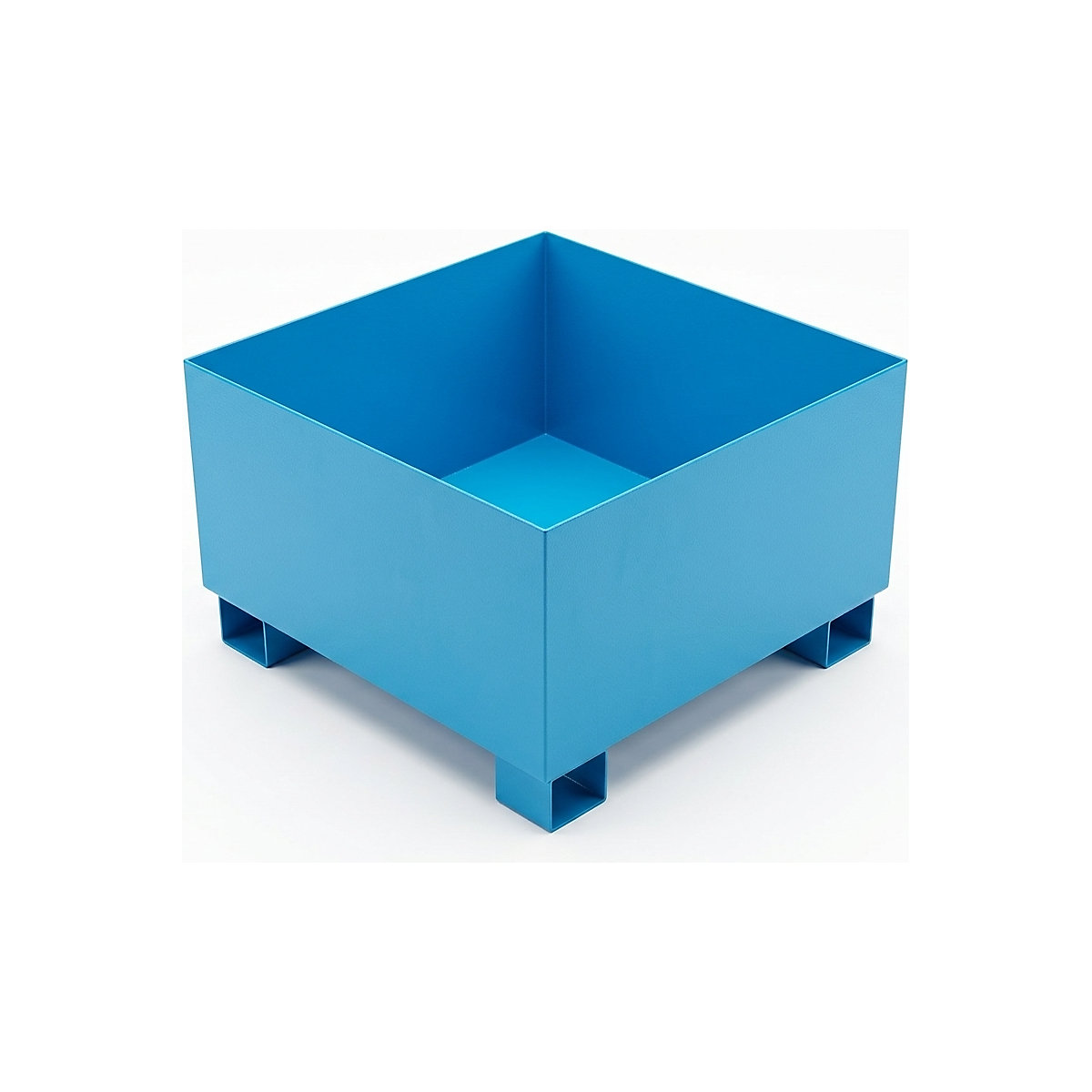

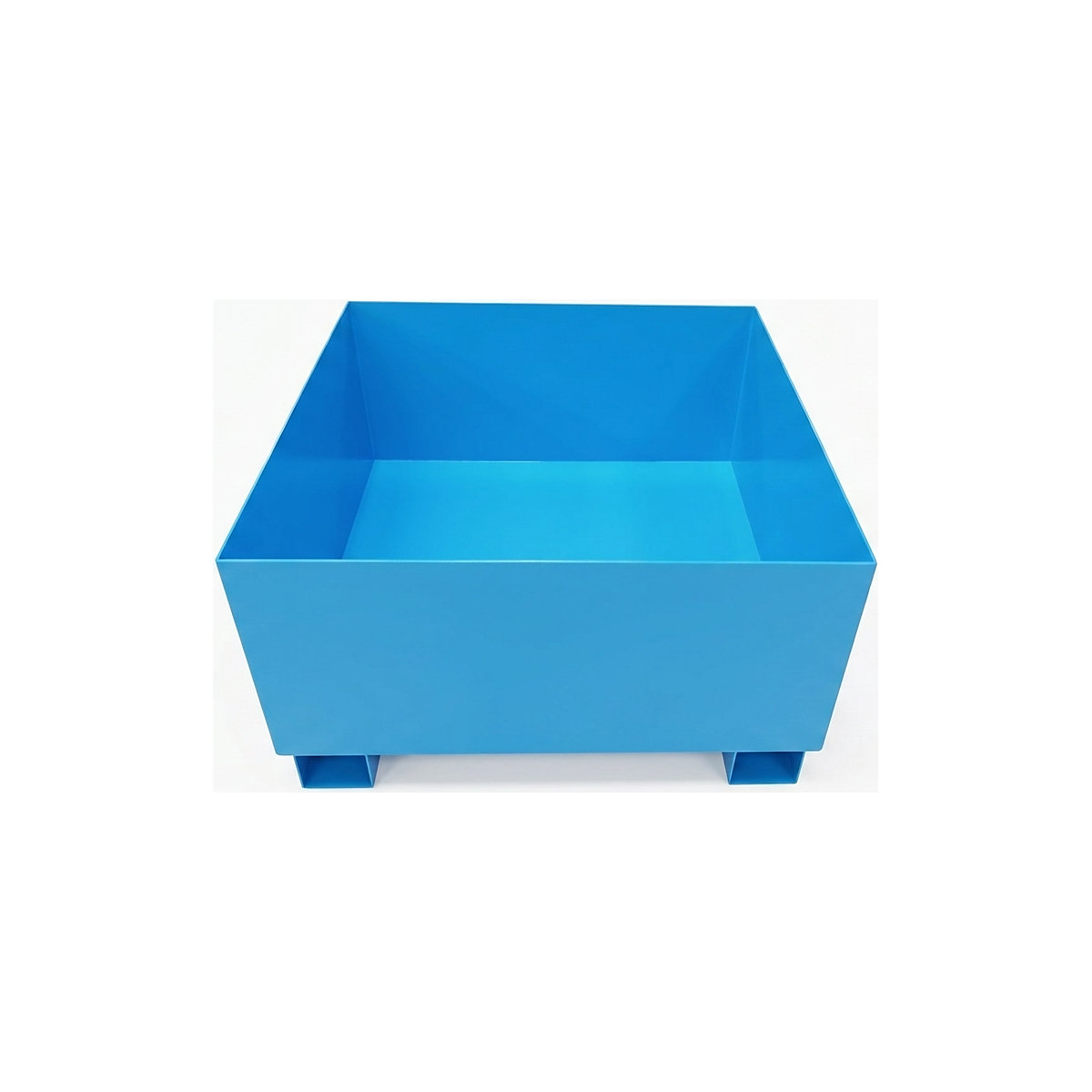

Steel sump tray for 200 l drums, with certification – eurokraft basic LxWxH 800 x 800 x 465 mm
(4)
powder coated blue, without grate
Type of grate
Sump capacity [l]
Drum capacity
Length [mm]
Width [mm]
Height [mm]
Colour
Ref.: 116166 10
Steel sump tray for 200 l drums, with certification – eurokraft basic LxWxH 800 x 800 x 465 mm
(4)
powder coated blue, without grate
powder coated blue, without grate
For water hazardous liquids
For flammable liquids
Score: 2.9/5.9Type of grate
Sump capacity [l]
Drum capacity
Length [mm]
Width [mm]
Height [mm]
Colour
€ 465.00
Price / item (Excl. VAT)
Delivery time: 6-8 Working Days
Good reasons to purchase products from us
- Guarantee of up to 15 years
- 30 day right of return
- Free delivery from Germany
- Fast delivery
€ 465.00
Price / item (Excl. VAT)
€ 465.00
Price / item (Excl. VAT)
Delivery time: 6-8 Working Days
Good reasons to purchase products from us
- Guarantee of up to 15 years
- 30 day right of return
- Free delivery from Germany
- Fast delivery
Product description
- Regulation compliant storage and filling of 200 litre drums and small containers
- With fork guides – for safe transport with pallet trucks/forklift
- Cost effective, robust and durable
- With declaration of conformity (ÜHP) in accordance with Stawa
- Approved for flammable liquids in GHS categories 1 – 3
- Approved for water-hazardous liquids in GHS categories 1 – 4
The steel sump tray for 200-l drums impresses with its sturdy construction and practical fork pockets for safe transport with a forklift truck or pallet truck. With a ground clearance of 100 mm, the oil sump tray can be easily picked up and relocated.
This robust flat sump tray is ideal for the legally compliant storage and dispensing of hazardous substances in 200-litre drums as well as small containers. The zinc plated steel construction is durable and resistant to mechanical stress and corrosion.
As a reliable drum pallet, it ensures safe and proper storage of liquids in work and storage areas. The well-thought-out design effectively protects against leaks and environmental damage.
Sump trays with approval
With declaration of conformity (ÜHP) in accordance with StawaR. Approved for flammable liquids of GHS categories 1 – 3 and for liquids hazardous to the aquatic environment of GHS categories 1 – 4.
Made of tightly welded 3 mm sheet steel.
This robust flat sump tray is ideal for the legally compliant storage and dispensing of hazardous substances in 200-litre drums as well as small containers. The zinc plated steel construction is durable and resistant to mechanical stress and corrosion.
As a reliable drum pallet, it ensures safe and proper storage of liquids in work and storage areas. The well-thought-out design effectively protects against leaks and environmental damage.
Sump trays with approval
With declaration of conformity (ÜHP) in accordance with StawaR. Approved for flammable liquids of GHS categories 1 – 3 and for liquids hazardous to the aquatic environment of GHS categories 1 – 4.
Made of tightly welded 3 mm sheet steel.
Technical data
| Material | sheet steel |
|---|---|
| Max. load | 800 kg/m² |
| Clearance height | 100 mm |
| Test symbol | manufacturer's declaration of conformity in accordance with German construction regulation list A, part 1, DIBt, Berlin |
| Material thickness | 3 mm |
| For media | flammable and water hazardous liquids |
| Hazard class | for flammable liquids in GHS categories 1 – 3 as well as water hazardous liquids in GHS categories 1 – 4 |
| Feature | clearance for forklift |
| Certification | with |
| Product type | 200 l sump trays |
| Supplied | assembled |
| Type of grate | without |
| Sump capacity | 210 l |
| Drum capacity | small containers |
| Length | 800 mm |
| Width | 800 mm |
| Height | 465 mm |
| Colour | light blue RAL 5012 |
| Finish | powder coated |
| Weight | 54 kg |
| Manufacturer / EU responsible Person (GPSR) |
Sustainability
Product with potential for future improvement
This product does not yet meet enough of our sustainability criteria. This does not mean that it has no sustainable properties – however, the total score is lower than 3 points. Therefore, it is not (yet) labelled as particularly sustainable. Our sustainability assessment is based on transparent, clearly defined ecological, social and economic criteria. The aim is to highlight development potential and create greater transparency.
You can find out more about product evaluation and our sustainability initiative on our information page.
This product does not yet meet enough of our sustainability criteria. This does not mean that it has no sustainable properties – however, the total score is lower than 3 points. Therefore, it is not (yet) labelled as particularly sustainable. Our sustainability assessment is based on transparent, clearly defined ecological, social and economic criteria. The aim is to highlight development potential and create greater transparency.
You can find out more about product evaluation and our sustainability initiative on our information page.
Product CO₂ footprint
- LCA functional unit
- 1
- Recycled content in %?
- 20
- CO2 footprint year of calculation
- 2026
- LCA validity (in years)
- 1
- CO2 footprint calculation method product
- Calculated by our partner GlobalChanger (GreenZero) in accordance with ISO 14044 (LCA) / 14067 (PCF) (GWP100 [IPCC version]) principles.<br/>PCF values are product specific averages that have not been verified by third parties and may evolve as the data basis improves.
- CO2 footprint system boundaries
- Cradle-to-gate
