Happy Easter
Ref.: 609193 10

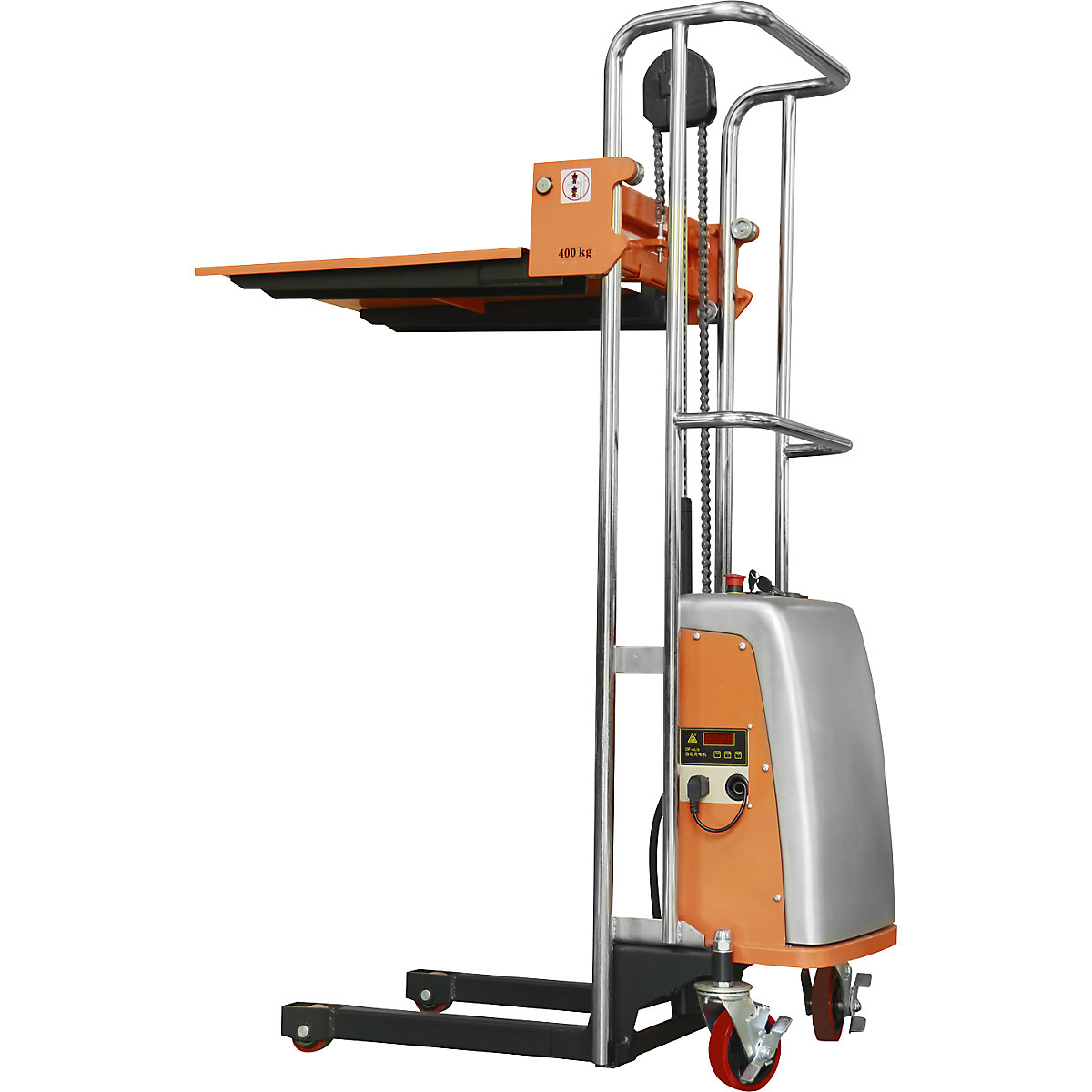

Budget stacker electro-hydraulic

Budget stacker

lifting range 85 – 1500 mm

€ 2,390.00
Price / item (Excl. VAT)

Only 2 available
Delivery time: 10-15 Working Days
Happy Easter
10% Easter discount* on the entire range with the code: EASTER24. Shop + save now!
Product description
Fork carrier bracket runs on a lifting carriage along a chrome plated tubular frame.
Powder coated, pure orange RAL 2004.
2 steering wheels, wheel Ø 127 mm, 2 fork rollers, wheel Ø 75 mm, with polyurethane tyres. Steering wheels with wheel stop.
Hydraulic cylinder, pump and tank are one unit. Fitted with overload pressure valve.

Electric hydraulics
Uniform lifting and lowering via control lever. Emergency off switch.
Integrated charger for 230 V connection.
  • Max. load 400 kg
  • Lift and transport with a single device
  • Platform included with delivery, easy to remove
Technical data
Modelelectro-hydraulic
Max. load400 kg
Load centre350 mm
Overall length1100 mm
Lift per pedal stroke20 mm
Min. lifting speed80 mm/s
Max. lifting speed185 mm/s
Clearance height85 mm
Materialsteel
Finishpowder coated
Colourpure orange RAL 2004
Fittingsbattery
Battery12 V / 60 Ah
Battery charger230 V / 12 V, 8 A
Wheel fittings2 swivel castors with wheel stop, 2 fork rollers
Castor diameter front / rear75 /127 mm
Wheel materialpolyurethane
Platform width580 mm
Platform length650 mm
Product typemini lifters
Suppliedassembled
Lifting range85 – 1500 mm
Fork length650 mm
Distance across forks580 mm
Fork width110 mm
Overall width580 mm
Overall height1725 mm
Weight116 kg
Instructions
