Ref.: 519975 10

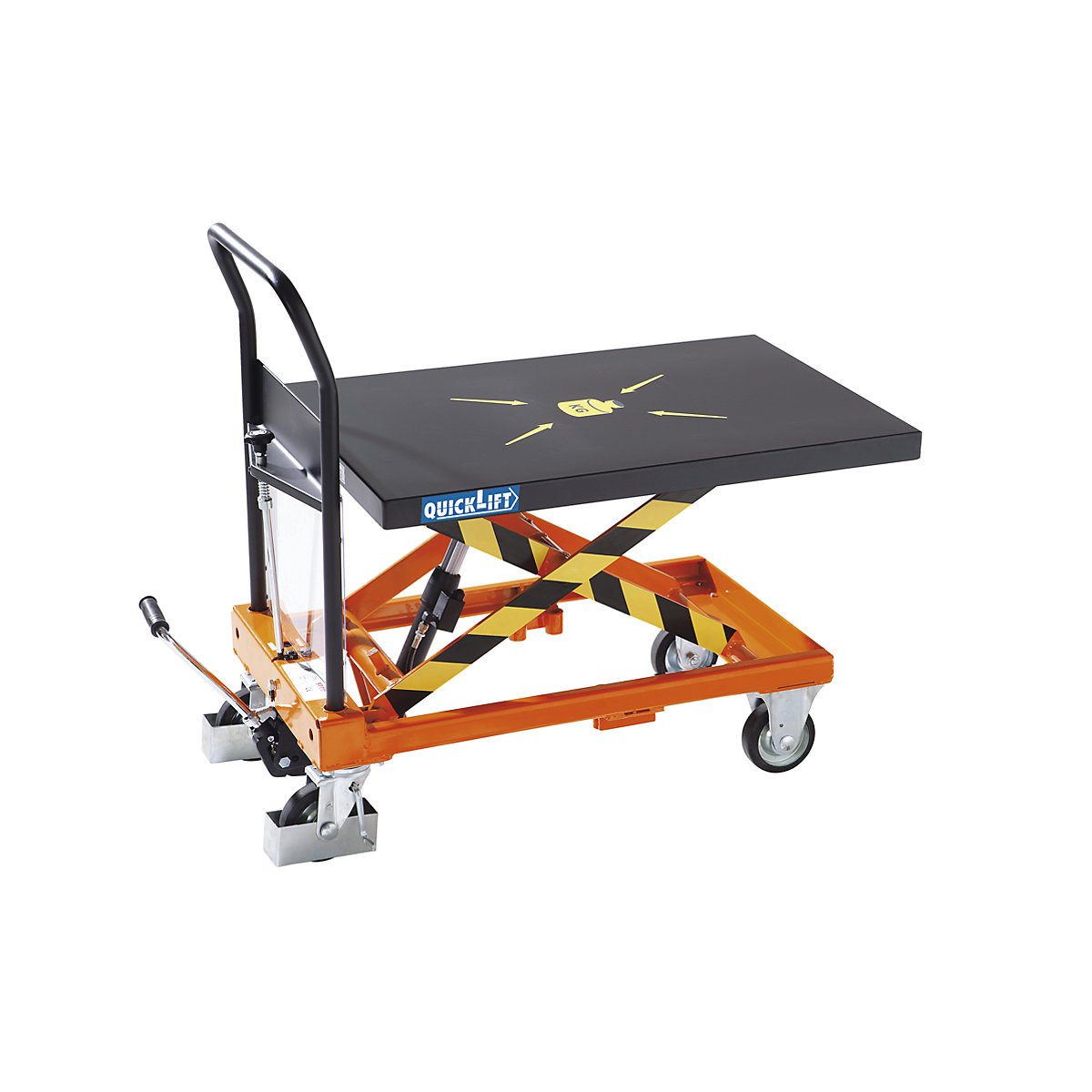

Scissor lift platform truck max. load 800 kg

Scissor lift platform truck
Scissor lift platform truck, max. load 800 kg, lift per pedal stroke with QuickLift 19 mm-0
Scissor lift platform truck (Product illustration 2)-1
Scissor lift platform truck (Product illustration 3)-2
Scissor lift platform truck (Product illustration 4)-3
Scissor lift platform truck (Product illustration 5)-4

lift per pedal stroke with QuickLift 19 mm

Sale
€ 2,290.00
€ 1,945.00
Price / item (Excl. VAT)
Only 3 available
Delivery time: 10-15 Working Days
Product description
  • Highest degree of safety and unique function
Powder coated in pure orange RAL 2004 and black. Safety warning stripes. Inspection supports.
2 steering wheels with wheel stops and foot protection, 2 fixed castors.

With patented QuickLift hydraulic cylinder.
QuickLift function available on lift tables in this class for the first time. This enables the empty lift table to be pumped into the raised position with minimal pedal strokes.

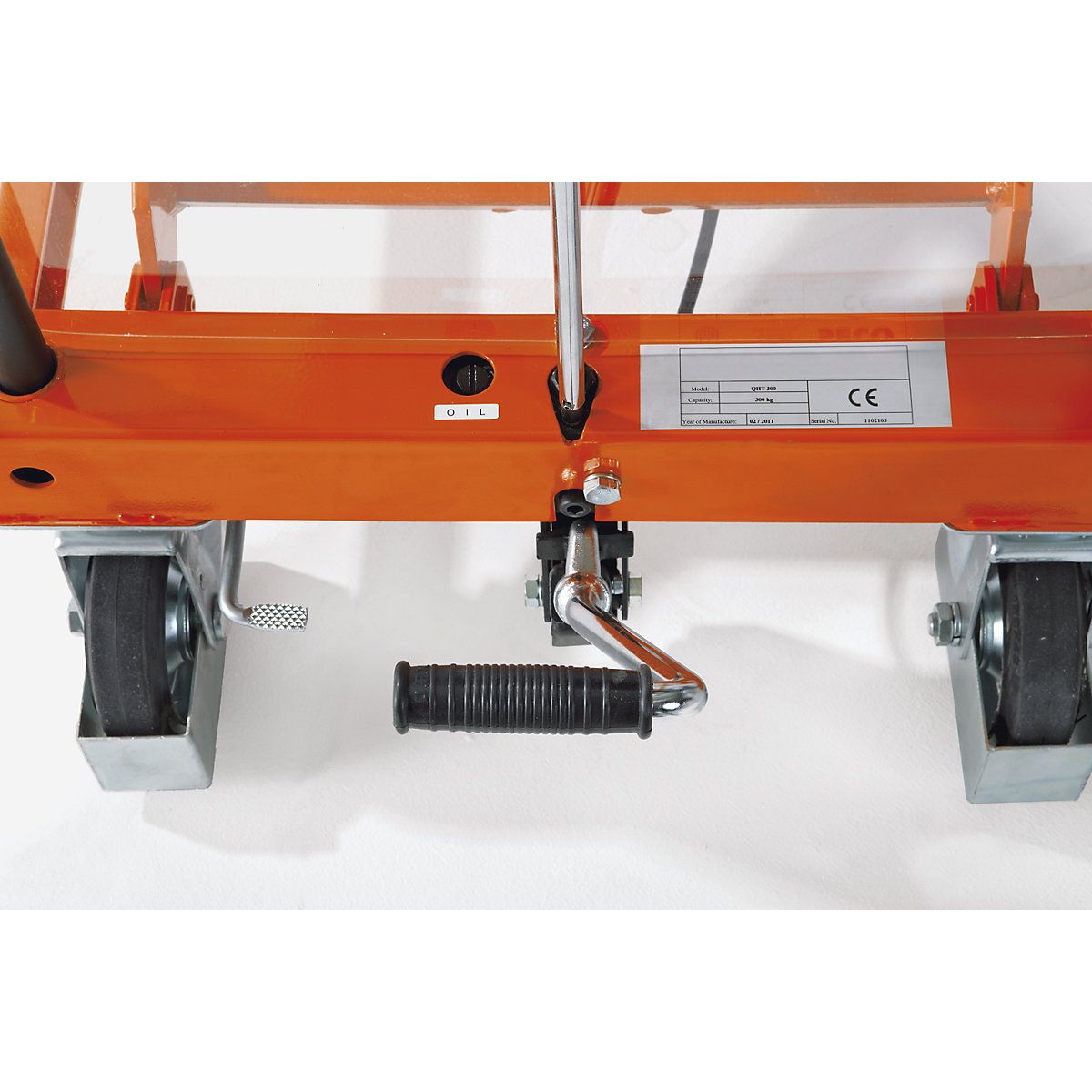

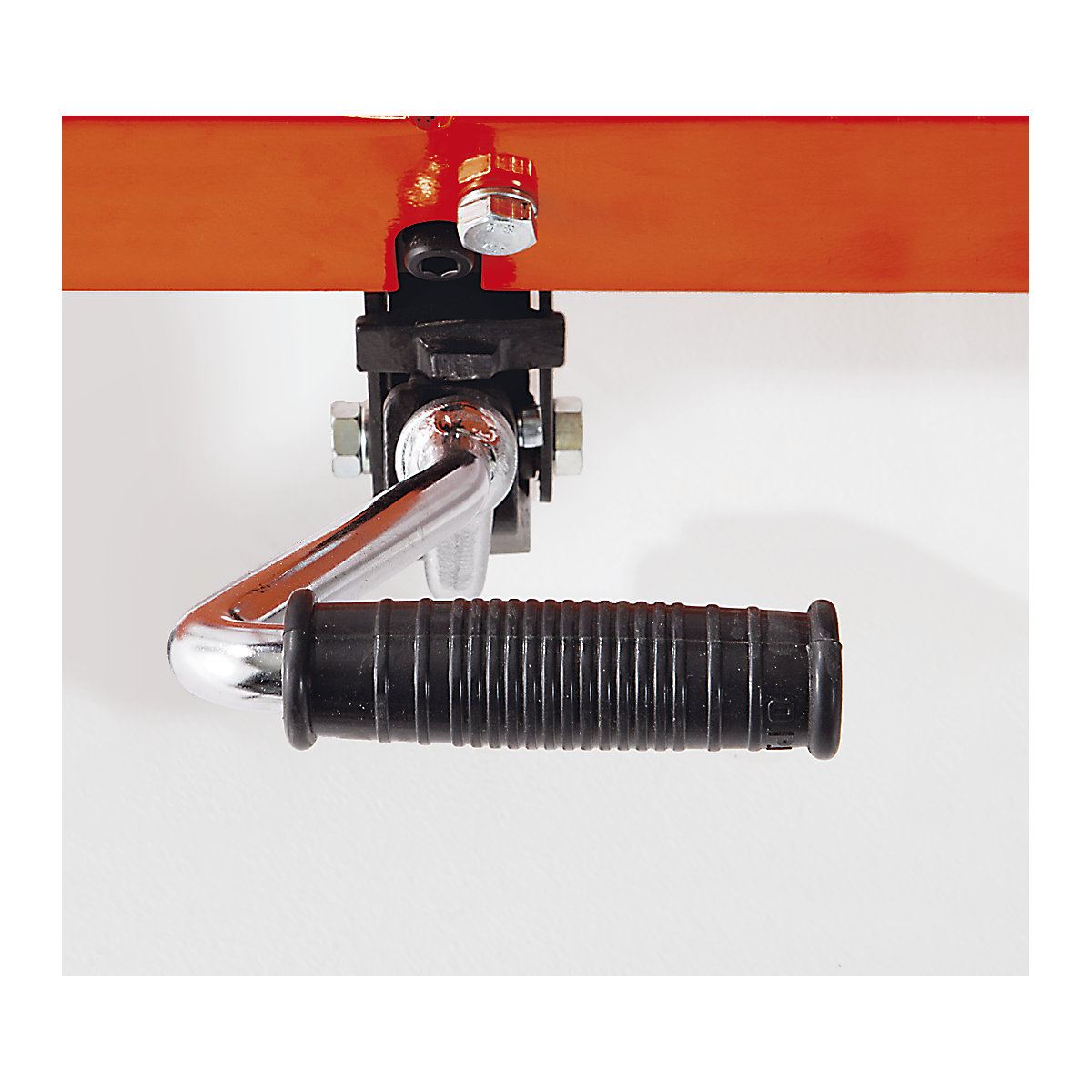

The pump pedal is rotated for heavy loads. This enables heavier loads to be lifted with less effort.

With polyurethane tyres – for minimal rolling resistance under max. load.

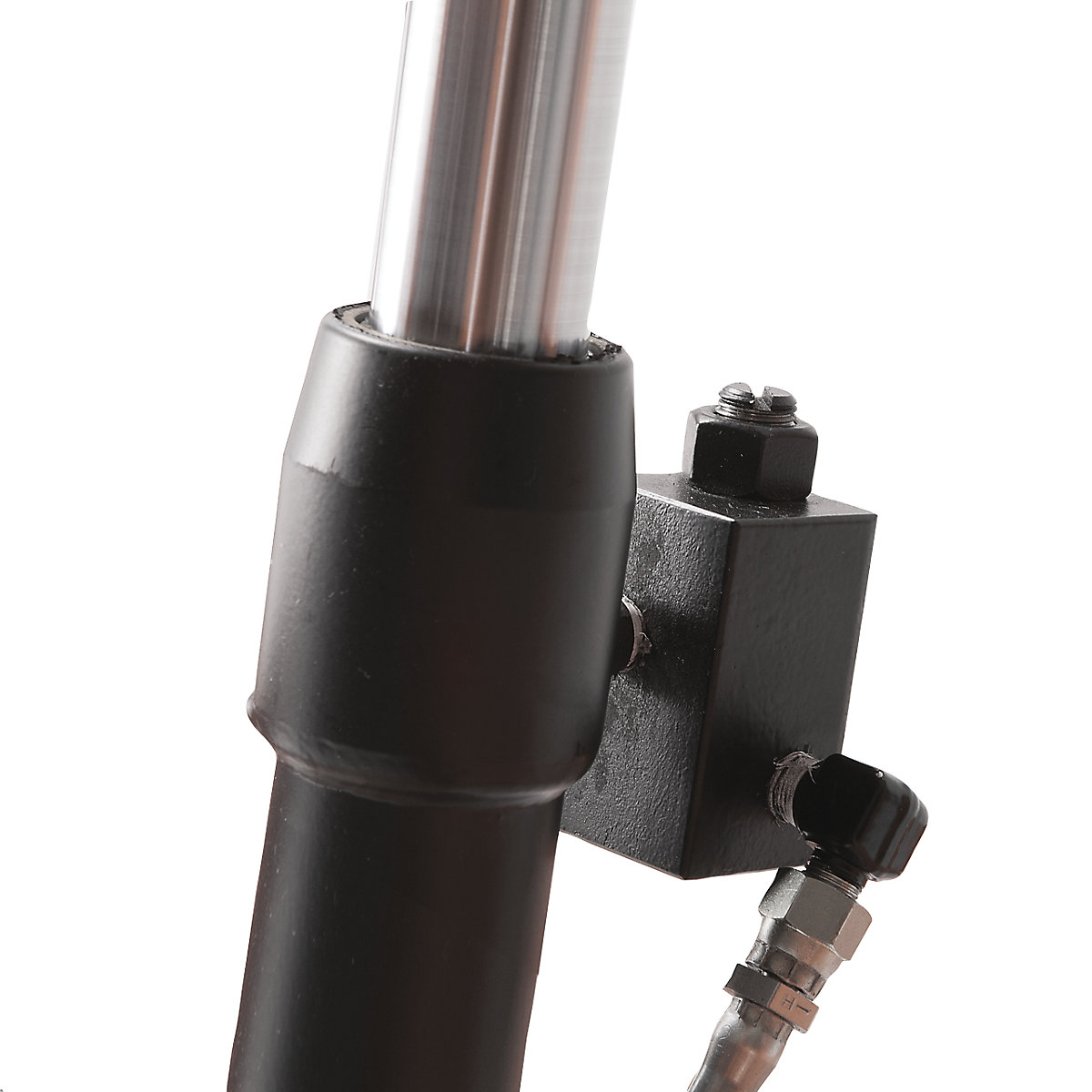

Hydraulic cylinder with safety valve directly on the cylinder. This prevents the platform from falling in case of failure.
Additional advantages: The valve regulates the lowering speed. Precise, responsive lowering possible with rotary knob.

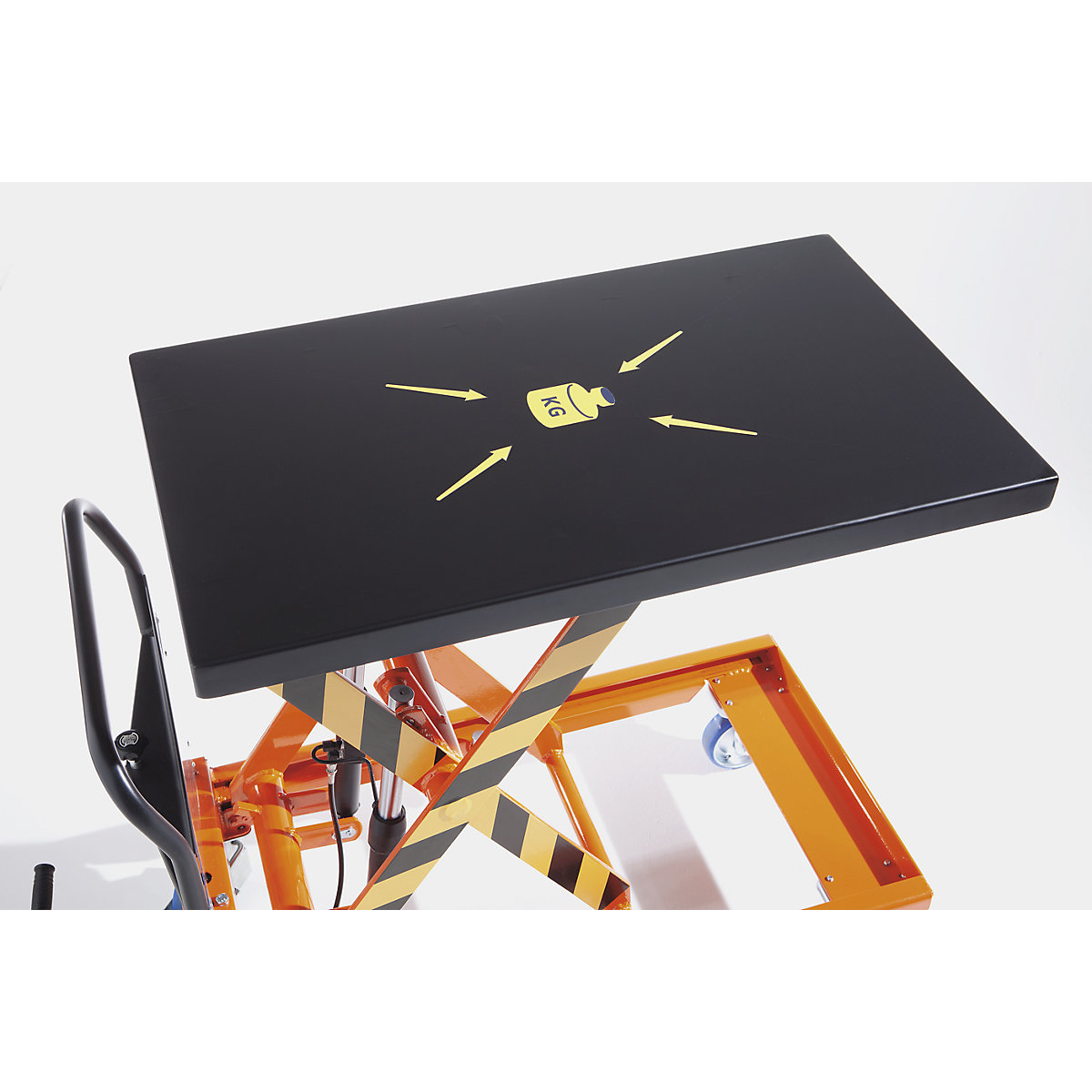

Overload valve to protect against overloading. Positioning aid to help centre load on platform.
QUICKLIFT
Lifts faster – saves effort and time!
QUICKLIFT. Lifts faster – saves effort and time!
Technical data
Max. load800 kg
Lifting range360 – 1070 mm
Overall length1250 mm
Overall width600 mm
Platform materialsteel
Platform finishpowder coated
Platform colourblack
Push handle versionrigid
Push handle finishpowder coated
Push handle colourblack
Lift per pump stroke with QuickLift19 mm
Lift per pump stroke11 mm
Lift driveQuickLift hydraulic cylinder
Product typelifting platform trolleys
Wheel fittings2 swivel castors with wheel stops, 2 fixed castors
Wheel materialpolyurethane
Wheel diameter150 mm
Frame finishpowder coated
Frame colourpure orange RAL 2004
Weight125 kg
Platform width600 mm
Platform length1000 mm
FittingsQuickLift
push handle
Featuremobile
manual
Suppliedassembled
