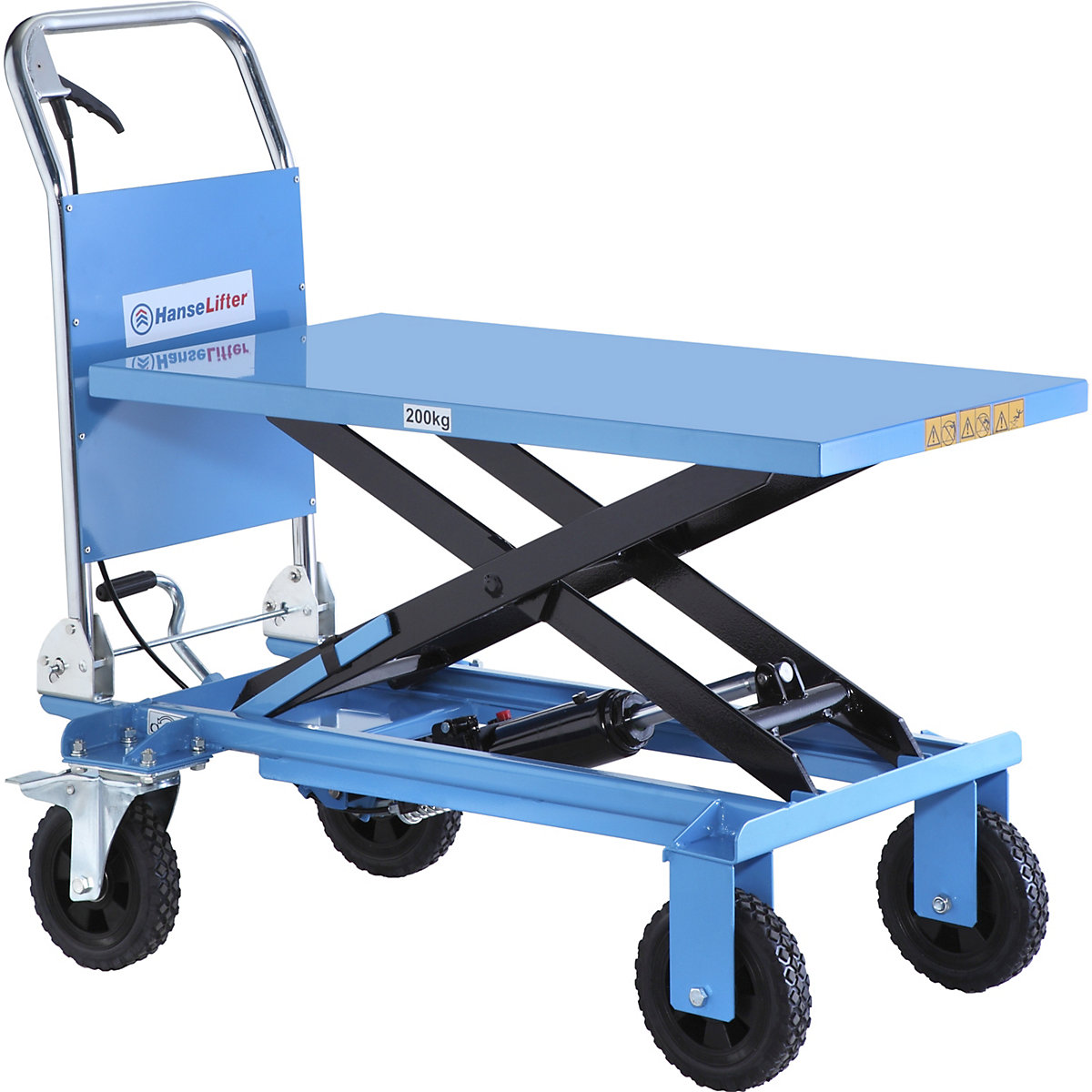

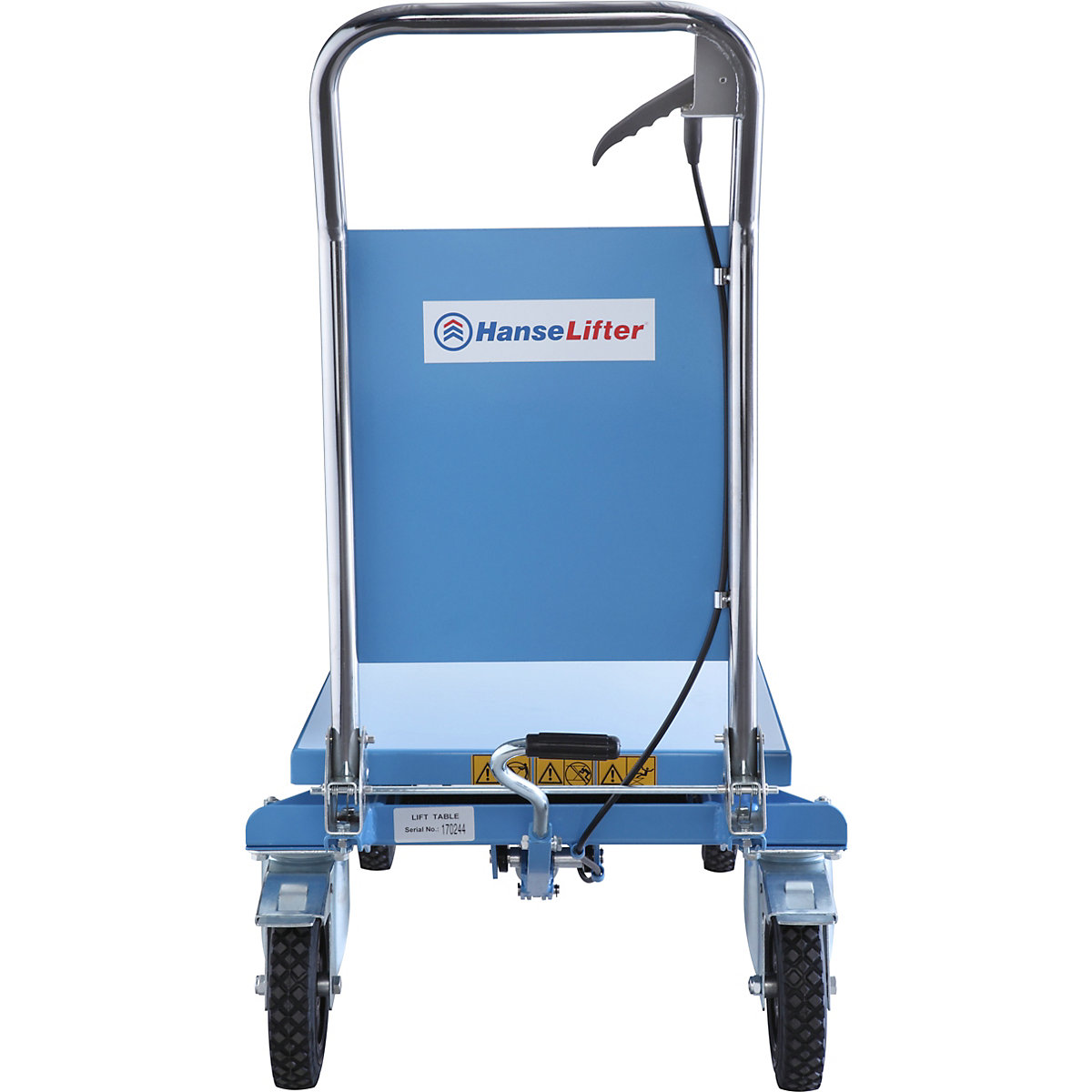

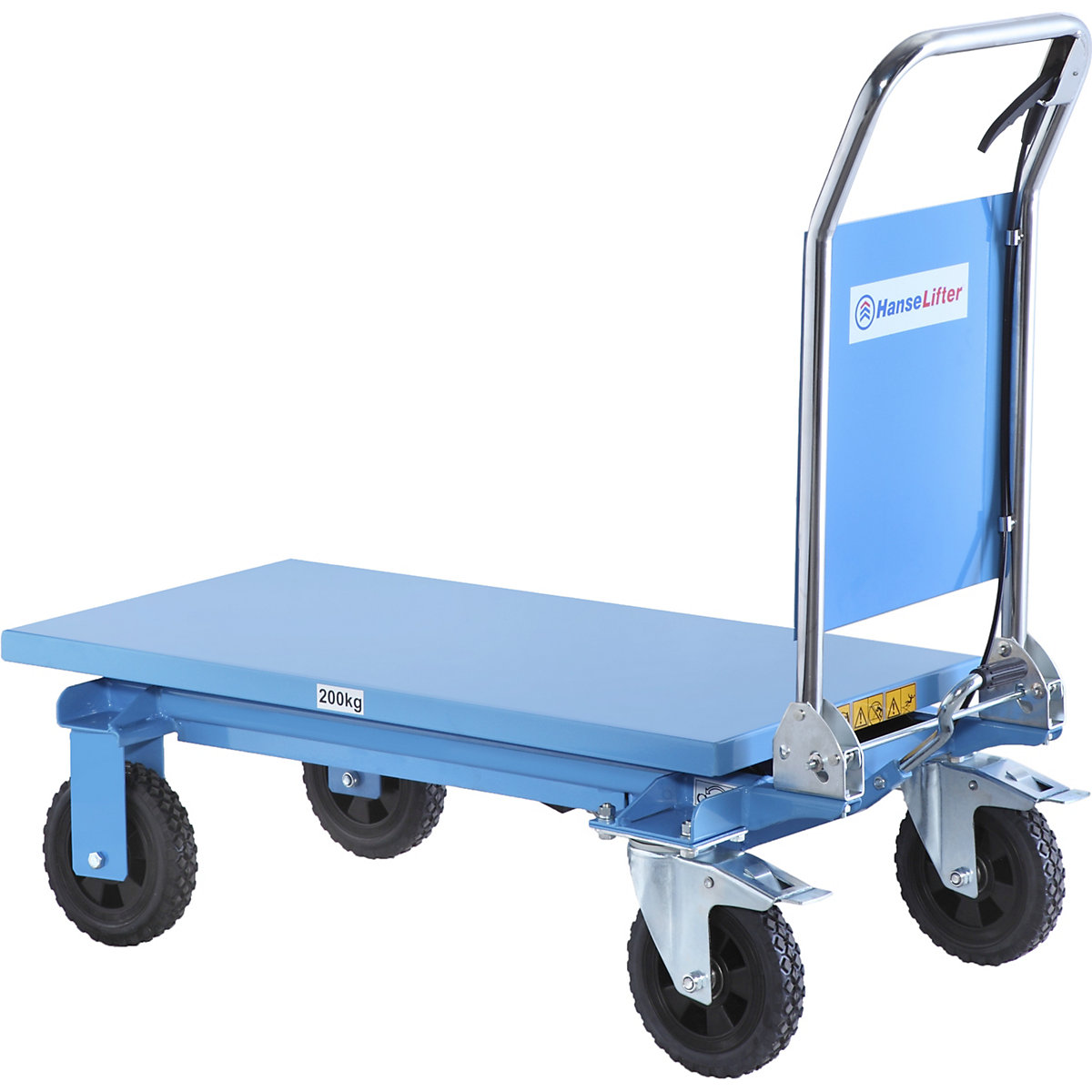

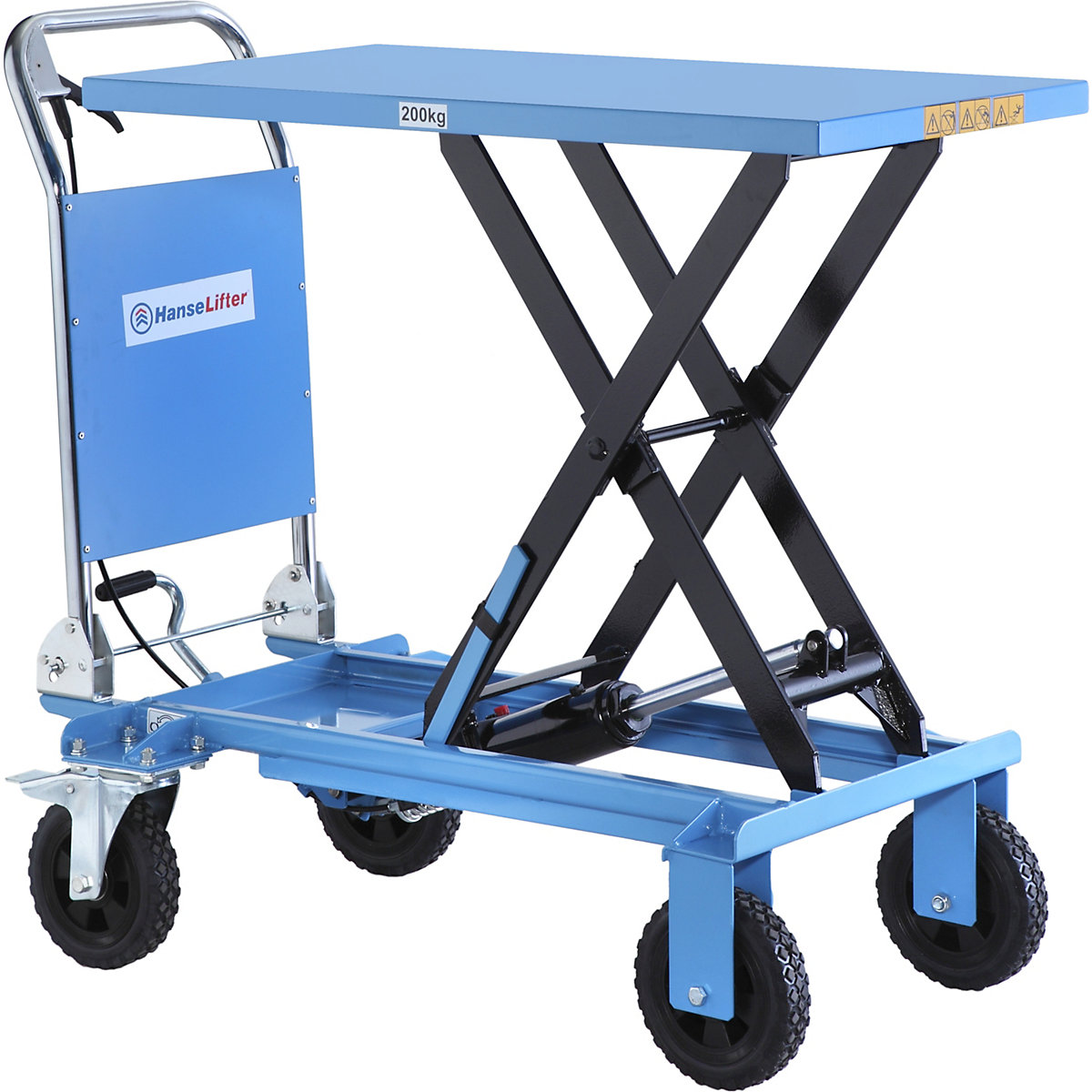

Lifting platform truck lifting range 330 – 1010 mm
- Ideal for rough ground
- Large, profiled rubber wheels
- Sturdy foot pump for energy conserving lifting

Ref.: 116458 10
Lifting platform truck, lifting range 330 – 1010 mm, max. load 200 kg
Price / items (net)
€ 579.00
Product description
+
The terrain platform truck is particularly suitable for work on rough ground. Ideal for building sites or gravel surfaces. Due to the profiled rubber wheels and especially high floor clearance, the lifting table can access almost anywhere. The terrain platform truck reaches full lifting height with around 9 lift strokes. Measured and progressive lowering is possible using a lever.
- Ideal for rough ground
- Large, profiled rubber wheels
- Sturdy foot pump for energy conserving lifting
Technical data
+
Max. load | 200 kg |
---|---|
Lifting range | 330 – 1010 mm |
Overall length | 1180 mm |
Overall width | 620 mm |
Platform material | steel |
Platform finish | powder coated |
Platform colour | light blue RAL 5012 |
Lift per pump stroke | 70 mm |
Lift drive | manual |
Product type | scissor lifting platform truck |
Scissor mechanism colour | black |
Weight | 73 kg |
Platform width | 500 mm |
Platform length | 1000 mm |
Fittings | equipment for company premises |
Feature | mobile manual |
Supplied | assembled |
