Lifting platform truck lifting range 310 – 900 mm
- Extremely large platform
- Sturdy sheet steel construction with edge reinforcement
- Convenient lifting using pedal
- High quality hydraulic cylinders
- Wheel stop on the swivel castors
Ref.: 116457 10

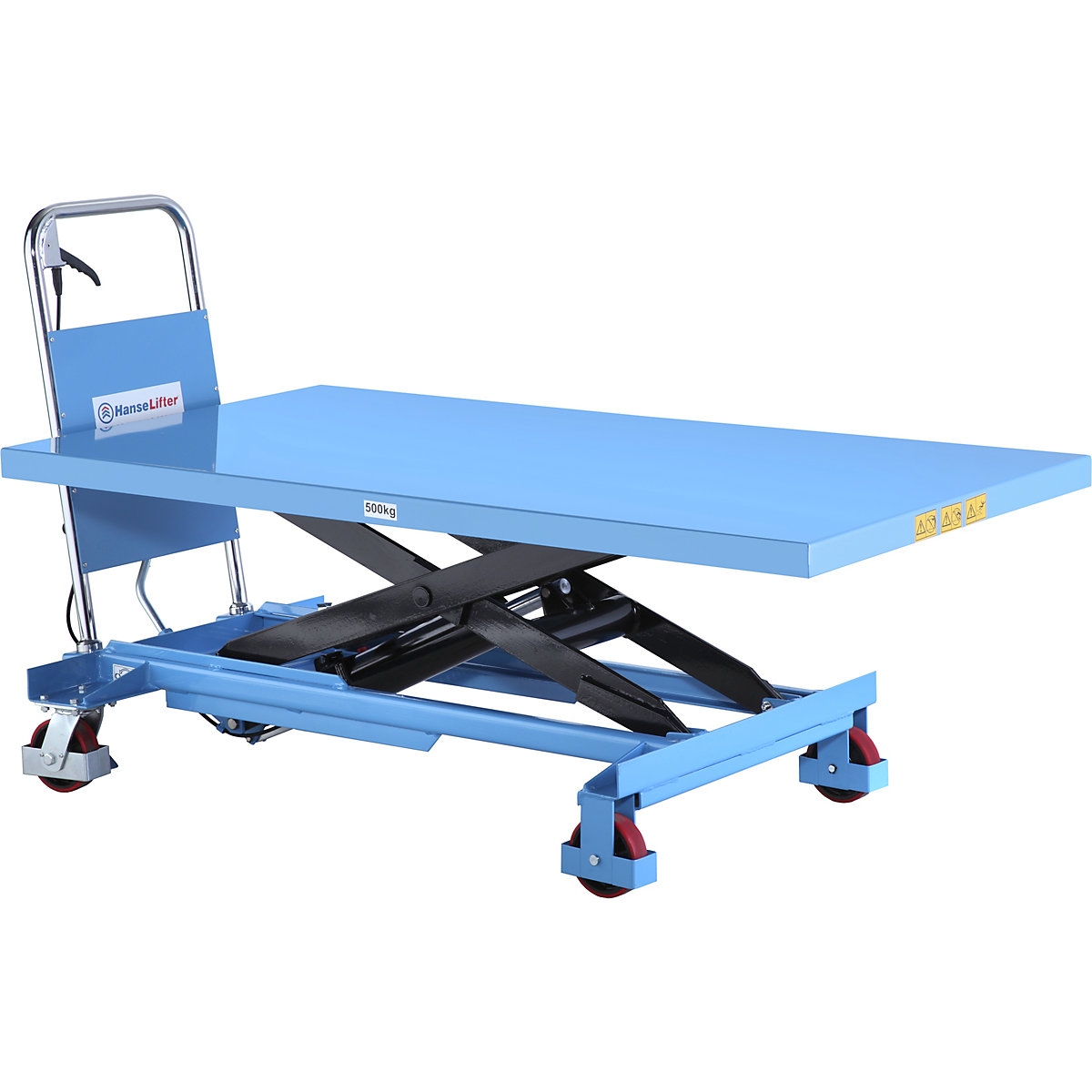

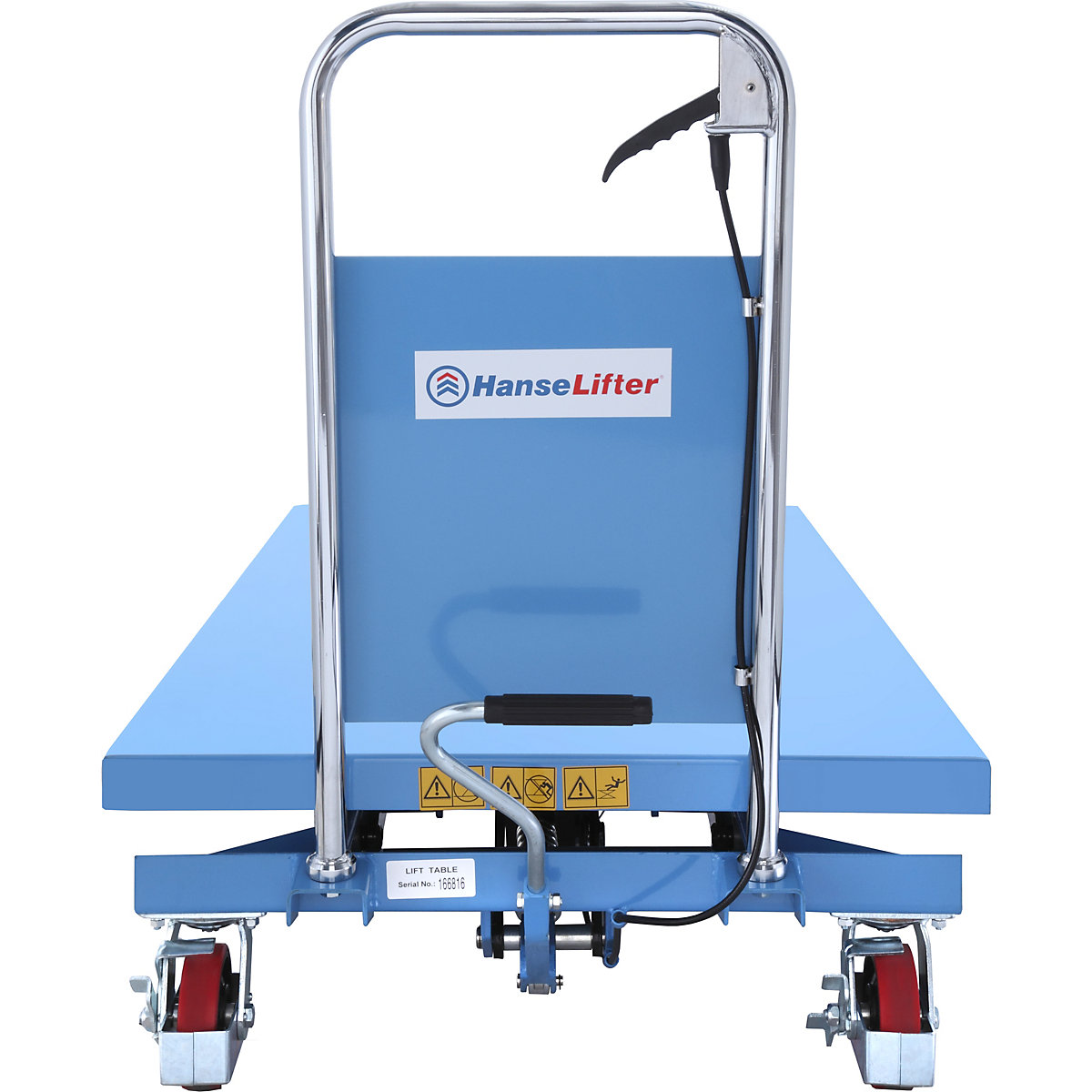

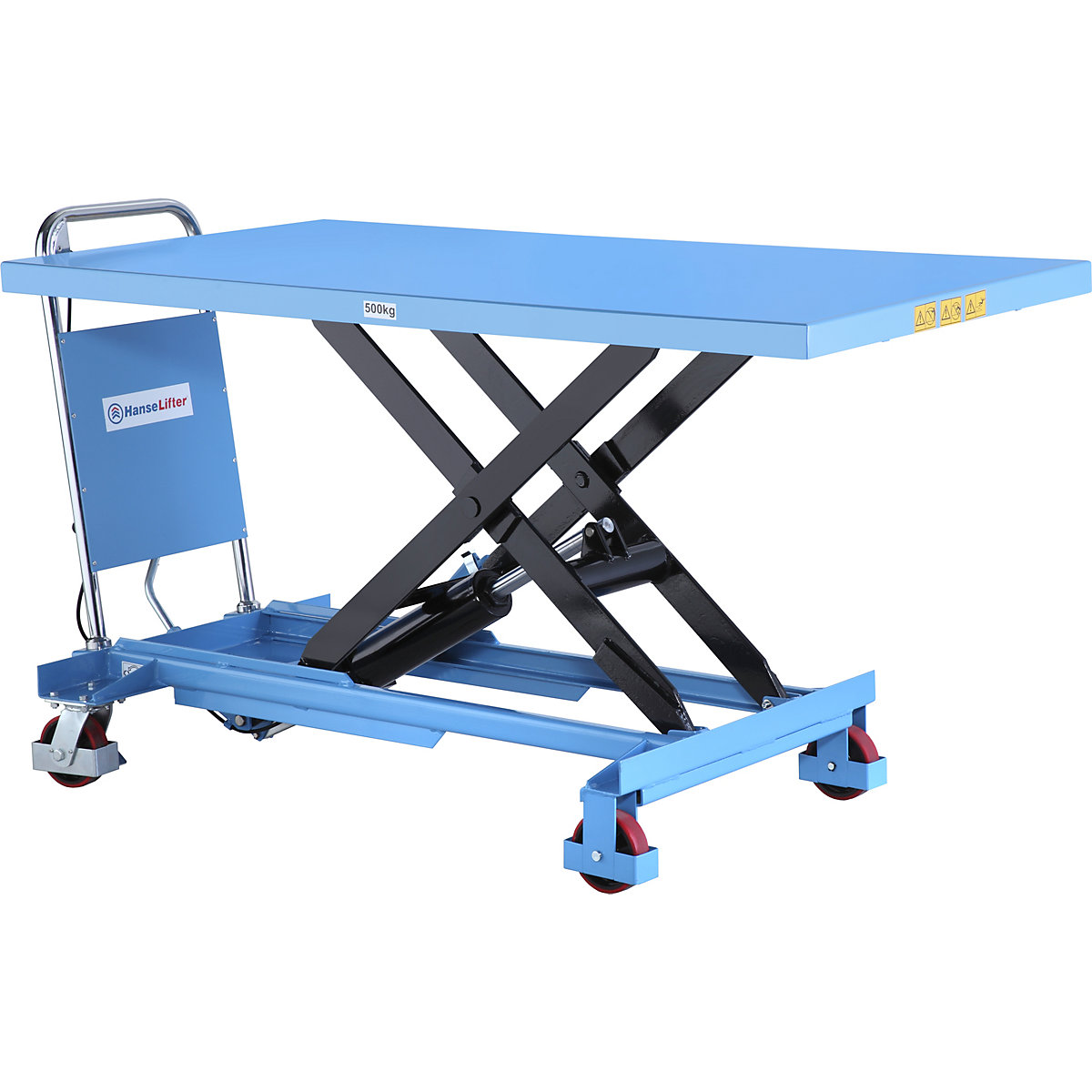

Lifting platform truck, lifting range 310 – 900 mm, max. load 500 kg
Price / items (net)
€ 939.00
Product description
+
The manual lifting platform truck is a special design with an extra large table platform. With a lifting height of 900 mm, the manual lifting platform truck can move all kinds of goods to a comfortable working height. The lifting platform truck is equipped with a sturdy foot pump. This saves energy when raising the platform.
- Extremely large platform
- Sturdy sheet steel construction with edge reinforcement
- Convenient lifting using pedal
- High quality hydraulic cylinders
- Wheel stop on the swivel castors
Technical data
+
| Max. load | 500 kg |
|---|---|
| Lifting range | 310 – 900 mm |
| Overall length | 1600 mm |
| Overall width | 800 mm |
| Platform material | steel |
| Platform finish | powder coated |
| Platform colour | light blue RAL 5012 |
| Lift per pump stroke | 25 mm |
| Lift drive | manual |
| Product type | scissor lifting platform truck |
| Scissor mechanism colour | black |
| Weight | 138 kg |
| Platform width | 800 mm |
| Platform length | 1600 mm |
| Fittings | push handle |
| Feature | mobile manual |
| Supplied | assembled |
