Ref.: 854731 10

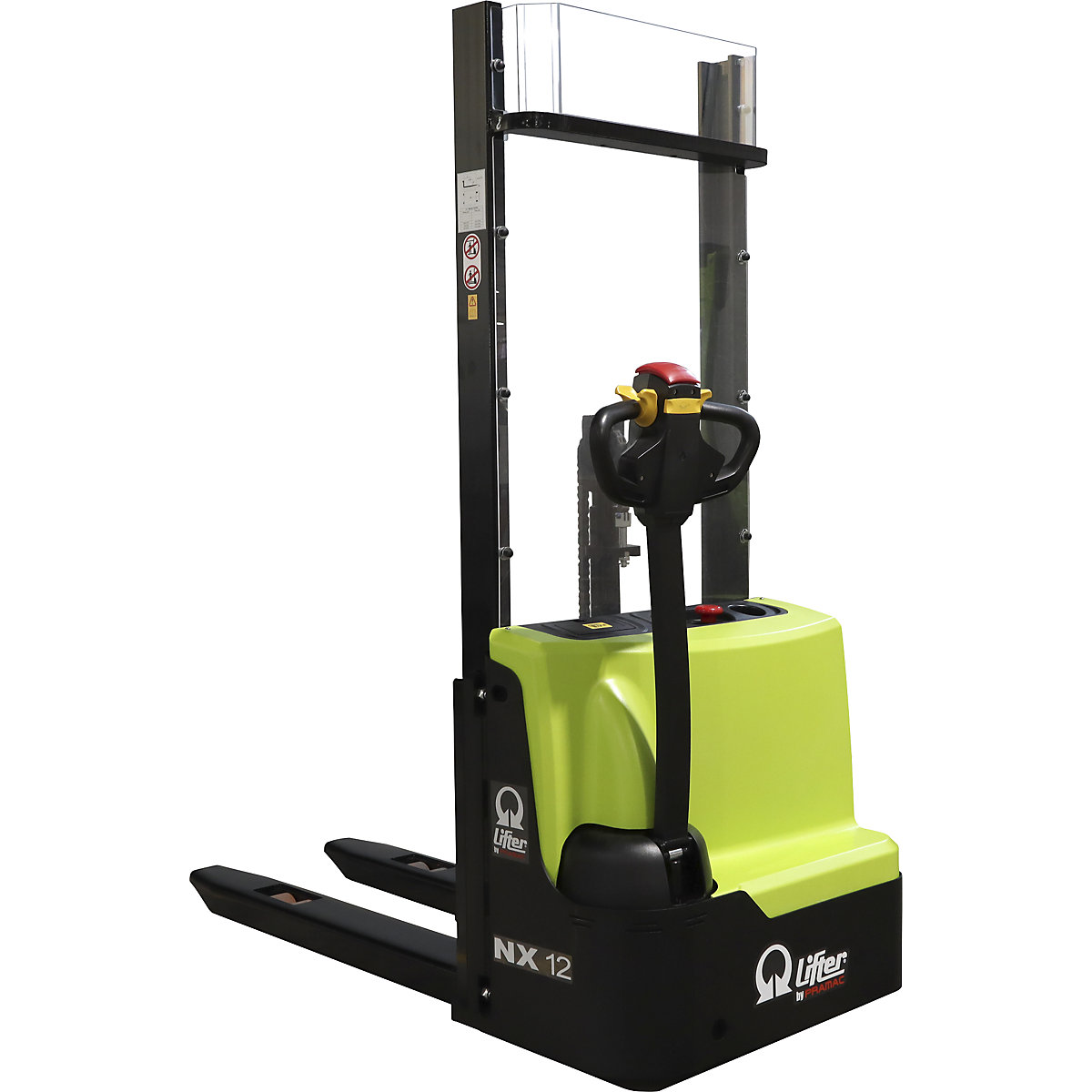

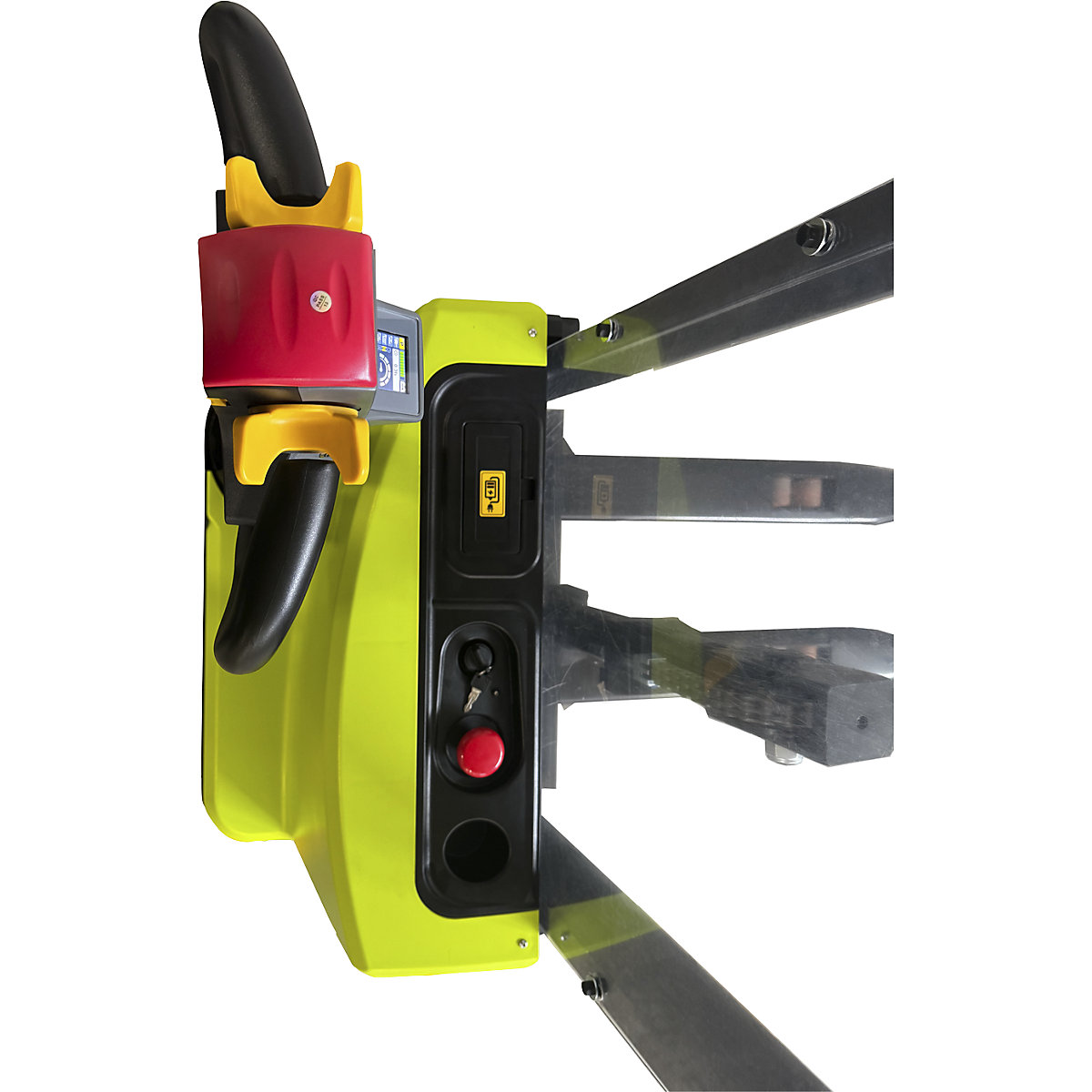

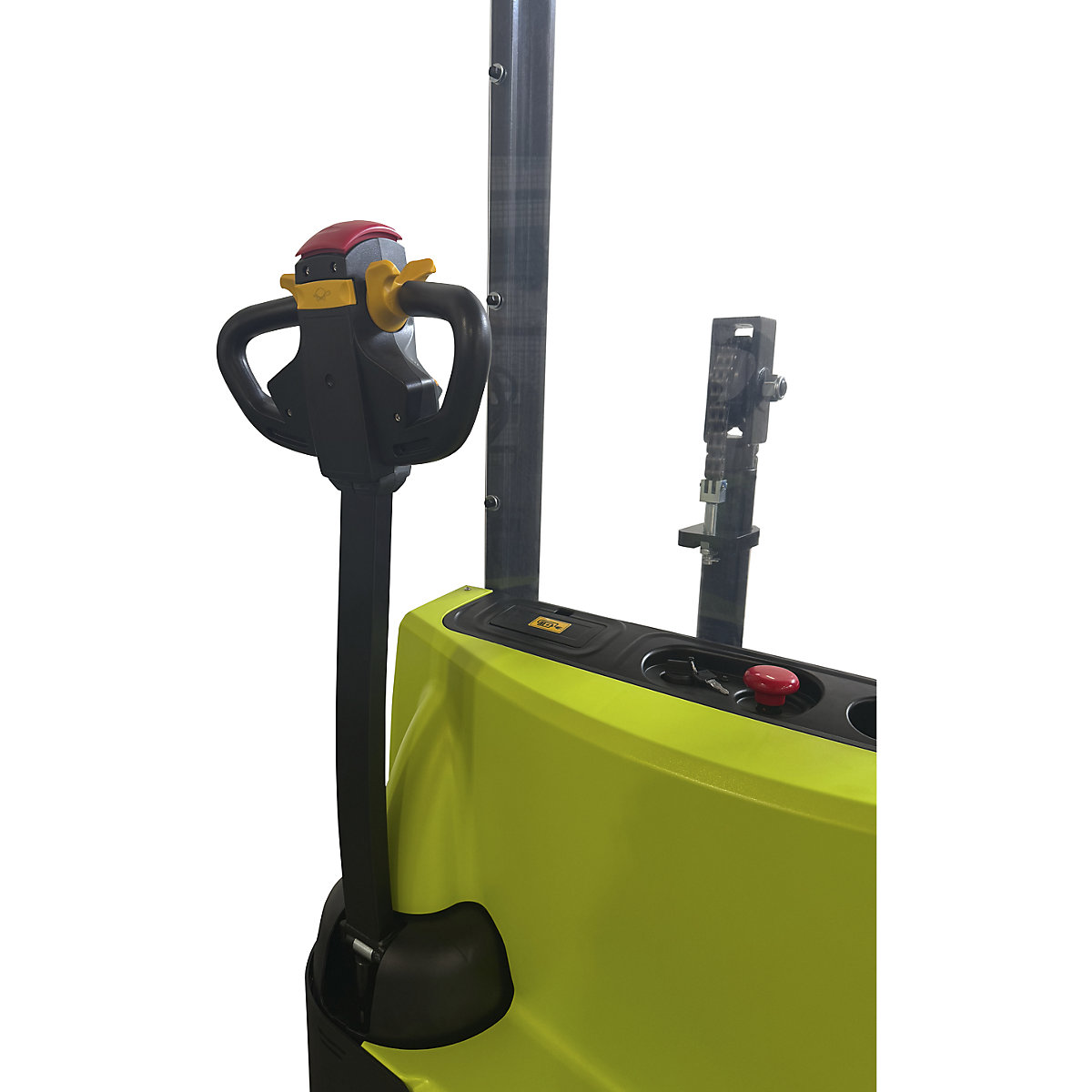

NX electric drawbar stacker – Pramac single mast

NX electric drawbar stacker – Pramac

max. load 1200 kg, lifting height 900 mm

Lifting range [mm]
€ 7,400.00
Price / item (Excl. VAT)
Delivery time: 5-6 Week Delivery
Product description
  • Precise lifting and lowering for sensitive loads
  • Compact design for confined storage areas
  • Robust, easy to maintain design
The NX stacker represents excellent value for money and meets the requirements of professional warehouse equipment with ease. Its robust design, ergonomic operation and high reliability make it ideal for light to medium duty warehouse applications.

The compact design means the NX is particularly easy to manoeuvre in narrow aisles and confined spaces – perfect for tight storage areas and efficient processes. The slender dimensions facilitate precise control and ensure maximum manoeuvrability.

Manufactured from durable, high quality materials, the NX guarantees long term, uninterrupted use for everyday assignments. The easy to maintain design allows quick access to the battery and components, reducing downtime and increasing operational readiness.
Technical data
Max. load1200 kg
Fork length1150 mm
Fork width150 mm
Distance across forks560 mm
Length1735 mm
Width820 mm
Min. lifting speed100 mm/s
Max. lifting speed200 mm/s
Min. driving speed4.3 km/h
Max. driving speed4.6 km/h
Climbing performance with load5 %
Climbing performance without load15 %
Design of mastsingle mast
Turning radius1420 mm
Thickness of fork prong70 mm
Battery24 V / 85 Ah
Battery charger24 V / 10 A
Working gangway for pallet length2200 mm
Roller materialpolyurethane
Fork roller versionsingle
Fork roller diameter80 mm
Fork roller width70 mm
Steering wheel diameter210 mm
Travel motor0.75 kW
Lifting motor2.5 kW
Colourgreen
Product typeelectric drawbar stackers
Suppliedassembled
Lifting range900 mm
Overall height1295 mm
Weight537 kg
