Ref.: 854518 10

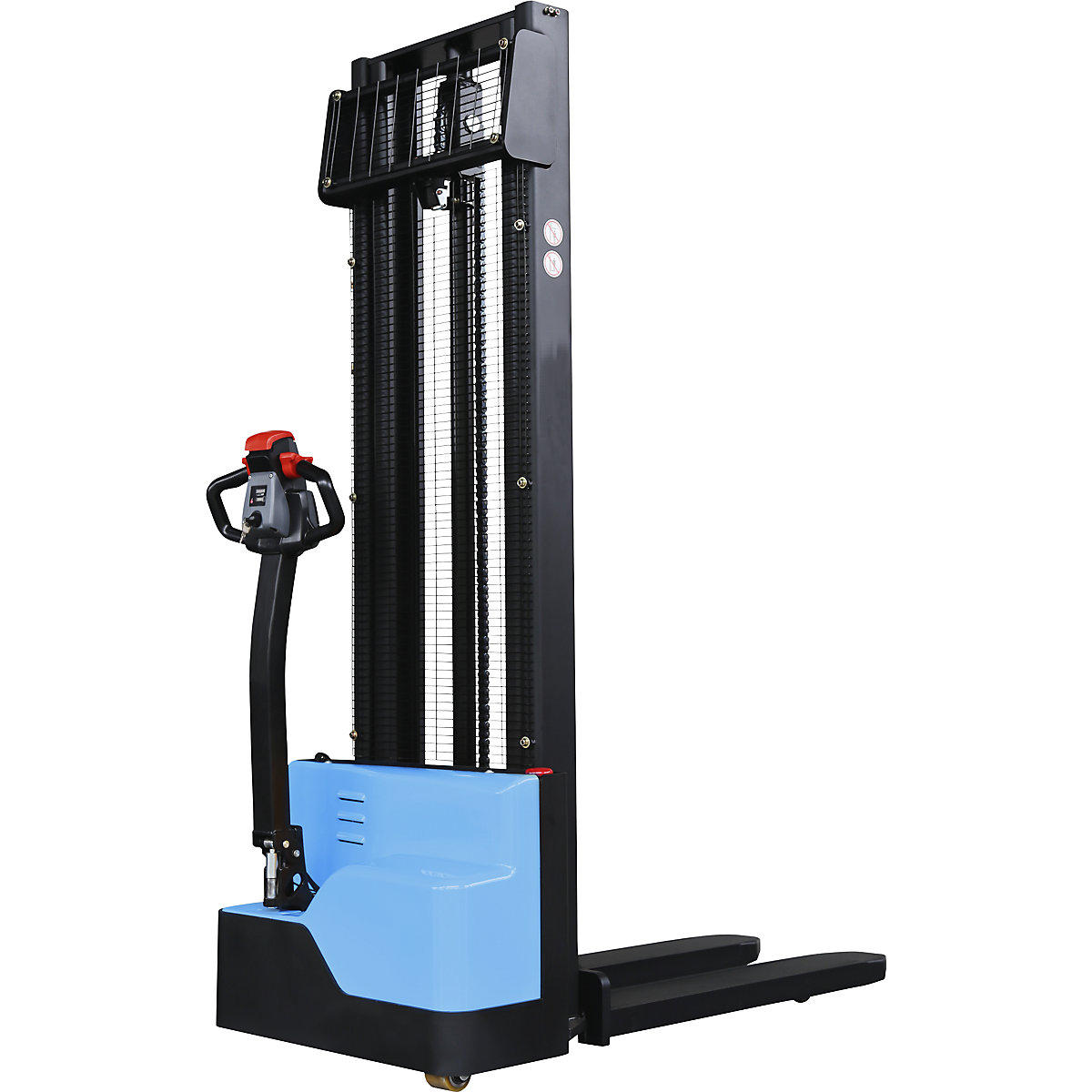

Electric drawbar stacker max. load 1200 kg
fork dimensions 1150 x 570 mm
Ref.: 854518 10
Electric drawbar stacker max. load 1200 kg
fork dimensions 1150 x 570 mm
fork dimensions 1150 x 570 mm
€ 8,200.00
Price / item (Excl. VAT)
Delivery time: 9-11 Working Days
Good reasons to purchase products from us
- Guarantee of up to 15 years
- 30 day right of return
- Free delivery from Germany
- Fast delivery
We will be happy to help you
1 800 677 300
Monday-Friday 8am-5pm
Do you have any questions about this product?€ 8,200.00
Price / item (Excl. VAT)
Product description
- Fully electric drawbar stacker
- Reasonably priced entry level model
- Compact design
Simple and reliable, that is how lifting and conveying equipment must be today. This pedestrian stacker combines both properties and also impresses with an affordable purchase price. The electric pedestrian stacker lifts pallets up to 1200 kg and has a maximum lifting height of 3300 mm. Stacking pallets has never been so affordable.
Thanks to the compact dimensions, you can also easily drive the pedestrian stacker through narrower aisles in the warehouse. The side-mounted tiller also allows a good view of the pallet to be transported and makes navigation easier.
Duplex mast
The pedestrian stacker is equipped with a duplex mast. This has 2 mast profiles with 3 lifting cylinders. During the lifting process, the lifting runner first passes through the free lift and thus the entire length of the inner frame. Only then does the inner frame extend.
Gel battery – less sensitive to vibrations
The electric pedestrian stacker is equipped with an effective gel battery and integrated charger, offering the operator maximum flexibility. Gel batteries have the advantage of offering greater protection against vibrations. The sealed design also facilitates handling and improves safety. The user does not need to fear any leakage of an intact gel battery.
Maintenance
Thanks to the proven, high-quality components, maintenance or any repairs are very simple and can be carried out extremely quickly. This makes the pedestrian stacker extremely cost-effective to maintain.
Thanks to the compact dimensions, you can also easily drive the pedestrian stacker through narrower aisles in the warehouse. The side-mounted tiller also allows a good view of the pallet to be transported and makes navigation easier.
Duplex mast
The pedestrian stacker is equipped with a duplex mast. This has 2 mast profiles with 3 lifting cylinders. During the lifting process, the lifting runner first passes through the free lift and thus the entire length of the inner frame. Only then does the inner frame extend.
Gel battery – less sensitive to vibrations
The electric pedestrian stacker is equipped with an effective gel battery and integrated charger, offering the operator maximum flexibility. Gel batteries have the advantage of offering greater protection against vibrations. The sealed design also facilitates handling and improves safety. The user does not need to fear any leakage of an intact gel battery.
Maintenance
Thanks to the proven, high-quality components, maintenance or any repairs are very simple and can be carried out extremely quickly. This makes the pedestrian stacker extremely cost-effective to maintain.
Technical data
| Max. load | 1200 kg |
|---|---|
| Lifting range | 86 – 3300 mm |
| Fork length | 1150 mm |
| Fork width | 170 mm |
| Distance across forks | 570 mm |
| Length | 1717 mm |
| Width | 800 mm |
| Overall height | 2256 mm |
| Min. lifting speed | 110 mm/s |
| Max. lifting speed | 220 mm/s |
| Min. driving speed | 3.6 km/h |
| Max. driving speed | 3.8 km/h |
| Climbing performance with load | 4 % |
| Climbing performance without load | 10 % |
| Design of mast | duplex mast |
| Turning radius | 1390 mm |
| Thickness of fork prong | 60 mm |
| Battery | 2 x 12 V / 85 Ah |
| Battery charger | 24 V / 10 A |
| Working gangway for pallet length | 2225 mm |
| Roller material | polyurethane |
| Fork roller version | single |
| Fork roller diameter | 74 mm |
| Fork roller width | 72 mm |
| Steering wheel width | 70 mm |
| Steering wheel diameter | 210 mm |
| Travel motor | 0.75 kW |
| Lifting motor | 2.2 kW |
| Colour | black blue |
| Product type | electric drawbar stackers |
| Supplied | assembled |
| Weight | 605 kg |
