Ref.: 838850 10

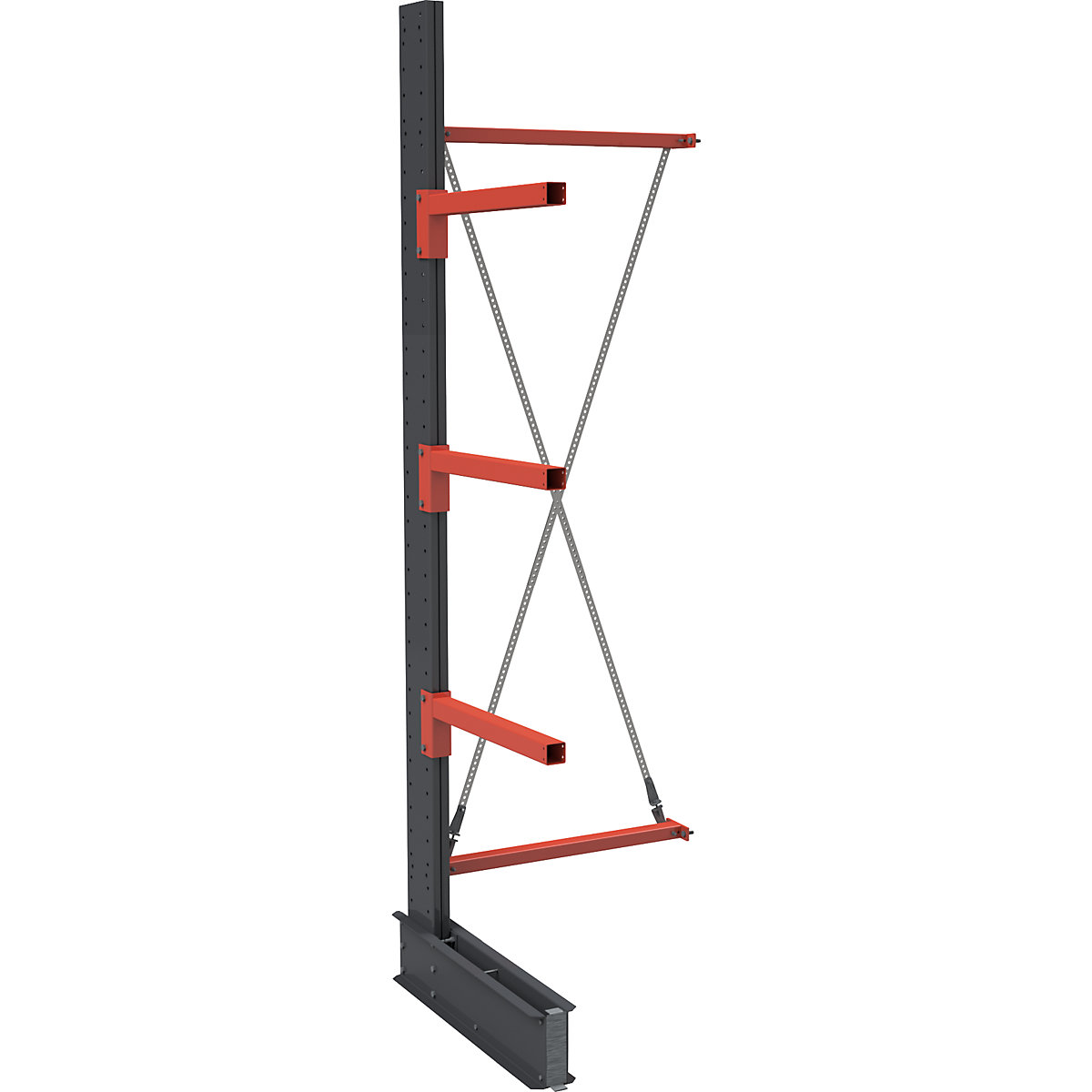

Cantilever racking unit Igor Super Heavy-Duty single sided

Cantilever racking unit Igor Super Heavy-Duty

HxW 3000 x 1000 mm, interval 1000 mm, extension shelf unit

Shelf unit type
Height [mm]
Distance between uprights [mm]
€ 1,220.00
Price / item (Excl. VAT)
Delivery time: 5-6 Week Delivery
Product description
  • For heavy long goods, of the highest quality, fulfils applicable safety requirements FEM10.2.09
  • The height of the cantilever arms are easy to adjust and can be customised as required
  • With impact resistant plastic coating
Complete cantilever racking unit with stands, feet, cantilever arms, longitudinal and cross connectors and concrete screws for anchoring to the floor. Specified max. load per upright including base beam.
Technical data
Width of upright profile80 mm
Depth of upright profile265 mm
Adjustment grid100 mm
Materialsteel
Colourgraphite grey RAL 7024 vermilion RAL 2002
Designscrew system
Design of cantilever shelvingsingle sided
Product typecomplete cantilever racking units
Suppliedflat pack
Shelf unit typeextension unit
Height3000 mm
Distance between uprights1000 mm
Cantilever arm length1000 mm
Shelf unit length1040 mm
Effective depth1265 mm
Max. bay load2250 kg
Max. cantilever arm load750 kg
Max. load2250 kg
Number of storage levels incl. foot3 pcs.
Number of uprights1 pcs.
Weight161.49 kg
Manufacturer / EU responsible Person (GPSR)
Sustainability
Product with potential for future improvement

This product does not yet meet enough of our sustainability criteria. This does not mean that it has no sustainable properties – however, the total score is lower than 3 points. Therefore, it is not (yet) labelled as particularly sustainable. Our sustainability assessment is based on transparent, clearly defined ecological, social and economic criteria. The aim is to highlight development potential and create greater transparency.

You can find out more about product evaluation and our sustainability initiative on our information page.

Product CO₂ footprint

Recycled content in %?
100
‌
‌
‌
‌
