Ref.: 941127 10

Stainless steel solvent pump, foot operated with drainage elbow

Stainless steel solvent pump, foot operated

20 l/min

For flammable liquids
For flammable liquids
€ 879.00
Price / item (Excl. VAT)
Delivery time: 12-14 Working Days
Product description
  • For dispensing highly flammable and combustible liquids
  • Resistant to high purity solvents such as acetone, isopropanol, ethanol etc.
  • For drums up to 220 l
  • Immersion tube infinitely adjustable to depth of drum
Pump for contamination free removal of organic solvents and aromatic compounds. For highly flammable, combustible liquids and high purity solvents such as acetone, isopropanol, ethanol etc.

All parts that come into contact with the medium are made of stainless steel (1.4301) and PTFE. Including drum screw connection for R2'' steel fine threads, internal.

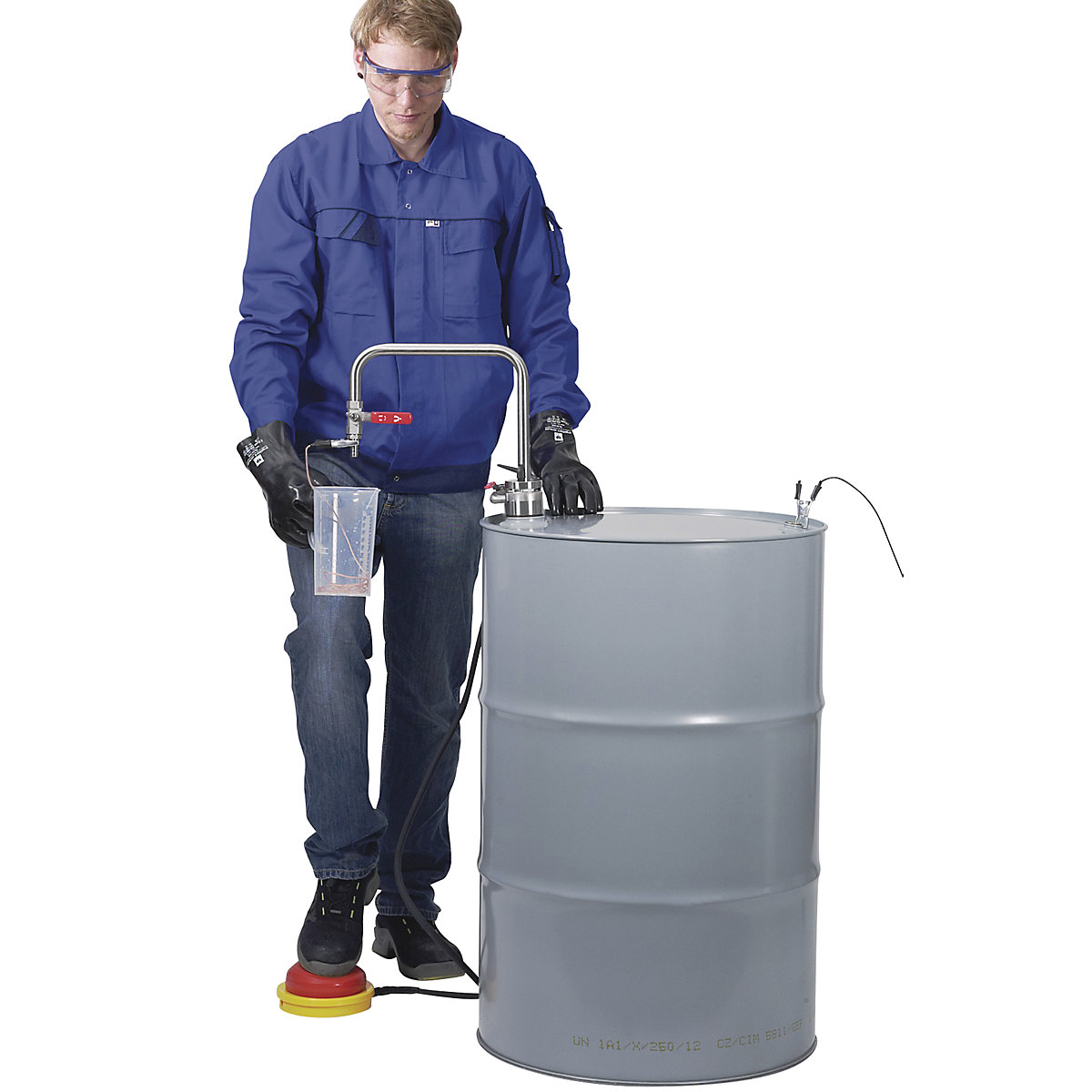

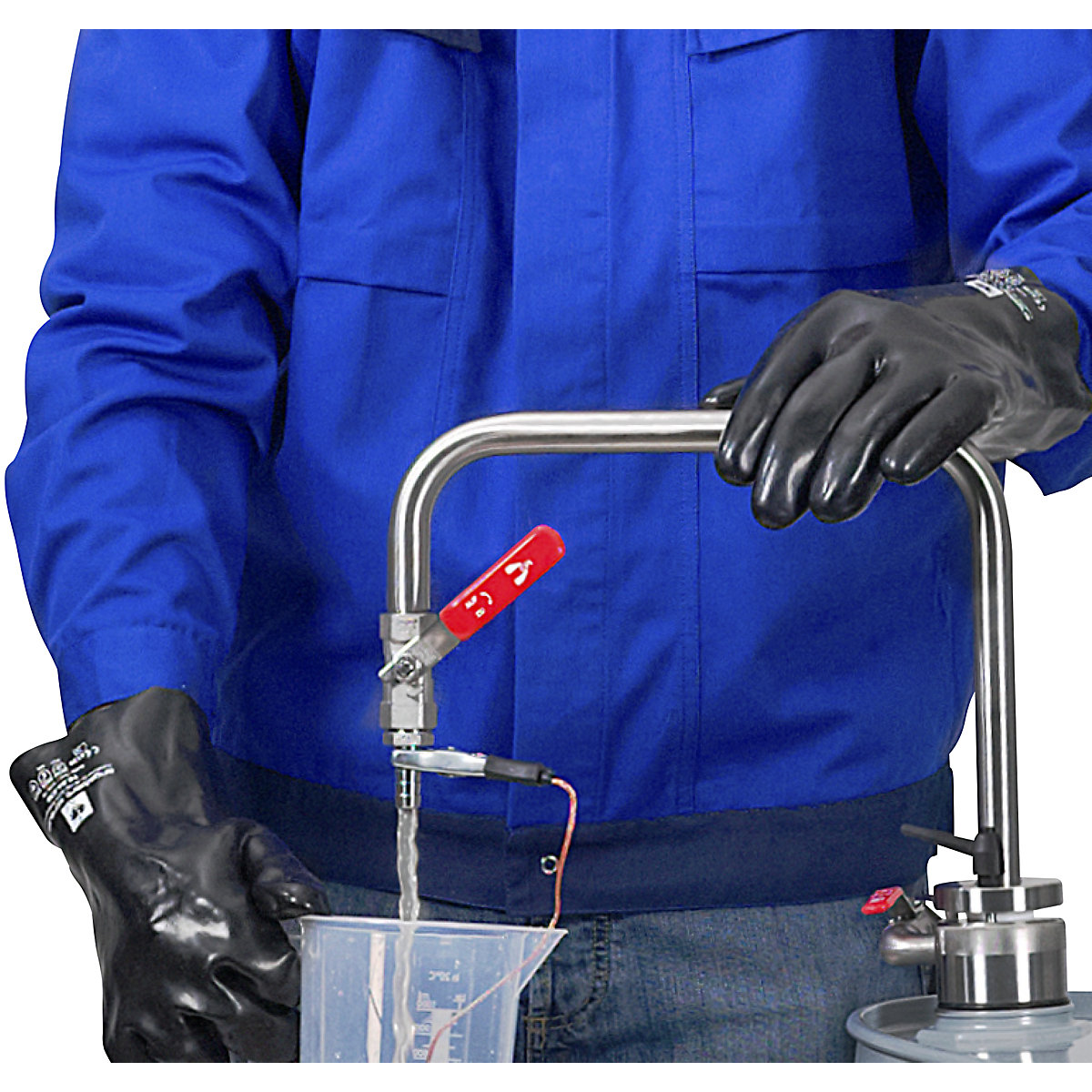

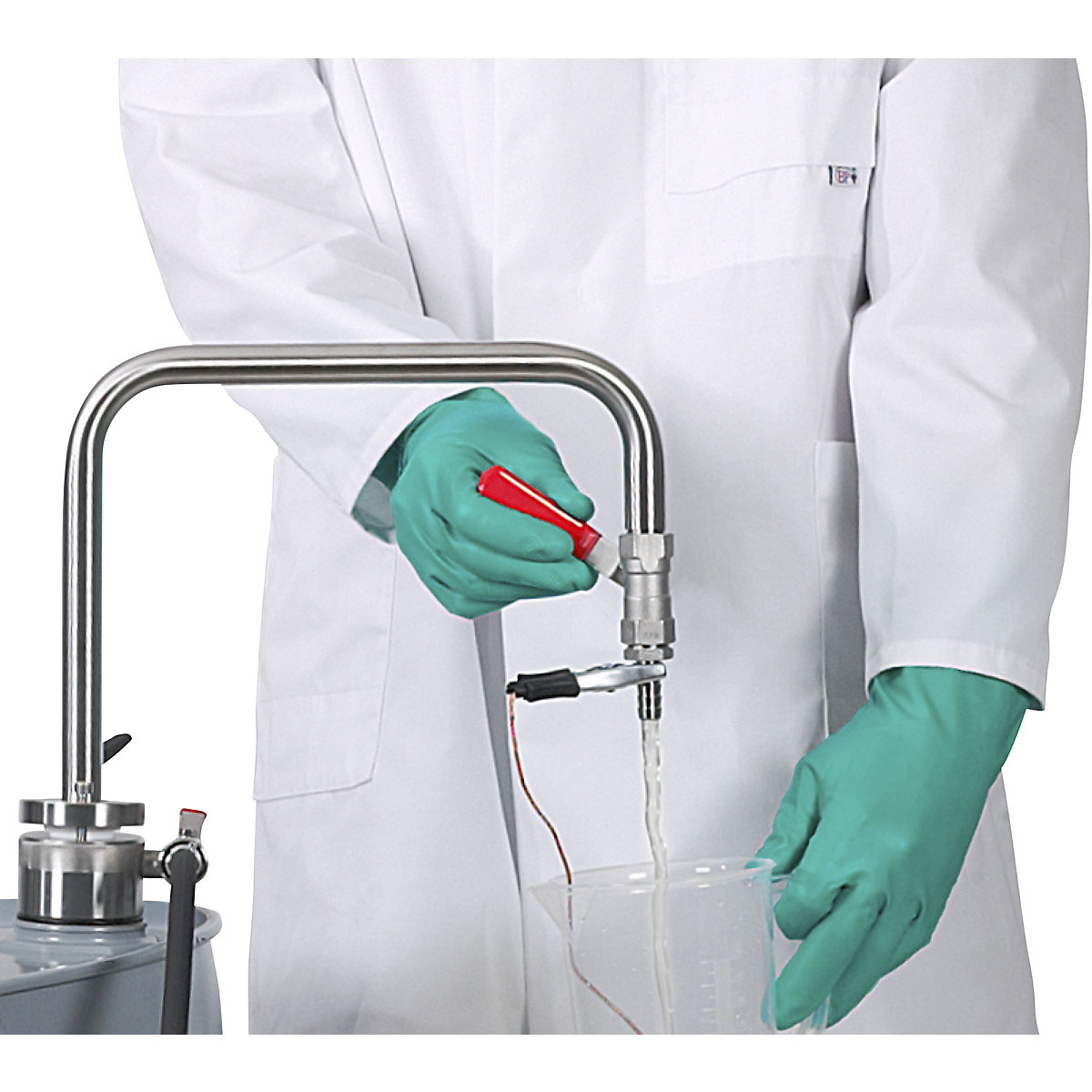

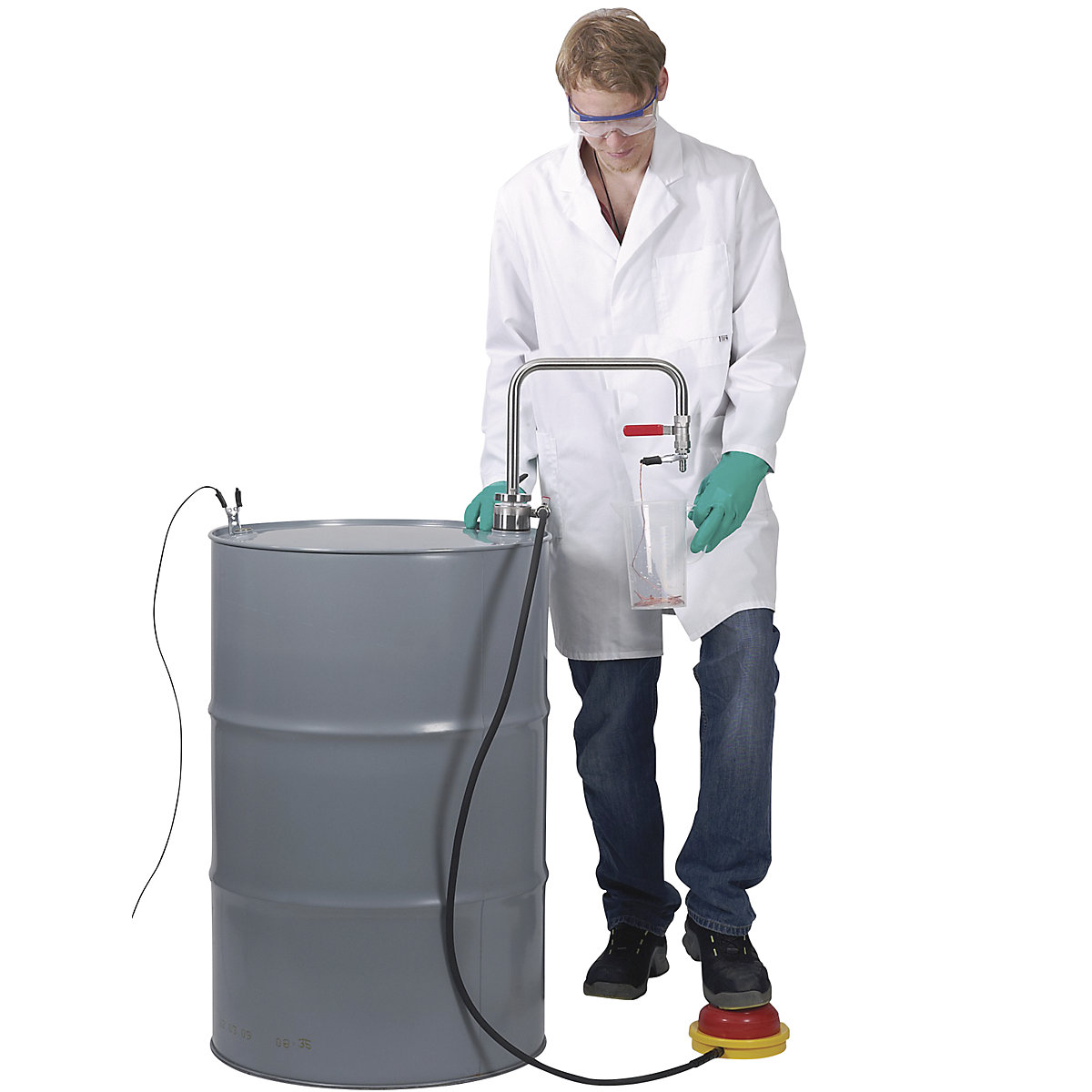

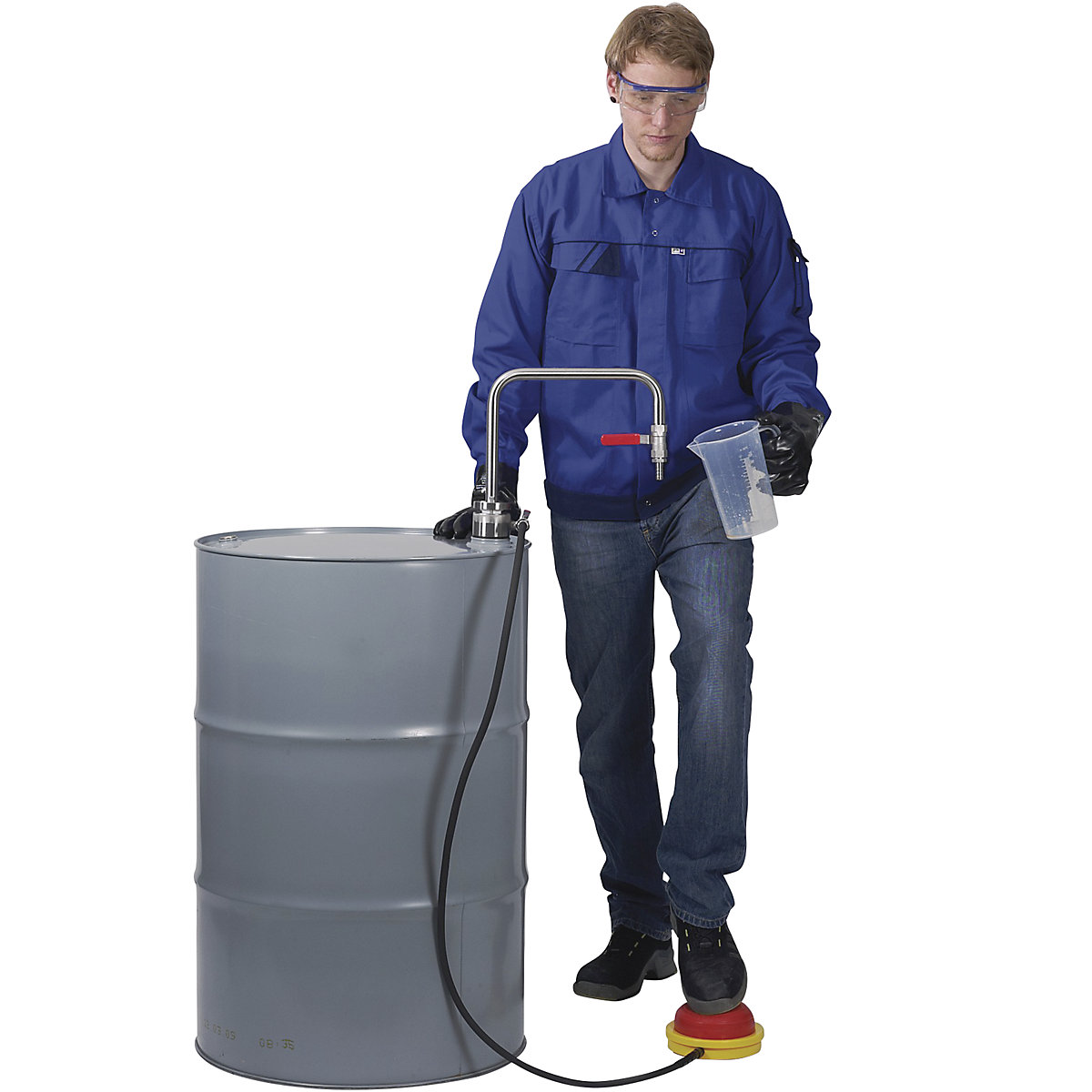

The pump operates using the excess pressure principle. A foot pump is used to build up excess pressure in the container, which pushes the liquid out of the container. The simple operation of the pump using your foot bellows leaves both hands free for filling tasks. The clip connection allows the air hose to be attached and detached quickly and easily.

Immersion depth 950 mm.
Pumping capacity approx. 20 l/min.
Attention: the drum and the pump must be earthed with an anti-static kit (accessory) when dispensing combustible liquids, ensuring that no electrostatic charges can build up (explosion hazard zone 0).
Technical data
Design of pumpfoot operation with drainage elbow
For mediahighly flammable/flammable/high purity liquids explosion hazard zone 0 solvents (explosion protected)
Scope of deliverysolvent pump with drainage elbow and drum screw connection without antistatic kit
Material of pumpstainless steel (V2A) PTFE
Immersion depth950 mm
Pump rate20 l/min
Immersion tube length950 mm
ThreadR 2 inch
Max. viscosity at +20 °C500 mPas
Weight4.48 kg
Coloursilver red black
Product typehand pumps
Suppliedflat pack
Pictorial instructions
