Ref.: 853477 10

Electric container pump set – Lutz pump made of polypropylene

(2)
Electric container pump set – Lutz

immersion depth 500 mm

Immersion depth [mm]
€ 969.00
Price / item (Excl. VAT)
Delivery time: 6-8 Working Days
Product description
  • For safe pumping of a wide range of chemicals, acids, alkalines etc.
  • Speed regulator for task specific pumping rate – infinitely adjustable volume regulation from pump pistol
  • Various immersion depths for common container sizes
  • Ergonomic, user friendly design

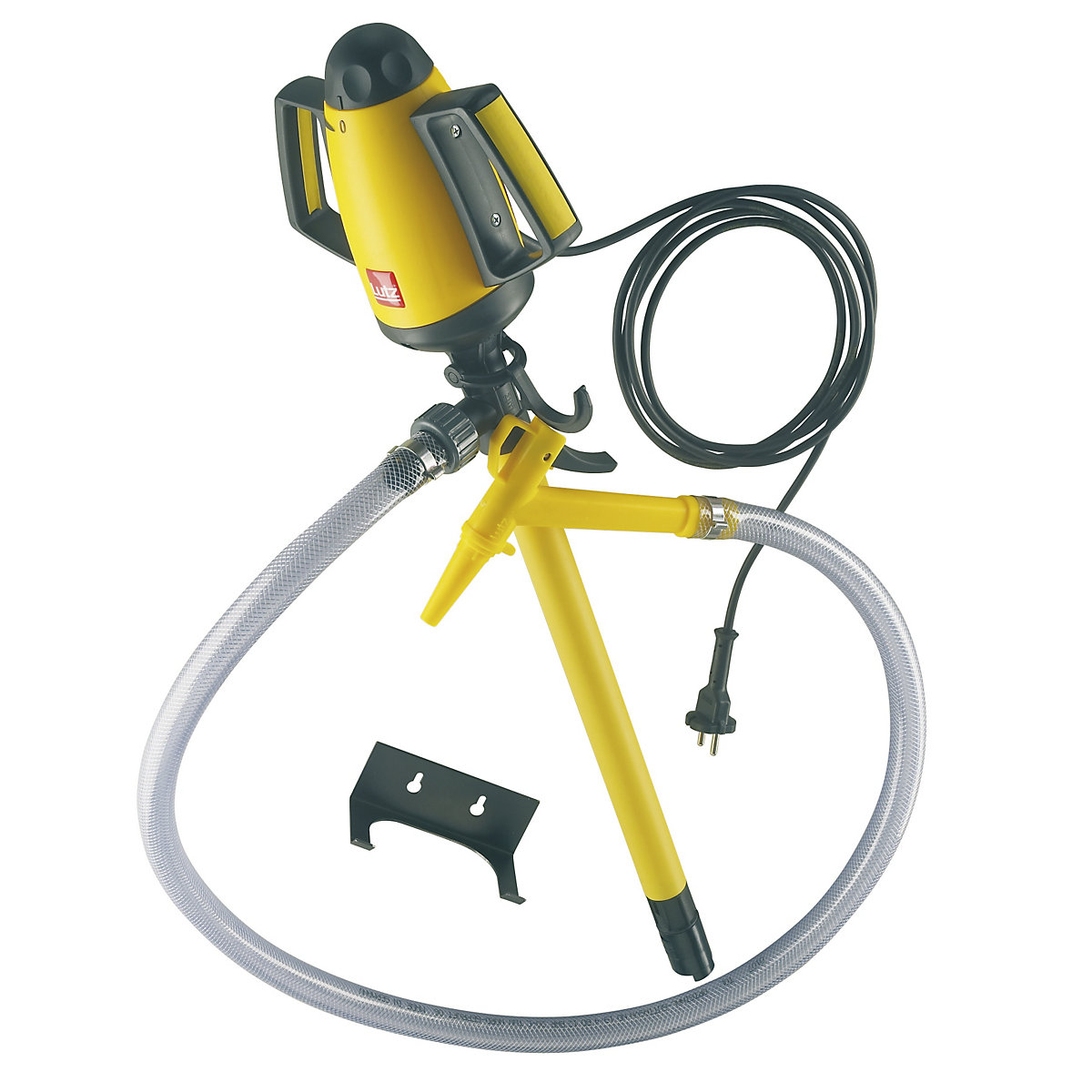

Supplied as set, consisting of pump, 1.5 m PVC hose, filling pistol, hose clamps and hanging bracket.
Connection voltage 230 V, cable length 3 m.
For corrosive media or unspecified media, please enquire about compatibility beforehand.
The max. pump rate is a value determined by means of a test bench, measured with water as the medium at a temperature of approx. 20 °C. The measurement is made at the outlet port of the pump, without a hose, nozzle or flow meter. The pump rate that can be attained in use is lower, and depends on the individual job, the properties of the pumped medium and the configuration of the pump. The max. pumping height also depends on the pump design, motor and medium. The viscosity values are determined using oil.
Technical data
Design of pumpelectric container pump
For mediachemicals, acids and alkalis
Scope of deliverypump, 1.5 m PVC hose, filling pistol, hose clamps, hanging bracket
Type of connectionmains connection
Material of pumppolypropylene (PP)
Drive shaft materialHC-4
Immersion tube diameter32 mm
Pump rate65 l/min
Pumping height6.5 m wc
Voltage230 V
Power200 watt
Colouryellow
Product typedrum pumps, electric
Suppliedassembled
Immersion depth500 mm
Weight0 kg
Instructions
Sustainability
Product with potential for future improvement

This product does not yet meet enough of our sustainability criteria. This does not mean that it has no sustainable properties – however, the total score is lower than 3 points. Therefore, it is not (yet) labelled as particularly sustainable. Our sustainability assessment is based on transparent, clearly defined ecological, social and economic criteria. The aim is to highlight development potential and create greater transparency.

You can find out more about product evaluation and our sustainability initiative on our information page.

Product CO₂ footprint

Recycled content in %?
0
‌
‌
‌
‌
‌
‌
