Ref.: 540546 10
Standard wooden folding box – ratioform with runners
(2)
external LxWxH 400 x 300 x 320 mm
external LxWxH 400 x 300 x 320 mm
Ref.: 540546 10
Standard wooden folding box – ratioform with runners
(2)
external LxWxH 400 x 300 x 320 mm
€ 67.90
Price / item (Excl. VAT)
QuantityPrice/itemYou save
Delivery time: 9-11 Working Days
€ 67.90
Price / item (Excl. VAT)
QuantityPrice/itemYou save
Delivery time: 9-11 Working Days
Ref. | L x W x H (mm) | Length [mm] | Width [mm] | Height [mm] | Suitable for | Max. load [kg] | Stacking load [kg] | Model | Quantity on pallet [pcs.] | Weight [kg] | Supplied | Price / item (Excl. VAT) | Quantity | Total (Excl. VAT) | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
540546 10 | 380 x 280 x 280 | 400 | 300 | 320 | 1/8 Euro pallet | 20 | 80 | 2 runners | 100 | 3.48 | flat pack | € 67.90 | € 67.90 | ||
540547 10 | 580 x 380 x 380 | 600 | 400 | 500 | 1/4 Euro pallet | 200 | 600 | 2 runners | 50 | 7.73 | flat pack | € 111.00 | € 111.00 | ||
694000 10 12630K | 780 x 580 x 400 | 800 | 600 | 516 | 1/2 Euro pallet | 300 | 600 | 2 runners | 10 | 13.4 | pre-assembled, final assembly by customer | € 147.00 | € 147.00 | ||
540548 10 12639K | 780 x 580 x 580 | 800 | 600 | 700 | 1/2 Euro pallet | 300 | 600 | 3 runners | 50 | 15.66 | flat pack | € 193.00 | € 193.00 | ||
694003 10 13900K | 1180 x 780 x 370 | 1,200 | 800 | 486 | 1 Euro pallet | 600 | 1,000 | 3 runners | 10 | 22.8 | pre-assembled, final assembly by customer | € 205.00 | € 205.00 | ||
693994 10 12533K | 1180 x 780 x 500 | 1,200 | 800 | 616 | 1 Euro pallet | 600 | 1,000 | 3 runners | 10 | 25.4 | pre-assembled, final assembly by customer | € 227.00 | € 227.00 | ||
693997 10 12542K | 1180 x 780 x 615 | 1,200 | 800 | 731 | 1 Euro pallet | 600 | 1,000 | 3 runners | 10 | 27.5 | pre-assembled, final assembly by customer | € 239.00 | € 239.00 | ||
540549 10 13903K | 1180 x 780 x 750 | 1,200 | 800 | 900 | 1 Euro pallet | 600 | 1,000 | 3 runners | 10 | 32.76 | flat pack | € 339.00 | € 339.00 | ||
693991 10 12557K | 1180 x 780 x 1000 | 1,200 | 800 | 1,116 | 1 Euro pallet | 600 | 1,000 | 3 runners | 10 | 33.4 | pre-assembled, final assembly by customer | € 273.00 | € 273.00 | ||
694006 10 18841K | 1180 x 980 x 980 | 1,200 | 1,000 | 1,096 | 1 industrial pallet | 600 | 1,000 | 3 runners | 10 | 39.5 | pre-assembled, final assembly by customer | € 325.00 | € 325.00 |
540546 10
540546 10
€ 67.90
external LxWxH 400 x 300 x 320 mm
540547 10
540547 10
€ 111.00
external LxWxH 600 x 400 x 500 mm
694000 10 12630K
694000 10 12630K
€ 147.00
external LxWxH 800 x 600 x 516 mm
540548 10 12639K
540548 10 12639K
€ 193.00
external LxWxH 800 x 600 x 700 mm
694003 10 13900K
694003 10 13900K
€ 205.00
external LxWxH 1200 x 800 x 486 mm
693994 10 12533K
693994 10 12533K
€ 227.00
external LxWxH 1200 x 800 x 616 mm
693997 10 12542K
693997 10 12542K
€ 239.00
external LxWxH 1200 x 800 x 731 mm
540549 10 13903K
540549 10 13903K
€ 339.00
external LxWxH 1200 x 800 x 900 mm
693991 10 12557K
693991 10 12557K
€ 273.00
external LxWxH 1200 x 800 x 1116 mm
694006 10 18841K
694006 10 18841K
€ 325.00
external LxWxH 1200 x 1000 x 1096 m...
Product description
- With 2 or 3 runners for easy transport
- Assembled in max. 3 minutes – without nails, straps or brackets
- 50% lighter in weight than solid wood, which saves transport costs
- UN I, II, III approval for dangerous goods upon request

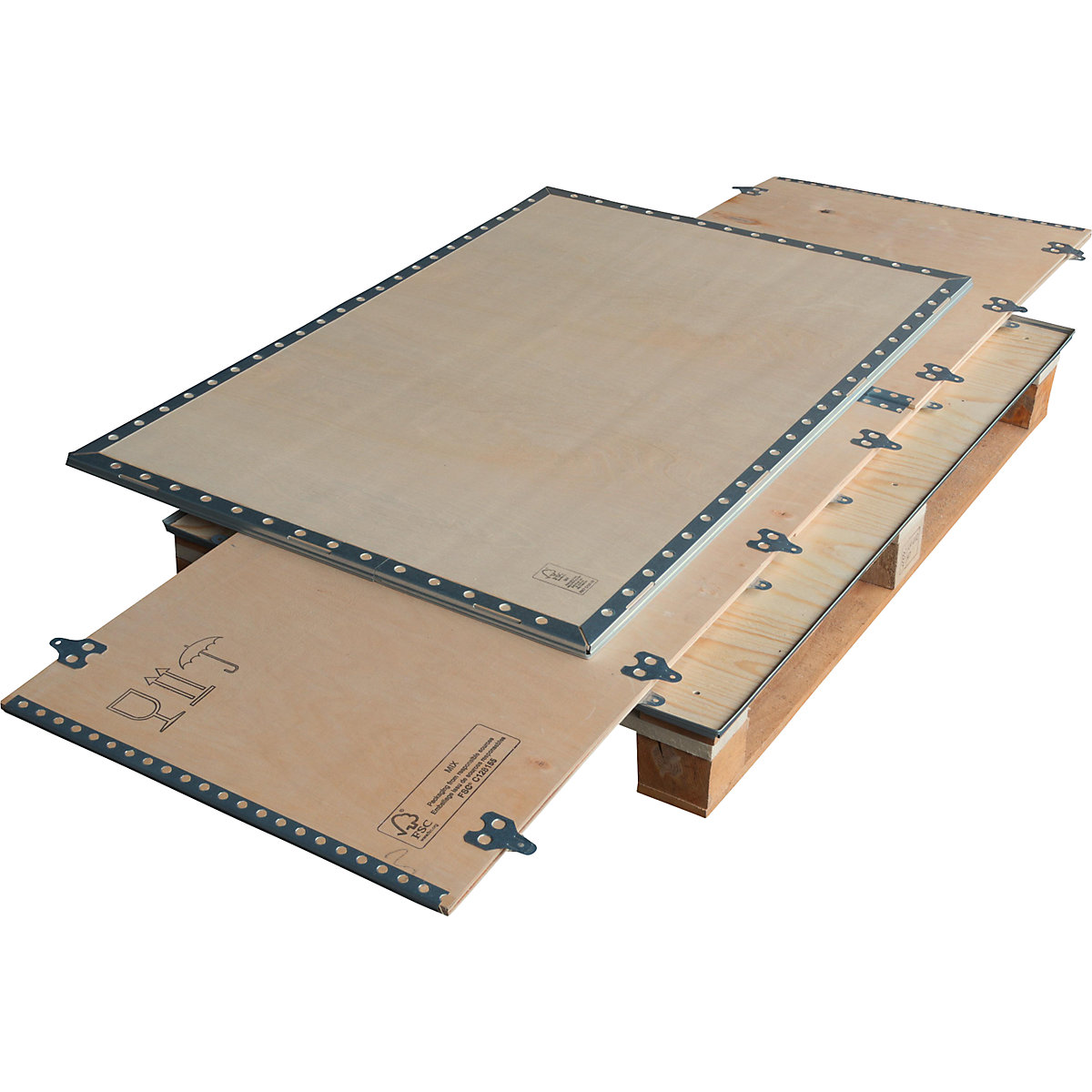

- Box consisting of three parts: side walls, lid, base with runners

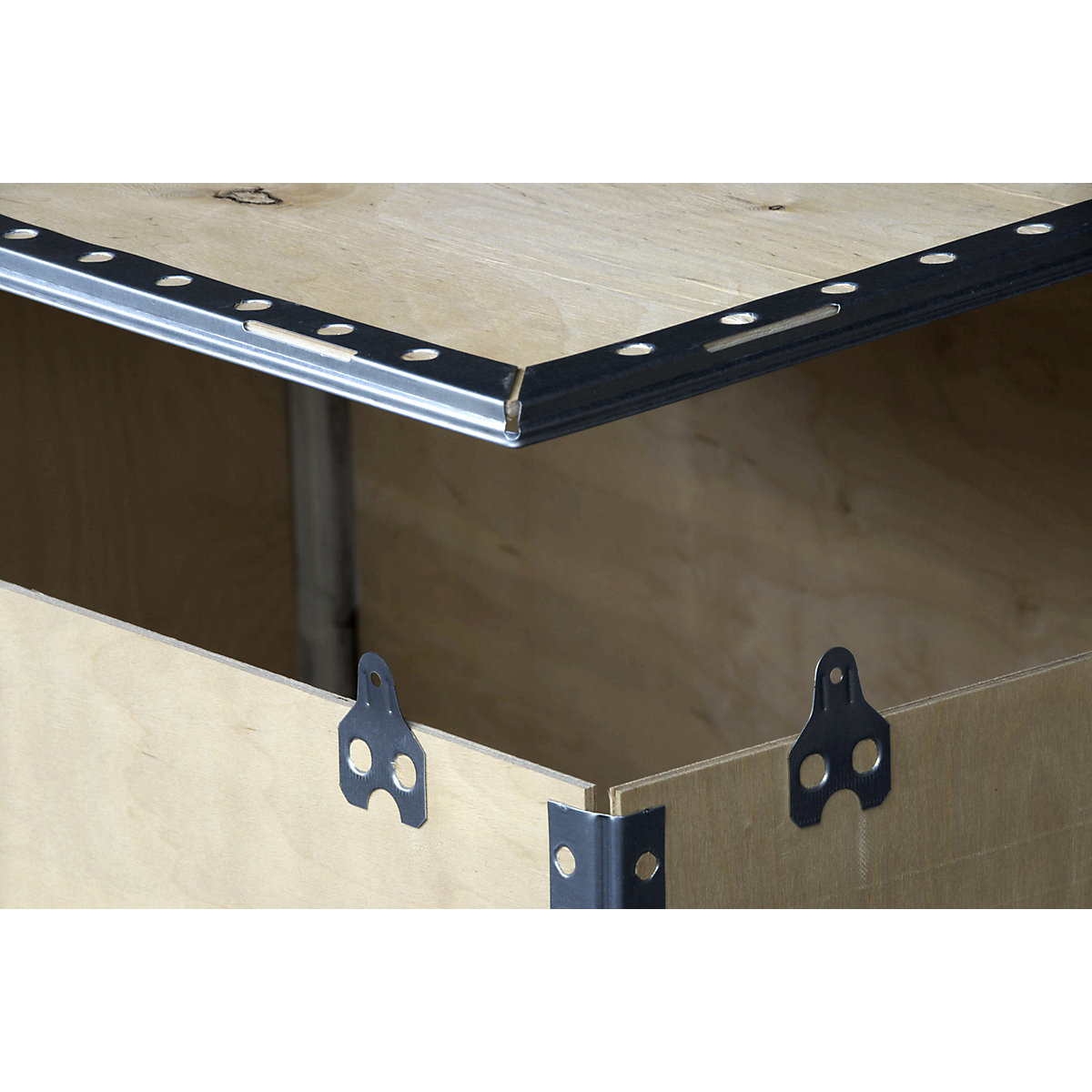

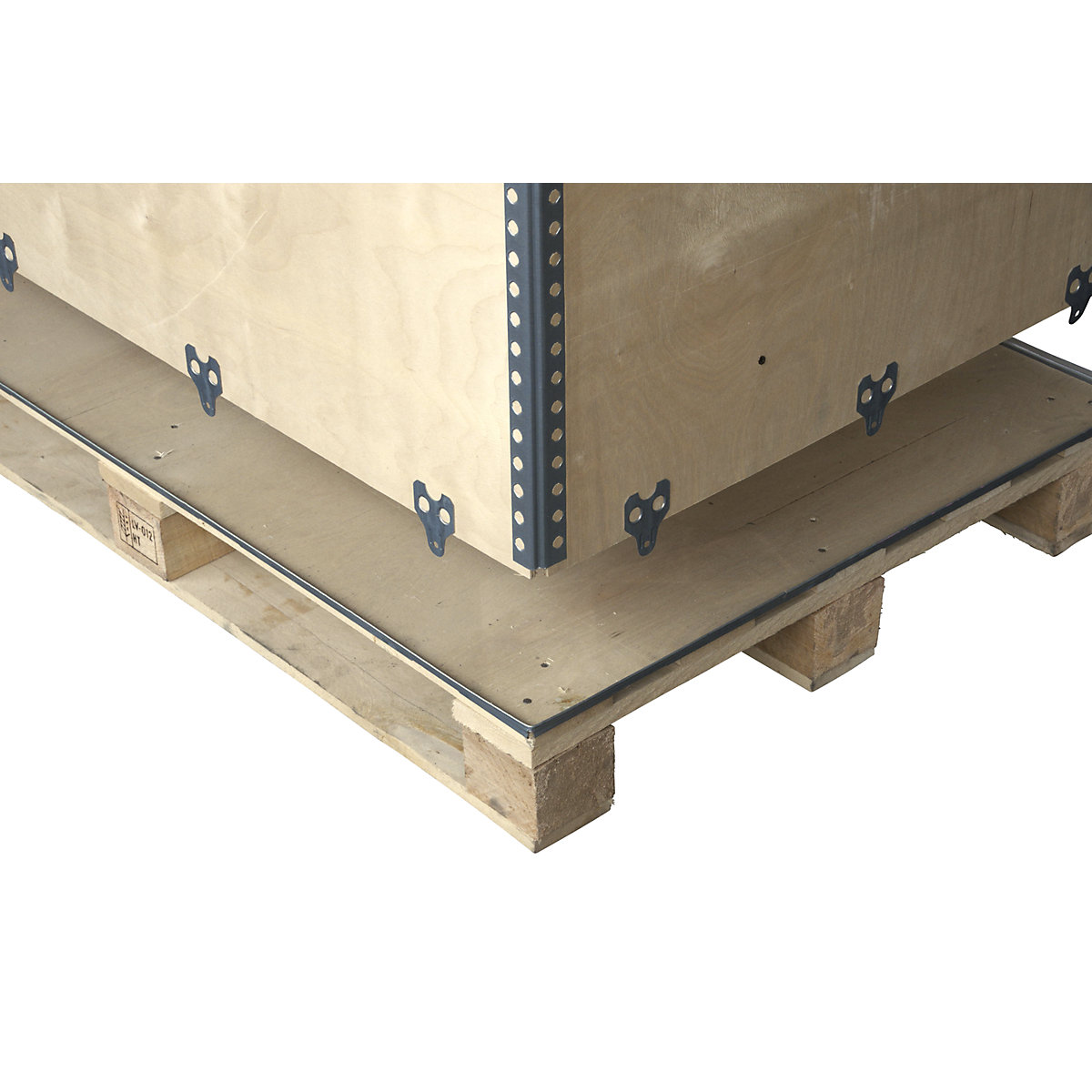

Extremely stable, foldable 3-part plywood box with treated solid wood skids. Secured at the edges with steel profiles. Suitable according to the IPPC standard (ISPM 15) and for worldwide export to USA, Canada, Mexico, China etc.
Technical data
| Material | plywood |
|---|---|
| Material thickness | 6 mm |
| Fork entry option | 2-way |
| Lock type | metal buckles |
| Colour | light brown |
| Product type | wooden crates |
| Length | 400 mm |
| Width | 300 mm |
| Height | 320 mm |
| Internal length | 380 mm |
| Internal width | 280 mm |
| Internal height | 280 mm |
| Suitable for | 1/8 Euro pallet |
| Max. load | 20 kg |
| Stacking load | 80 kg |
| Model | 2 runners |
| Quantity on pallet | 100 pcs. |
| Weight | 3.48 kg |
| Supplied | flat pack |
| Manufacturer / EU responsible Person (GPSR) |
Sustainability
Sustainable product
This product actively contributes to protecting our environment and taking social responsibility. It meets our strict sustainability criteria and thus supports an economically, ecologically and socially viable future. The score asks the crucial question for every product: does this product contribute to creating sustainable and fair conditions for today and future generations? Below are the categories in which this product performs particularly well.
You can find out more about product evaluation and our sustainability initiative on our information page .
This product actively contributes to protecting our environment and taking social responsibility. It meets our strict sustainability criteria and thus supports an economically, ecologically and socially viable future. The score asks the crucial question for every product: does this product contribute to creating sustainable and fair conditions for today and future generations? Below are the categories in which this product performs particularly well.
You can find out more about product evaluation and our sustainability initiative on our information page .

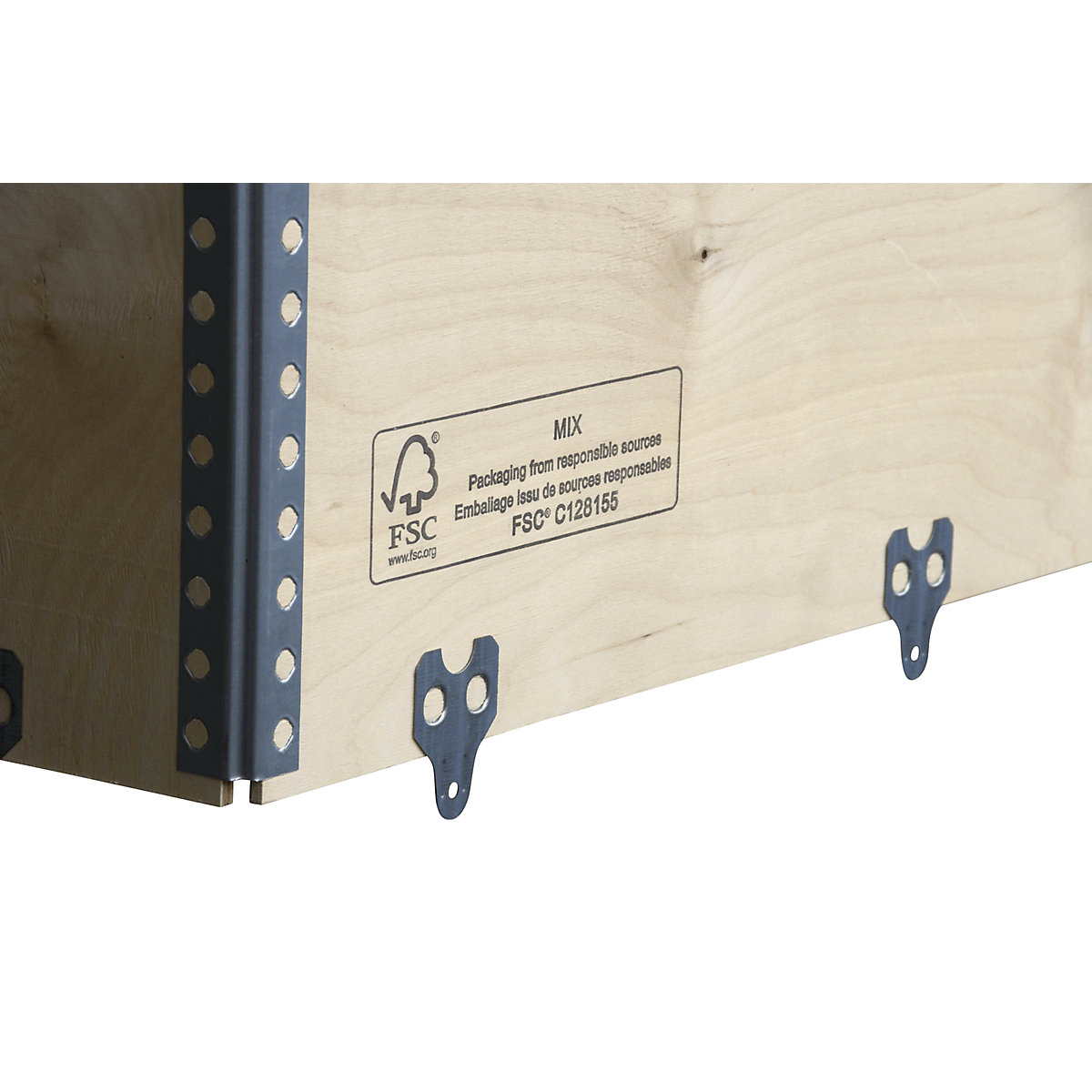

FSC® certification
FSC® – the symbol for responsible forestry management
FSC® is an independent certification awarded for responsible forest management and sustainable forestry practices. FSC certified products are produced by companies that are committed to ensuring the protection of forests and the environment, and to respecting the rights and needs of employees, communities and indigenous peoples.
www.fsc.org, FSC® N001883
FSC® is an independent certification awarded for responsible forest management and sustainable forestry practices. FSC certified products are produced by companies that are committed to ensuring the protection of forests and the environment, and to respecting the rights and needs of employees, communities and indigenous peoples.
www.fsc.org, FSC® N001883
Product CO₂ footprint
- Product Carbon Footprint per kg CO2e
- 2.771
- Product Carbon Footprint Calculation Year
- 2026
- Product Carbon Footprint System Boundaries
- Cradle-to-gate
- Product Carbon Footprint Calculation Method
- Calculated by our partner GlobalChanger (GreenZero) in accordance with ISO 14044 (LCA) / 14067 (PCF) (GWP100 [IPCC version]) principles.<br/>PCF values are product specific averages that have not been verified by third parties and may evolve as the data basis improves.
| Criteria | Weighting | Score |
|---|---|---|
| 30% | 1.5 | |
| 30% | 2.8 | |
| 25% | 4.9 | |
| 10% | 3.9 | |
| 5% | 5.9 | |
| Overall score | 3.4 | |
