Ref.: 568320 10

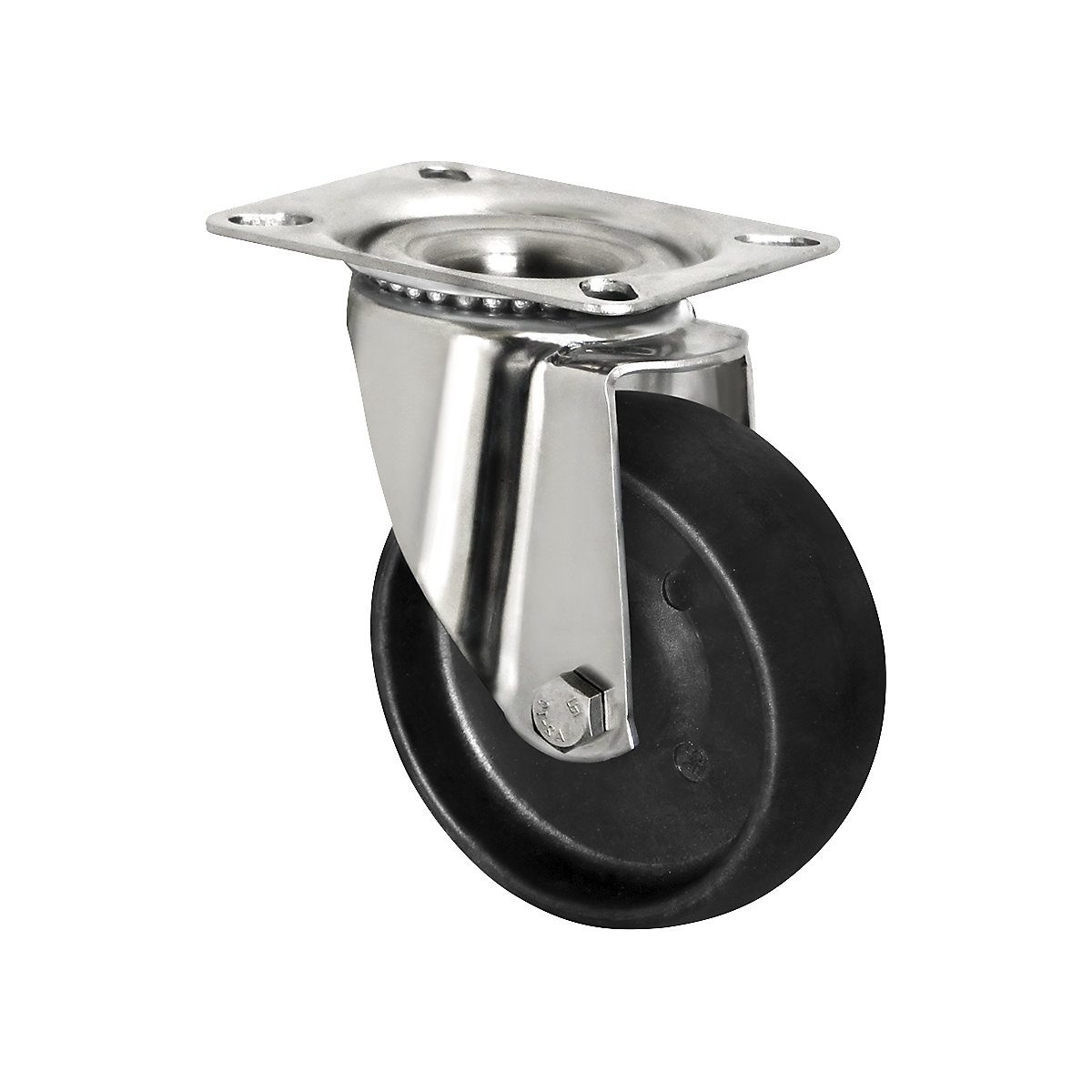

Nylon wheel with fibreglass wheel Ø x width 125 x 40 mm, 2+ items

Nylon wheel with fibreglass

swivel castor with double stop

Low rolling resistance
Low rolling resistance
Non-marking
Non-marking
Structure
Wheel diameter [mm]
€ 48.90
Price / item (Excl. VAT)

Total (Excl. VAT)
€ 97.80
Delivery time: 9-11 Working Days
Product description
  • Heat resistant, for use in bakeries
  • Does not damage floors, non-marking
  • Low rolling resistance
Housing and wheel axle made of stainless steel. Swivel bearing with dual turntable bearing. Plain bearing in stainless steel.
Not certified for use in the food processing industry.
Technical data
Modeltransport castors
Wheel materialplastic – nylon – fibreglass
Material of rimplastic – nylon – fibreglass
Type of mountingwith top plate
Housing materialstainless steel
Wheel bearingplain bearing
Temperature resistance–20 °C to +250 °C
Screw hole diameter8 mm
Hub bore12 mm
Screw hole spacing80/77 x 60 mm
Shore hardness95
Featureheat resistant up to 250 °C
Swivel castor plate dimensions96 x 80 mm
Fixed castor plate dimensions96 x 80 mm
Wheel width40 mm
Suppliedassembled
Structureswivel castor with double stop
Wheel diameter125 mm
Max. load at 4 km/h130 kg
Swivel castor offset45 mm
Hub length32 mm
Overall height155 mm
Product typeswivel castors
Weight0.836 kg
