Ref.: 474433 10
Mobile sump tray made of sheet steel, standing drums – eurokraft basic LxW 800 x 800 mm, 1 x 200 l drum
(7)
blue RAL 5012
Sump capacity [l]
Drum capacity
Length [mm]
Width [mm]
Height [mm]
Colour
Ref.: 474433 10
Mobile sump tray made of sheet steel, standing drums – eurokraft basic LxW 800 x 800 mm, 1 x 200 l drum
(7)
blue RAL 5012
blue RAL 5012
For water hazardous liquids
For flammable liquids
Sustainability score:Sump capacity [l]
Drum capacity
Length [mm]
Width [mm]
Height [mm]
Colour
€ 619.00
Price / item (Excl. VAT)
Delivery time: 6-8 Working Days
Good reasons to purchase products from us
- Guarantee of up to 15 years
- 30 day right of return
- Free delivery from Germany
- Fast delivery
€ 619.00
Price / item (Excl. VAT)
€ 619.00
Price / item (Excl. VAT)
Delivery time: 6-8 Working Days
Good reasons to purchase products from us
- Guarantee of up to 15 years
- 30 day right of return
- Free delivery from Germany
- Fast delivery
Product description
- Regulation compliant company internal transport, filling and storage of 60 and 200 l drums
- Robust trays with approval

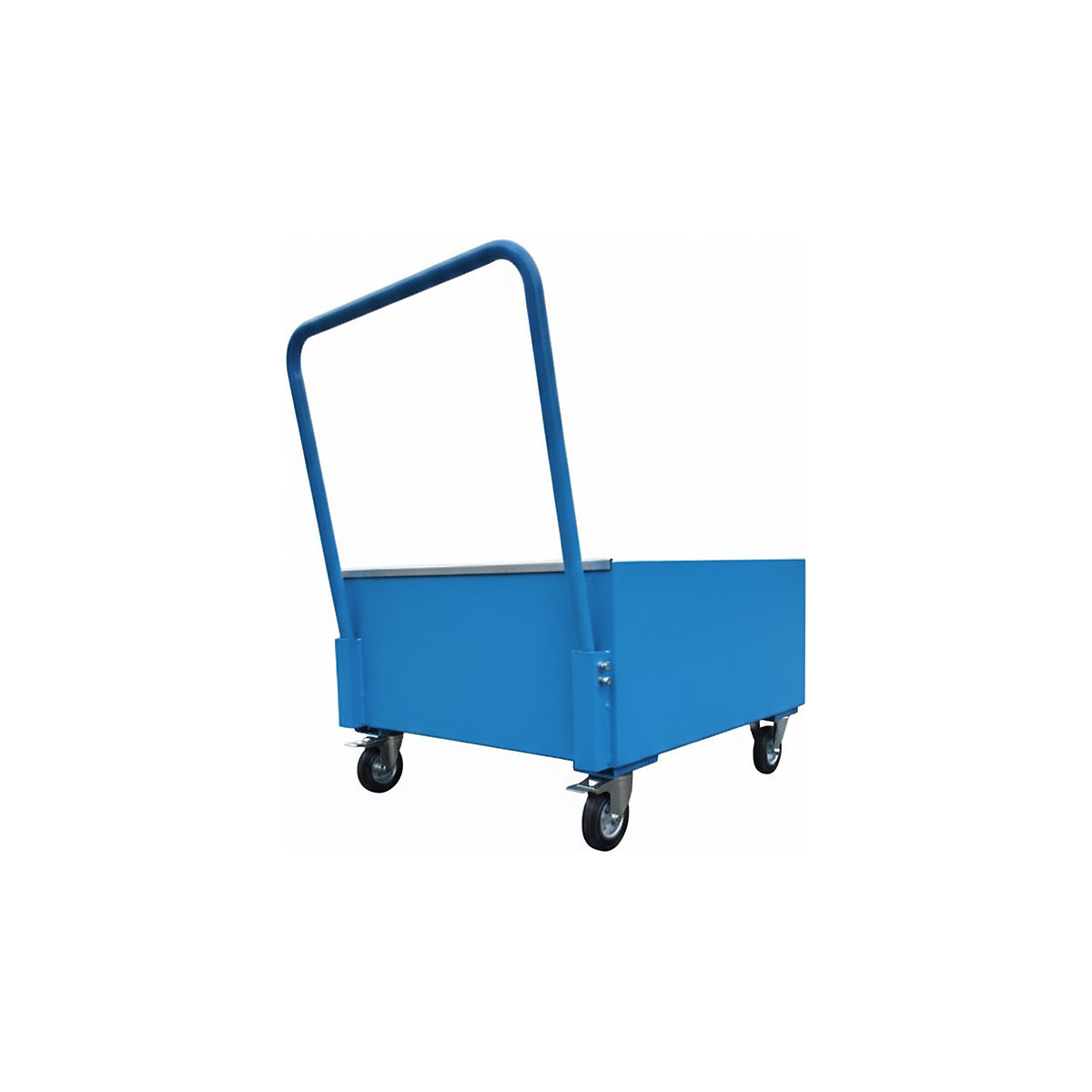

- With push handle
- 2 swivel castors and 2 fixed castors
- For vertical storage with grate – drum restraint strap as accessories

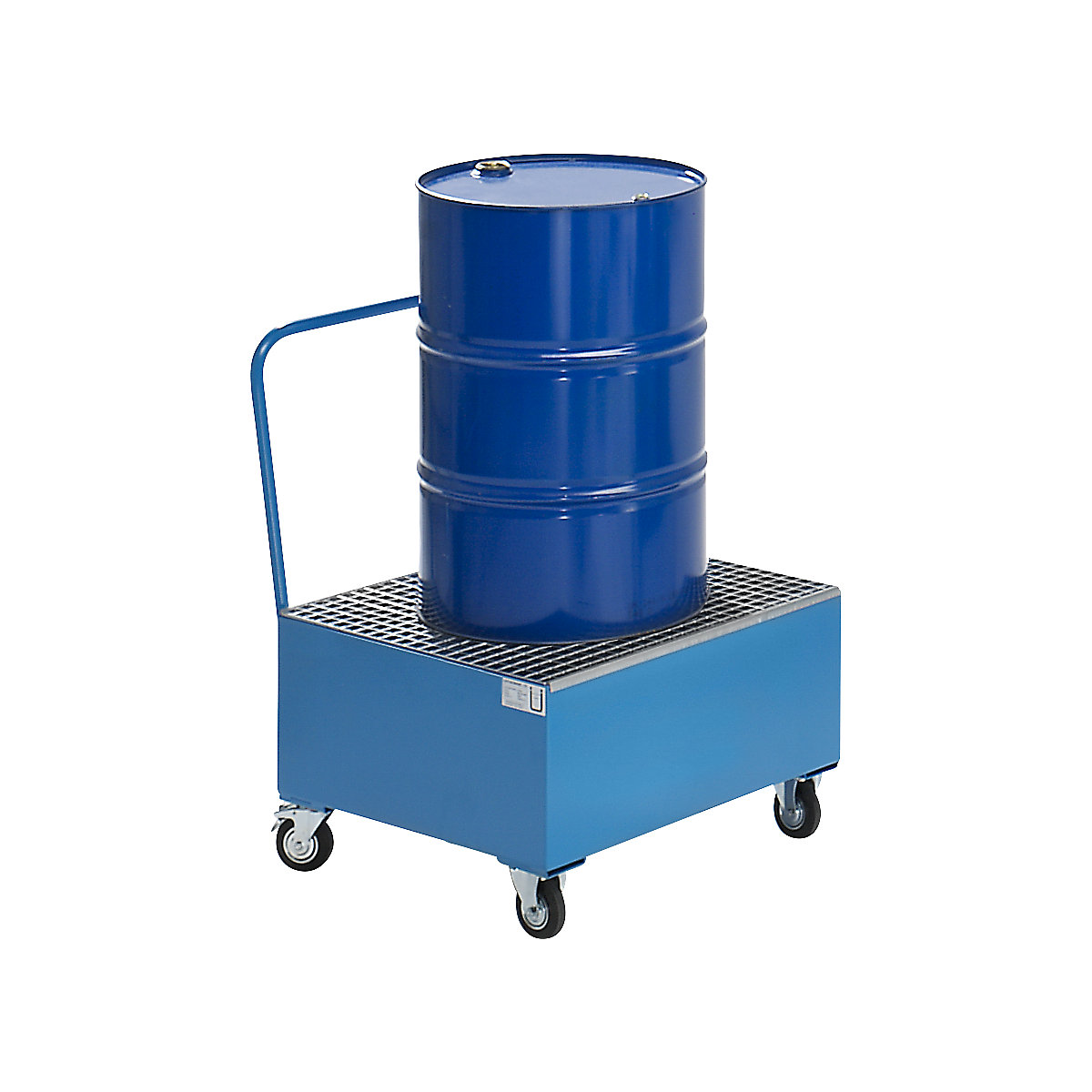

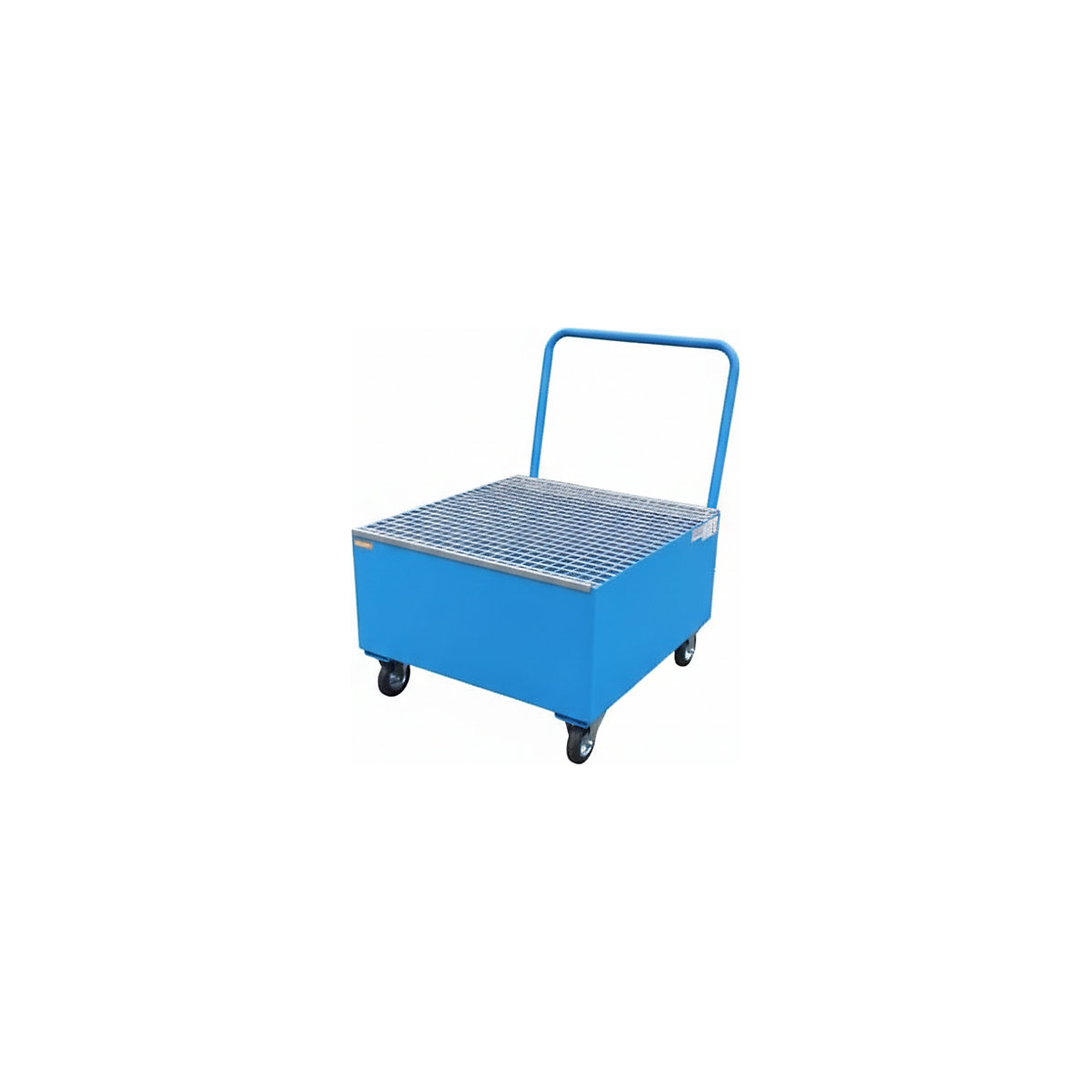

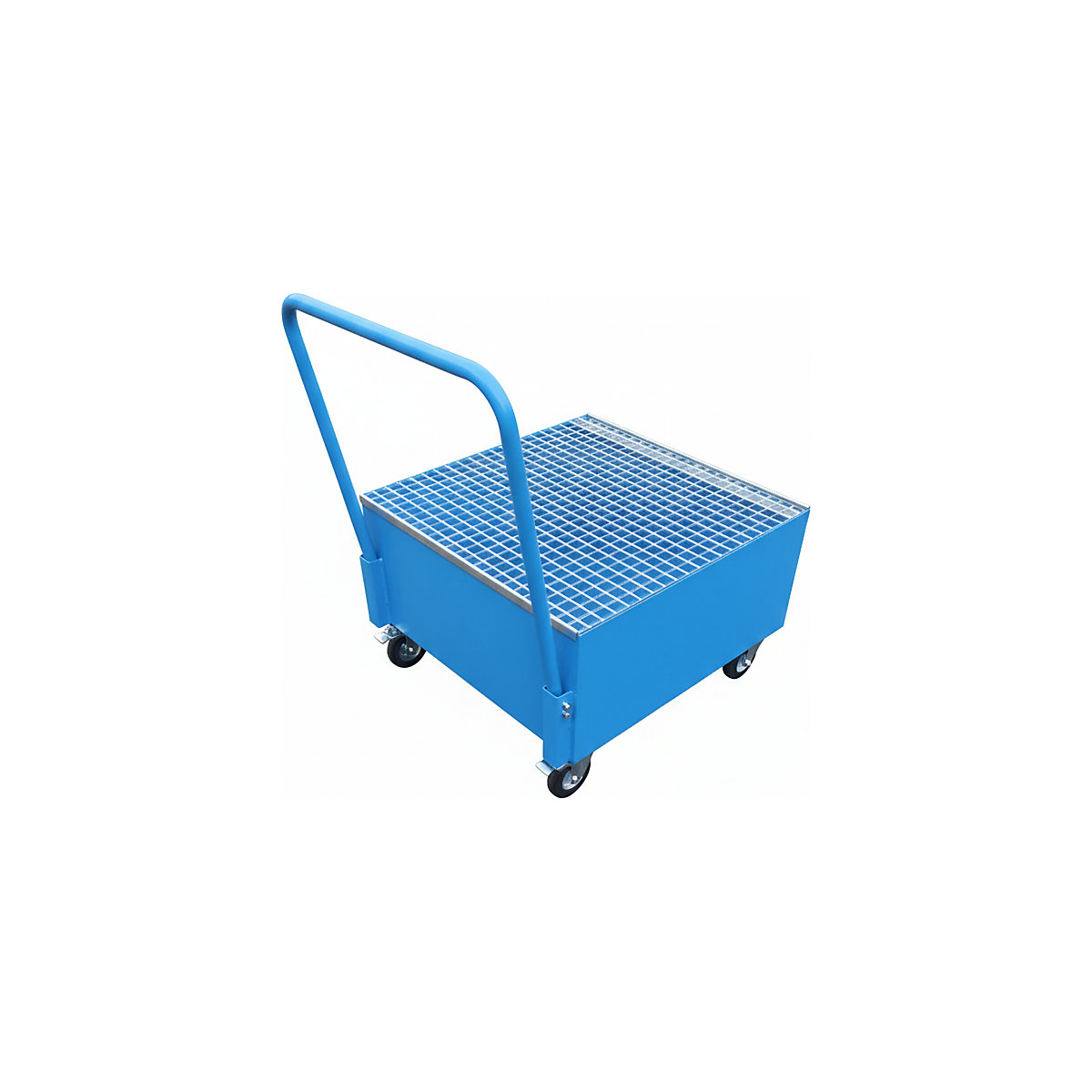

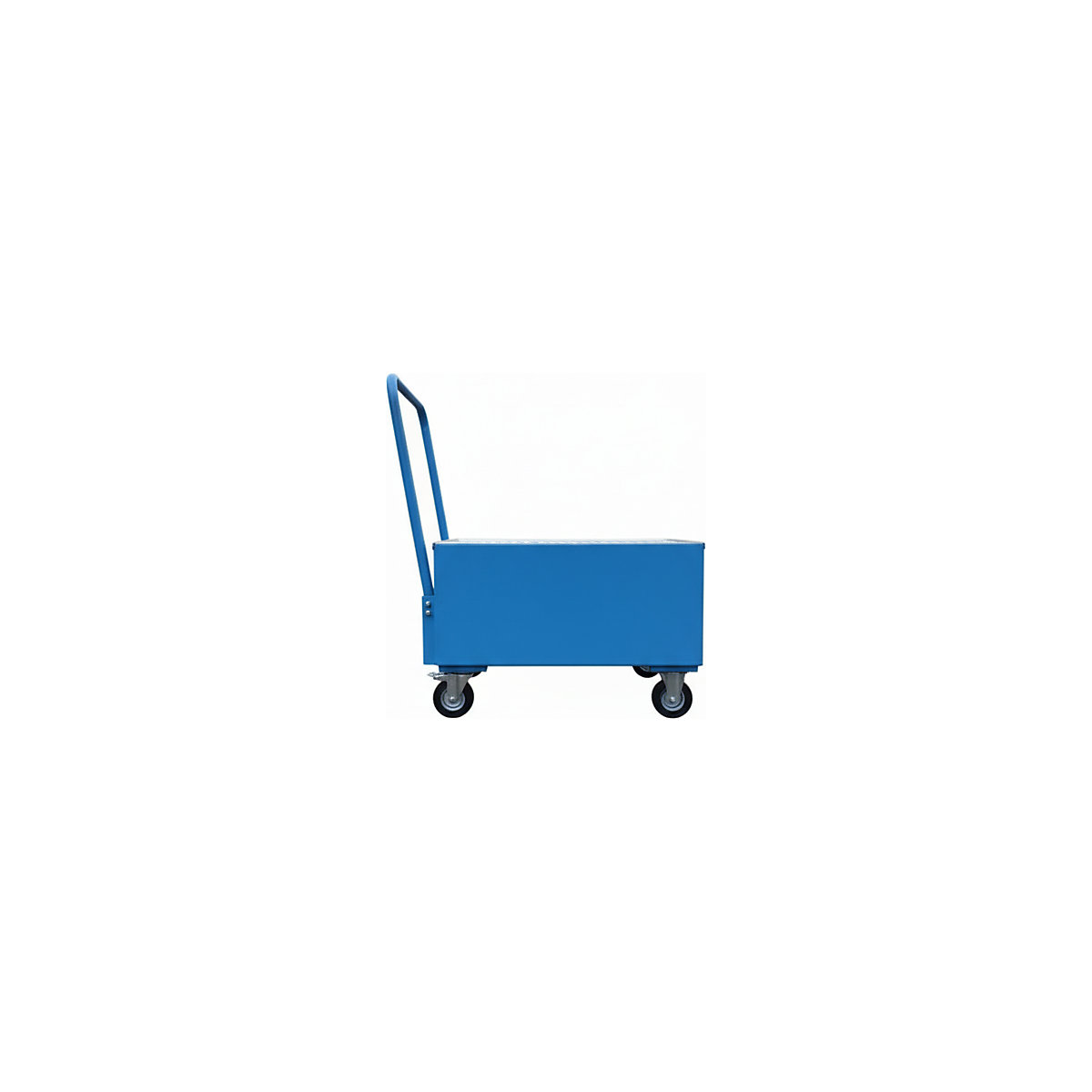

The mobile sump tray made of 3 mm sheet steel impresses with its robust construction and reliable mobility. It is designed for the safe transport, filling and storage of upright 60 and 200 litre drums in internal use.
With declaration of conformity (ÜHP) in accordance with StawaR. Approved for flammable liquids of GHS categories 1 – 3 and water-hazardous liquids of GHS categories 1 – 4.
2 swivel castors and 2 fixed castors with a wheel Ø of 125 mm enable precise manoeuvring. The swivel castors are equipped with stops. The practical push handle ensures ergonomic handling and greater safety in daily use. Thanks to the integrated sump tray with approval, it reliably protects against leaking liquids. The sturdy steel construction makes it a durable companion in professional drum logistics and supports efficient working with drum transporters.
Simple assembly of push handle and wheels.
With declaration of conformity (ÜHP) in accordance with StawaR. Approved for flammable liquids of GHS categories 1 – 3 and water-hazardous liquids of GHS categories 1 – 4.
2 swivel castors and 2 fixed castors with a wheel Ø of 125 mm enable precise manoeuvring. The swivel castors are equipped with stops. The practical push handle ensures ergonomic handling and greater safety in daily use. Thanks to the integrated sump tray with approval, it reliably protects against leaking liquids. The sturdy steel construction makes it a durable companion in professional drum logistics and supports efficient working with drum transporters.
Simple assembly of push handle and wheels.
Technical data
| Type of grate | with zinc plated grate |
|---|---|
| Material | sheet steel |
| Test symbol | manufacturers declaration of conformity in accordance with StawaR |
| Material thickness | 3 mm |
| For media | flammable and water hazardous liquids |
| Hazard class | for flammable liquids in GHS categories 1 – 3 as well as water hazardous liquids in GHS categories 1 – 4 |
| Feature | mobile |
| Wheel fittings | 2 swivel castors with wheel stop, 2 fixed castors |
| Wheel diameter | 125 mm |
| Drum storage | upright |
| Model | with push handle |
| Certification | with |
| Supplied | pre-assembled, final assembly by customer |
| Sump capacity | 203 l |
| Drum capacity | 1 x 200 l |
| Length | 800 mm |
| Width | 800 mm |
| Height | 615 mm |
| Colour | light blue RAL 5012 |
| Finish | powder coated |
| Max. load | 500 kg |
| Push handle height | 1115 mm |
| Product type | 200 l sump trays mobile sump trays |
| Weight | 73 kg |
| Manufacturer / EU responsible Person (GPSR) |
Sustainability
Sustainable product
This product actively contributes to protecting our environment and taking social responsibility. It meets our strict sustainability criteria and thus supports an economically, ecologically and socially viable future. The score asks the crucial question for every product: does this product contribute to creating sustainable and fair conditions for today and future generations? Below are the categories in which this product performs particularly well.
You can find out more about product evaluation and our sustainability initiative on our information page .
This product actively contributes to protecting our environment and taking social responsibility. It meets our strict sustainability criteria and thus supports an economically, ecologically and socially viable future. The score asks the crucial question for every product: does this product contribute to creating sustainable and fair conditions for today and future generations? Below are the categories in which this product performs particularly well.
You can find out more about product evaluation and our sustainability initiative on our information page .
Product CO₂ footprint
- LCA functional unit
- 1
- Recycled content in %?
- 20
- CO2 footprint year of calculation
- 2026
- LCA validity (in years)
- 1
- CO2 footprint calculation method product
- Calculated by our partner GlobalChanger (GreenZero) in accordance with ISO 14044 (LCA) / 14067 (PCF) (GWP100 [IPCC version]) principles.<br/>PCF values are product specific averages that have not been verified by third parties and may evolve as the data basis improves.
- CO2 footprint system boundaries
- Cradle-to-gate
Scoring System
More about our sustainability approach.
3.1/5.9Overall score
| Criteria | Weighting | Score |
|---|---|---|
 Climate protection | 30% | 2.2 |
 Circulatory economy | 30% | 4.3 |
 Biodiversity | 25% | 1.0 |
 Economic efficiency | 10% | 3.5 |
 Innovation | 5% | 3.9 |
