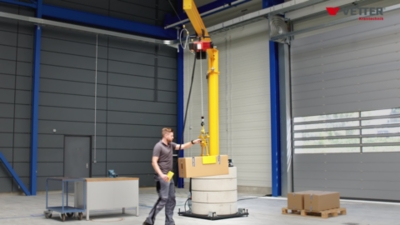

Vetter – Mobile post mounted jib crane slewing range 270°, max. load 125 kg

  • No anchoring to factory floor required
  • Suitable for versatile use and fast to move
  • Modular base weight design
Vetter
Accessories not included in delivery
Accessories not included in delivery
Ref.: 563519 10
Vetter – Mobile post mounted jib crane, slewing range 270°, max. load 125 kg, reach 3.0 m
Price / items (Excl. VAT)
€ 13,500.00


Product description
Classification in accordance with EN 13001 HC2 S2 HD2 for light-duty industrial use.
Locks in position and three eyelets for crane transport. Eyelet for securing the electric chain hoist during transport. Operating voltage 400 V / 50 Hz, control voltage 24 V. Detailed documentation.
Electric chain hoist with manual drive dolly. 2-stage lifting speed. Designed for use in halls with ambient temperatures of +5 °C to +40 °C.
Paintwork suitable for operation in halls, steel shot blasted crane construction and jib crane in RAL 1007 daffodil yellow, steel mobile mounting base in RAL 7016 charcoal, concrete grey base weight.
Mounting base fully assembled.

Electrical system: mains cut-off switch, CEE device plug, power supply using a round trailing cable.
  • No anchoring to factory floor required
  • Suitable for versatile use and fast to move
  • Modular base weight design
Technical data
Max. load125 kg
Operating voltage400 V / 50 Hz
Swivel range270°
Design of rotary cranecrane with electric chain hoist
Height of lifting gear433 mm
Main lift8 m/min
Precise lift2 m/min
Crane jib bottom edge2500 mm
Control voltage24 V
Product typepost mounted jib cranes
Lifting height2067 mm
Suppliedpartially assembled
