Ref.: 868331 10

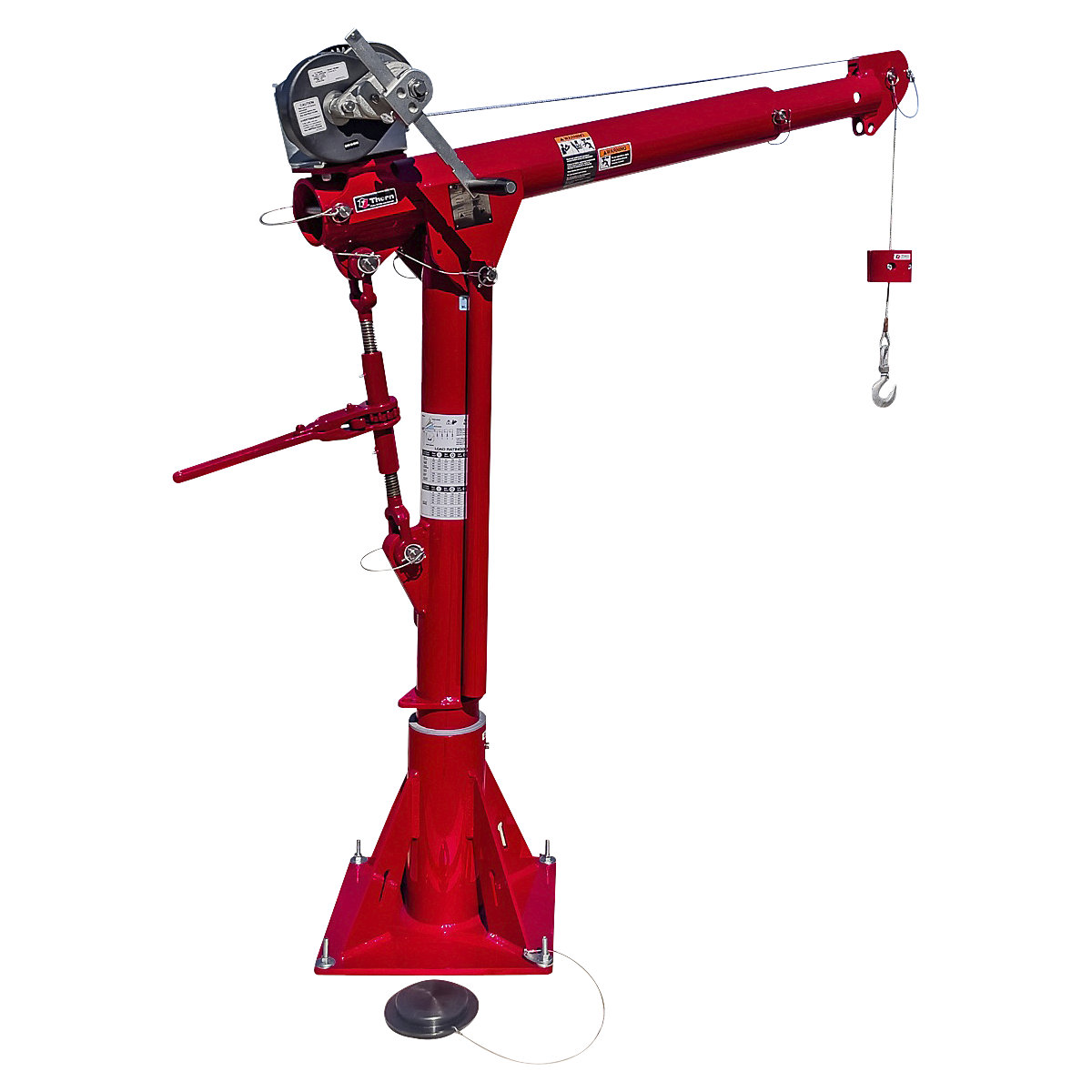

Portable davit crane – Thern max. lifting height 2159 mm
max. load 300 kg
Max. load [kg]
Ref.: 868331 10
Portable davit crane – Thern max. lifting height 2159 mm
max. load 300 kg
max. load 300 kg
Max. load [kg]
Ref.: 868331 10
Product not available
Currently not availableWe will be happy to help you
1 800 677 300
Monday-Friday 8am-5pm
Do you have any questions about this product?Product description
- Lightweight and portable
- Modular design for flexible application sites
- Fast assembly with quick-release fasteners and pins.
- Fewer stationary cranes for lower costs
- Corrosion-resistant aluminium construction
The portable aluminium davit crane from Thern offers a lightweight and flexible lifting solution for various work sites. The modular design allows for quick installation and easy relocation, so the crane can serve multiple lifting points.
Designed as a mobile crane, this system reduces the need for multiple stationary solutions. As a result, investment and maintenance costs can be significantly reduced. The portable davit crane can be easily disassembled and reassembled thanks to quick-release fasteners and pins. The corrosion-resistant aluminium construction makes the crane easy to handle while ensuring reliable performance.

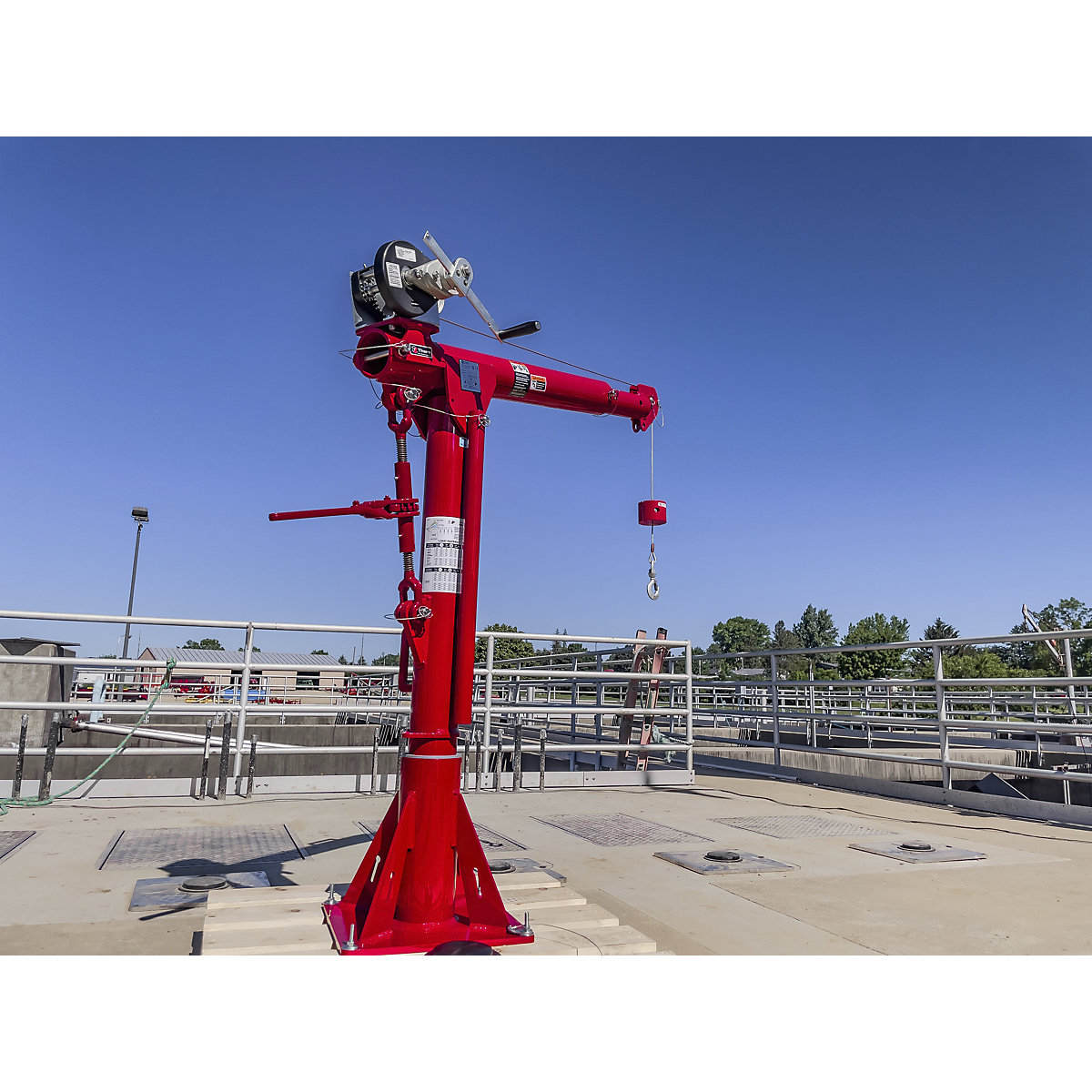

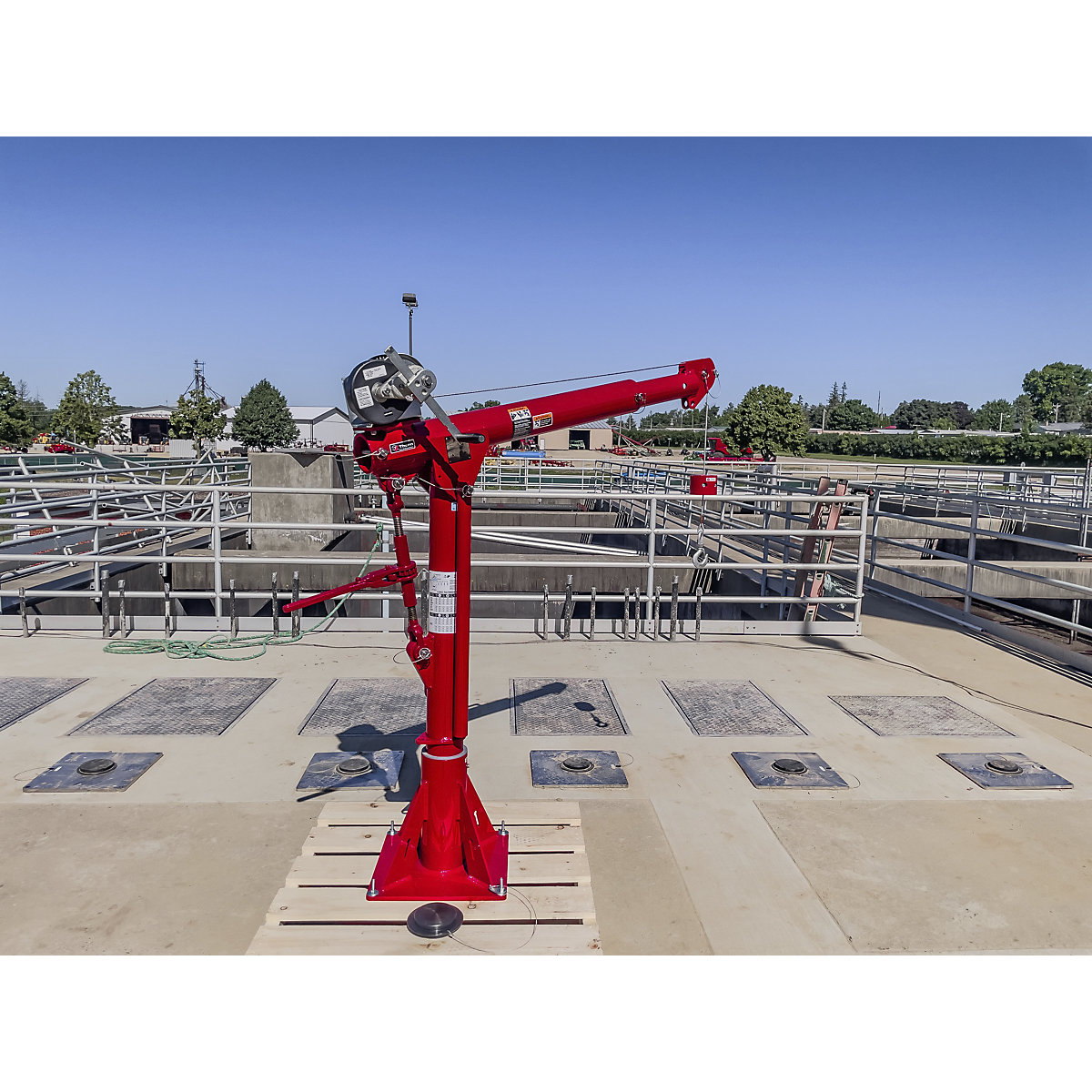

The workshop crane is suitable for applications such as water treatment plants for lifting pumps and agitators, as well as for logistics platforms or baggage handling systems for lowering and lifting electric motors, conveyor belt components and spare parts.
Designed as a mobile crane, this system reduces the need for multiple stationary solutions. As a result, investment and maintenance costs can be significantly reduced. The portable davit crane can be easily disassembled and reassembled thanks to quick-release fasteners and pins. The corrosion-resistant aluminium construction makes the crane easy to handle while ensuring reliable performance.
The workshop crane is suitable for applications such as water treatment plants for lifting pumps and agitators, as well as for logistics platforms or baggage handling systems for lowering and lifting electric motors, conveyor belt components and spare parts.
Technical data
| Colour | red |
|---|---|
| Width | 403 mm |
| Height | 2159 mm |
| Length | 1676 mm |
| Lifting height max. cantilever arm extended | 2159 mm |
| Max. crane arm length | 1676 mm |
| Min. crane arm length | 558 mm |
| Finish | powder coated |
| Material | aluminium |
| Product type | slewing cranes |
| Supplied | pre-assembled, final assembly by customer |
| Max. load | 300 kg |
| Max. load (at jib length mm) | 300 (736 mm) kg, 235 (965 mm) kg, 190 (1193 mm) kg, 160 (1422 mm) kg |
| Weight | 59.5 kg |
