Ref.: 499832 10

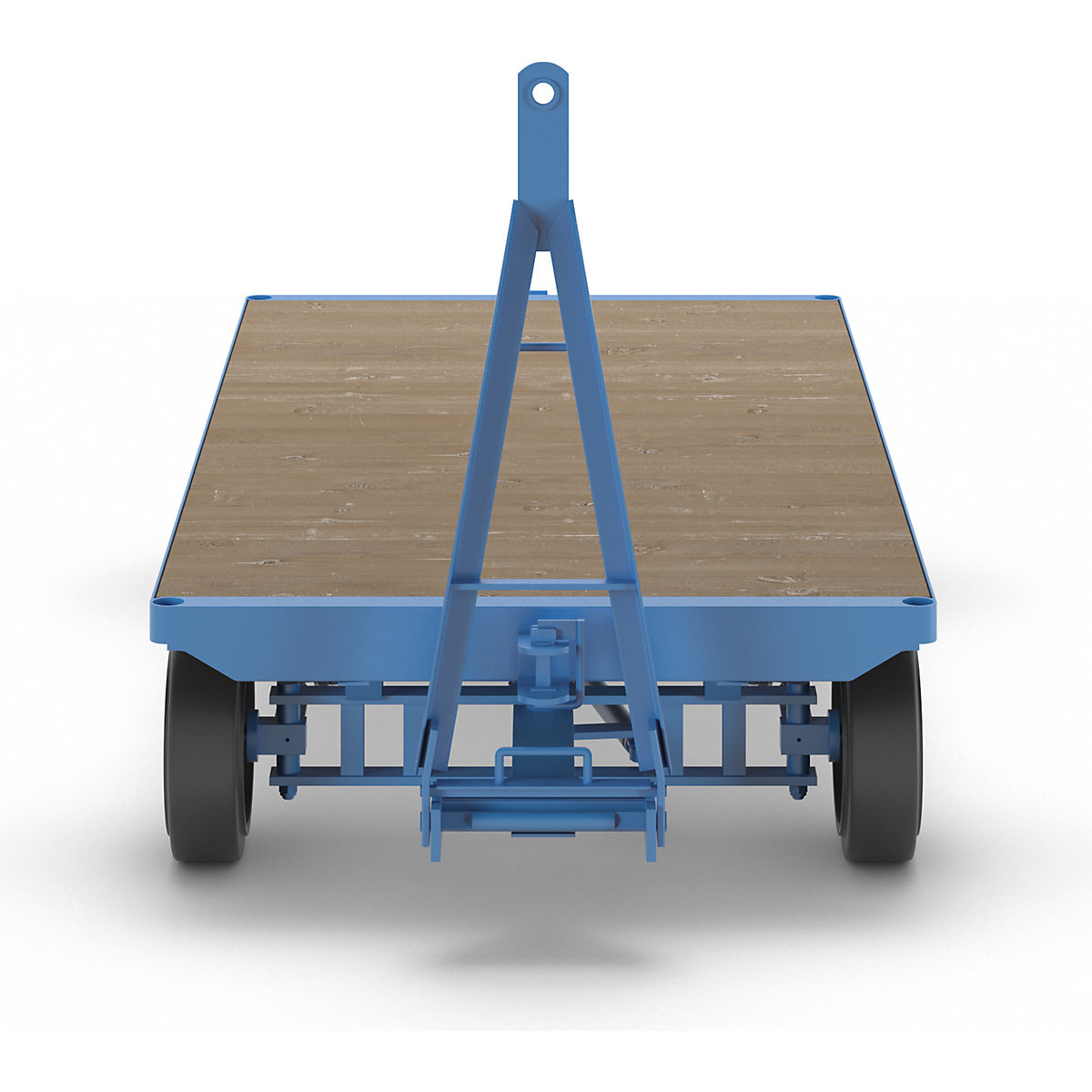

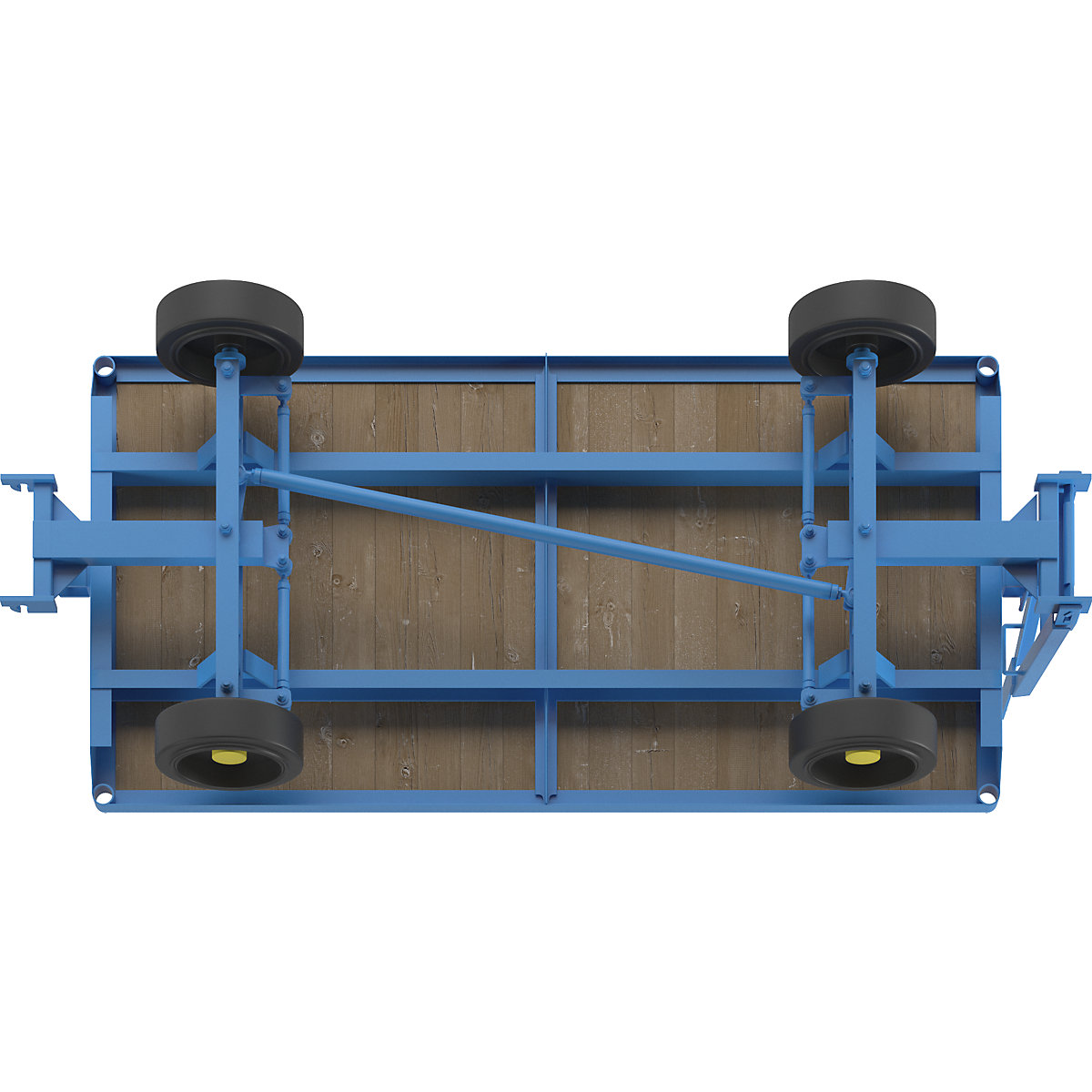

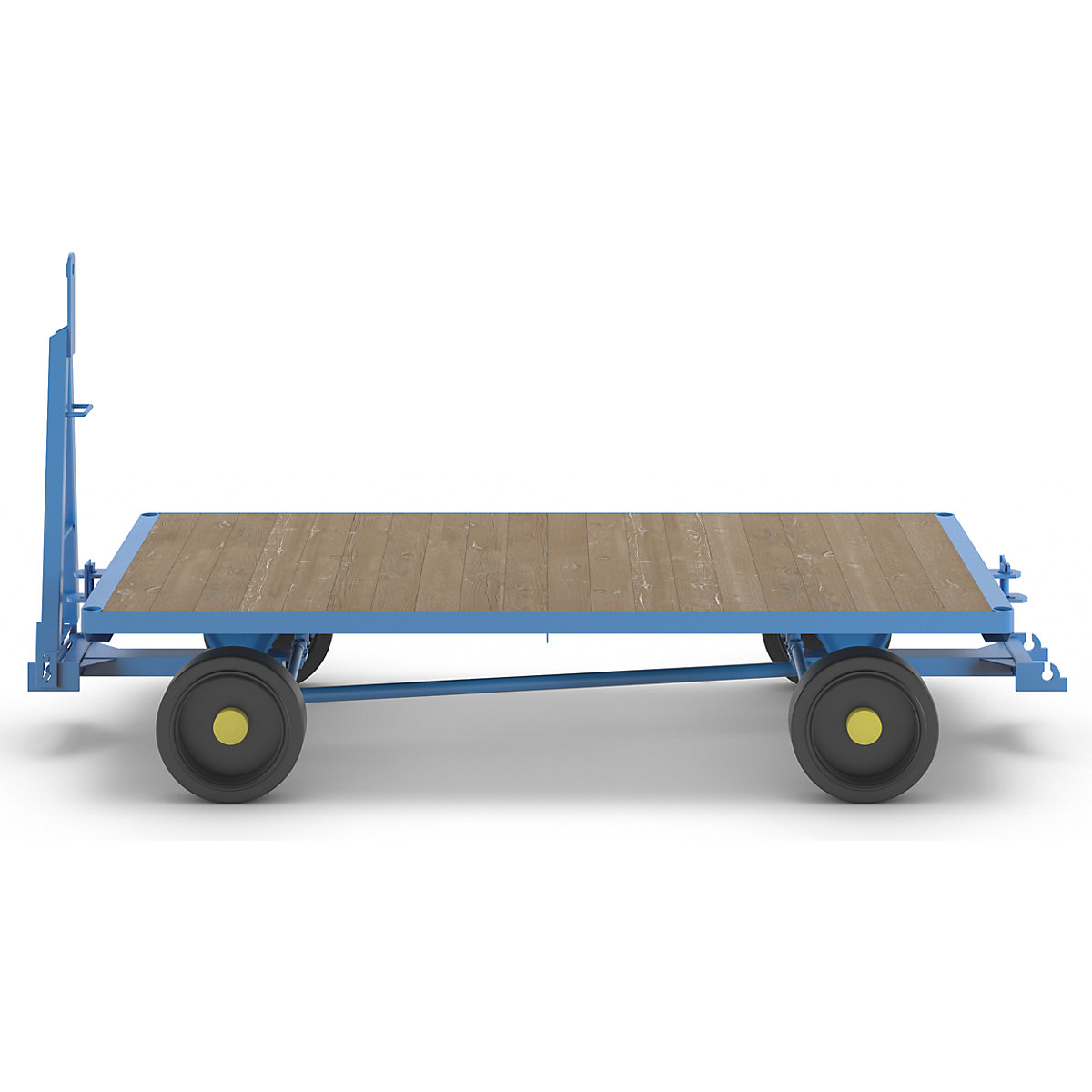

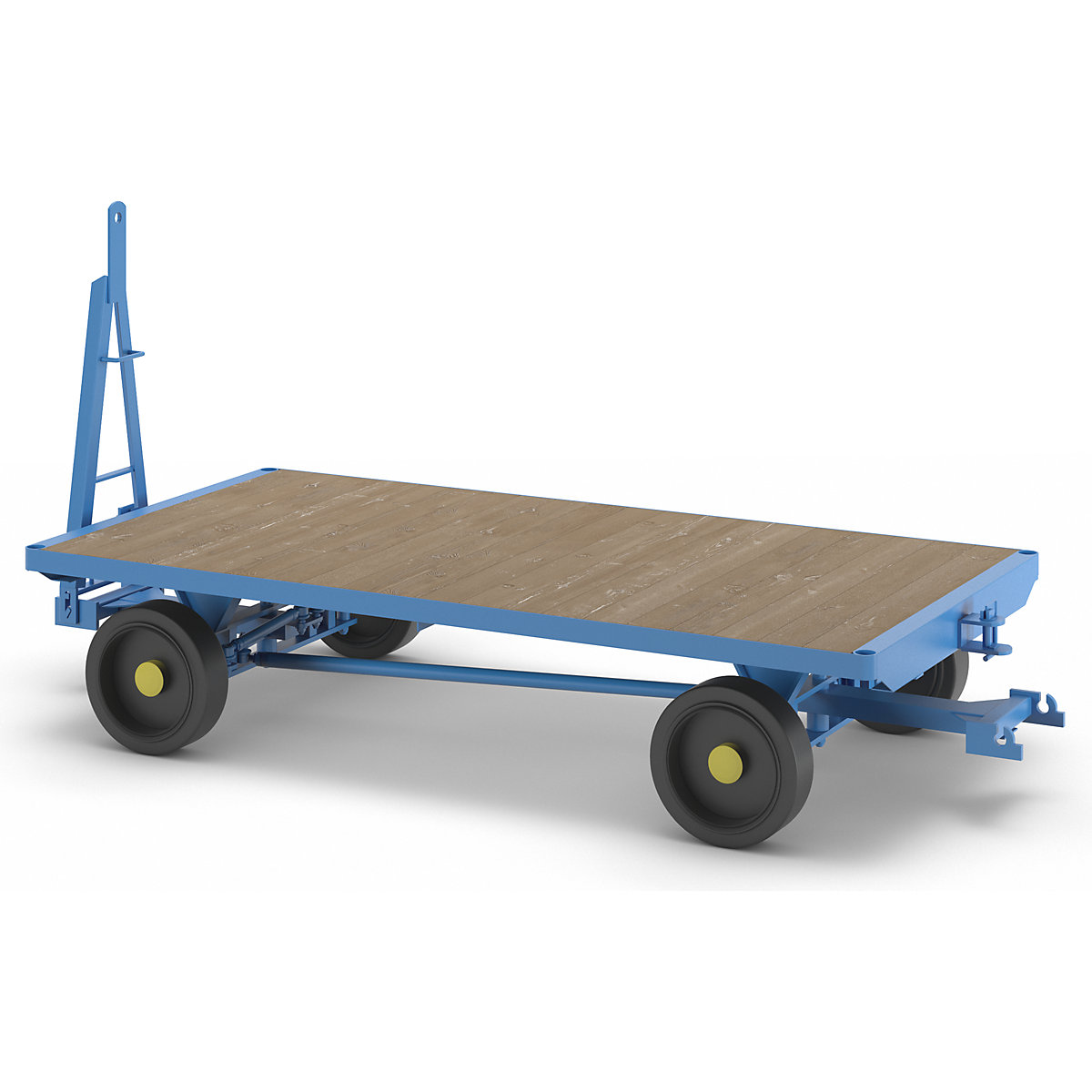

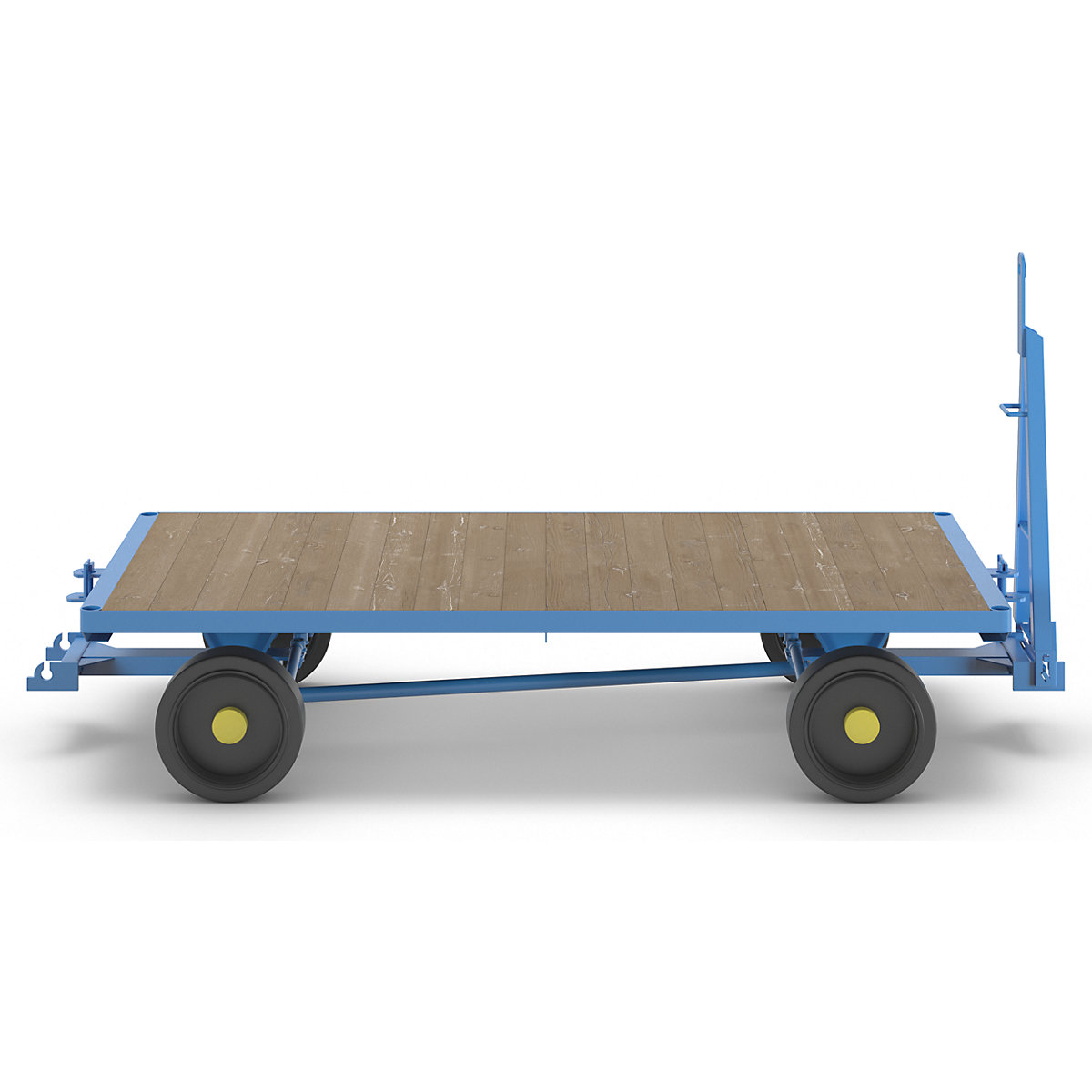

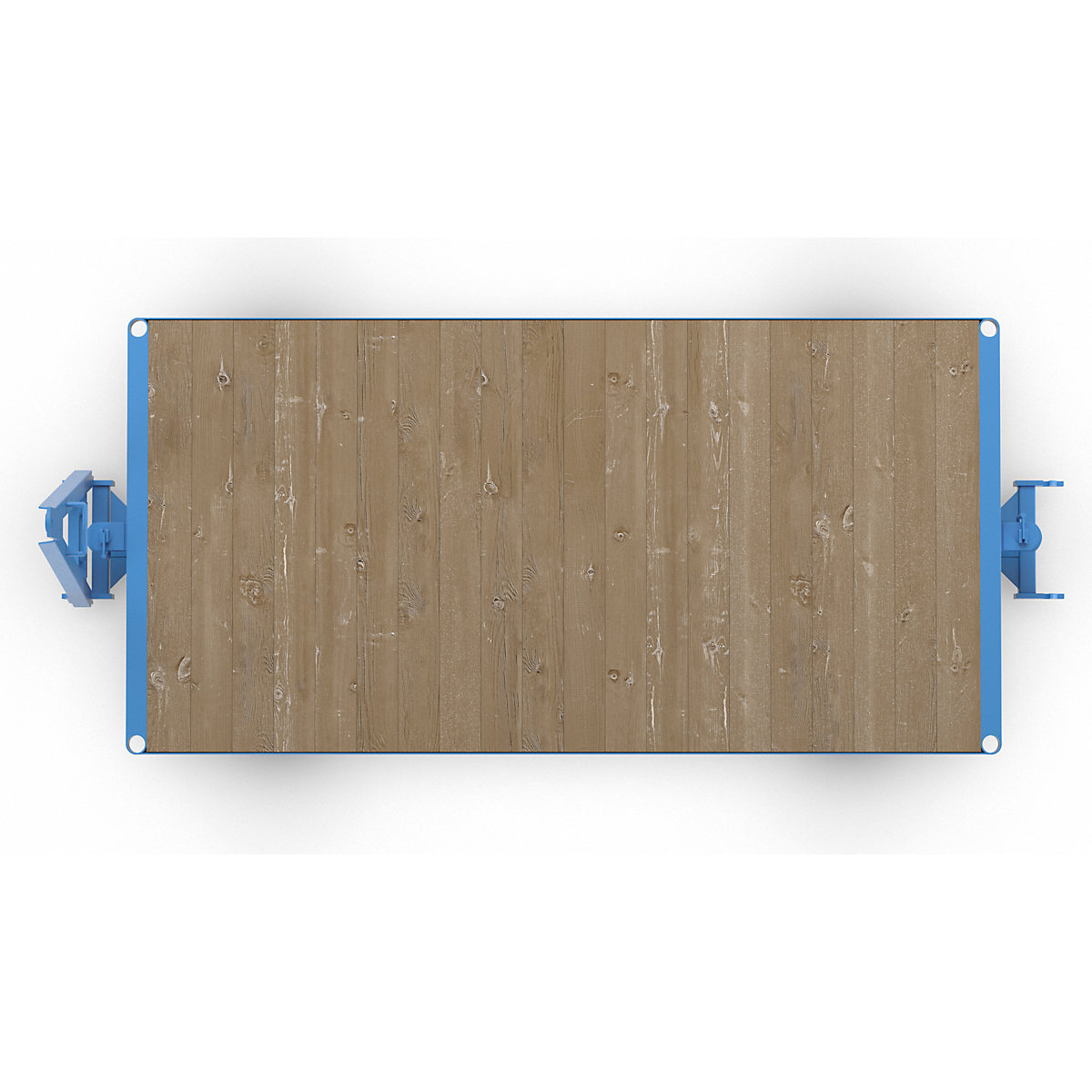

Trailer – eurokraft pro 4-wheel linked ackerman steering, max. load 5 t

Trailer – eurokraft pro

platform 2.5 x 1.25 m, light blue

Platform length [mm]
Platform width [mm]
Loading height [mm]
€ 6,800.00
Price / item (Excl. VAT)
Delivery time: 11-12 Week Delivery
Product description
  • Small turning circle – steering radius 45°
  • Impregnated wooden platform for weather resistant and non-destructive load support
  • Detachable drawbar, trailer coupling on both sides
  • Robust welded steel construction
  • Low maintenance
  • Precision tracking stability
  • Durable
  • Track rods and steering rods with maintenance free ball heads
  • In line with workplace safety regulations for transport vehicles
Frame construction with rounded corners. Pipe corners for attaching posts or side panels, or as tie-down eyes.
Max. load up to 5 tonnes. Towing eyelet Ø 35 mm, 40 mm for 8 tonnes or more. Wheels with double ball bearings.

Practical triangular drawbar, height adjustable, with fall arrest. Extremely small turning radius – steering radius 40°.
Parking brake, rubber axle and lead spring, CSE tyres, side walls and other accessories available on request.
The technical specifications for these trailers makes it necessary to manufacture them to order – no right of return.
10 year guarantee
10 year guarantee
Technical data
Max. load at 6 km/h5 t
Steeringall-wheel axle knuckle
Platform materialconiferous wood
Featuredetachable drawbar
Wheel typesolid rubber tyres
Wheel width130 mm
Wheel diameter405 mm
Steering radius45 °
Towing eyelet diameter35 mm
Product typeindustrial trailers
Suppliedassembled
Platform length2500 mm
Platform width1250 mm
Loading height515 mm
Colourlight blue RAL 5012
Weight350 kg
Sustainability
Product with potential for future improvement

This product does not yet meet enough of our sustainability criteria. This does not mean that it has no sustainable properties – however, the total score is lower than 3 points. Therefore, it is not (yet) labelled as particularly sustainable. Our sustainability assessment is based on transparent, clearly defined ecological, social and economic criteria. The aim is to highlight development potential and create greater transparency.

You can find out more about product evaluation and our sustainability initiative on our information page.

Product CO₂ footprint

Product Carbon Footprint per kg CO2e
1388.148
Product Carbon Footprint Calculation Year
2026
Product Carbon Footprint System Boundaries
Cradle-to-gate
Product Carbon Footprint Calculation Method
Calculated by our partner GlobalChanger (GreenZero) in accordance with ISO 14044 (LCA) / 14067 (PCF) (GWP100 [IPCC version]) principles.<br/>PCF values are product specific averages that have not been verified by third parties and may evolve as the data basis improves.
‌
‌
‌
‌
‌
