Ref.: 518953 10

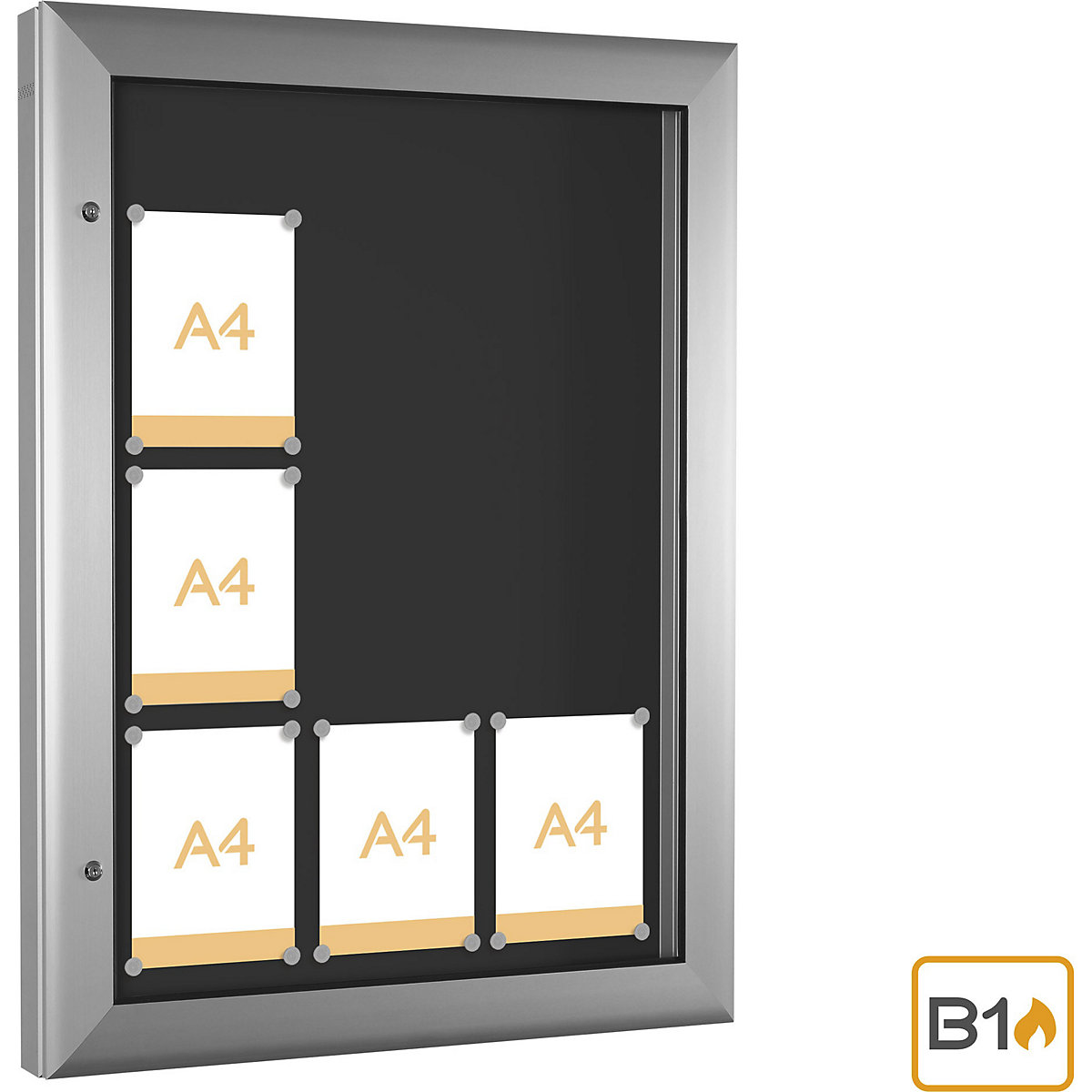

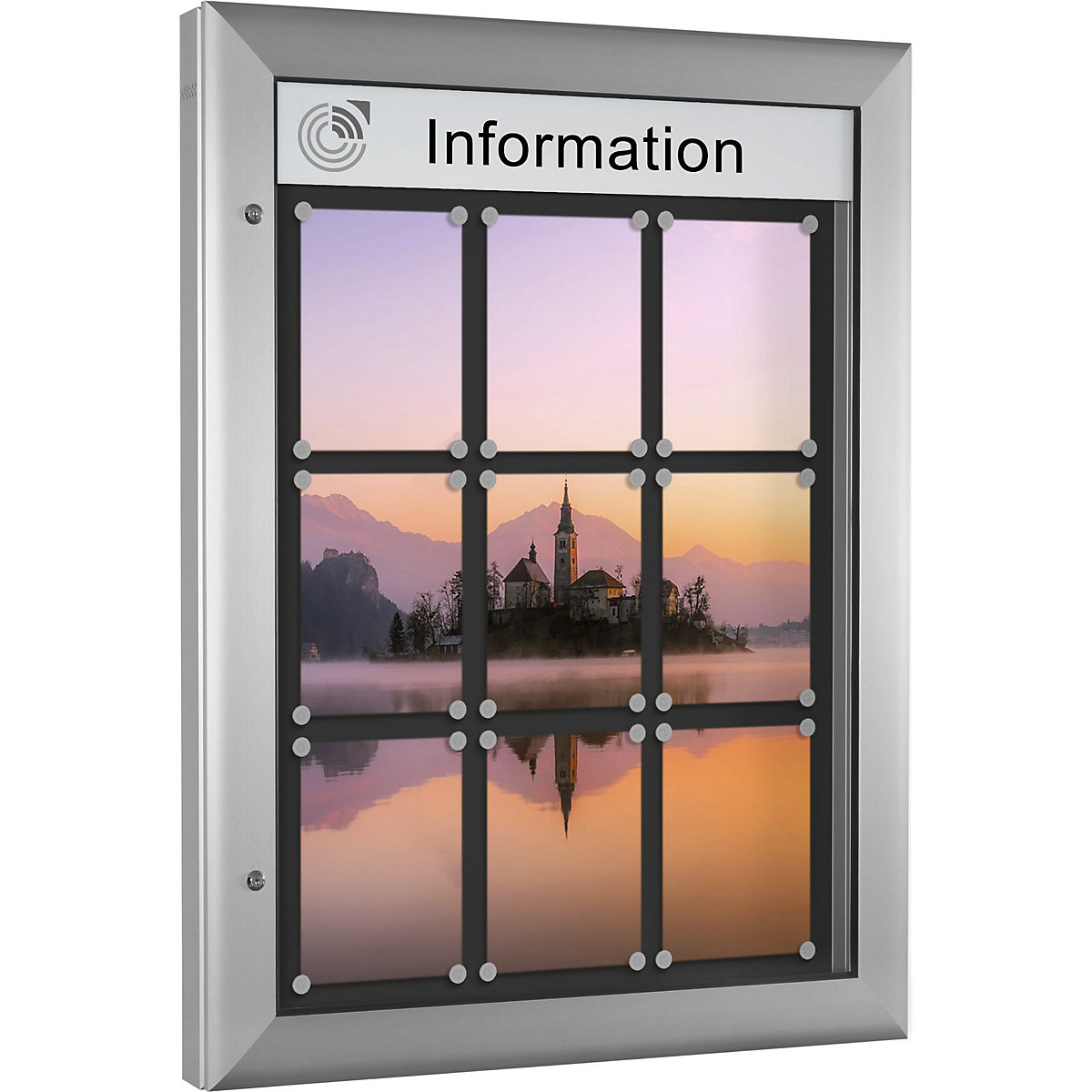

Display case for indoor and outdoor use portrait format

Display case for indoor and outdoor use

for A1, door opens 180° to the right

5 year guarantee
5 year guarantee
The product corresponds to fire protection construction requirements. It has been classified as highly non-flammable.
The product corresponds to fire protection construction requirements. It has been classified as highly non-flammable.
For format
€ 809.00
Price / item (Excl. VAT)
Delivery time: 12-14 Working Days
Product description
  • Weather resistant aluminium construction, brushed and silver anodised, rear panel optionally available in charcoal RAL 7016 or pure white RAL 9010 for indoor or outdoor use
  • Door convenient to open upwards by 90° using a gas spring, locks into place, or 180° to the side when in vertical format
  • Fire protection class B1, flame resistant – corners with bonded rubber seals for optimum weather resistance, with integrated ventilation and water drainage system
  • Patented, partially concealed hinge system – prevents magnets from falling between hinges when closing
  • Includes 10 grey magnets and one magnetic A4 document pouch
  • Extensive accessories also available
Rear panel made of zinc plated sheet steel. Glass pane made of 4 mm single pane safety glass. Common key cylinder locks, 2 keys per lock.
The stand is not included with delivery, see accessories.
Lighting, diverse accessories and other models, custom sizes, RAL colours and rear panel in gentian blue RAL 5010 available on request.
Technical data
Modelportrait
Depth80 mm
Internal depth45 mm
Design of display boxwith steel rear wall, for magnets
Materialsingle pane safety glass
Glass thickness4 mm
Frame materialanodised aluminium
Frame coloursilver
Panel materialsheet steel, galvanised
Panel colourcharcoal RAL 7016
Door opening180° to the right
Lock type2 cylinder locks, common key with 2 keys
Place of useindoor and outdoor use
Type of mountingwall mounting
Product typehinged door display cases
Suppliedassembled
For formatA1
Capacity A4 sheets9 (3 x 3) pcs.
Height1025 mm
Width800 mm
Viewable area height895 mm
Viewable area width670 mm
Weight20.5 kg
Instructions
Manufacturer / EU responsible Person (GPSR)
Sustainability
Product with potential for future improvement

This product does not yet meet enough of our sustainability criteria. This does not mean that it has no sustainable properties – however, the total score is lower than 3 points. Therefore, it is not (yet) labelled as particularly sustainable. Our sustainability assessment is based on transparent, clearly defined ecological, social and economic criteria. The aim is to highlight development potential and create greater transparency.

You can find out more about product evaluation and our sustainability initiative on our information page.

Product CO₂ footprint

LCA functional unit
1
Recycled content in %?
0
CO2 footprint year of calculation
2026
LCA validity (in years)
1
CO2 footprint calculation method product
Calculated by our partner GlobalChanger (GreenZero) in accordance with ISO 14044 (LCA) / 14067 (PCF) (GWP100 [IPCC version]) principles.<br/>PCF values are product specific averages that have not been verified by third parties and may evolve as the data basis improves.
CO2 footprint system boundaries
Cradle-to-gate

PCF Lifecycle Breakdown

290.37kg CO₂e
LCA Raw Material Extraction & Processing
80.8%
LCA packaging production
1.1%
LCA Product Manufacturing
15.3%
LCA Inbound and Outbound Transportation
2.8%
‌
‌
‌
‌
‌
