Ref.: 604347 10

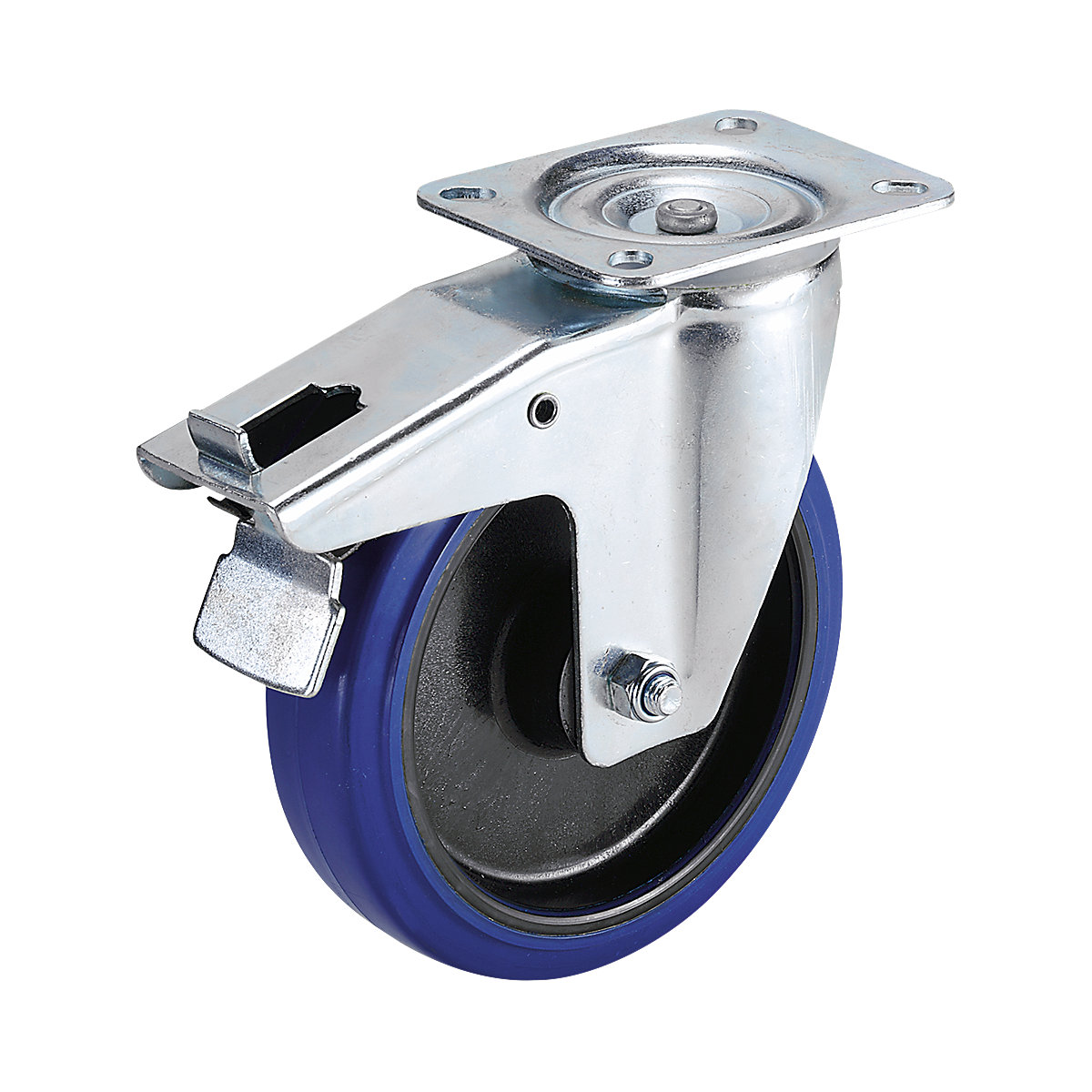

Full-elastic tyres on plastic rims – Proroll wheel Ø x width 160 x 50 mm
(6)
swivel castor with double stop
Structure
Wheel diameter [mm]
Ref.: 604347 10
Full-elastic tyres on plastic rims – Proroll wheel Ø x width 160 x 50 mm
(6)
swivel castor with double stop
swivel castor with double stop
Hardwearing
Low rolling resistance
Non-marking
Score: 2.7/5.9Structure
Wheel diameter [mm]
€ 60.90
Price / item (Excl. VAT)
Only 18 available
Delivery time: 6-8 Working Days
Good reasons to purchase products from us
- Guarantee of up to 15 years
- 30 day right of return
- Free delivery from Germany
- Fast delivery
€ 60.90
Price / item (Excl. VAT)
€ 60.90
Price / item (Excl. VAT)
Only 18 available
Delivery time: 6-8 Working Days
Good reasons to purchase products from us
- Guarantee of up to 15 years
- 30 day right of return
- Free delivery from Germany
- Fast delivery
Product description
- On plastic rim
- For uneven and rough floor surfaces
- Extremely hardwearing
- Hardness 70 Shore A
- Temperature resistant from –5 °C to +60 °C
Swivel bearing with double ball race, swivel bearing protection.
Technical data
| Model | transport castors |
|---|---|
| Wheel material | rubber – solid rubber – full elastic |
| Material of rim | plastic |
| Type of mounting | with top plate |
| Housing material | steel |
| Wheel bearing | roller bearing |
| Temperature resistance | –5 °C to +60 °C |
| Housing surface | zinc plated |
| Shore hardness | 70 A |
| Feature | does not damage floors non-marking low wear low rolling resistance |
| Supplied | assembled |
| Structure | swivel castor with double stop |
| Wheel diameter | 160 mm |
| Max. load at 4 km/h | 300 kg |
| Swivel castor offset | 55 mm |
| Screw hole diameter | 11 mm |
| Hub length | 60 mm |
| Hub bore | 20 mm |
| Screw hole spacing | 105 x 80 / 75 mm |
| Swivel castor plate dimensions | 135 x 110 mm |
| Fixed castor plate dimensions | 135 x 110 mm |
| Overall height | 190 mm |
| Wheel width | 50 mm |
| Product type | swivel castors |
| Weight | 2.7 kg |
| Manufacturer / EU responsible Person (GPSR) |
Sustainability
Product with potential for future improvement
This product does not yet meet enough of our sustainability criteria. This does not mean that it has no sustainable properties – however, the total score is lower than 3 points. Therefore, it is not (yet) labelled as particularly sustainable. Our sustainability assessment is based on transparent, clearly defined ecological, social and economic criteria. The aim is to highlight development potential and create greater transparency.
You can find out more about product evaluation and our sustainability initiative on our information page.
This product does not yet meet enough of our sustainability criteria. This does not mean that it has no sustainable properties – however, the total score is lower than 3 points. Therefore, it is not (yet) labelled as particularly sustainable. Our sustainability assessment is based on transparent, clearly defined ecological, social and economic criteria. The aim is to highlight development potential and create greater transparency.
You can find out more about product evaluation and our sustainability initiative on our information page.
Product CO₂ footprint
- LCA functional unit
- 1
- Recycled content in %?
- 0
- CO2 footprint year of calculation
- 2026
- LCA validity (in years)
- 1
- CO2 footprint calculation method product
- Calculated by our partner GlobalChanger (GreenZero) in accordance with ISO 14044 (LCA) / 14067 (PCF) (GWP100 [IPCC version]) principles.<br/>PCF values are product specific averages that have not been verified by third parties and may evolve as the data basis improves.
- CO2 footprint system boundaries
- Cradle-to-gate
