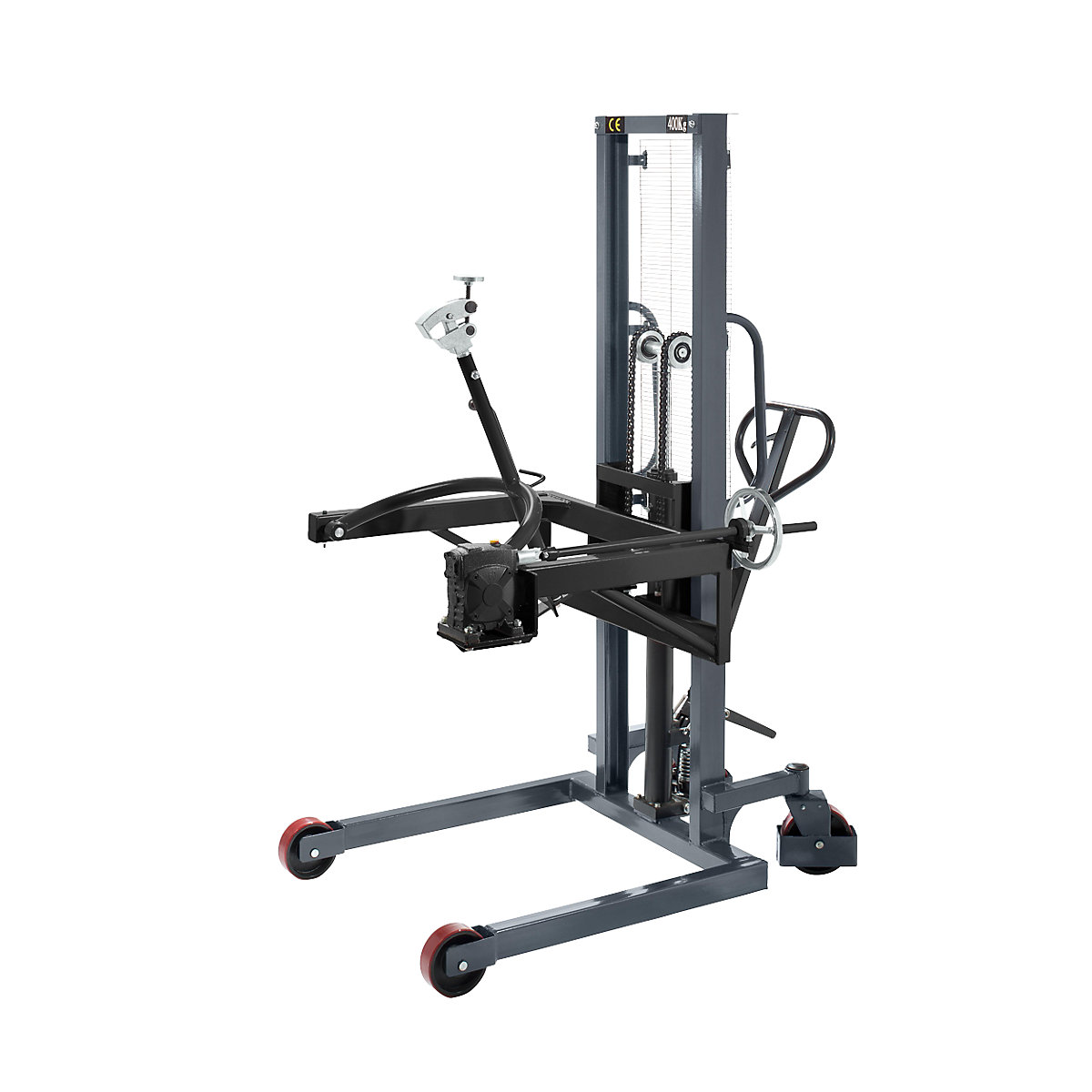

Drum lifting and tilting unit max. load 400 kg

  • Pressure relief valve for a long service life
  • Lift operated by drawbar or pedal
  • Drum tilt is regulated with a turning wheel
Ref.: 453304 10
Drum lifting and tilting unit, max. load 400 kg, LxWxH 1220 x 1100 x 1950 mm
Only 3 available
Price / items (Excl. VAT)
€ 2,125.00


Product description

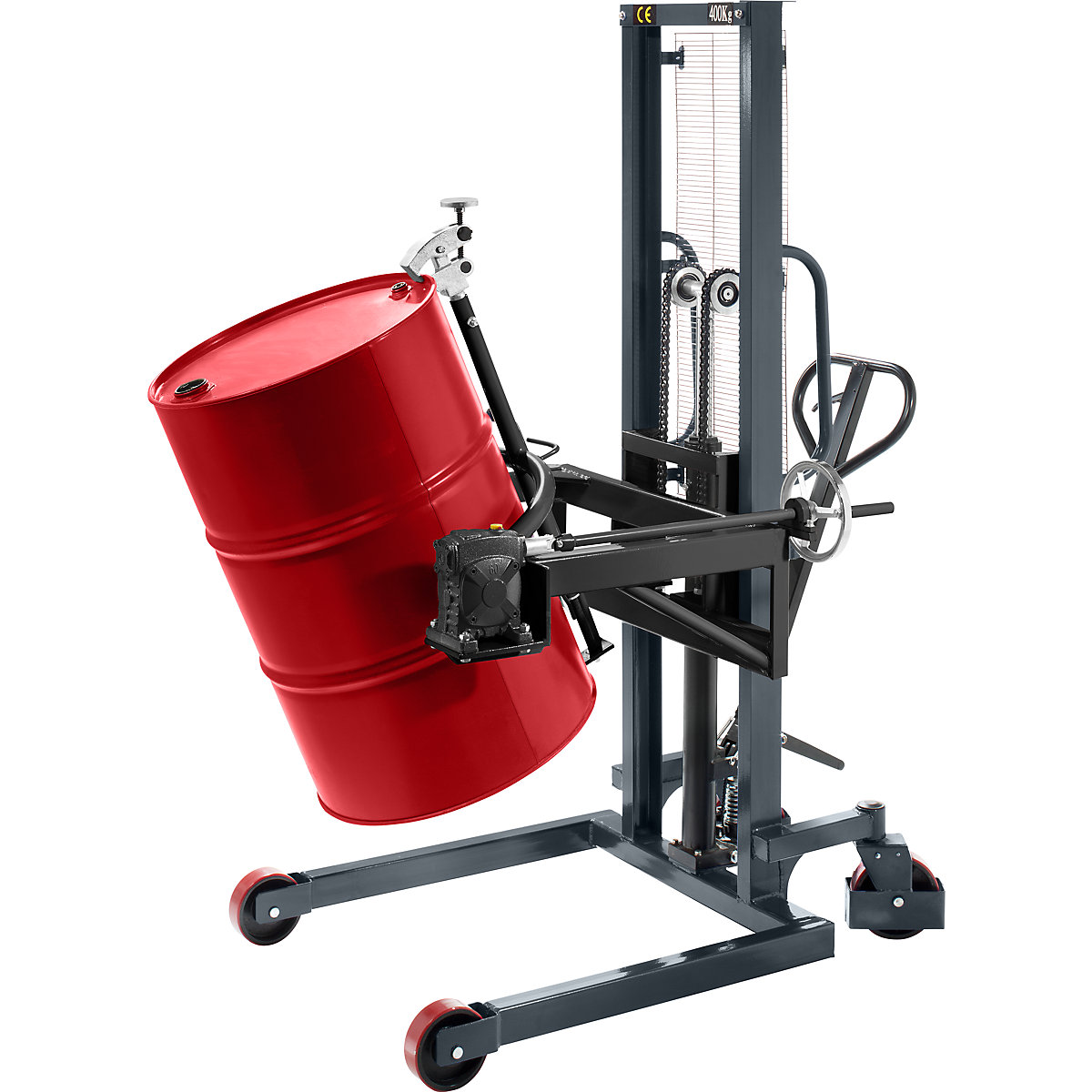

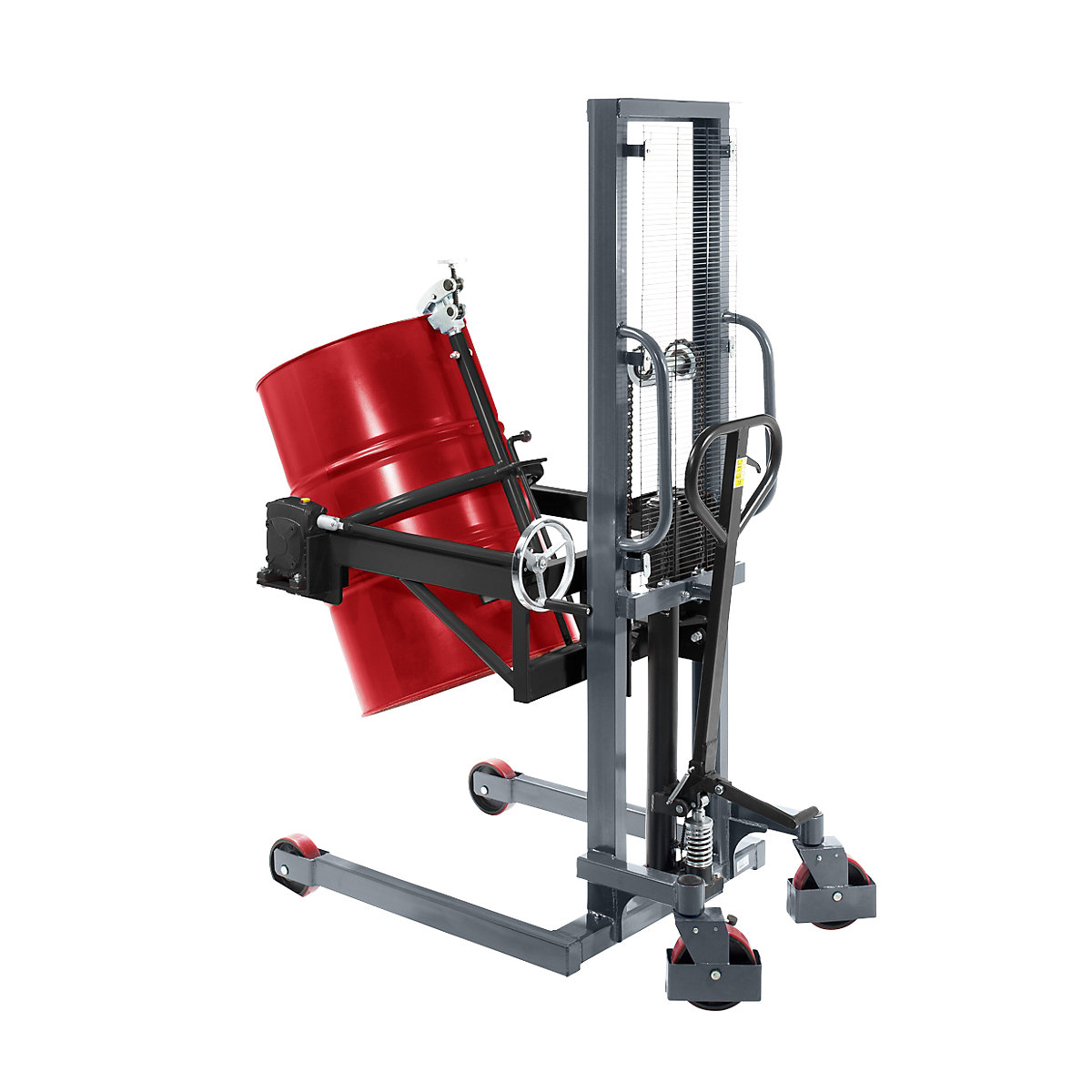

Straddle Euro pallets, hold, rotate and empty drums.

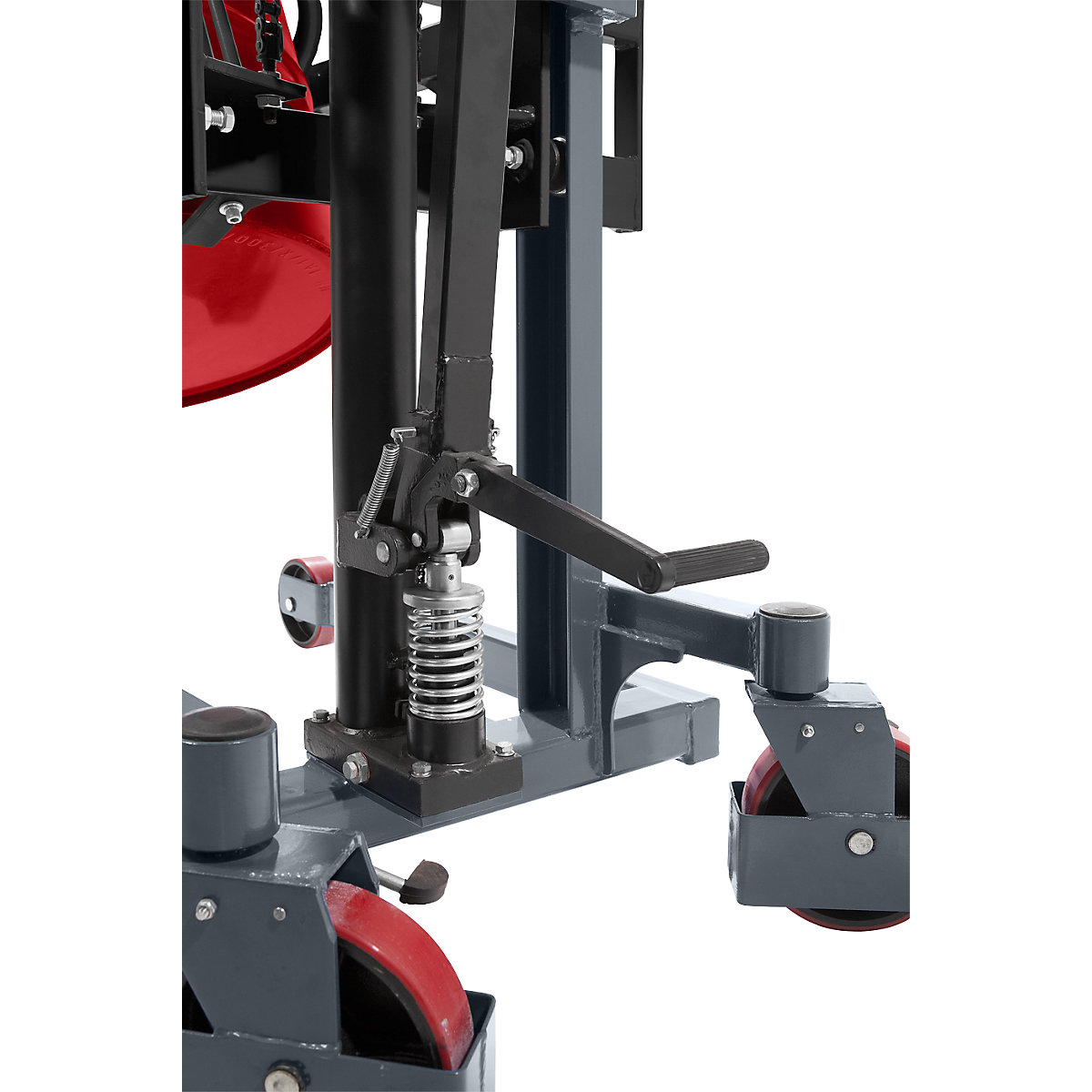

Lift operated by drawbar or pedal. Overload valve for a long service life.
Powder coated, basalt grey RAL 7012.

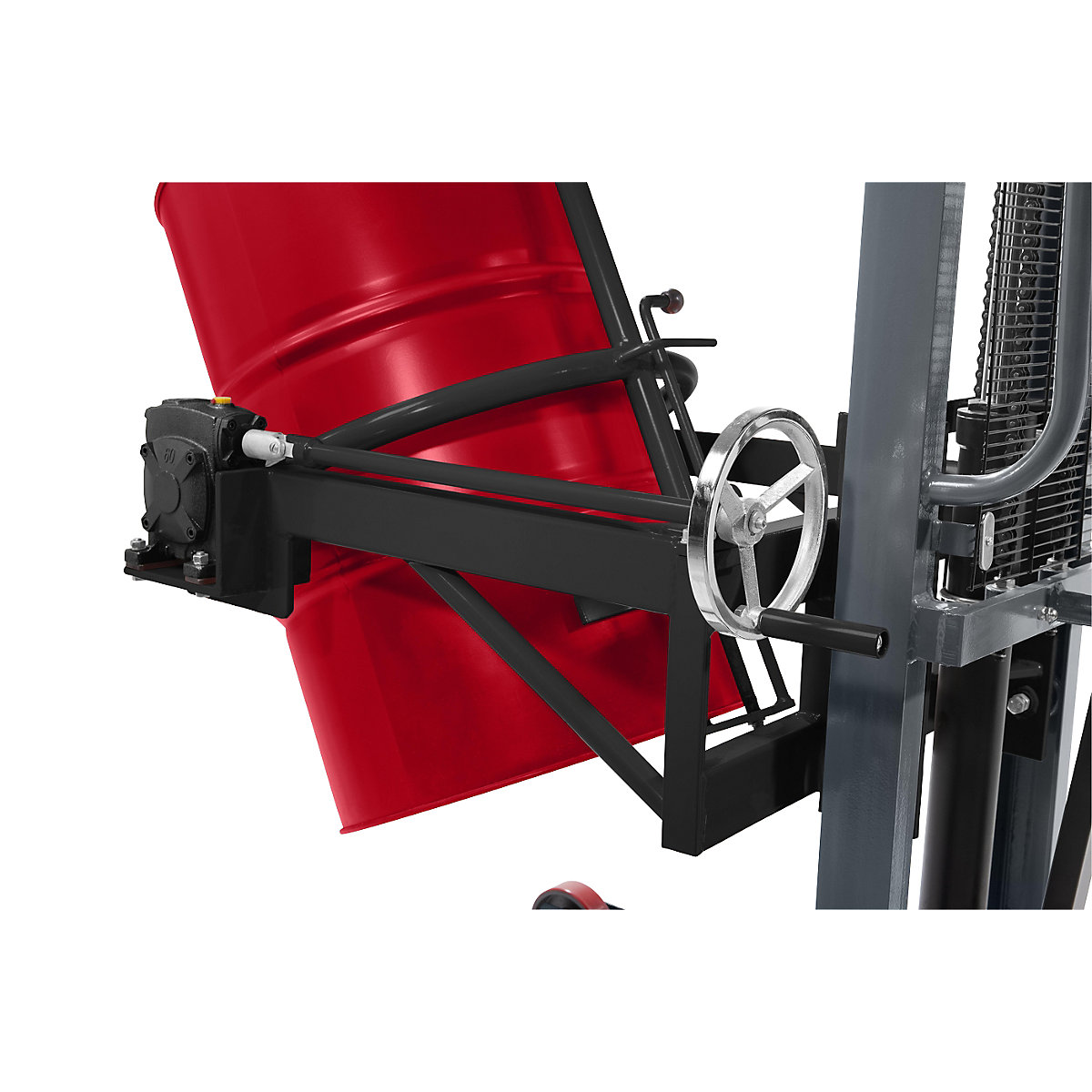

Drum tilt is regulated with a turning wheel. Angle of inclination approx. 120°.
2 swivel castors with wheel stops, Ø 180 mm, and 2 fork rollers, Ø 180 mm, made of polyurethane.
Max. load 400 kg, lifting height 1350 mm, chassis clearance width 950 mm.
Length x width x height
1220 x 1100 x 1950 mm.
For 200 litre metal channel and rolling hoop drums.
  • Pressure relief valve for a long service life
  • Lift operated by drawbar or pedal
  • Drum tilt is regulated with a turning wheel
Technical data
Max. load400 kg
Lifting height1350 mm
For drum capacities200 litres
Slope120°
Wheel fittings2 swivel castors, 2 fixed castors
Wheel typepolyurethane
Height1950 mm
Colourbasalt grey RAL 7012
Length1220 mm
Width1100 mm
Chassis clearance width950 mm
Swivel castor diameter180 mm
Fork roller diameter180 mm
Product typedrum grips
Suppliedassembled
Weight190 kg
