Ref.: 113191 10

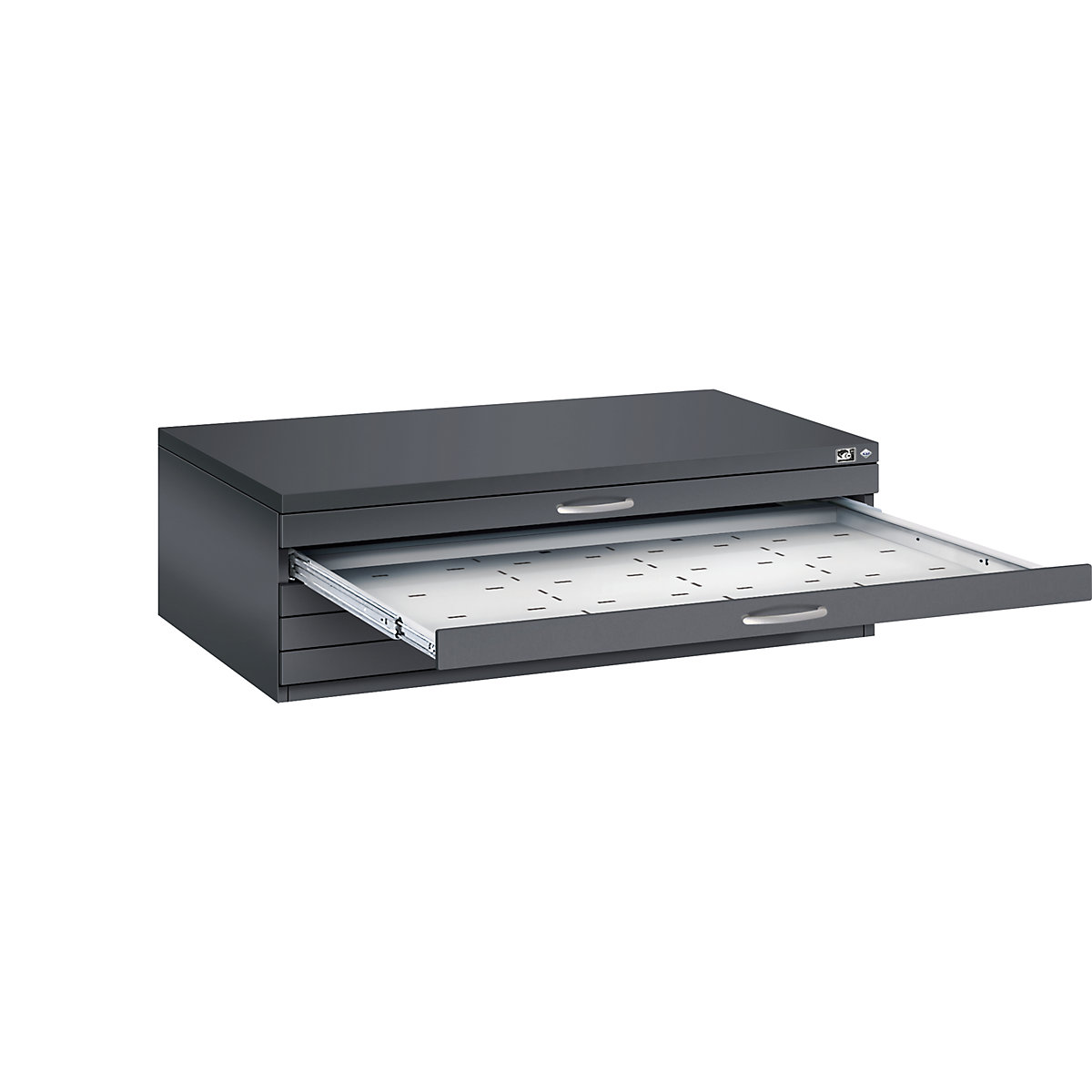

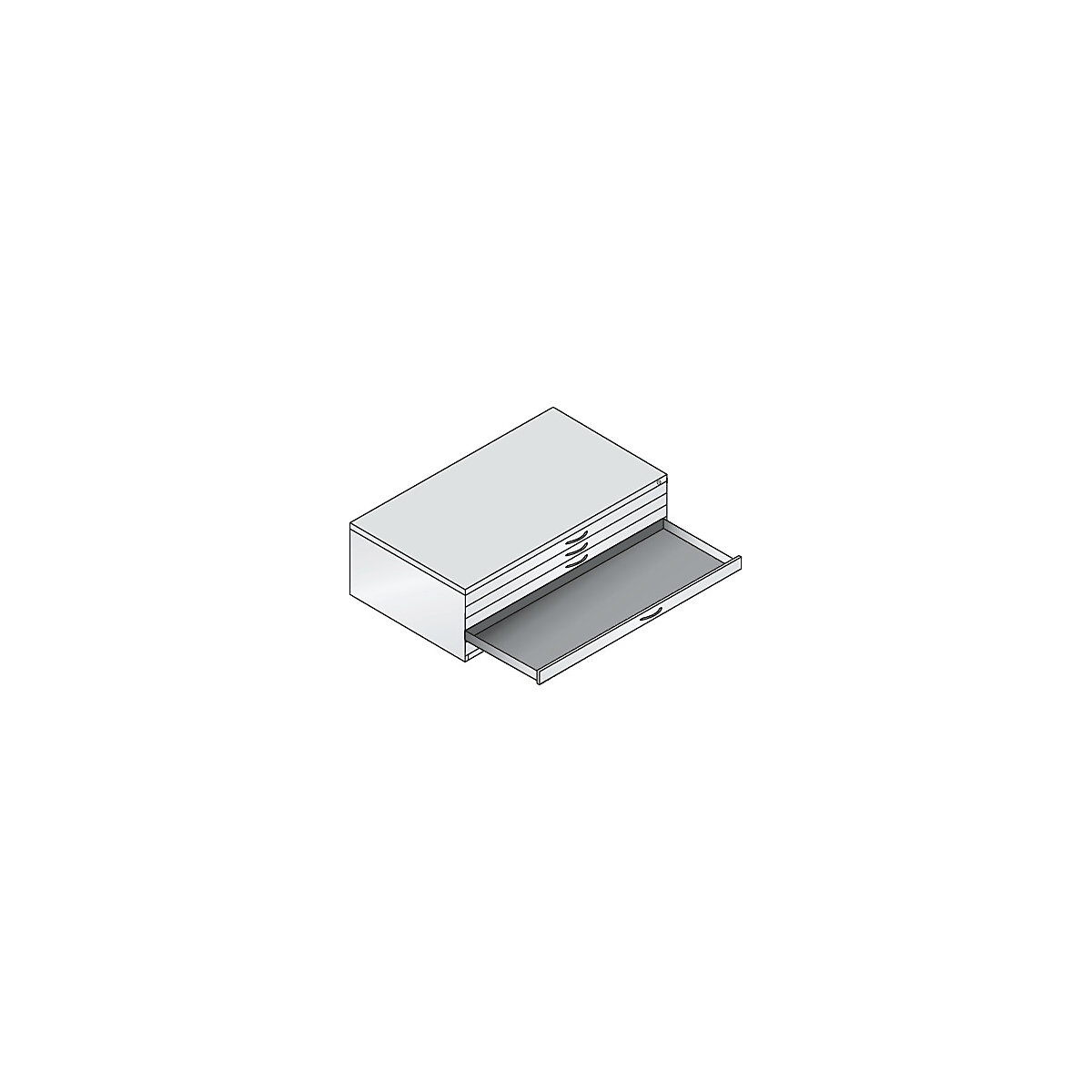

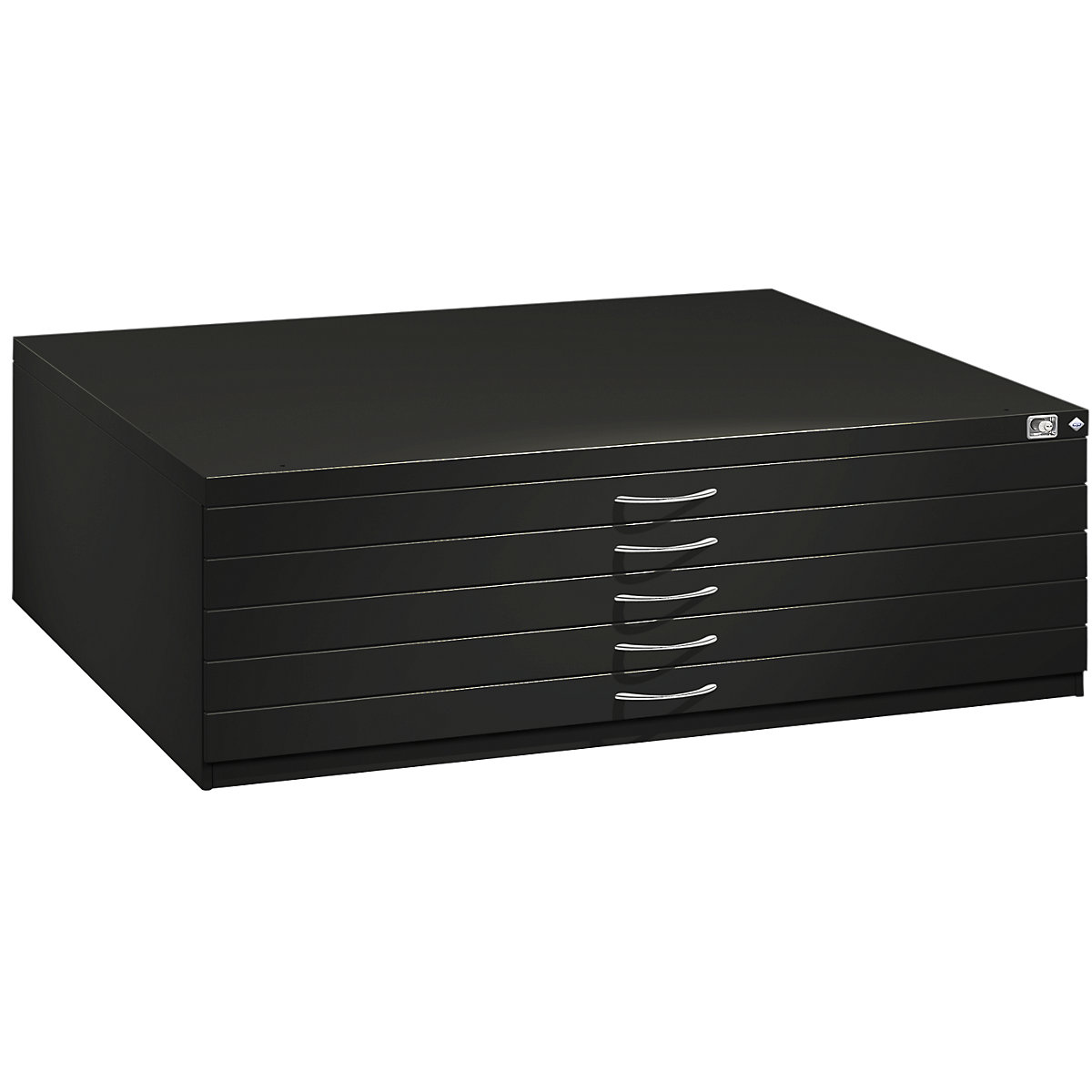

Drawing cabinet – C+P A0, 5 drawers, height 420 mm

Drawing cabinet – C+P

black grey

Body colour
Drawer colour
€ 2,000.00
Price / item (Excl. VAT)
Delivery time: 5-6 Week Delivery
Product description
  • For horizontal storage
  • Sturdy sheet steel construction, welded model with high quality stove enamelling
  • High quality telescopic rails with ball bearings for quiet operation, drawers close automatically when fully extended
  • Drawers with pull-out stops, max. load up to 40 kg
Drawers with a retaining bar at the front and a cover strip at the back to prevent drawings from rolling up.
Push cylinder lock with central locking and a pull-out stop, incl. 2 keys.
One plastic label holder is included for each drawer.
Perforated drawer bases for partitioning into DIN formats using drawer dividers, see accessories.

This product is made to order and is therefore excluded from the right of return.
Plinth, base frame and melamine coated cover plate available upon request.
Safety tested
This is a test symbol. GS stands for certified safety.
Safety tested. This is a test symbol. GS stands for certified safety.
Technical data
Materialsheet steel, stove enamelled
Drawing formatA0
Height420 mm
Width1350 mm
Depth960 mm
Number of drawers5 pcs.
Drawer extension80%
Drawer guidewith drawers on ball bearing telescopic runners
Max. drawer load40 kg
Drawer height45 mm
Drawer width1255 mm
Drawer depth905 mm
Lock typepush cylinder lock
Weight125.5 kg
Product typedrawing cabinets
Suppliedassembled
Body colourblack grey RAL 7021
Drawer colourblack grey RAL 7021
Pictorial instructions
Manufacturer / EU responsible Person (GPSR)
Sustainability
Product with potential for future improvement

This product does not yet meet enough of our sustainability criteria. This does not mean that it has no sustainable properties – however, the total score is lower than 3 points. Therefore, it is not (yet) labelled as particularly sustainable. Our sustainability assessment is based on transparent, clearly defined ecological, social and economic criteria. The aim is to highlight development potential and create greater transparency.

You can find out more about product evaluation and our sustainability initiative on our information page.

Product CO₂ footprint

Product Carbon Footprint per kg CO2e
556.120
Product Carbon Footprint Calculation Year
2026
Product Carbon Footprint System Boundaries
Cradle-to-gate
Product Carbon Footprint Calculation Method
Calculated by our partner GlobalChanger (GreenZero) in accordance with ISO 14044 (LCA) / 14067 (PCF) (GWP100 [IPCC version]) principles.<br/>PCF values are product specific averages that have not been verified by third parties and may evolve as the data basis improves.
‌
‌
‌
‌
