Ref.: 830623 10

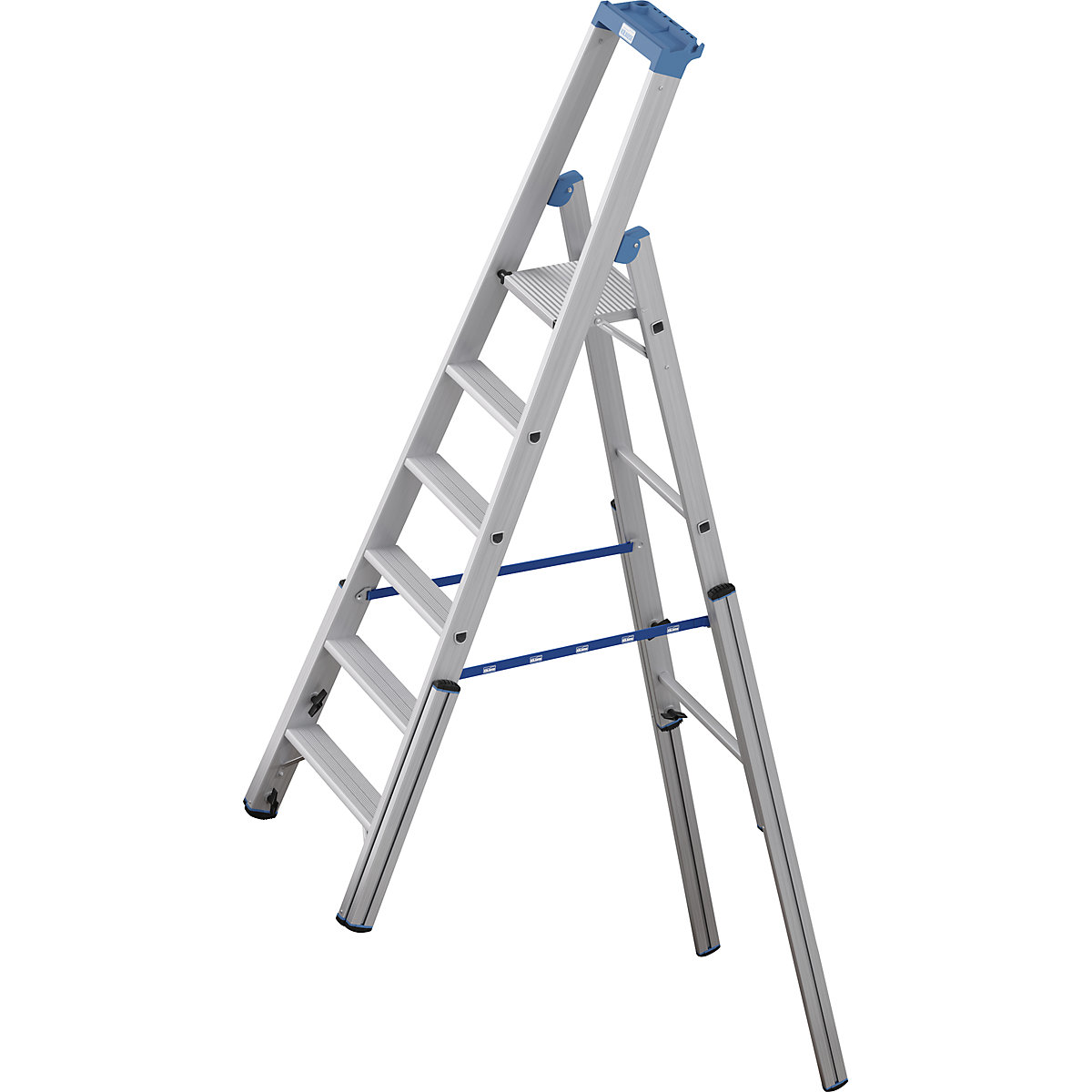

Step ladder – KRAUSE with levelling mechanism, accessible on one side

Step ladder – KRAUSE

4 steps

Number of steps [pcs.]
€ 515.00
Price / item (Excl. VAT)
Delivery time: 9-11 Working Days
Product description

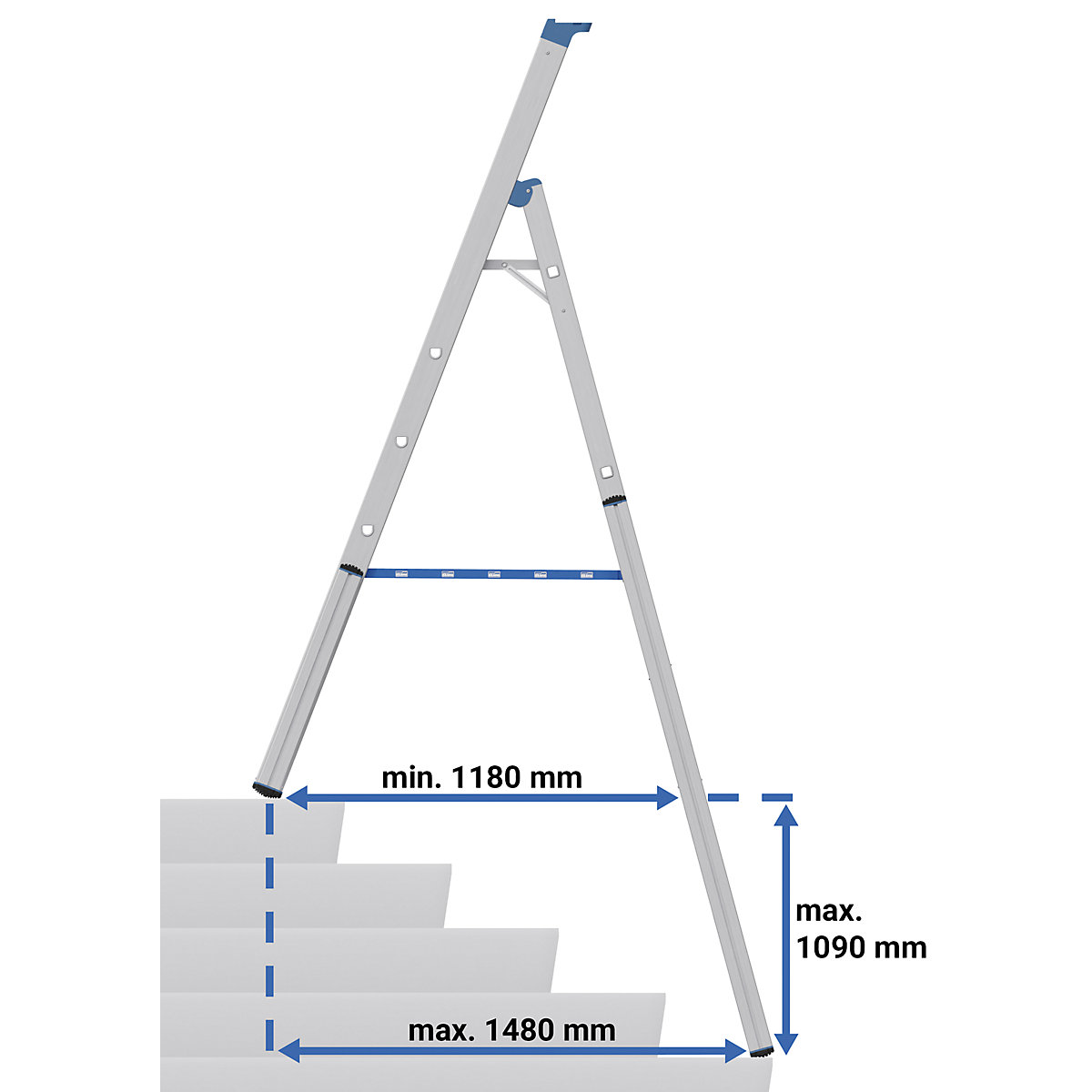

  • Four infinitely adjustable rail extensions with sturdy sliding guide on the outside

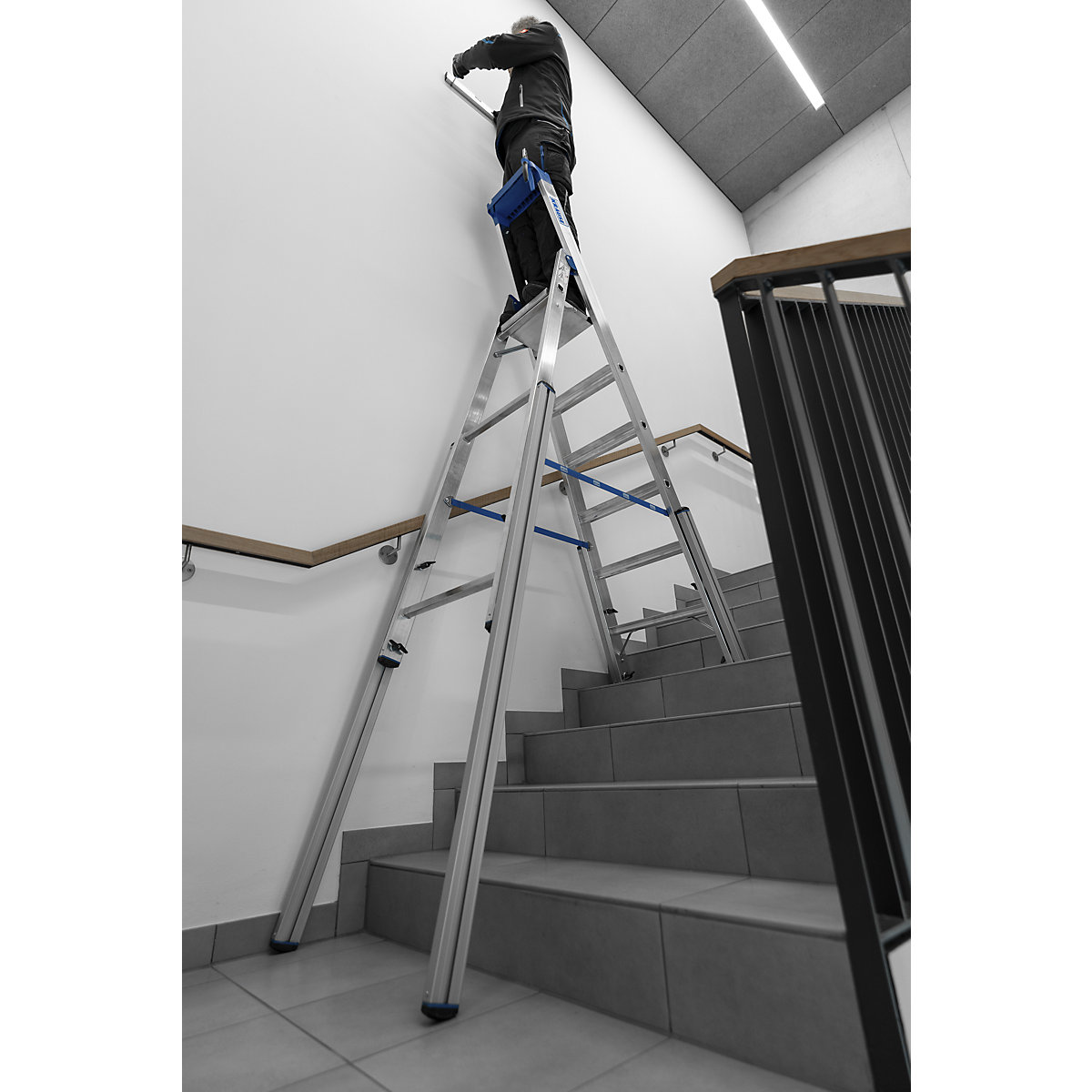

  • For use on stairs and other surfaces with similar height differences
  • Profiled, reinforced D steps, 80 mm deep, for safe ascent and comfortable footing
  • Fulfils the requirements of TRBS 2121-2 for the use of steps as a workplace
  • High safety rail with multifunctional tray for small parts and tools
  • Sturdy aluminium safety platform with anti-slip profiling
  • High strength beaded step/rail connection
  • Weatherproof and bolted belt straps sewn into metal pockets
Developed for professional use, this aluminium step ladder with its individually adjustable rails provides a high level of stability, even when used on stairs, landings, platforms and other surfaces with similar height differences. Its 80 mm deep steps enable safe access and provide a comfortable footing, and fulfil the requirements of TRBS 2121-2 for the use of steps as a workplace.
Technical data
Access typesteps
Rungs materialaluminium
Material of treadsaluminium
Frame materialaluminium
Max. load150 kg
Accesssingle sided
Featurefolding
Depth folded200 mm
Conforms toDIN EN 131
Product typestep ladders, single sided
Suppliedassembled
Number of steps4 pcs.
Weight6.4 kg
Working height2950 mm
Vertical height1600 mm
Standing height0.95 m
Length as a step ladder1700 mm
Working height as a step ladder2950 mm
Height as a step ladder1600 mm
Width folded500 mm
Height folded1750 mm
Pictorial instructions
Manufacturer / EU responsible Person (GPSR)
Sustainability
Sustainable product

This product actively contributes to protecting our environment and taking social responsibility. It meets our strict sustainability criteria and thus supports an economically, ecologically and socially viable future. The score asks the crucial question for every product: does this product contribute to creating sustainable and fair conditions for today and future generations? Below are the categories in which this product performs particularly well.

You can find out more about product evaluation and our sustainability initiative on our information page .
Made of recycled material
This product is made entirely or partly from recycled materials. Recycled material products are items or materials made from reused or recycled raw materials (see the technical data for more information). The use of recycled materials aims to conserve resources and reduce waste.

Product CO₂ footprint

LCA functional unit
1
Recycled content in %?
61
CO2 footprint year of calculation
2026
LCA validity (in years)
1
CO2 footprint calculation method product
Calculated by our partner GlobalChanger (GreenZero) in accordance with ISO 14044 (LCA) / 14067 (PCF) (GWP100 [IPCC version]) principles.<br/>PCF values are product specific averages that have not been verified by third parties and may evolve as the data basis improves.
CO2 footprint system boundaries
Cradle-to-gate

PCF Lifecycle Breakdown

56.25kg CO₂e
LCA Raw Material Extraction & Processing
61.8%
LCA packaging production
0.9%
LCA Product Manufacturing
32.9%
LCA Inbound and Outbound Transportation
4.4%
Scoring System
3.0/5.9Overall score
CriteriaWeightingScore
Icon Climate protectionClimate protection30%2.2
Icon Circulatory economyCirculatory economy30%4.2
Icon BiodiversityBiodiversity25%2.0
Icon Economic efficiencyEconomic efficiency10%3.0
Icon InnovationInnovation5%3.9
