Ref.: 944212 10

Aluminium multi-purpose ladder – HYMER trade model

(1)
Aluminium multi-purpose ladder – HYMER

3 x 7 rungs, max. working height 5.73 m

10 year guarantee
10 year guarantee
Number of rungs [pcs.]
€ 385.00
Price / item (Excl. VAT)
Delivery time: up to 4 weeks
Product description
  • Professional model with solid steel fittings

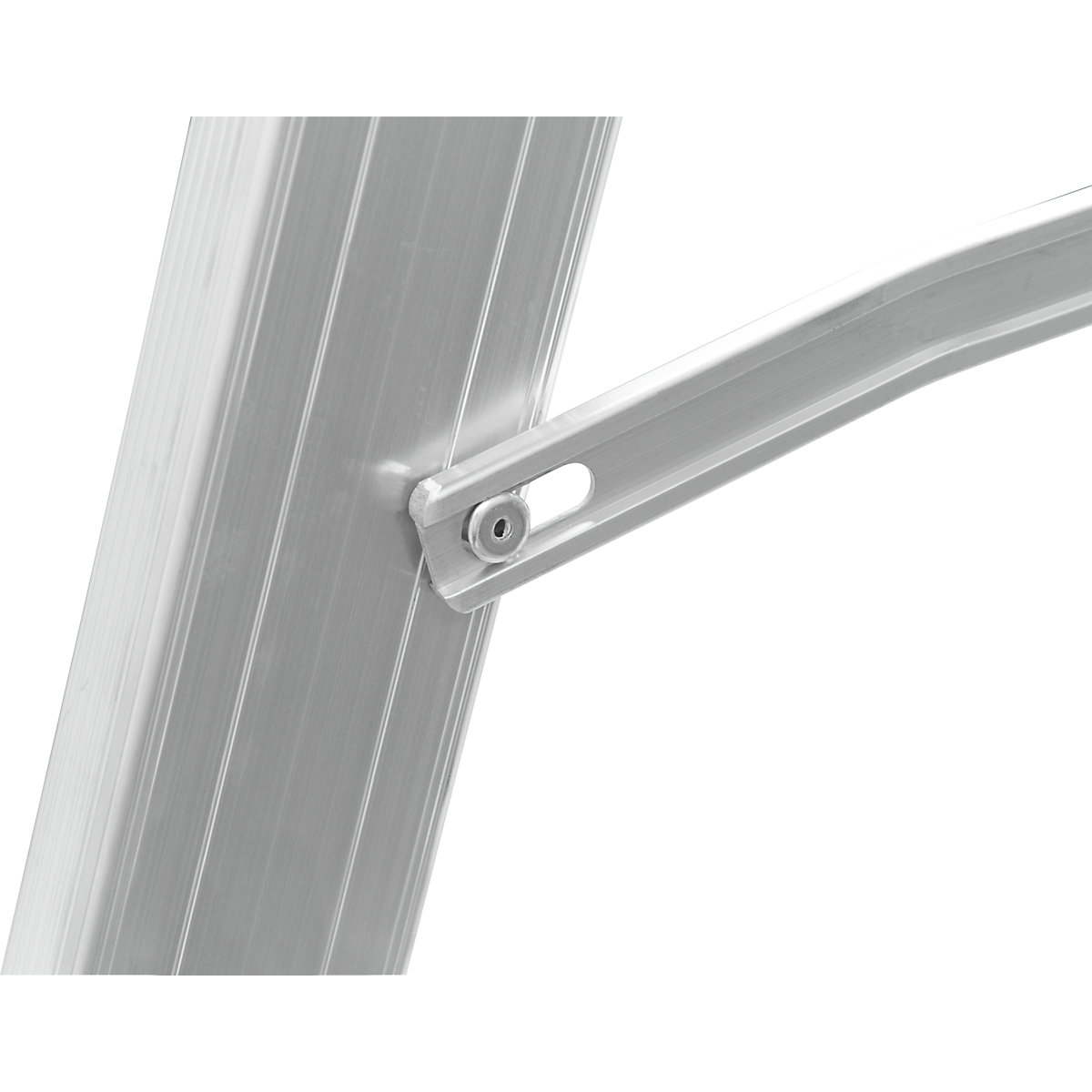

  • Rigid connecting brace with transport safety catch

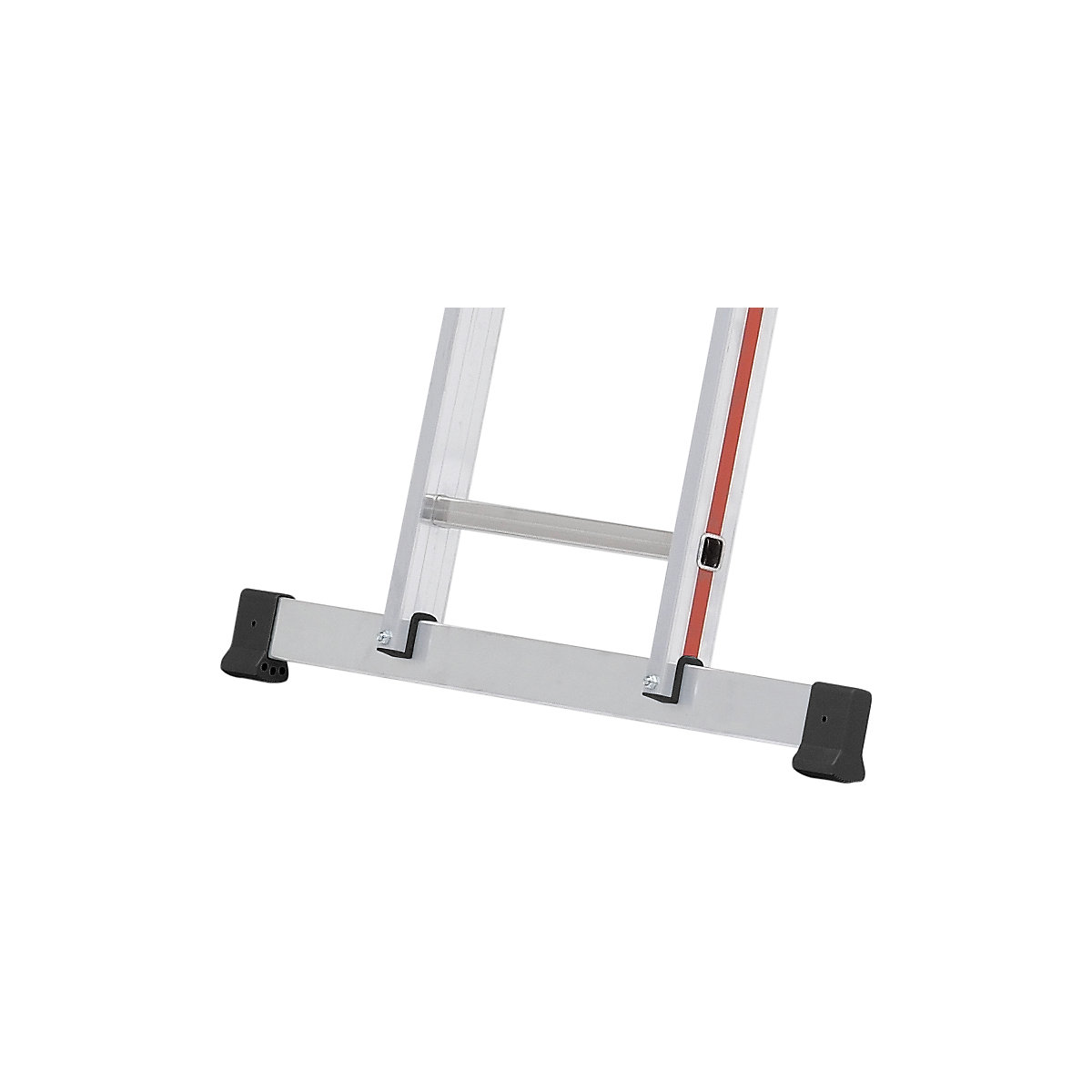

  • Sturdy cross beam for excellent stability
  • Very stable rails made of extruded aluminium profiles
  • Non-slip, profiled rungs

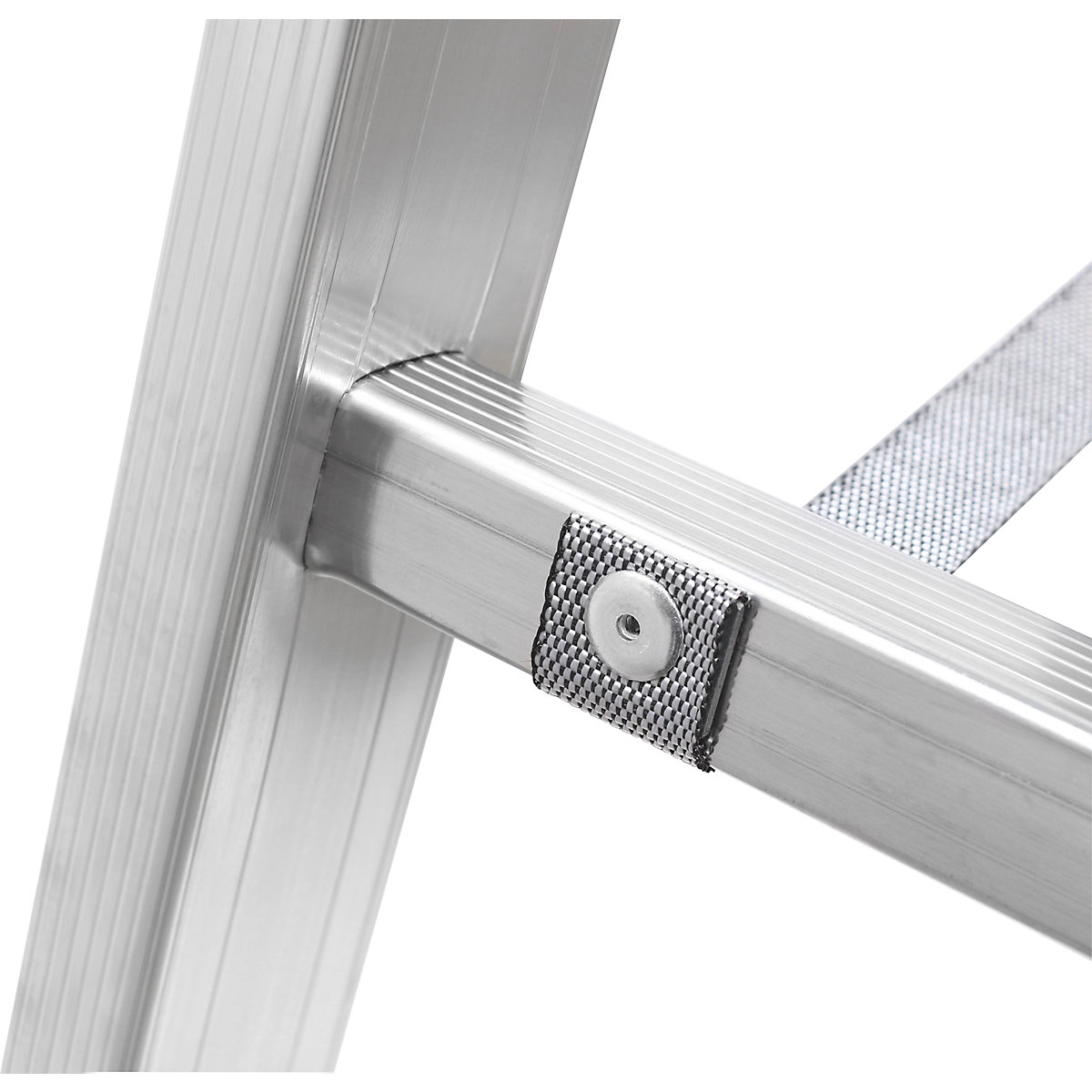

  • Spread secured by high strength nylon belts
The basic ladder consists of a two-part multi-purpose ladder. The third part, the extension ladder, fits in slide guides and is fixed with a pair of hooks, one of which is fitted with a catch to prevent unintended removal during transport.

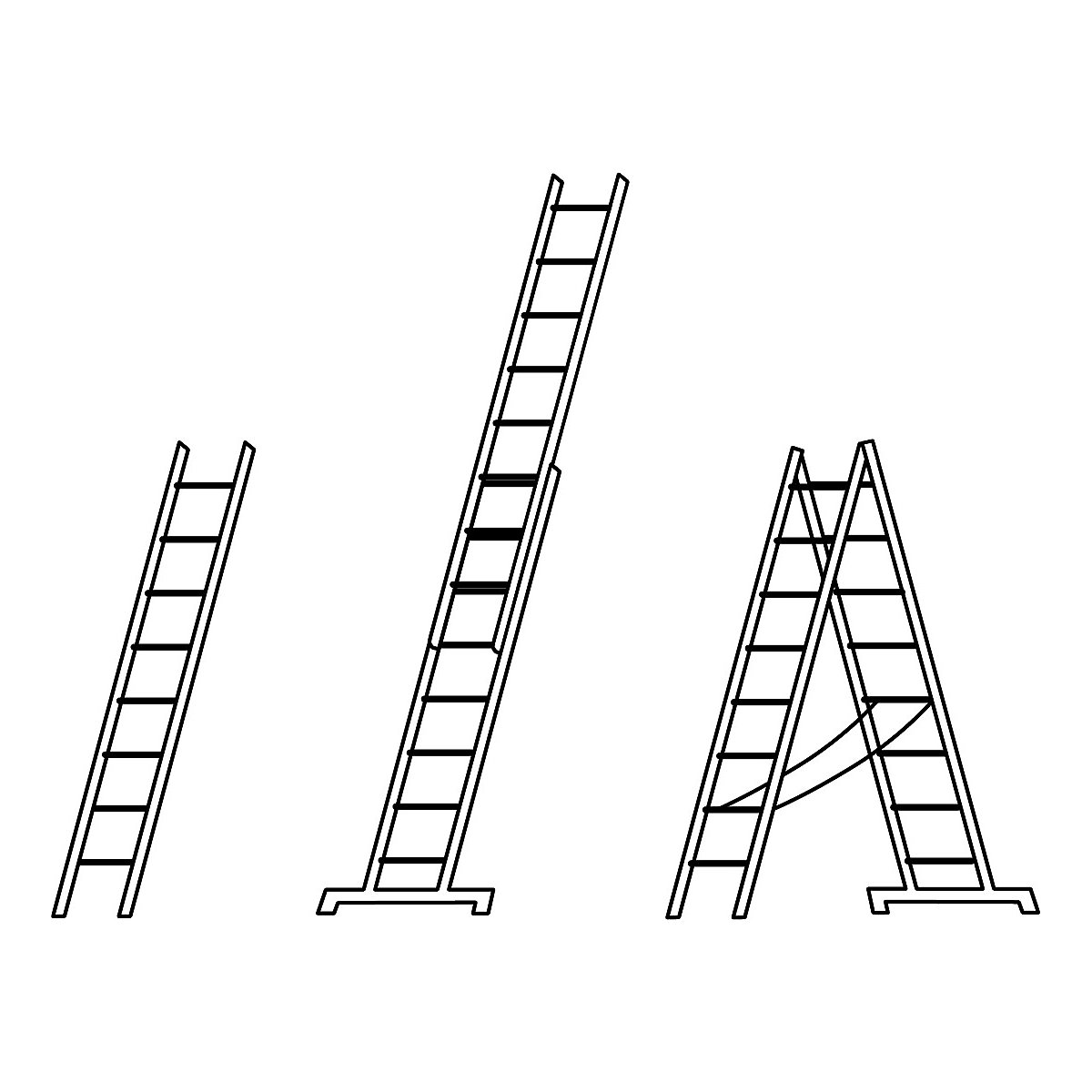

Due to its design, this ladder combines the functionality of a double ladder with that of an extension ladder and is thus suitable for a wide range of applications.

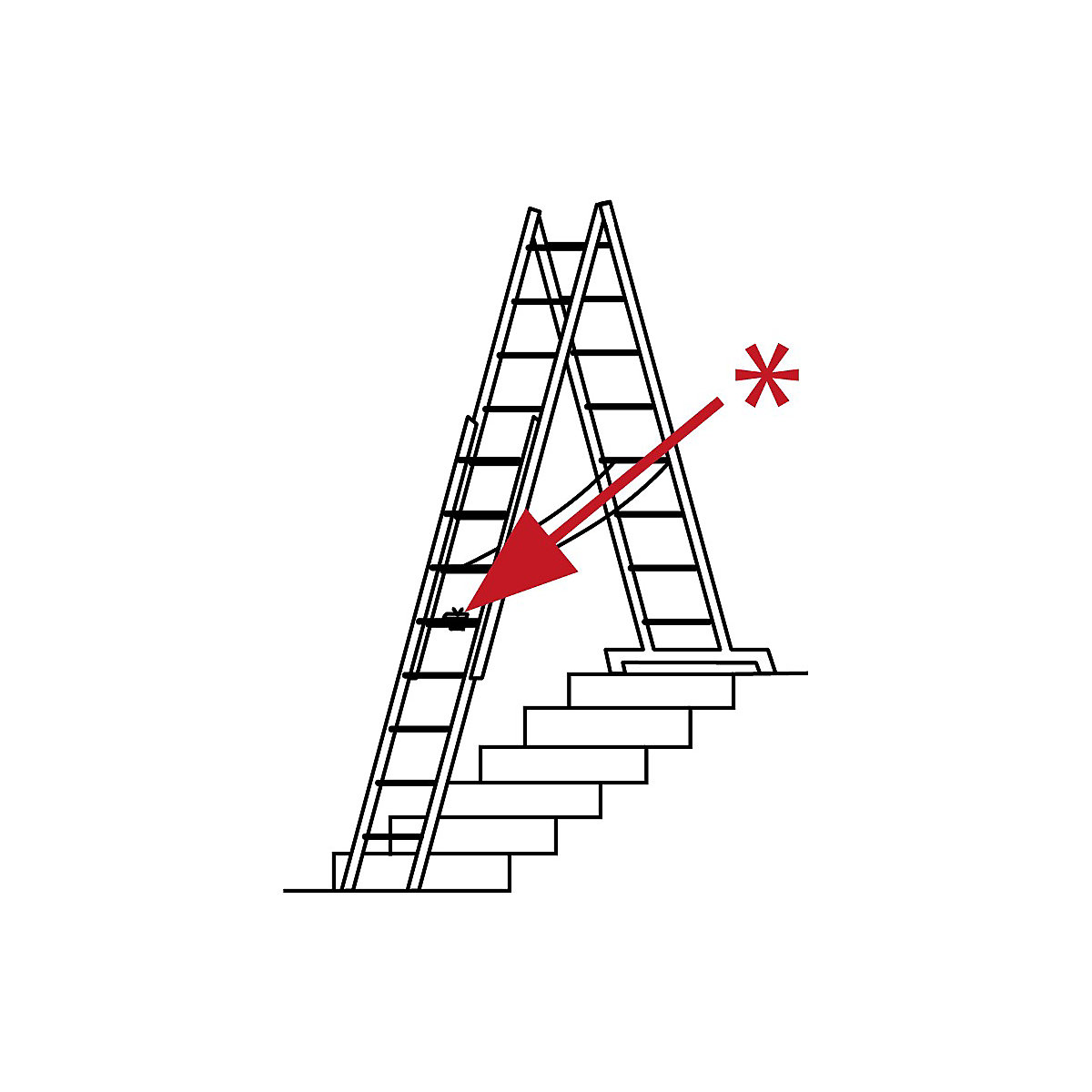

Additional fitting for use on stairs available for the 3 x 7 to 3 x 10 rung version as an accessory.
The ladder for craftsmen.
Technical data
Access typerungs
Rungs materialaluminium
Rung depth30 mm
Frame materialaluminium
Max. load150 kg
Rung spacing280 mm
Accessdouble sided
Product typemulti-purpose ladders
Suppliedpartially assembled
Number of rungs3 x 7 pcs.
Weight13.2 kg
Retracted length2070 mm
Working height5730 mm
Length per ladder section2070 mm
Working height as a step ladder4060 mm
Height as a step ladder3290 mm
Length as a lean-to ladder4870 mm
Working height as a lean-to ladder5730 mm
Max. vertical height as double ladder with extension3290 mm
Pictorial instructions
Manufacturer / EU responsible Person (GPSR)
Sustainability
Sustainable product

This product actively contributes to protecting our environment and taking social responsibility. It meets our strict sustainability criteria and thus supports an economically, ecologically and socially viable future. The score asks the crucial question for every product: does this product contribute to creating sustainable and fair conditions for today and future generations? Below are the categories in which this product performs particularly well.

You can find out more about product evaluation and our sustainability initiative on our information page .

Product CO₂ footprint

LCA functional unit
1
Recycled content in %?
98
CO2 footprint year of calculation
2026
LCA validity (in years)
1
CO2 footprint calculation method product
Calculated by our partner GlobalChanger (GreenZero) in accordance with ISO 14044 (LCA) / 14067 (PCF) (GWP100 [IPCC version]) principles.<br/>PCF values are product specific averages that have not been verified by third parties and may evolve as the data basis improves.
CO2 footprint system boundaries
Cradle-to-gate

PCF Lifecycle Breakdown

54.94kg CO₂e
LCA Raw Material Extraction & Processing
27.7%
LCA packaging production
1.9%
LCA Product Manufacturing
61.1%
LCA Inbound and Outbound Transportation
9.3%
Scoring System
3.4/5.9Overall score
CriteriaWeightingScore
Icon Climate protectionClimate protection30%2.5
Icon Circulatory economyCirculatory economy30%5.1
Icon BiodiversityBiodiversity25%1.0
Icon Economic efficiencyEconomic efficiency10%3.1
Icon InnovationInnovation5%4.9
