Ref.: 487019 10

Step shelf ladder – KRAUSE with wheels on top for round tubing rail system

Step shelf ladder – KRAUSE

7 steps

10 year guarantee
10 year guarantee
Number of steps [pcs.]
€ 515.00
Price / item (Excl. VAT)
Delivery time: 9-11 Working Days
Product description
  • High stability due to high strength beaded step-rail connection
  • Safe ascent due to 80 mm deep, profiled steps
  • Space saving suspension when not in use

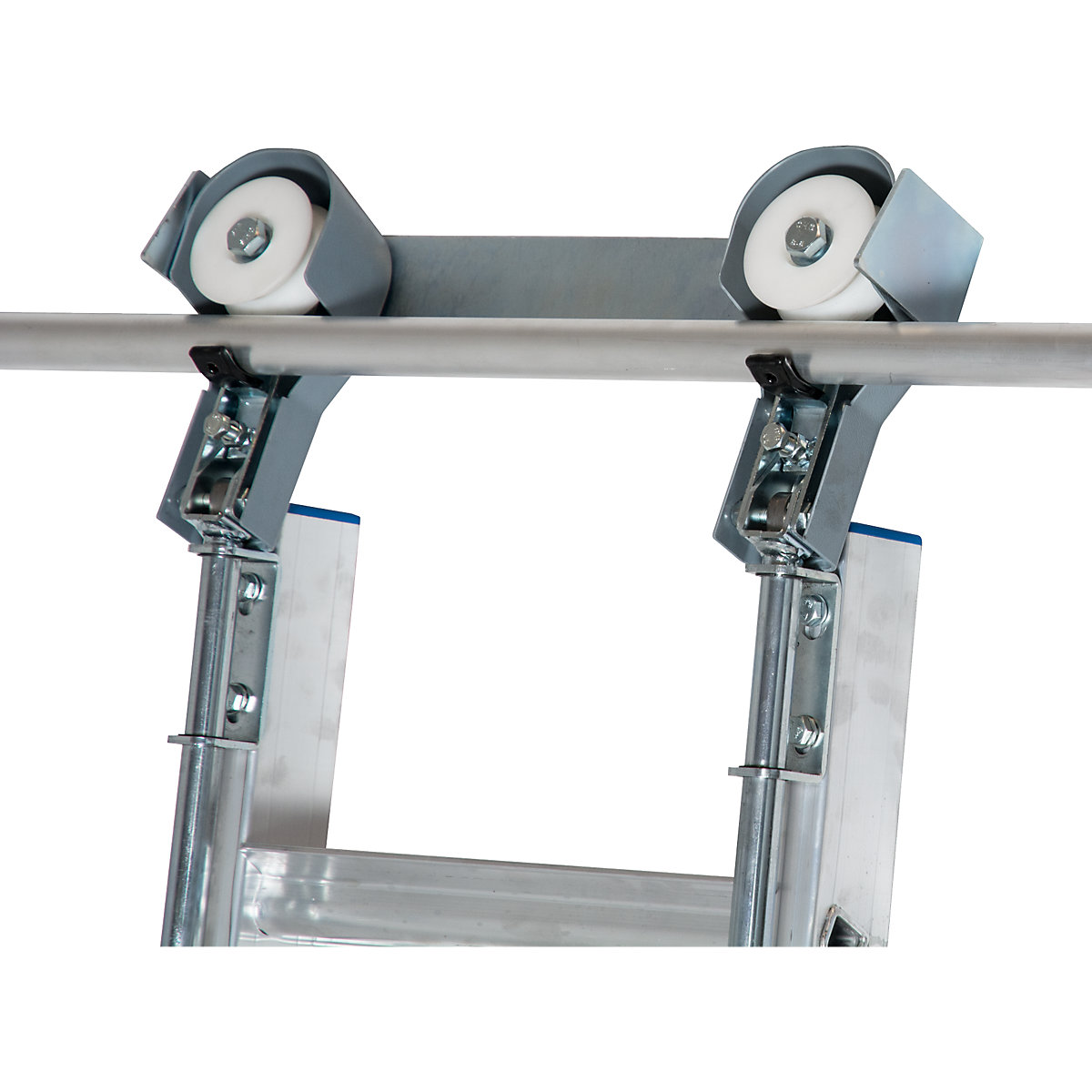

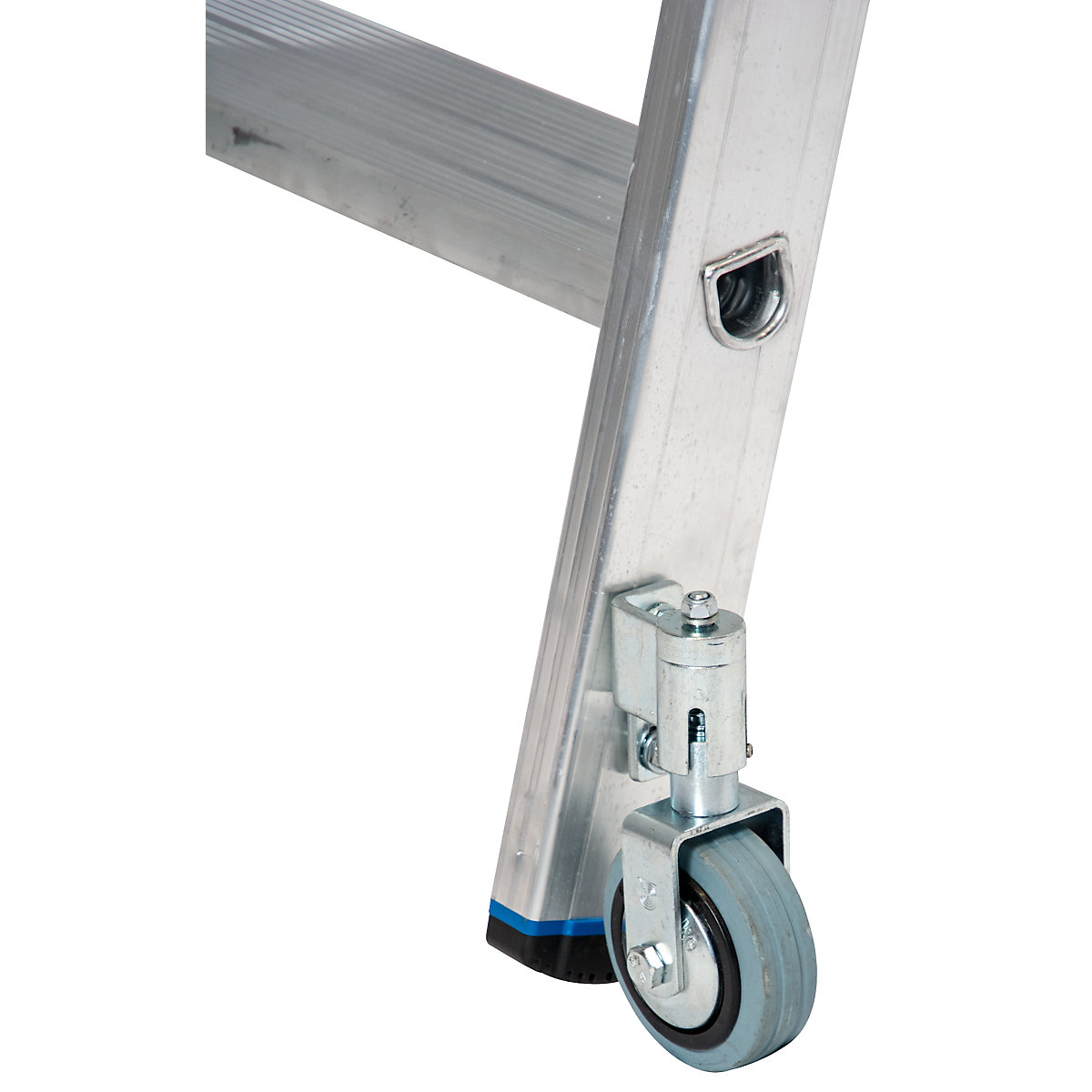

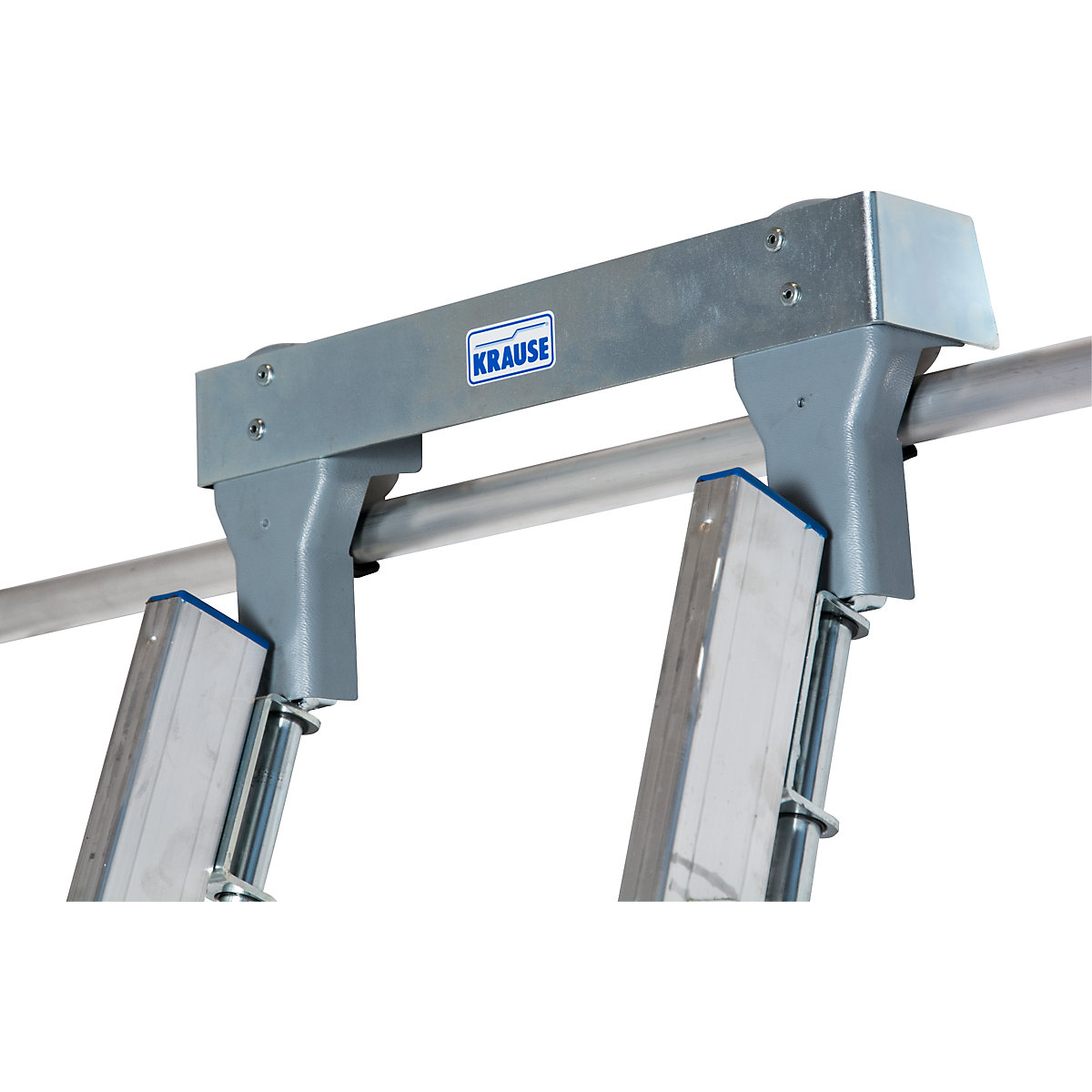

This step shelf ladder is the optimal supplement to every shelf system. In combination with a round tubing rail system (tubing diameter 30 mm), this lean to ladder provides fast and safe access to shelves located at a height. 2 self locking braked castors (diameter 80 mm) ensure it is easy to move. The two component ladder feet provide a sturdy footing during use. The ladder inclination totals 21°. When work is finished, the ladder can be placed vertically against the shelf to save space – in the parking position.

The vertical suspension height is decisive to selecting the right shelf ladder (distance from the ground to the lower edge of the rail system).

Round tubing rail system, handrail and holding rod are available as accessories.
Technical data
Access typesteps
Width570 mm
Max. load150 kg
Frame materialaluminium
Material of treadsaluminium
Step depth80 mm
Featuremobile
Colouraluminium silver
Product typeshelf ladders
Suppliedassembled
Number of steps7 pcs.
Vertical hook-in height2150 mm
Standing height900 mm
Length1950 mm
Working height2900 mm
Weight9.2 kg
Manufacturer / EU responsible Person (GPSR)
Sustainability
Sustainable product

This product actively contributes to protecting our environment and taking social responsibility. It meets our strict sustainability criteria and thus supports an economically, ecologically and socially viable future. The score asks the crucial question for every product: does this product contribute to creating sustainable and fair conditions for today and future generations? Below are the categories in which this product performs particularly well.

You can find out more about product evaluation and our sustainability initiative on our information page .

Product CO₂ footprint

LCA functional unit
1
Recycled content in %?
61
CO2 footprint year of calculation
2026
LCA validity (in years)
1
CO2 footprint calculation method product
Calculated by our partner GlobalChanger (GreenZero) in accordance with ISO 14044 (LCA) / 14067 (PCF) (GWP100 [IPCC version]) principles.<br/>PCF values are product specific averages that have not been verified by third parties and may evolve as the data basis improves.
CO2 footprint system boundaries
Cradle-to-gate

PCF Lifecycle Breakdown

68.08kg CO₂e
LCA Raw Material Extraction & Processing
62%
LCA packaging production
1.1%
LCA Product Manufacturing
31.7%
LCA Inbound and Outbound Transportation
5.2%
Scoring System
3.2/5.9Overall score
CriteriaWeightingScore
Icon Climate protectionClimate protection30%2.5
Icon Circulatory economyCirculatory economy30%4.6
Icon BiodiversityBiodiversity25%2.0
Icon Economic efficiencyEconomic efficiency10%3.0
Icon InnovationInnovation5%3.9
More about our sustainability approach.
‌
‌
‌
‌
