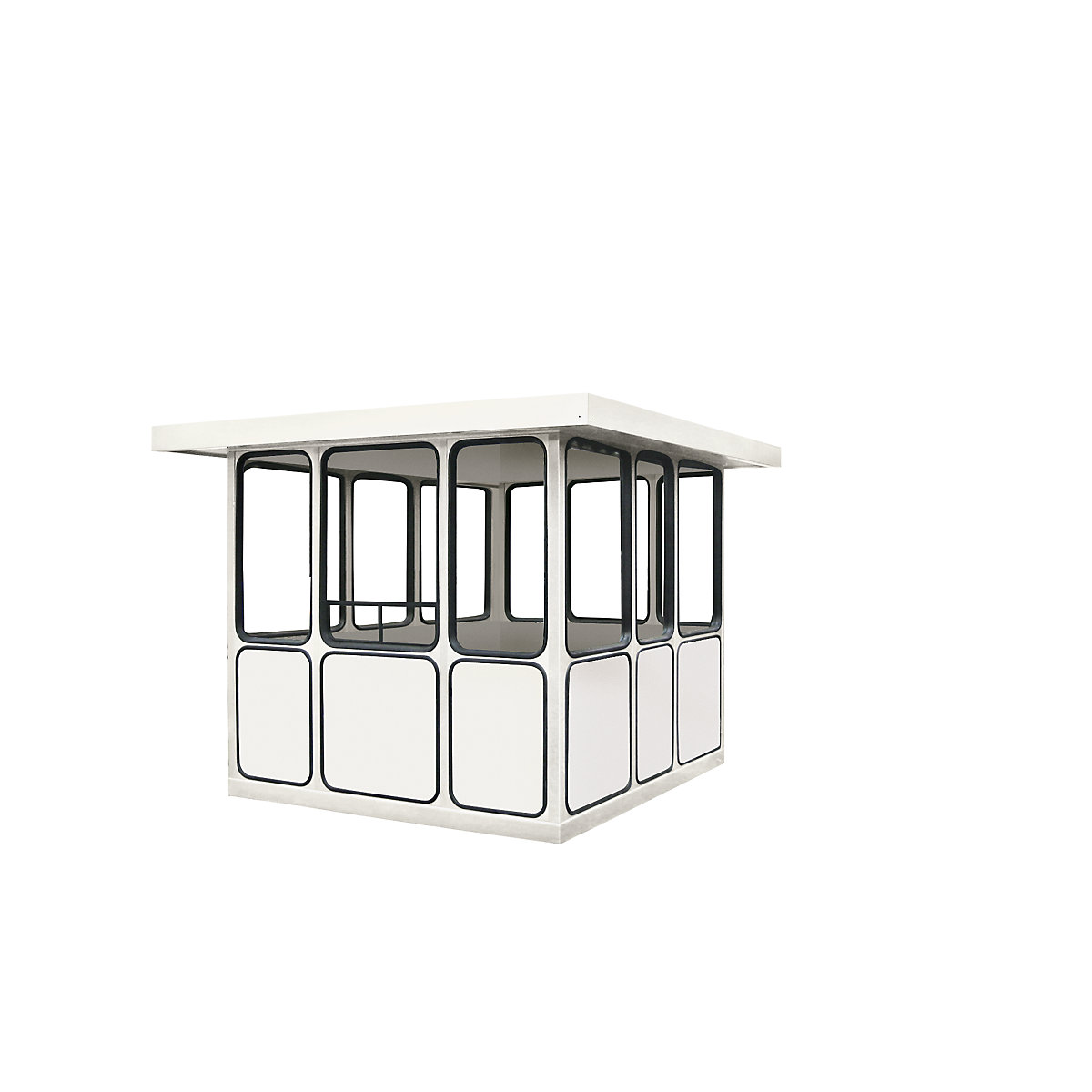

Multi-purpose building, panelling with rounded square pattern for outdoor areas
LxW 3280 x 3000 mm
- For outdoor use
- Projects with 1 to 2 storeys, with steel support frames and stairs, wall fastening materials etc.
- Versatile configuration options for wall sections
Ref.: 709095 10
Properties
External length [mm]: 3280, External width [mm]: 3000, Internal length [mm]: 3170, Internal width [mm]: 2890, Weight [kg]: 1200
Good reasons to purchase products from us
- Guarantee of up to 15 years
- 30 day right of return
- Free delivery
- Fast delivery
We will be happy to help you
1 800 677 300
Monday-Friday 8am-5pm
Product description
Standard model
4-sided free standing unit, with roof, without floor, assembly frame.
Wall sections
Rounded square pattern. Height 2500 mm, grid 1060 mm. Railing height 1030 mm.
Lower part made of sheet steel, painted on both sides in RAL colour specified by customer.
Upper part with single pane 5 mm float glass. Wall sections without glazing available on request.
Door design
Double walled sheet metal door with window. Complete with door handle, lock and profile cylinder.
Solid panel and custom doors available on request.
Roof for outdoor installations
Steel frame with rain gutter, covered with trapezoidal sheet metal (can be walked on), without ceiling panels and insulation.
Ideal for a wide range of uses due to the modular construction:
In outdoor areas as service rooms, smoking rooms, porter's lodges and cashier's offices.
4-sided free standing unit, with roof, without floor, assembly frame.
Wall sections
Rounded square pattern. Height 2500 mm, grid 1060 mm. Railing height 1030 mm.
Lower part made of sheet steel, painted on both sides in RAL colour specified by customer.
Upper part with single pane 5 mm float glass. Wall sections without glazing available on request.
Door design
Double walled sheet metal door with window. Complete with door handle, lock and profile cylinder.
Solid panel and custom doors available on request.
Roof for outdoor installations
Steel frame with rain gutter, covered with trapezoidal sheet metal (can be walked on), without ceiling panels and insulation.
Ideal for a wide range of uses due to the modular construction:
In outdoor areas as service rooms, smoking rooms, porter's lodges and cashier's offices.
Custom models
Sound and heat insulation, different types of glazing, electrical equipment, heating and air conditioning, ventilation systems, bathroom facilities, cable channels etc. are available on request.
Please enquire, we would be happy to advise you.
Sound and heat insulation, different types of glazing, electrical equipment, heating and air conditioning, ventilation systems, bathroom facilities, cable channels etc. are available on request.
Please enquire, we would be happy to advise you.
Supplied flat pack for self-assembly according to assembly instructions.
On request, optionally delivered fully assembled directly from the manufacturer or can be assembled on-site by plant technicians.
Must be assembled on a firm and flat surface.
Delivered by a freight company.
A forklift or crane with a load capacity of at least 2.5 t is required for unloading.
All multi-purpose buildings are fitted with crane eyelets.
On request, crane unloading service available at extra cost.
On request, optionally delivered fully assembled directly from the manufacturer or can be assembled on-site by plant technicians.
Must be assembled on a firm and flat surface.
Delivered by a freight company.
A forklift or crane with a load capacity of at least 2.5 t is required for unloading.
All multi-purpose buildings are fitted with crane eyelets.
On request, crane unloading service available at extra cost.
- For outdoor use
- Projects with 1 to 2 storeys, with steel support frames and stairs, wall fastening materials etc.
- Versatile configuration options for wall sections
Technical data
| Place of use | outdoor use |
|---|---|
| External height | 2500 mm |
| Design of multi-purpose buildings / office buildings | 4 sides, free-standing |
| Material | sheet steel, painted |
| Railing height | 1030 mm |
| Delivery form | flat pack |
| Design of ceiling | steel frame with rain gutter, covered with trapezoidal sheet metal (can be walked on), without ceiling panels and insulation |
| Wall structure | single-wall |
| Section glazing | float glass, 5 mm |
| Static properties of ceiling | can be walked over |
| Door type | double walled door with window |
| Door material | sheet steel |
| Available colours | all RAL colours |
| Grid dimensions | 1060 mm |
| Product type | multi-purpose buildings |
| Supplied | pre-assembled, final assembly by customer |
| Pictorial instructions |
