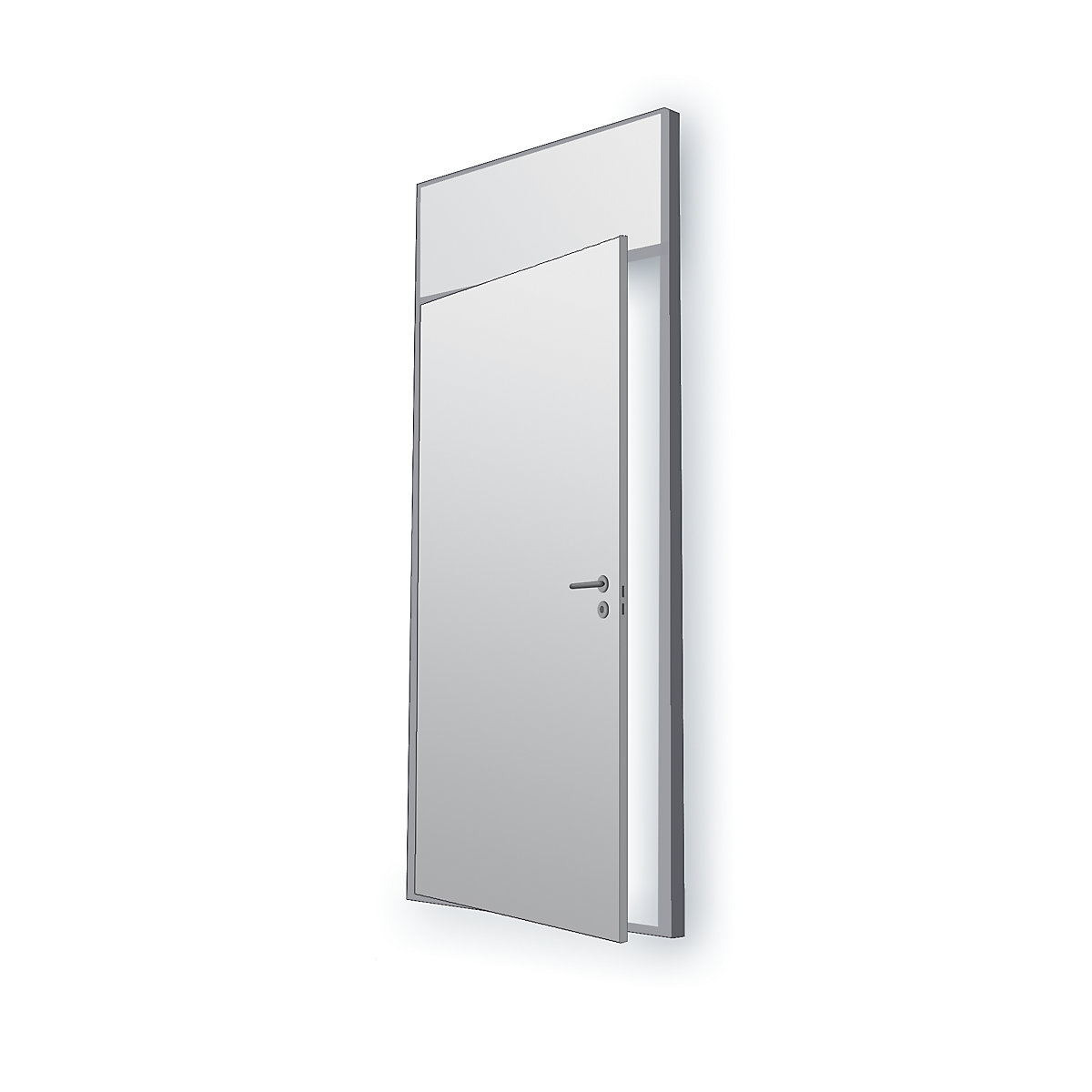

Flexible partition system, wall thickness 82 mm single door section, HxW 2093 x 936 mm
with window
- Wall thickness 82 mm
- Sound insulation up to 43 dB
- Can be assembled and disassembled as often as needed
- Can be set up as an office, noise protection cabin or partition
Ref.: 919327 10
Properties
Section glazing: safety glass, 5 mm, Noise insulation [dB(A)]: 36, Weight [kg]: 45
Good reasons to purchase products from us
- Guarantee of up to 15 years
- 30 day right of return
- Free delivery
- Fast delivery
We will be happy to help you
1 800 677 300
Monday-Friday 8am-5pm
Product description
Sound insulation values
Solid wall with mineral wool approx. 43 dB
Glass section approx. 36 dB
Sound insulation values are laboratory values – the more glass walls used, the lower the sound insulation value.
Colour selection
For walls, window frames, door frames and cover profiles there are two standard colours to choose from:
– Light grey RAL 7035
– Pure white RAL 9010
Please specify the desired colour when ordering.
Double shell steel frame, primed and painted with RAL colour. Chipboard door with tubular core, 40 mm thick, with laminated covering. Mortice lock prepared for cylinder profile provided by the customer, door handles with round keyhole cover.
Optional window made of 5 mm thick single pane safety glass.
Window dimensions:
Single door 870 x 605 mm.
Double door 870 x 605 or 870 x 480 mm.
Solid wall with mineral wool approx. 43 dB
Glass section approx. 36 dB
Sound insulation values are laboratory values – the more glass walls used, the lower the sound insulation value.
Colour selection
For walls, window frames, door frames and cover profiles there are two standard colours to choose from:
– Light grey RAL 7035
– Pure white RAL 9010
Please specify the desired colour when ordering.
Double shell steel frame, primed and painted with RAL colour. Chipboard door with tubular core, 40 mm thick, with laminated covering. Mortice lock prepared for cylinder profile provided by the customer, door handles with round keyhole cover.
Optional window made of 5 mm thick single pane safety glass.
Window dimensions:
Single door 870 x 605 mm.
Double door 870 x 605 or 870 x 480 mm.
Additional RAL colours available on request.
- Wall thickness 82 mm
- Sound insulation up to 43 dB
- Can be assembled and disassembled as often as needed
- Can be set up as an office, noise protection cabin or partition
Technical data
| Railing height | 1050 mm |
|---|---|
| Max. wall height | 10000 mm |
| Panel thickness | 82 mm |
| Section type | single door module |
| Section height | 2093 mm |
| Section width | 936 mm |
| Available colours | light grey RAL 7035 pure white RAL 9010 |
| Grid dimensions | 1200 mm |
| Product type | partition systems |
| Supplied | flat pack |
| Pictorial instructions |
