Ref.: 507169 10

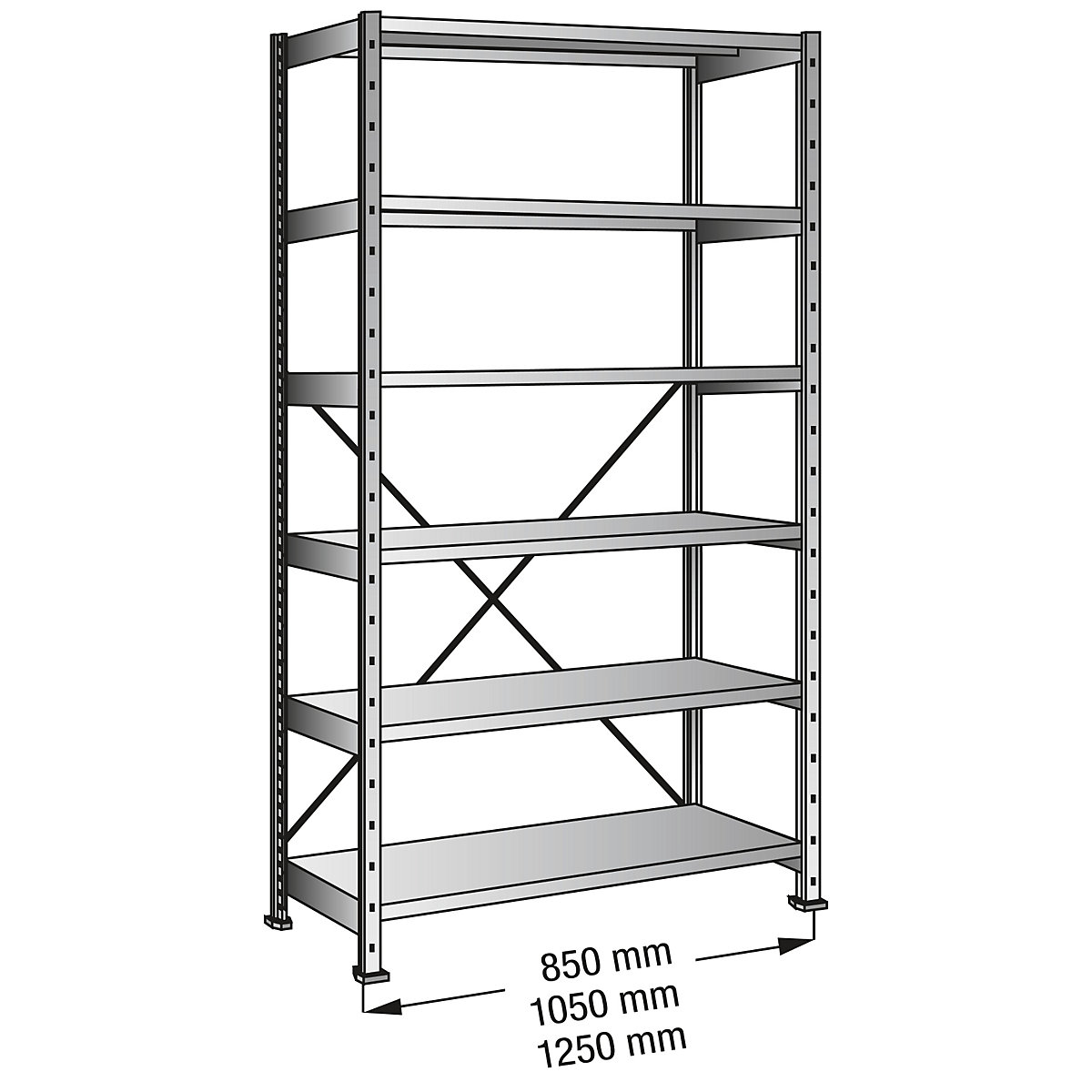

Boltless industrial and storage shelving unit h 2280 mm, shelf width 800 mm, 6 shelves
(12)
depth 200 mm, standard shelf unit
Shelf unit type
Shelf unit height [mm]
Shelf width [mm]
Shelf depth [mm]
Ref.: 507169 10
Boltless industrial and storage shelving unit h 2280 mm, shelf width 800 mm, 6 shelves
(12)
depth 200 mm, standard shelf unit
depth 200 mm, standard shelf unit
Shelf unit type
Shelf unit height [mm]
Shelf width [mm]
Shelf depth [mm]
€ 309.00
Price / item (Excl. VAT)
Delivery time: 9-11 Working Days
Good reasons to purchase products from us
- Guarantee of up to 15 years
- 30 day right of return
- Free delivery from Germany
- Fast delivery
We will be happy to help you
1 800 677 300
Monday-Friday 8am-5pm
Do you have any questions about this product?€ 309.00
Price / item (Excl. VAT)
Product description
- Optimum utilisation of room space
- Zinc plated surface
- All edges are bevelled, no risk of injury
- Particularly easy assembly of the shelves due to the modular shelf design
- Shelf levels adjustable in 30 mm increments
Shelf unit reinforcement
Use of the supplied cross braces is required in every standard shelf unit and in every second extension shelf unit.
Use of the supplied cross braces is required in every standard shelf unit and in every second extension shelf unit.
Standard shelf unit external dims.:
Shelf width + 50 mm, shelf depth + 20 mm.
Extension shelf unit external dims.:
Shelf width + 10 mm, shelf depth + 20 mm.
If the height of the shelf unit equals more than 5 times its depth, it must be secured against tipping with suitable floor or wall fasteners.
Shelf width + 50 mm, shelf depth + 20 mm.
Extension shelf unit external dims.:
Shelf width + 10 mm, shelf depth + 20 mm.
If the height of the shelf unit equals more than 5 times its depth, it must be secured against tipping with suitable floor or wall fasteners.
The specified max. load values are applicable with uniform load distribution. Additional shelf levels may be used if the specified max. bay load is observed.
RAL quality seal: quality and inspection requirements for warehouse and workshop equipment (RAL-RG 614) defines recognised quality requirements
Technical data
| Colour | zinc plated |
|---|---|
| Max. bay load | 2500 kg |
| Shelf height adjustment increments | 30 mm |
| Design | plug in |
| Material | steel |
| Finish | galvanised |
| Colour of uprights | zinc plated |
| Product type | boltless shelving units |
| Supplied | flat pack |
| Shelf unit type | standard unit |
| Shelf unit height | 2280 mm |
| Shelf width | 800 mm |
| Shelf depth | 200 mm |
| Number of shelves | 6 pcs. |
| Max. shelf load | 100 kg |
| Width | 850 mm |
| Depth | 220 mm |
| Weight | 17.8 kg |
| Instructions | |
| Manufacturer / EU responsible Person (GPSR) |
Sustainability
Sustainable product
This product actively contributes to protecting our environment and taking social responsibility. It meets our strict sustainability criteria and thus supports an economically, ecologically and socially viable future. The score asks the crucial question for every product: does this product contribute to creating sustainable and fair conditions for today and future generations? Below are the categories in which this product performs particularly well.
You can find out more about product evaluation and our sustainability initiative on our information page .
This product actively contributes to protecting our environment and taking social responsibility. It meets our strict sustainability criteria and thus supports an economically, ecologically and socially viable future. The score asks the crucial question for every product: does this product contribute to creating sustainable and fair conditions for today and future generations? Below are the categories in which this product performs particularly well.
You can find out more about product evaluation and our sustainability initiative on our information page .
Product CO₂ footprint
- Product Carbon Footprint per kg CO2e
- 45.593
- Product Carbon Footprint Calculation Year
- 2026
- Product Carbon Footprint System Boundaries
- Cradle-to-gate
- Product Carbon Footprint Calculation Method
- Calculated by our partner GlobalChanger (GreenZero) in accordance with ISO 14044 (LCA) / 14067 (PCF) (GWP100 [IPCC version]) principles.<br/>PCF values are product specific averages that have not been verified by third parties and may evolve as the data basis improves.
| Criteria | Weighting | Score |
|---|---|---|
| 30% | 2.5 | |
| 30% | 3.9 | |
| 25% | 2.0 | |
| 10% | 0.9 | |
| 5% | 3.9 | |
| Overall score | 3.0 | |
