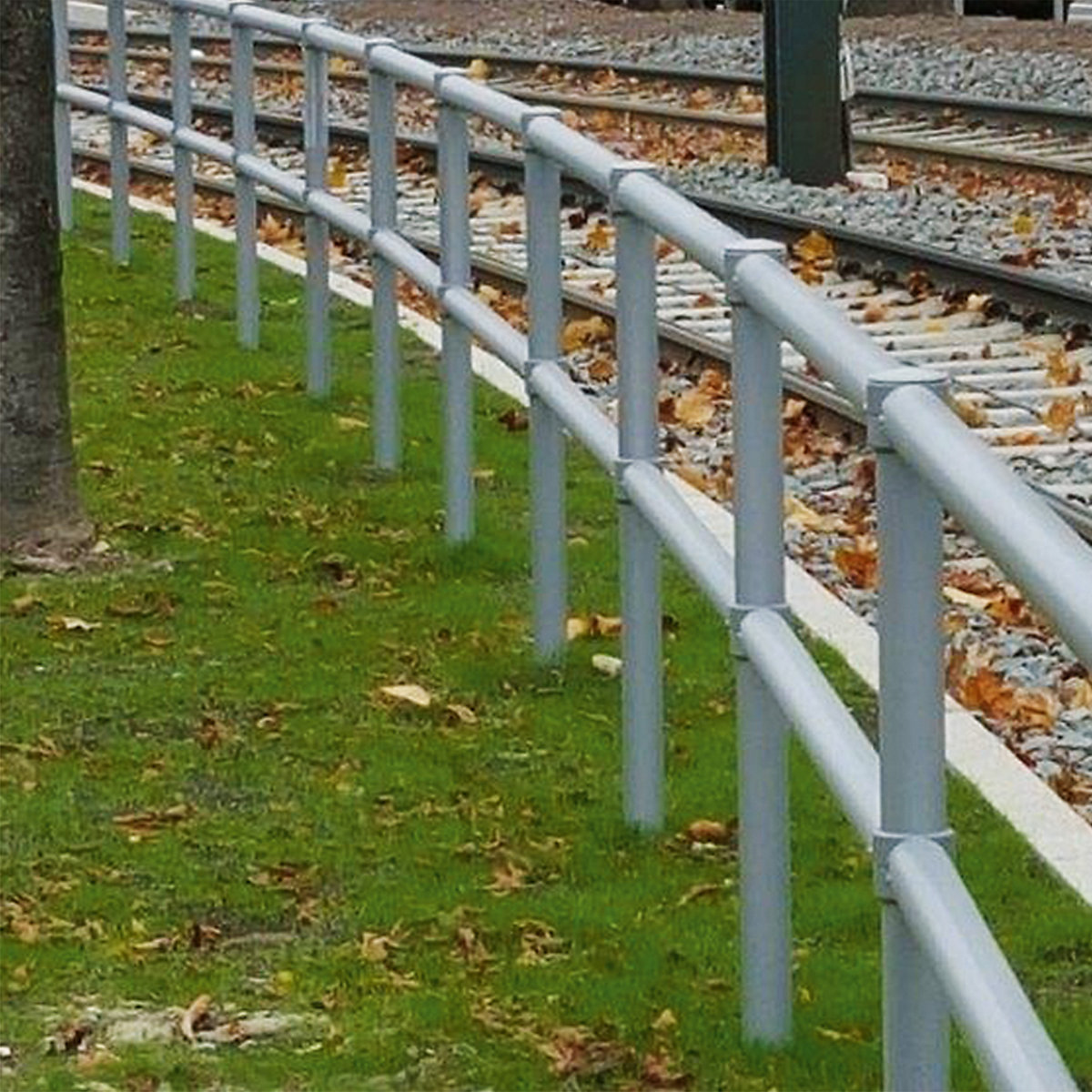

Railing system upright with base plate
zinc plated
4.5 stars out of 5
- Optimum protection for outdoor equipment
- Delivered flat pack – easy self-assembly!
- Can be set at any angle up to 90°
- Rises of up to 45° can be bridged
Sale
Ref.: 720020 10
Properties
Colour: zinc plated, Finish: zinc plated
Good reasons to purchase products from us
- Guarantee of up to 15 years
- 30 day right of return
- Free delivery
- Fast delivery
We will be happy to help you
1 800 677 300
Monday-Friday 8am-5pm
Product description
Hot dip galvanised pipes or with additional safety paint in red / white or yellow / black.
Clamps made of aluminium, connection parts (in cross pipe) made of non-conducting plastic.
Cover caps made of aluminium, clamp screws made of V2A steel.
Stand pipes are also suitable for chain barriers.
Stand pipe with floor anchor with base plate. Base plate 160 x 140 x 10 mm with 4 drill holes, without screws and dowel plugs.
Clamps made of aluminium, connection parts (in cross pipe) made of non-conducting plastic.
Cover caps made of aluminium, clamp screws made of V2A steel.
Stand pipes are also suitable for chain barriers.
Stand pipe with floor anchor with base plate. Base plate 160 x 140 x 10 mm with 4 drill holes, without screws and dowel plugs.
- Optimum protection for outdoor equipment
- Delivered flat pack – easy self-assembly!
- Can be set at any angle up to 90°
- Rises of up to 45° can be bridged
Technical data
Material | tubular steel, galvanised |
---|---|
Overall height | 1000 mm |
Height above ground | 1000 mm |
Model | standing pipe |
Base plate length | 160 mm |
Base plate width | 140 mm |
Type of mounting | with base plate for bolting in place |
Tube diameter | 60 mm |
Product type | system railings |
Supplied | flat pack |
Weight | 5.3 kg |
