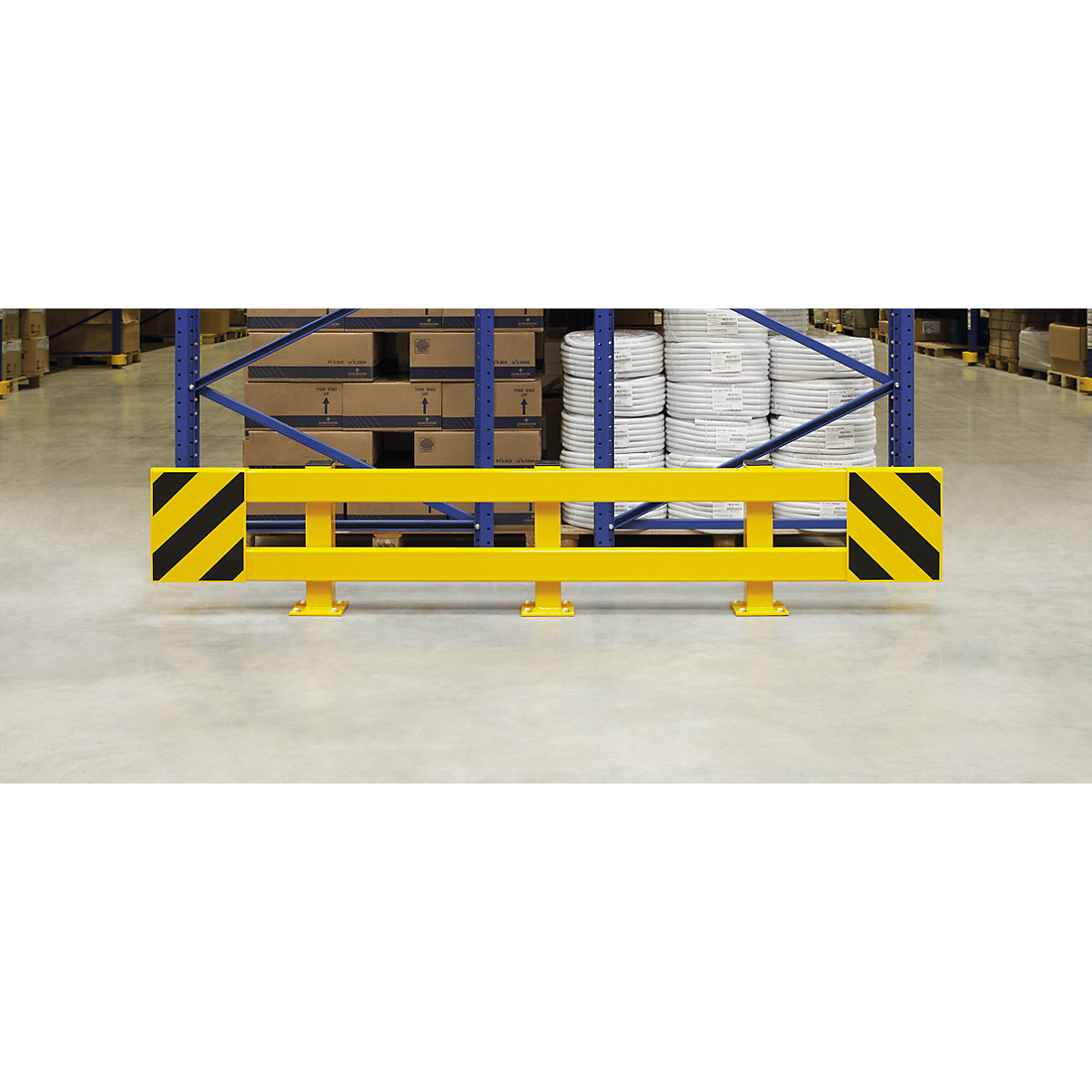

Rack protection guard rail set – Black Bull for double sided shelving, variable width 2300 – 2700 mm

The rack guard rail set B was specially developed to protect racks from frontal impact damage caused by forklift and manoeuvring traffic and is ideal for use in heavily frequented warehouse zones.

The impact protection angles are shaped in such a way that two steel guard rails with a C-profile can be slid in from the side. The 300 mm wide protection angles allow the rails to be moved by up to 200 mm per protection angle. This means each guard rail set can be individually adjusted in width by up to 400 mm.

One guard rail set B consists of two impact protection angles (500 x 300 x 190 mm, 4 mm material thickness), two guard rails (100 x 40 x 3 mm) and four clamping pieces.

For indoor use
Plastic-coated in yellow-black.
For outdoor use
Hot-dip galvanised and plastic-coated in yellow-black.

Screws and dowels for floor mounting are not included in the scope of delivery.
Material thickness: 3 mm beam and 4 mm angle.
Total height 465 mm.

Variable width 2300 – 2700 mm
– 3 posts to bolt in place
– 2 rails 2300 mm (C-profile)
– 2 warning plates
