Ref.: 871888 10

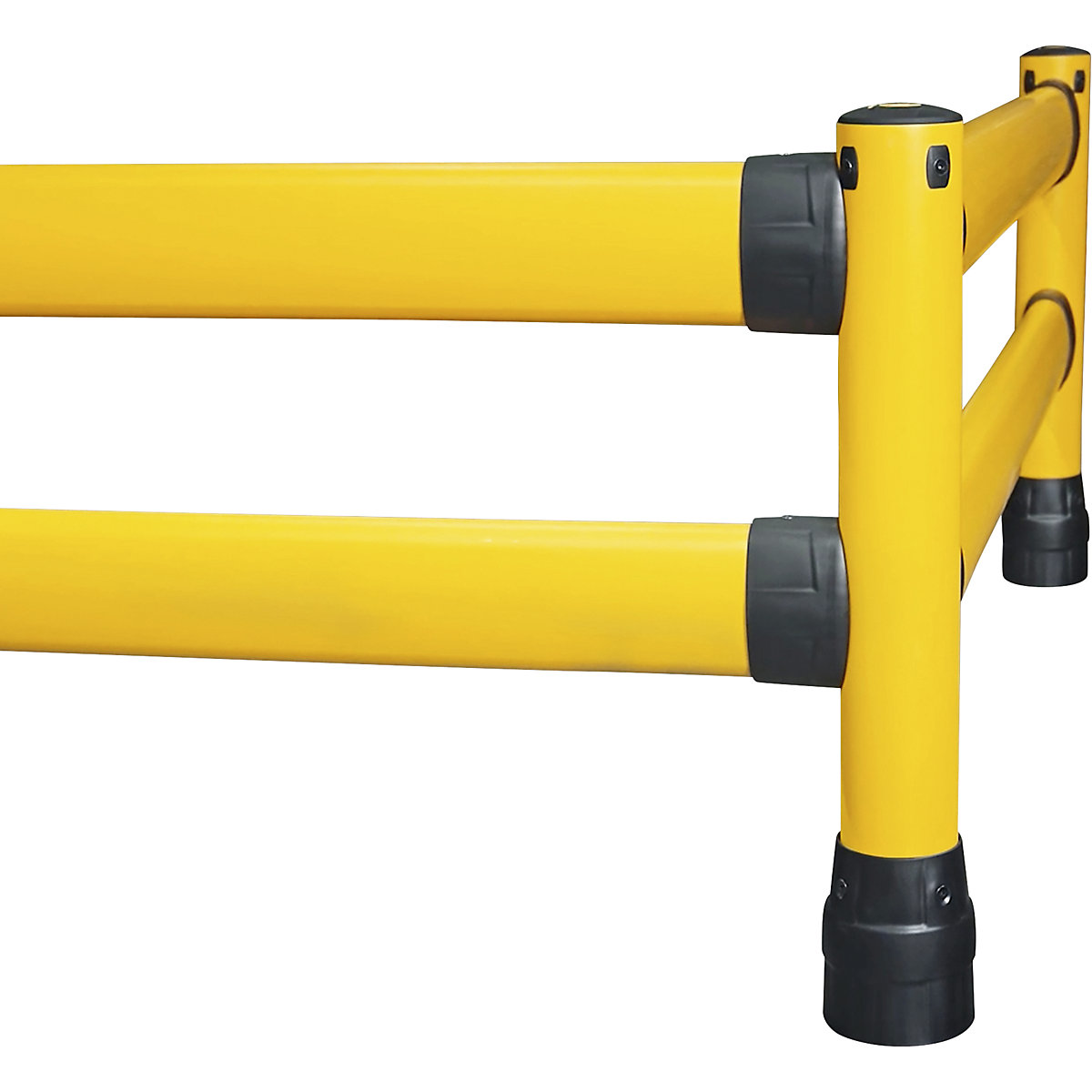

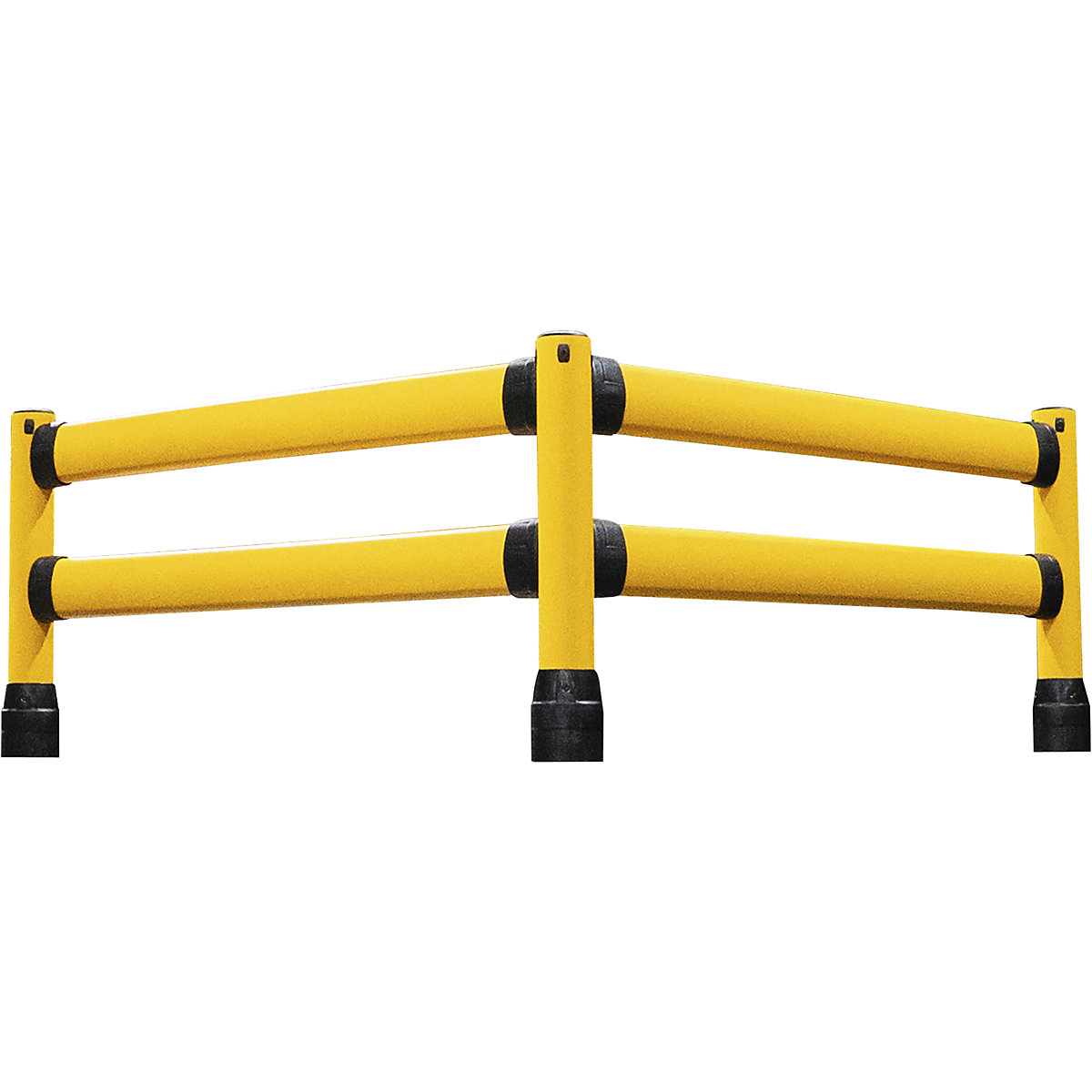

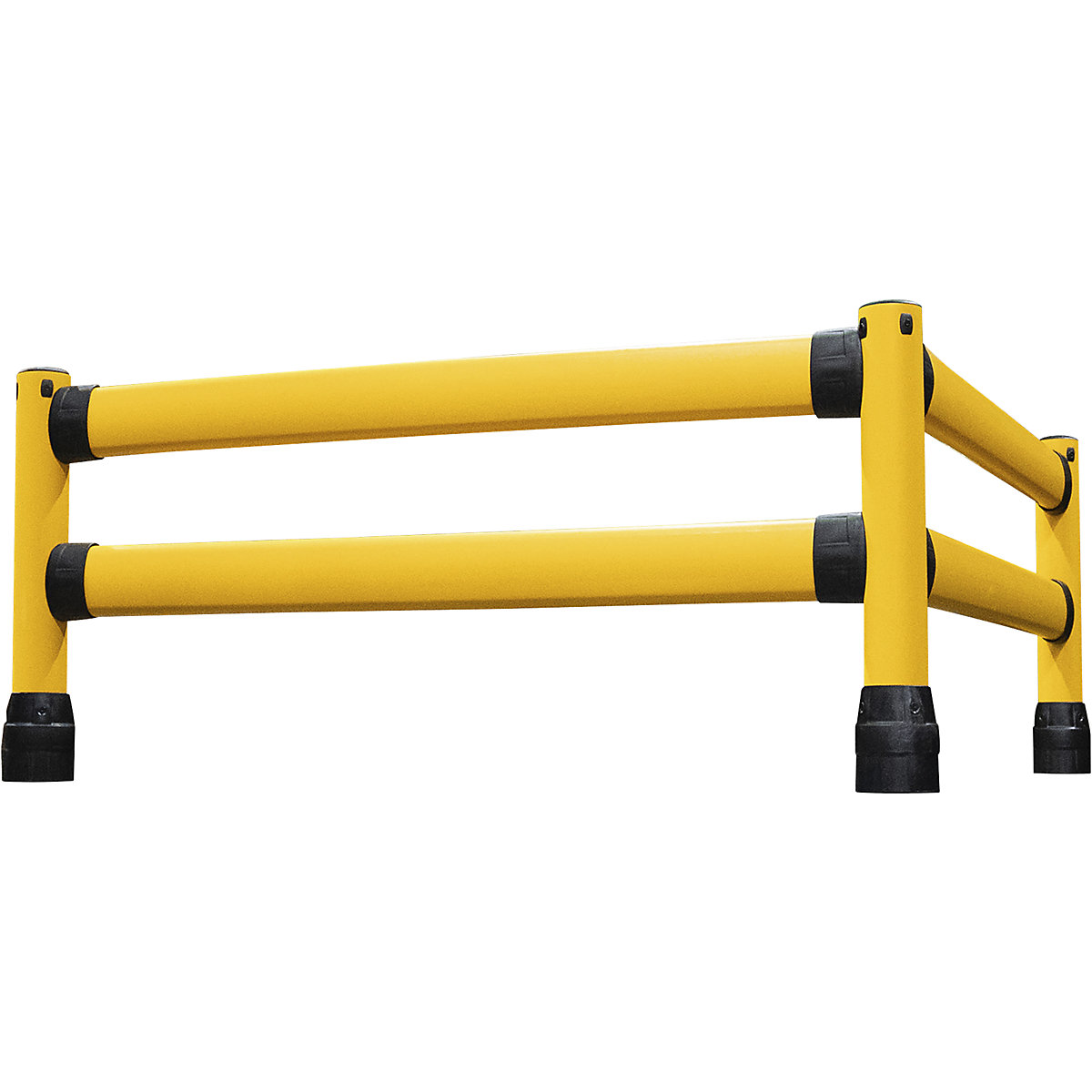

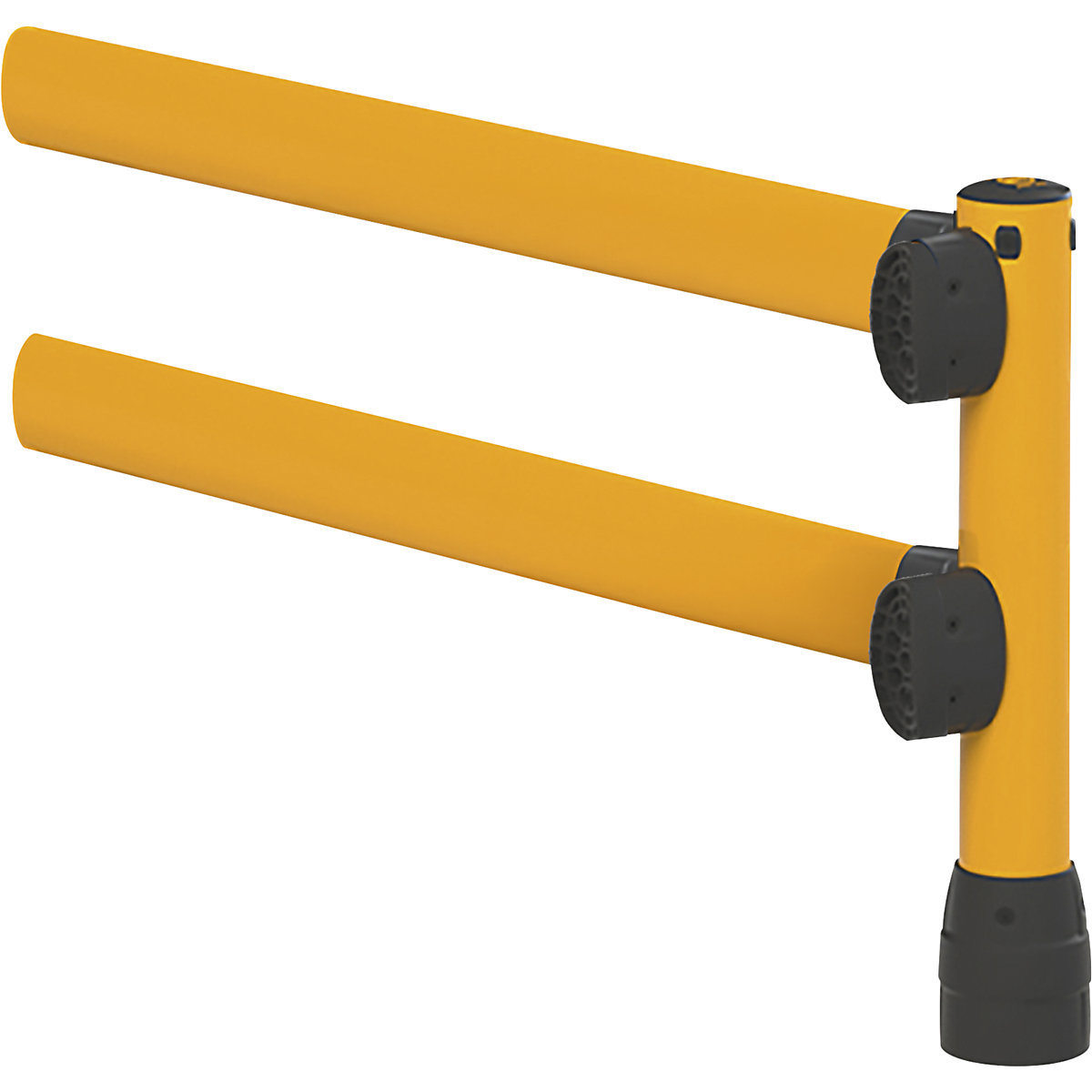

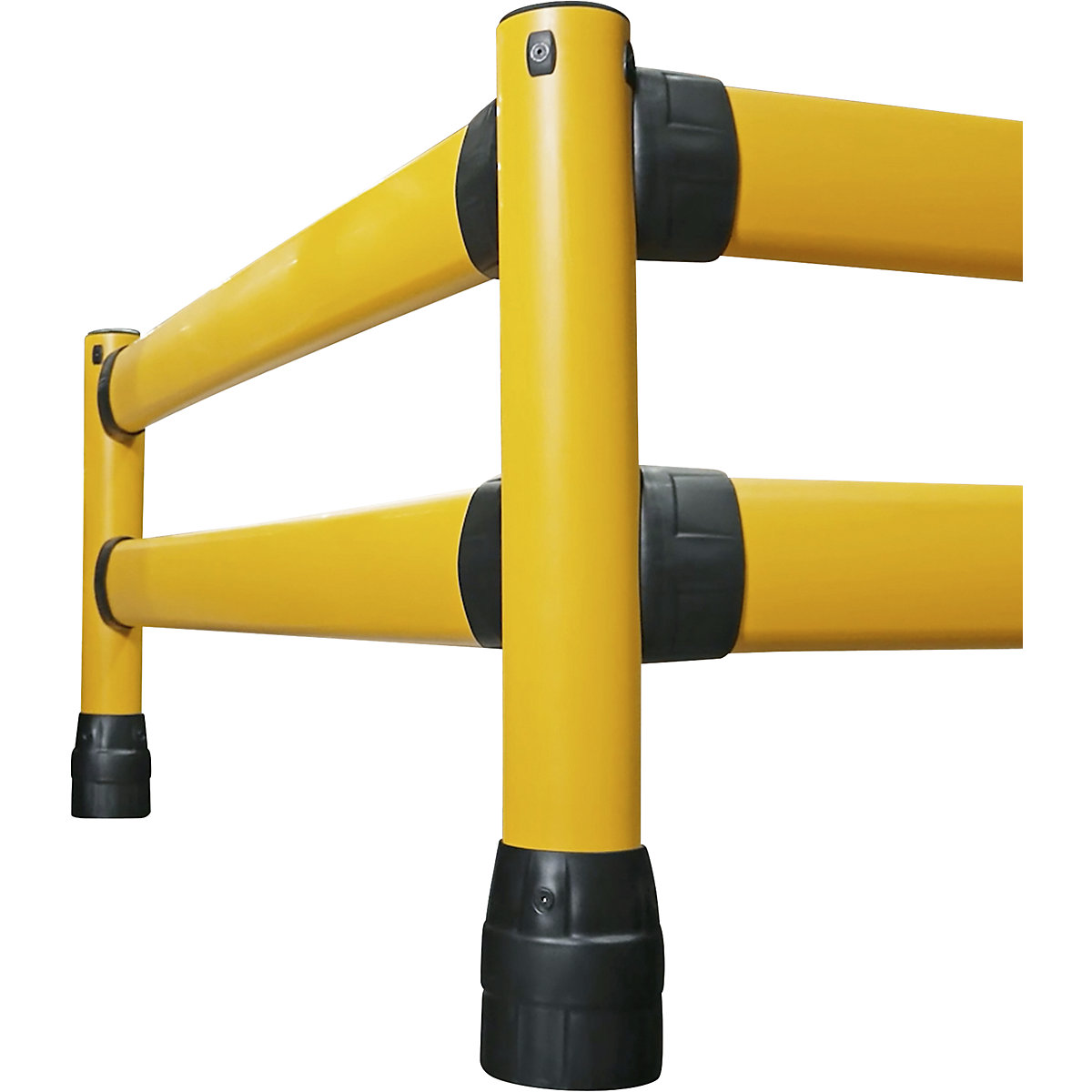

L-Line crash protection railing – Black Bull LxWxH 2438 x 205 x 1170 mm

L-Line crash protection railing – Black Bull

corner extension

Model
New
on request
Price / item (Excl. VAT)

Delivery time: 6-8 Working Days
Product description
  • Certified safety in accordance with PAS 13:2017
  • Effective force absorption through elastic beams
  • Durable thanks to even load distribution
  • Clear separation of traffic and work zones
  • Flexibly expandable, modular system
The flexible impact protection railing BLACK BULL FLEX+ L-Line is the ideal solution for effective industrial impact protection in warehouses, logistics and production. It reliably protects people, machinery, shelving and building structures and ensures a clear, safe separation of traffic routes and work areas.

With its certified dynamic load capacity according to PAS 13:2017, the impact protection railing meets the highest safety requirements. In contrast to rigid systems, the L-Line relies on an innovative protection principle: elastic crossbeams absorb impact forces, distribute the energy evenly across the entire protection line and then return to their original shape. This efficient force absorption through elastic deformation sustainably reduces damage and maintains the full protective function – even after repeated impacts.

The continuous protection line ensures a clear visual and physical demarcation of hazard areas and increases occupational safety throughout the entire operation. At the same time, the wide-area force distribution ensures particularly durable and robust protection.

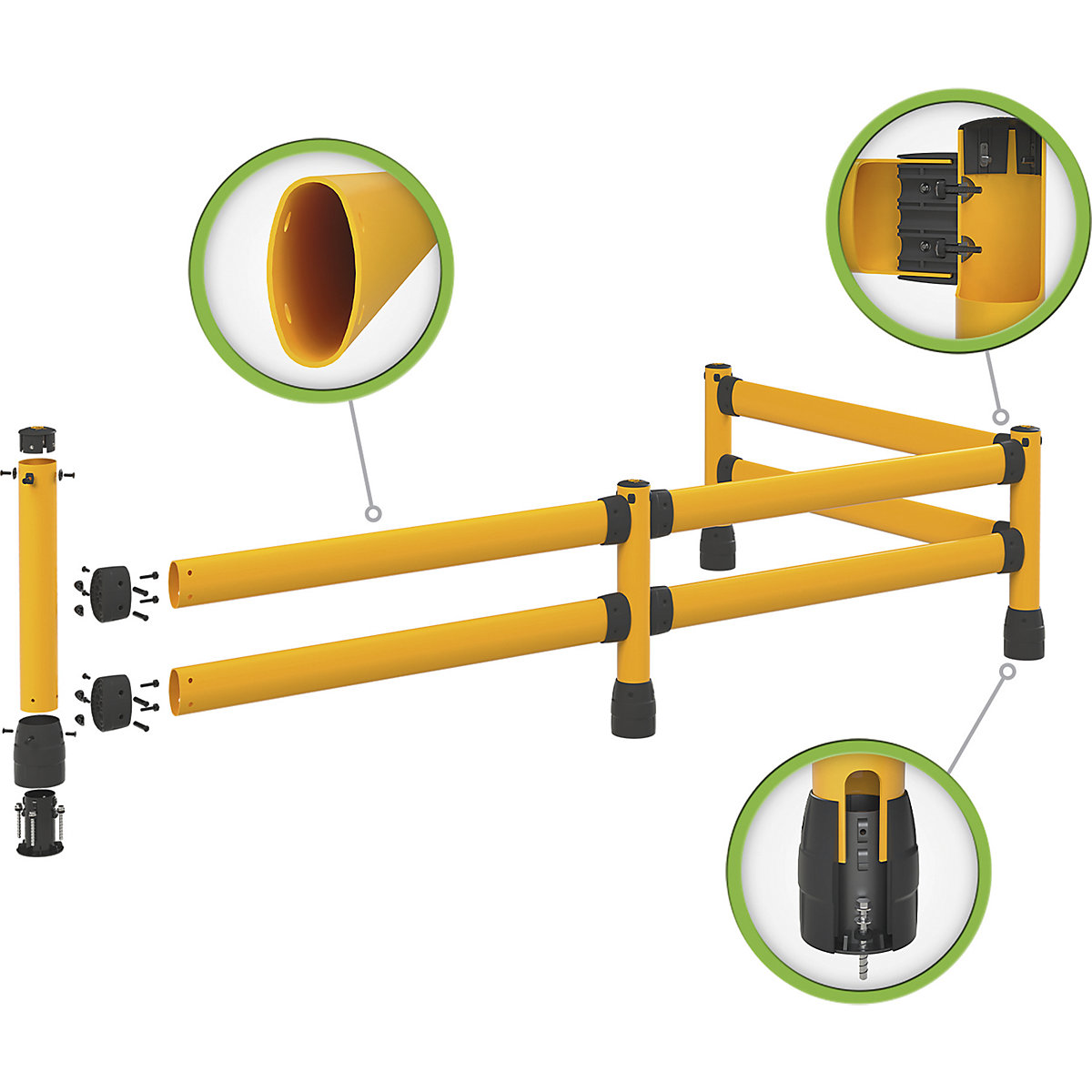

Thanks to the modular design, the impact protection railing can be flexibly adapted to individual requirements, expanded and optimally integrated into existing safety concepts. The system is particularly suitable for racking aisles, machine areas, transfer zones as well as heavily frequented traffic routes and offers reliable protection at vehicle height – ideal for areas without any risk of underride.

The FLEX+ impact protection railing L-Line impresses with maximum safety, high flexibility and long-term cost-effectiveness. It optimises operational processes, minimises downtimes and creates a safe working environment – even in demanding industrial applications.
Technical data
Type of mountingwith base plate for bolting in place
Length2438 mm
Width205 mm
Height1170 mm
Colouryellow black
Materialpolymer (SAP)
Base plate length850 mm
Base plate width850 mm
Panel thickness6 mm
Base plate height6.4 mm
Place of useindoor use
Rail cross section203,2 x 101,6 mm
Scope of deliveryextension kit incl. mounting material
Product typesafety railings
Suppliedflat pack
Modelcorner element
Weight15.8 kg
