Ref.: 568167 10

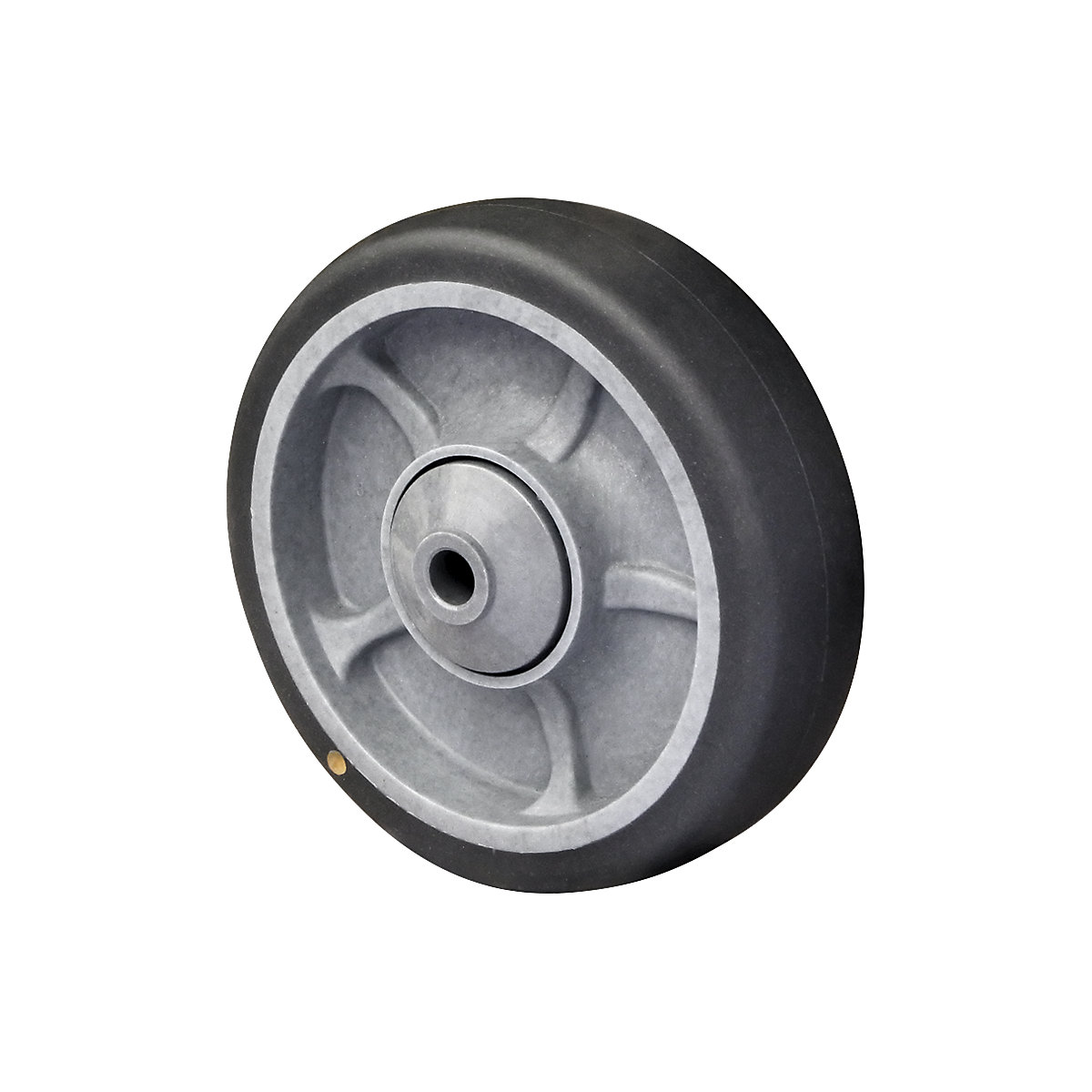

TPE wheel on PP rim, ESD ball bearings

TPE wheel on PP rim, ESD

wheel Ø x width 100 x 32 mm

Wheel diameter [mm]
€ 26.90
Price / item (Excl. VAT)
Total (Excl. VAT)
€ 53.80
Delivery time: 9-11 Working Days
Product description
  • ESD model
  • Do not damage floors, non-marking
  • Low rolling resistance, quiet, very smooth running
  • Hardness 60 – 70 Shore A
  • Temperature resistant from –20 °C to +60 °C
With an electrical conductivity up to a resistance of 0 – 1,000,000 ohm.
Bolted wheel axle (incl. complete axle material). Small plastic thread guard. Ball bearings.
TPE wheels may leave oily marks on open-pored, unsealed and absorbent flooring.
We are happy to advise you about use on parquetry, stone or other sensitive flooring.
Low rolling resistance
Low rolling resistance
Non-marking
Non-marking
Anti-static
This symbol indicates that the product is a conductive version (in relation to electricity or static charges).
Anti-static. This symbol indicates that the product is a conductive version (in relation to electricity or static charges).
Technical data
Structurewheel
Wheel materialthermoplastic elastomer
Material of rimpolypropylene
Wheel bearingball bearing
Shore hardness65 – 70 A
Product typewheels
Temperature resistance–20 °C to +60 °C
Suppliedassembled
Wheel diameter100 mm
Max. load at 4 km/h90 kg
Wheel width32 mm
Hub length40 mm
Hub bore15 mm
Axle diameter8 mm
Weight0.217 kg
Sustainability
Product with potential for future improvement

This product does not yet meet enough of our sustainability criteria. This does not mean that it has no sustainable properties – however, the total score is lower than 3 points. Therefore, it is not (yet) labelled as particularly sustainable. Our sustainability assessment is based on transparent, clearly defined ecological, social and economic criteria. The aim is to highlight development potential and create greater transparency.

You can find out more about product evaluation and our sustainability initiative on our information page.
‌
‌
‌
‌
