Ref.: 568385 10

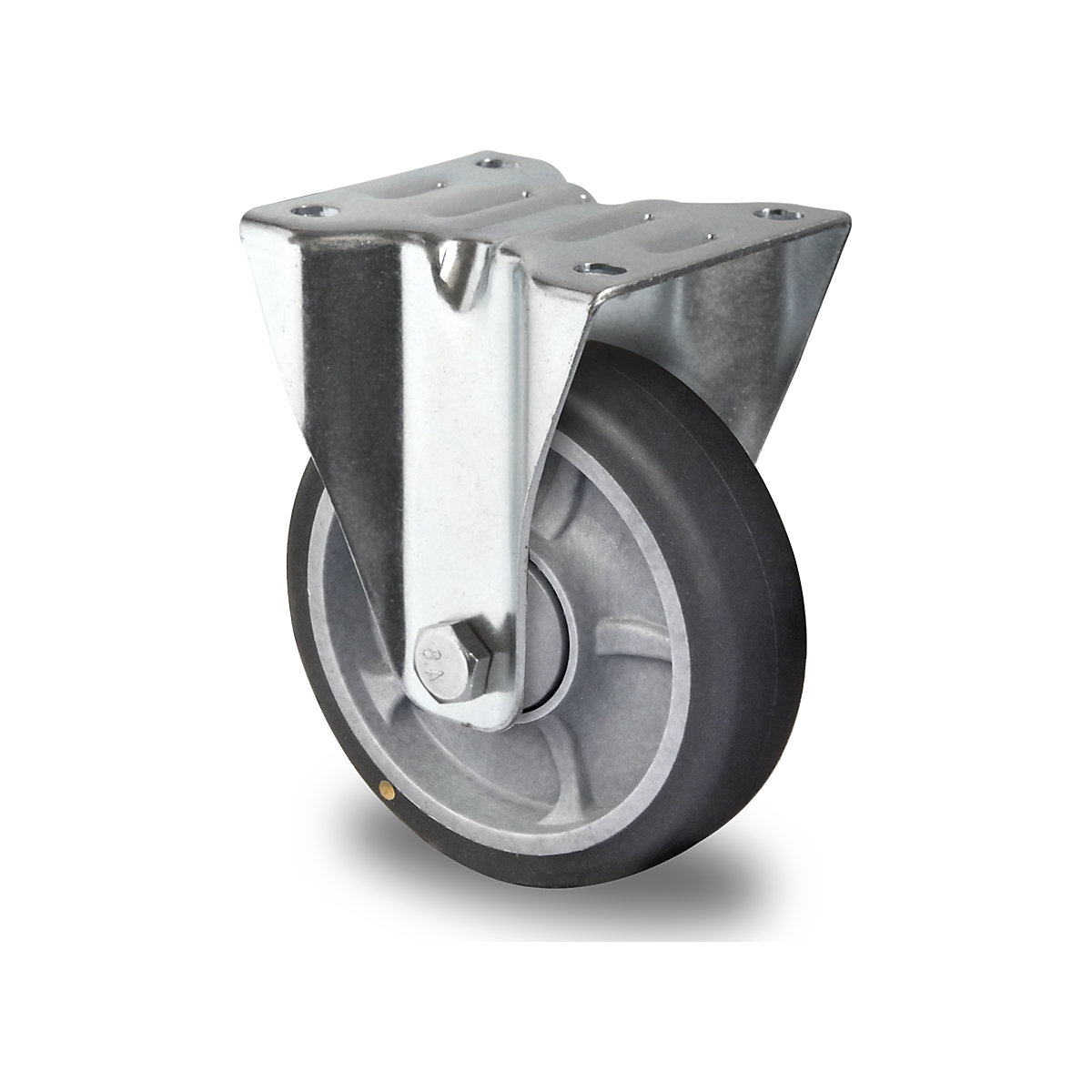

TPE tyres on PP rim, ESD, 2+ items wheel Ø x width 160 x 40 mm

TPE tyres on PP rim, ESD, 2+ items

fixed castor

Low rolling resistance
Low rolling resistance
Non-marking
Non-marking
Anti-static
This symbol indicates that the product is a conductive version (in relation to electricity or static charges).
Anti-static. This symbol indicates that the product is a conductive version (in relation to electricity or static charges).
Structure
Wheel diameter [mm]
€ 67.90
Price / item (Excl. VAT)
Total (Excl. VAT)
€ 135.80
Delivery time: 12-14 Working Days
Product description
  • ESD model
  • Do not damage floors, non-marking
  • Low rolling resistance, quiet, very smooth running
  • Hardness 65 – 70 Shore A
  • Temperature resistant from –20 °C to +60 °C
With an electrical conductivity up to a resistance of 0 – 5,000,000 ohm.
Sheet steel housing, electrolytically zinc plated in blue. Swivel bearing with dual turntable bearing. Small plastic thread guard. Ball bearings.
TPE wheels may leave oily marks on open-pored, unsealed and absorbent flooring.
We are happy to advise you about use on parquetry, stone or other sensitive flooring.
Technical data
ModelESD castors
Wheel materialrubber – thermoplastic rubber elastomer (TPE)
Material of rimpolypropylene
Type of mountingwith top plate
Housing materialsteel
Wheel bearingball bearing
Temperature resistance–20 °C to +60 °C
Housing surfacezinc plated by galvanization
Shore hardness65 – 70
Suppliedassembled
Structurefixed castor
Wheel diameter160 mm
Max. load at 4 km/h135 kg
Swivel castor offset55 mm
Screw hole diameter12 mm
Hub length59 mm
Hub bore12 mm
Screw hole spacing105 x 84/76 mm
Swivel castor plate dimensions135 x 110 mm
Fixed castor plate dimensions135 x 110 mm
Overall height195 mm
Wheel width40 mm
Product typefixed castors
Weight1.077 kg
Manufacturer / EU responsible Person (GPSR)
Sustainability
Product with potential for future improvement

This product does not yet meet enough of our sustainability criteria. This does not mean that it has no sustainable properties – however, the total score is lower than 3 points. Therefore, it is not (yet) labelled as particularly sustainable. Our sustainability assessment is based on transparent, clearly defined ecological, social and economic criteria. The aim is to highlight development potential and create greater transparency.

You can find out more about product evaluation and our sustainability initiative on our information page.

Product CO₂ footprint

LCA functional unit
1
Recycled content in %?
0
CO2 footprint year of calculation
2026
LCA validity (in years)
1
CO2 footprint calculation method product
Calculated by our partner GlobalChanger (GreenZero) in accordance with ISO 14044 (LCA) / 14067 (PCF) (GWP100 [IPCC version]) principles.<br/>PCF values are product specific averages that have not been verified by third parties and may evolve as the data basis improves.
CO2 footprint system boundaries
Cradle-to-gate

PCF Lifecycle Breakdown

6.03kg CO₂e
LCA Raw Material Extraction & Processing
53.2%
LCA packaging production
1.5%
LCA Product Manufacturing
32.8%
LCA Inbound and Outbound Transportation
12.5%
‌
‌
‌
‌
