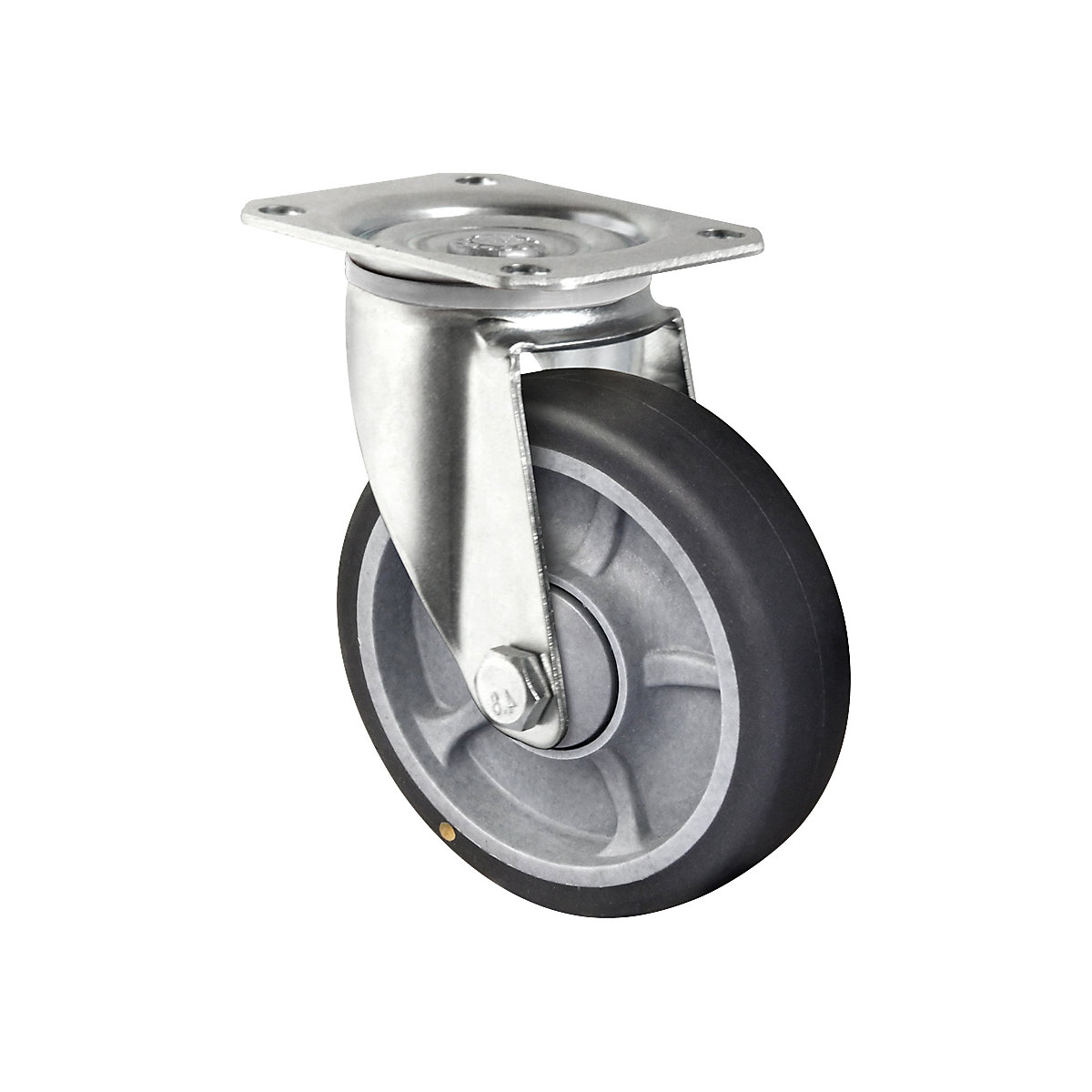

TPE tyres on PP rim, ESD, 2+ items wheel Ø x width 100 x 32 mm
- ESD model
- Do not damage floors, non-marking
- Low rolling resistance, quiet, very smooth running
- Hardness 65 – 70 Shore A
- Temperature resistant from –20 °C to +60 °C
Low rolling resistance

Non-marking


New
TPE tyres on PP rim, ESD, 2+ items, wheel Ø x width 100 x 32 mm, fixed castor
Price / items (net)
from
€ 16.49
Product description
+
With an electrical conductivity up to a resistance of 0 – 5,000,000 ohm.
Sheet steel housing, electrolytically zinc plated in blue. Swivel bearing with dual turntable bearing. Small plastic thread guard. Ball bearings.
Sheet steel housing, electrolytically zinc plated in blue. Swivel bearing with dual turntable bearing. Small plastic thread guard. Ball bearings.
TPE wheels may leave oily marks on open-pored, unsealed and absorbent flooring.
We are happy to advise you about use on parquetry, stone or other sensitive flooring.
We are happy to advise you about use on parquetry, stone or other sensitive flooring.
- ESD model
- Do not damage floors, non-marking
- Low rolling resistance, quiet, very smooth running
- Hardness 65 – 70 Shore A
- Temperature resistant from –20 °C to +60 °C
Low rolling resistance

Non-marking

Technical data
+
Wheel diameter | 100 mm |
---|---|
Wheel material | thermoplastic elastomer |
Material of rim | polypropylene |
Housing material | steel |
Max. load at 4 km/h | 90 kg |
Type of mounting | with top plate |
Wheel width | 32 mm |
Overall height | 125 mm |
Wheel bearing | ball bearing |
Temperature resistance | –20 °C to +60 °C |
Swivel castor offset | 40 mm |
Screw hole diameter | 8 mm |
Hub length | 40 mm |
Hub bore | 8 mm |
Plate dimensions | 105 x 80 mm |
Screw hole spacing | 80/77 x 60 mm |
Housing surface | zinc plated by galvanization |
Shore hardness | 65 – 70 |
Supplied | assembled |
