TPE tyres on PP rim, 2+ items wheel Ø x width 100 x 32 mm, bolt hole

  • Do not damage floors, non-marking
  • Low rolling resistance, quiet, very smooth running
  • Temperature resistant from –20 °C to +60 °C
Low rolling resistance
Low rolling resistance
Non-marking
Non-marking
New

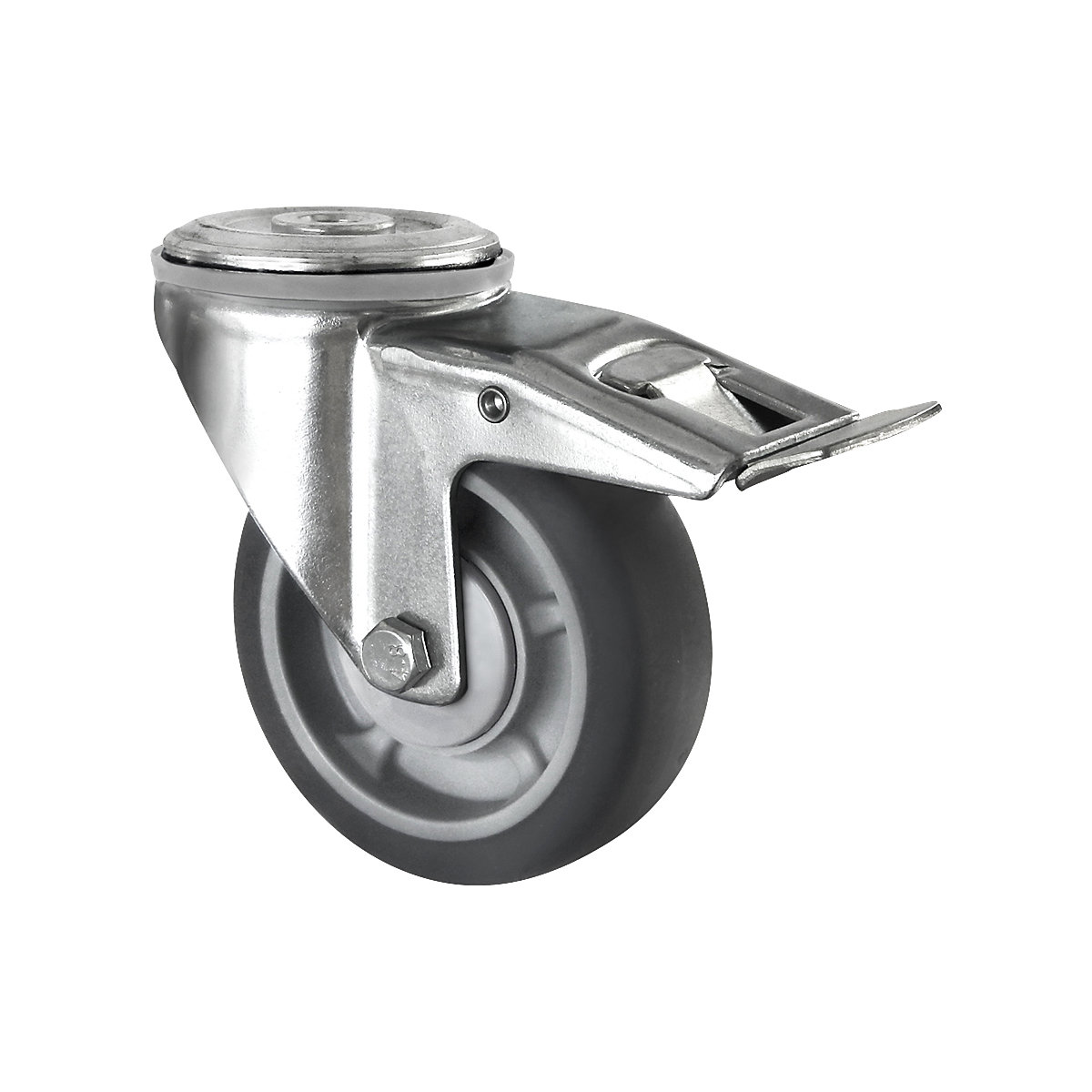

TPE tyres on PP rim, 2+ items, wheel Ø x width 100 x 32 mm, bolt hole, swivel castor with double stop
Price / items (net)
on request

Product description
+
Thermoplastic elastomer tyres on polypropylene rim.
Sheet steel housing, electrolytically zinc plated in blue. Swivel bearing with dual turntable bearing. Small plastic thread guard. Ball bearings.
TPE wheels may leave oily marks on open-pored, unsealed and absorbent flooring.
We are happy to advise you about use on parquetry, stone or other sensitive flooring.
  • Do not damage floors, non-marking
  • Low rolling resistance, quiet, very smooth running
  • Temperature resistant from –20 °C to +60 °C
Low rolling resistance
Low rolling resistance
Non-marking
Non-marking
Technical data
+
Wheel diameter100 mm
Wheel materialthermoplastic elastomer
Material of rimpolypropylene
Housing materialsteel
Max. load at 4 km/h100 kg
Type of mountingwith bolt hole
Wheel width32 mm
Overall height124 mm
Wheel bearingball bearing
Temperature resistance–20 °C to +60 °C
Swivel castor offset40 mm
Hub length40 mm
Bolt hole diameter13 mm
Housing surfacezinc plated by galvanization
Shore hardness65 – 70
Product typetransport castors
Suppliedassembled
