Ref.: 702757 10

Polyurethane tyres on nylon rims – Wicke wheel Ø x width 125 x 38 mm, max. load 200 kg

(5)
Polyurethane tyres on nylon rims – Wicke

swivel castor with plain bearings

Cut resistant
Cut resistant
Low rolling resistance
Low rolling resistance
Non-marking
Non-marking

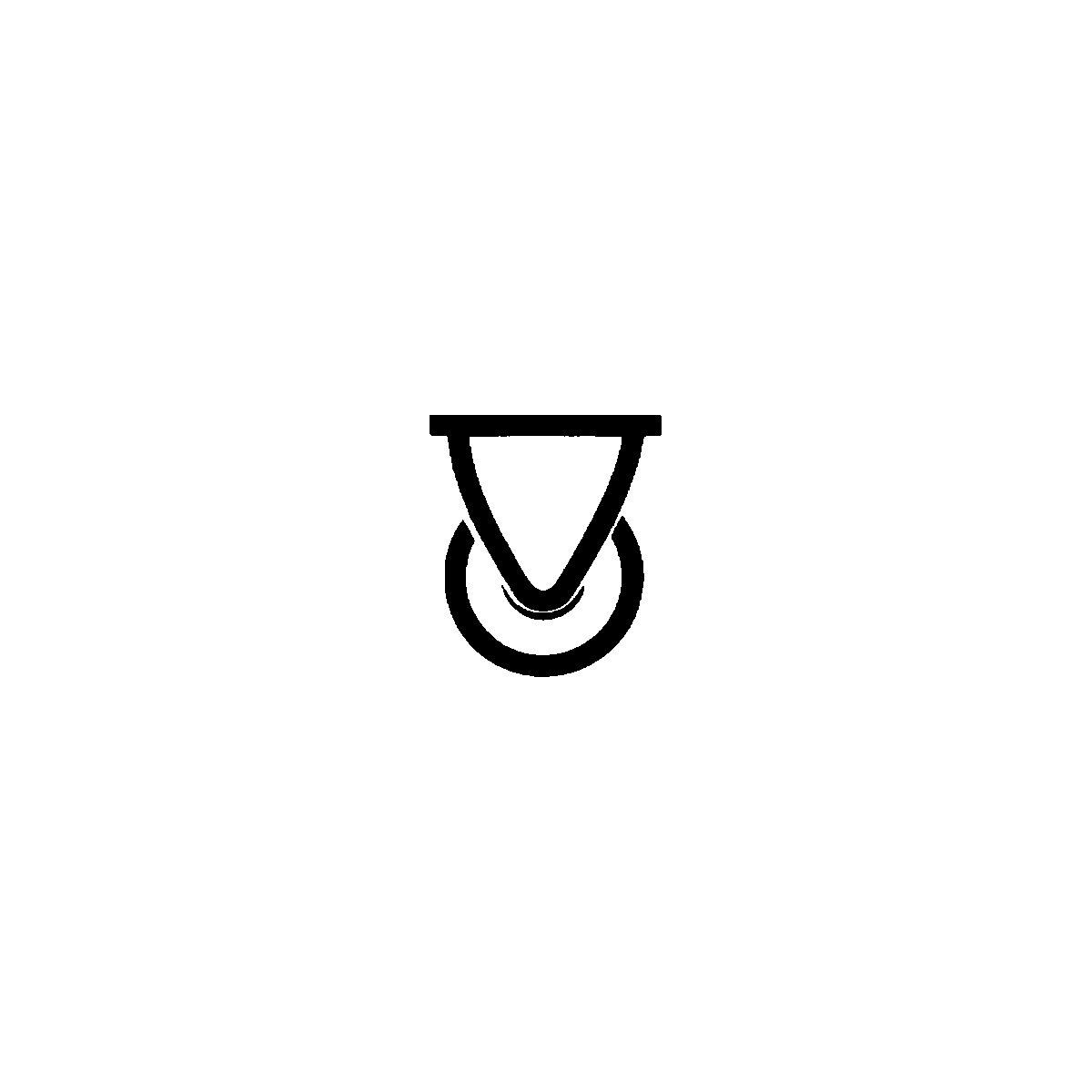

Structure
Wheel diameter [mm]
Max. load at 4 km/h [kg]
€ 72.90
Price / item (Excl. VAT)
Delivery time: 6-8 Working Days
Product description
  • On nylon rim
  • Extremely durable for high performance, low rolling resistance
  • Largely resistant against many thinned oils, greases, and chemicals
  • Hardness 92 Shore A
  • Temperature resistant from –5 °C to +80 °C
Swivel bearing with double ball race, swivel bearing protection.
Technical data
Wheel materialpolyurethane (PU)
Material of rimnylon
Type of mountingwith top plate
Housing materialsteel
Temperature resistance–5 °C to +80 °C
Housing surfacezinc plated
Shore hardness92 A
Featuredoes not damage floors low wear low rolling resistance low swivel resistance non-marking
Suppliedassembled
Structureswivel castor
Wheel diameter125 mm
Max. load at 4 km/h200 kg
Wheel bearingplain bearing
Swivel castor offset48 mm
Screw hole diameter11 mm
Hub length40 mm
Hub bore12 mm
Screw hole spacing105 x 75 – 80 mm
Swivel castor plate dimensions135 x 110 mm
Fixed castor plate dimensions135 x 114 mm
Overall height155 mm
Wheel width38 mm
Product typeswivel castors
Weight1.1 kg
Manufacturer / EU responsible Person (GPSR)
Sustainability
Product with potential for future improvement

This product does not yet meet enough of our sustainability criteria. This does not mean that it has no sustainable properties – however, the total score is lower than 3 points. Therefore, it is not (yet) labelled as particularly sustainable. Our sustainability assessment is based on transparent, clearly defined ecological, social and economic criteria. The aim is to highlight development potential and create greater transparency.

You can find out more about product evaluation and our sustainability initiative on our information page.

Product CO₂ footprint

LCA functional unit
1
Recycled content in %?
0
CO2 footprint year of calculation
2026
LCA validity (in years)
1
CO2 footprint calculation method product
Calculated by our partner GlobalChanger (GreenZero) in accordance with ISO 14044 (LCA) / 14067 (PCF) (GWP100 [IPCC version]) principles.<br/>PCF values are product specific averages that have not been verified by third parties and may evolve as the data basis improves.
CO2 footprint system boundaries
Cradle-to-gate

PCF Lifecycle Breakdown

9.33kg CO₂e
LCA Raw Material Extraction & Processing
67.3%
LCA packaging production
1%
LCA Product Manufacturing
23.2%
LCA Inbound and Outbound Transportation
8.6%
‌
‌
‌
‌
‌
