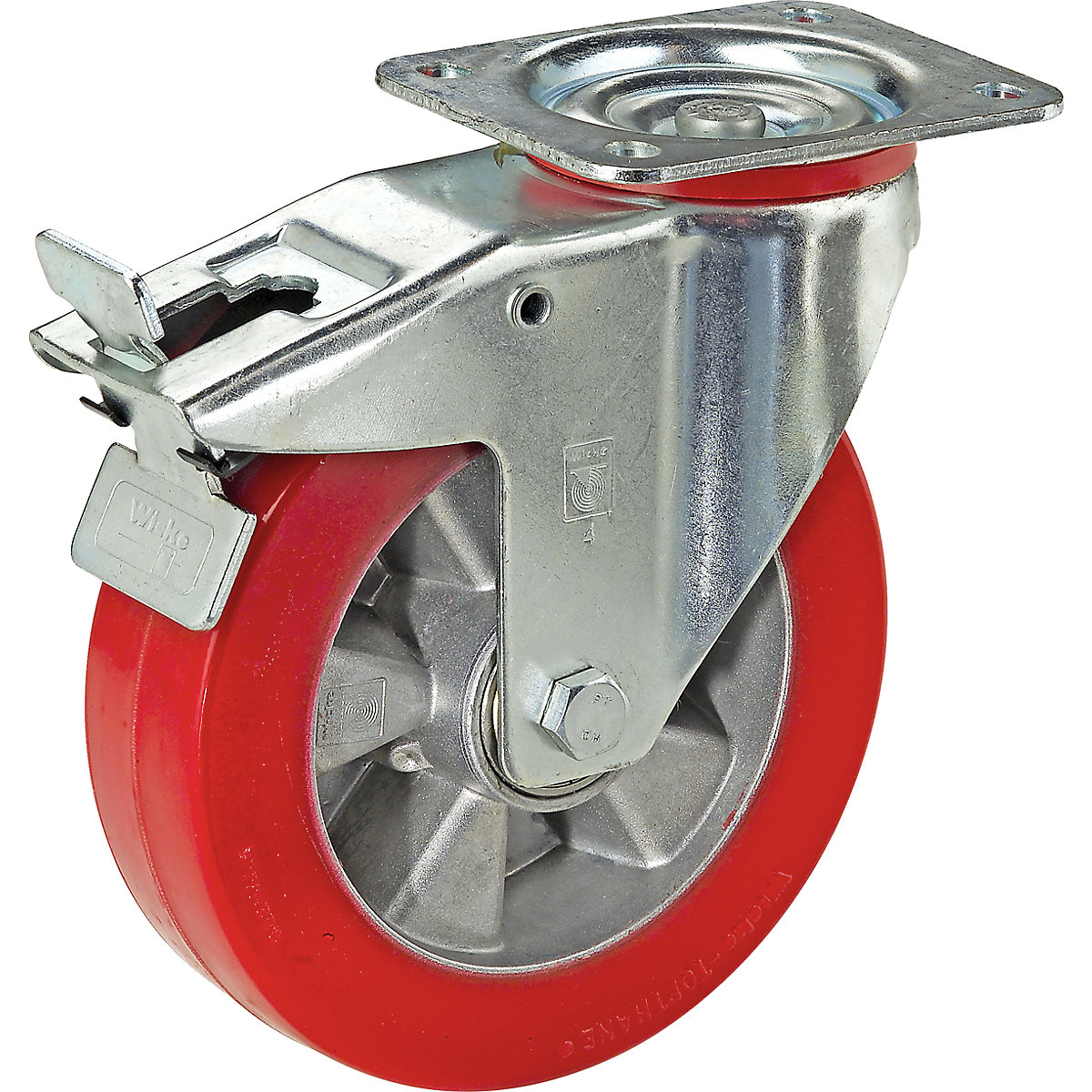

Wicke – Polyurethane tyre on aluminium rim

wheel Ø x width 125 x 40 mm

Wicke
  • On aluminium rims
  • Non-marking due to special composition
  • Hardwearing and cut resistant
  • Hardness 75 Shore A
  • Temperature resistant from –5 °C to +80 °C
Swivel bearing with double ball race, swivel bearing protection.
Quality advantages
Cut resistant
Hardwearing
Non-marking
Wicke – Polyurethane tyre on aluminium rim, wheel Ø x width 125 x 40 mm
Price / item (Ex. VAT)
from 49.90
Price / item (Inc. VAT)
from 59.88
Order quantity:
items
{"articleNo":"M76056","name":"Wicke – Polyurethane tyre on aluminium rim wheel Ø x width 125 x 40 mm","baseProduct":"","productUrl":"/p/M76056/","imageUrl":"/Castors_Wheels/Swivel_castors_fixed_castors/Polyurethane_tyre_on_aluminium_rim_pdpsmall--000047795838_PRD_f_all.jpg"}
Give us a call!
Give us a call! 1 800 677 300
6 of 6 items correspond to your selection criteria:
  • View:
swivel castor, max. load 200 kg
Item no.:  760524 10
Wicke – Polyurethane tyre on aluminium rim, wheel Ø x width 125 x 40 mm, swivel castor, max. load 200 kg
  • Structure: swivel castor
  • Max. load at 4 km/h: 200 kg
  • Swivel castor offset: 38 mm
  • Screw hole diameter: 9 mm
  • Plate dimensions: 105 x 80 mm
  • Screw hole spacing: 80 x 60 – 76 mm
  • Weight: 1.8 kg
10-15 Working Days
Order quantity: items
Price / item
Ex. VAT 49.90
Price / item
Inc. VAT €59.88
{"articleNo":"760524","name":"Wicke – Polyurethane tyre on aluminium rim wheel Ø x width 125 x 40 mm","baseProduct":"M76056","productUrl":"/p/M76056/","imageUrl":"/Castors_Wheels/Swivel_castors_fixed_castors/Polyurethane_tyre_on_aluminium_rim_pdpsmall--000047795838_PRD_f_all.jpg"}
{"features":[{"name":"Structure","normalizedName":"","value":"swivel castor","formattedValue":"swivel castor"},{"name":"Max. load at 4 km/h [kg]","normalizedName":"","value":"200","formattedValue":"200"},{"name":"Swivel castor offset [mm]","normalizedName":"","value":"38","formattedValue":"38"},{"name":"Screw hole diameter [mm]","normalizedName":"","value":"9","formattedValue":"9"},{"name":"Plate dimensions [mm]","normalizedName":"","value":"105 x 80","formattedValue":"105 x 80"},{"name":"Screw hole spacing [mm]","normalizedName":"","value":"80 x 60 – 76","formattedValue":"80 x 60 – 76"},{"name":"Weight [kg]","normalizedName":"","value":"1.8","formattedValue":"1.8"}]}
swivel castor, max. load 280 kg
Item no.:  760525 10
Wicke – Polyurethane tyre on aluminium rim, wheel Ø x width 125 x 40 mm, swivel castor, max. load 280 kg
  • Structure: swivel castor
  • Max. load at 4 km/h: 280 kg
  • Swivel castor offset: 48 mm
  • Screw hole diameter: 11 mm
  • Plate dimensions: 135 x 110 mm
  • Screw hole spacing: 105 x 75 – 80 mm
  • Weight: 2 kg
10-15 Working Days
Order quantity: items
Price / item
Ex. VAT 54.90
Price / item
Inc. VAT €65.88
{"articleNo":"760525","name":"Wicke – Polyurethane tyre on aluminium rim wheel Ø x width 125 x 40 mm","baseProduct":"M76056","productUrl":"/p/M76056/","imageUrl":"/Castors_Wheels/Swivel_castors_fixed_castors/Polyurethane_tyre_on_aluminium_rim_pdpsmall--000047795838_PRD_f_all.jpg"}
{"features":[{"name":"Structure","normalizedName":"","value":"swivel castor","formattedValue":"swivel castor"},{"name":"Max. load at 4 km/h [kg]","normalizedName":"","value":"280","formattedValue":"280"},{"name":"Swivel castor offset [mm]","normalizedName":"","value":"48","formattedValue":"48"},{"name":"Screw hole diameter [mm]","normalizedName":"","value":"11","formattedValue":"11"},{"name":"Plate dimensions [mm]","normalizedName":"","value":"135 x 110","formattedValue":"135 x 110"},{"name":"Screw hole spacing [mm]","normalizedName":"","value":"105 x 75 – 80","formattedValue":"105 x 75 – 80"},{"name":"Weight [kg]","normalizedName":"","value":"2","formattedValue":"2"}]}
swivel castor with double stop, max. load 200 kg
Item no.:  760531 10
Wicke – Polyurethane tyre on aluminium rim, wheel Ø x width 125 x 40 mm, swivel castor with double stop, max. load 200 kg
  • Structure: swivel castor with double stop
  • Max. load at 4 km/h: 200 kg
  • Swivel castor offset: 38 mm
  • Screw hole diameter: 9 mm
  • Plate dimensions: 105 x 80 mm
  • Screw hole spacing: 80 x 60 – 76 mm
  • Weight: 2 kg
10-15 Working Days
Order quantity: items
Price / item
Ex. VAT 57.90
Price / item
Inc. VAT €69.48
{"articleNo":"760531","name":"Wicke – Polyurethane tyre on aluminium rim wheel Ø x width 125 x 40 mm","baseProduct":"M76056","productUrl":"/p/M76056/","imageUrl":"/Castors_Wheels/Swivel_castors_fixed_castors/Polyurethane_tyre_on_aluminium_rim_pdpsmall--000047795971_PRD_f_all.jpg"}
{"features":[{"name":"Structure","normalizedName":"","value":"swivel castor with double stop","formattedValue":"swivel castor with double stop"},{"name":"Max. load at 4 km/h [kg]","normalizedName":"","value":"200","formattedValue":"200"},{"name":"Swivel castor offset [mm]","normalizedName":"","value":"38","formattedValue":"38"},{"name":"Screw hole diameter [mm]","normalizedName":"","value":"9","formattedValue":"9"},{"name":"Plate dimensions [mm]","normalizedName":"","value":"105 x 80","formattedValue":"105 x 80"},{"name":"Screw hole spacing [mm]","normalizedName":"","value":"80 x 60 – 76","formattedValue":"80 x 60 – 76"},{"name":"Weight [kg]","normalizedName":"","value":"2","formattedValue":"2"}]}
swivel castor with double stop, max. load 280 kg
Item no.:  760532 10
Wicke – Polyurethane tyre on aluminium rim, wheel Ø x width 125 x 40 mm, swivel castor with double stop, max. load 280 kg
  • Structure: swivel castor with double stop
  • Max. load at 4 km/h: 280 kg
  • Swivel castor offset: 48 mm
  • Screw hole diameter: 11 mm
  • Plate dimensions: 135 x 110 mm
  • Screw hole spacing: 105 x 75 – 80 mm
  • Weight: 2.2 kg
10-15 Working Days
Order quantity: items
Price / item
Ex. VAT 62.90
Price / item
Inc. VAT €75.48
{"articleNo":"760532","name":"Wicke – Polyurethane tyre on aluminium rim wheel Ø x width 125 x 40 mm","baseProduct":"M76056","productUrl":"/p/M76056/","imageUrl":"/Castors_Wheels/Swivel_castors_fixed_castors/Polyurethane_tyre_on_aluminium_rim_pdpsmall--000047795971_PRD_f_all.jpg"}
{"features":[{"name":"Structure","normalizedName":"","value":"swivel castor with double stop","formattedValue":"swivel castor with double stop"},{"name":"Max. load at 4 km/h [kg]","normalizedName":"","value":"280","formattedValue":"280"},{"name":"Swivel castor offset [mm]","normalizedName":"","value":"48","formattedValue":"48"},{"name":"Screw hole diameter [mm]","normalizedName":"","value":"11","formattedValue":"11"},{"name":"Plate dimensions [mm]","normalizedName":"","value":"135 x 110","formattedValue":"135 x 110"},{"name":"Screw hole spacing [mm]","normalizedName":"","value":"105 x 75 – 80","formattedValue":"105 x 75 – 80"},{"name":"Weight [kg]","normalizedName":"","value":"2.2","formattedValue":"2.2"}]}
fixed castor, max. load 200 kg
Item no.:  760538 10
Wicke – Polyurethane tyre on aluminium rim, wheel Ø x width 125 x 40 mm, fixed castor, max. load 200 kg
  • Structure: fixed castor
  • Max. load at 4 km/h: 200 kg
  • Screw hole diameter: 9 mm
  • Plate dimensions: 102 x 87 mm
  • Screw hole spacing: 80 x 60 – 76 mm
  • Weight: 1.3 kg
10-15 Working Days
Order quantity: items
Price / item
Ex. VAT 49.90
Price / item
Inc. VAT €59.88
{"articleNo":"760538","name":"Wicke – Polyurethane tyre on aluminium rim wheel Ø x width 125 x 40 mm","baseProduct":"M76056","productUrl":"/p/M76056/","imageUrl":"/Castors_Wheels/Swivel_castors_fixed_castors/Polyurethane_tyre_on_aluminium_rim_pdpsmall--000047795974_PRD_f_all.jpg"}
{"features":[{"name":"Structure","normalizedName":"","value":"fixed castor","formattedValue":"fixed castor"},{"name":"Max. load at 4 km/h [kg]","normalizedName":"","value":"200","formattedValue":"200"},{"name":"Screw hole diameter [mm]","normalizedName":"","value":"9","formattedValue":"9"},{"name":"Plate dimensions [mm]","normalizedName":"","value":"102 x 87","formattedValue":"102 x 87"},{"name":"Screw hole spacing [mm]","normalizedName":"","value":"80 x 60 – 76","formattedValue":"80 x 60 – 76"},{"name":"Weight [kg]","normalizedName":"","value":"1.3","formattedValue":"1.3"}]}
fixed castor, max. load 280 kg
Item no.:  760539 10
Wicke – Polyurethane tyre on aluminium rim, wheel Ø x width 125 x 40 mm, fixed castor, max. load 280 kg
  • Structure: fixed castor
  • Max. load at 4 km/h: 280 kg
  • Screw hole diameter: 11 mm
  • Plate dimensions: 135 x 114 mm
  • Screw hole spacing: 105 x 75 – 80 mm
  • Weight: 1.4 kg
10-15 Working Days
Order quantity: items
Price / item
Ex. VAT 49.90
Price / item
Inc. VAT €59.88
{"articleNo":"760539","name":"Wicke – Polyurethane tyre on aluminium rim wheel Ø x width 125 x 40 mm","baseProduct":"M76056","productUrl":"/p/M76056/","imageUrl":"/Castors_Wheels/Swivel_castors_fixed_castors/Polyurethane_tyre_on_aluminium_rim_pdpsmall--000047795974_PRD_f_all.jpg"}
{"features":[{"name":"Structure","normalizedName":"","value":"fixed castor","formattedValue":"fixed castor"},{"name":"Max. load at 4 km/h [kg]","normalizedName":"","value":"280","formattedValue":"280"},{"name":"Screw hole diameter [mm]","normalizedName":"","value":"11","formattedValue":"11"},{"name":"Plate dimensions [mm]","normalizedName":"","value":"135 x 114","formattedValue":"135 x 114"},{"name":"Screw hole spacing [mm]","normalizedName":"","value":"105 x 75 – 80","formattedValue":"105 x 75 – 80"},{"name":"Weight [kg]","normalizedName":"","value":"1.4","formattedValue":"1.4"}]}

Technical data

Wheel diameter 125 mm
Wheel material polyurethane
Material of rim aluminium
Housing material steel
Type of mounting with top plate
Wheel width 40 mm
Overall height 155 mm
Wheel bearing ball bearing
Temperature resistance –5 °C to +80 °C
Hub length 50 mm
Hub bore 20 mm
Housing surface zinc plated
Supplied assembled
