Ref.: 568412 10

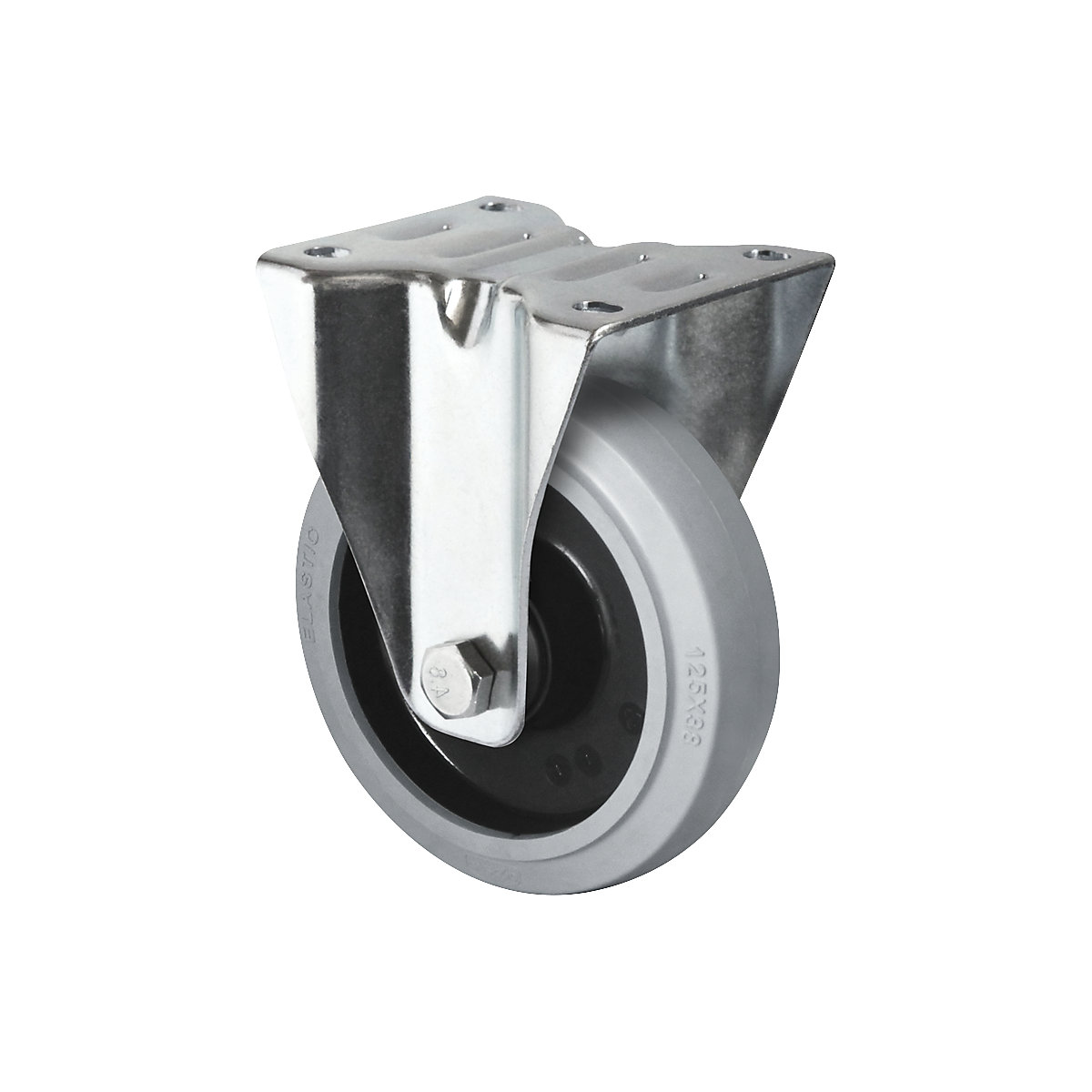

Elastic tyre on nylon rim wheel Ø x width 100 x 35 mm

Elastic tyre on nylon rim

fixed castor

Structure
€ 16.95
Price / item (Excl. VAT)
Total (Excl. VAT)
€ 33.90
Delivery time: 9-11 Working Days
Product description
  • Compatible with all floors, non-marking, quiet, smooth running
  • High max. load, popular for use in the event sector
  • Hardness 65 Shore A
  • Temperature resistant from –20 °C to +80 °C
Sheet steel housing, electrolytically zinc plated in blue. Small plastic thread guard. Ball bearings.
High maximum load
High maximum load
Low rolling resistance
Low rolling resistance
Non-marking
Non-marking
Technical data
Wheel diameter100 mm
Wheel materialrubber – solid rubber – elastic
Material of rimnylon
Type of mountingwith top plate
Housing materialsteel
Max. load at 4 km/h200 kg
Wheel width35 mm
Overall height128 mm
Wheel bearingball bearing
Temperature resistance–20 °C to +80 °C
Screw hole diameter8 mm
Hub length40 mm
Hub bore8 mm
Modeltransport castors
Fixed castor plate dimensions105 x 80 mm
Swivel castor plate dimensions105 x 80 mm
Screw hole spacing80/77 x 60 mm
Housing surfacezinc plated by galvanization
Shore hardness65 A
Suppliedassembled
Structurefixed castor
Product typefixed castors
Weight0.536 kg
