Ref.: 762350 10

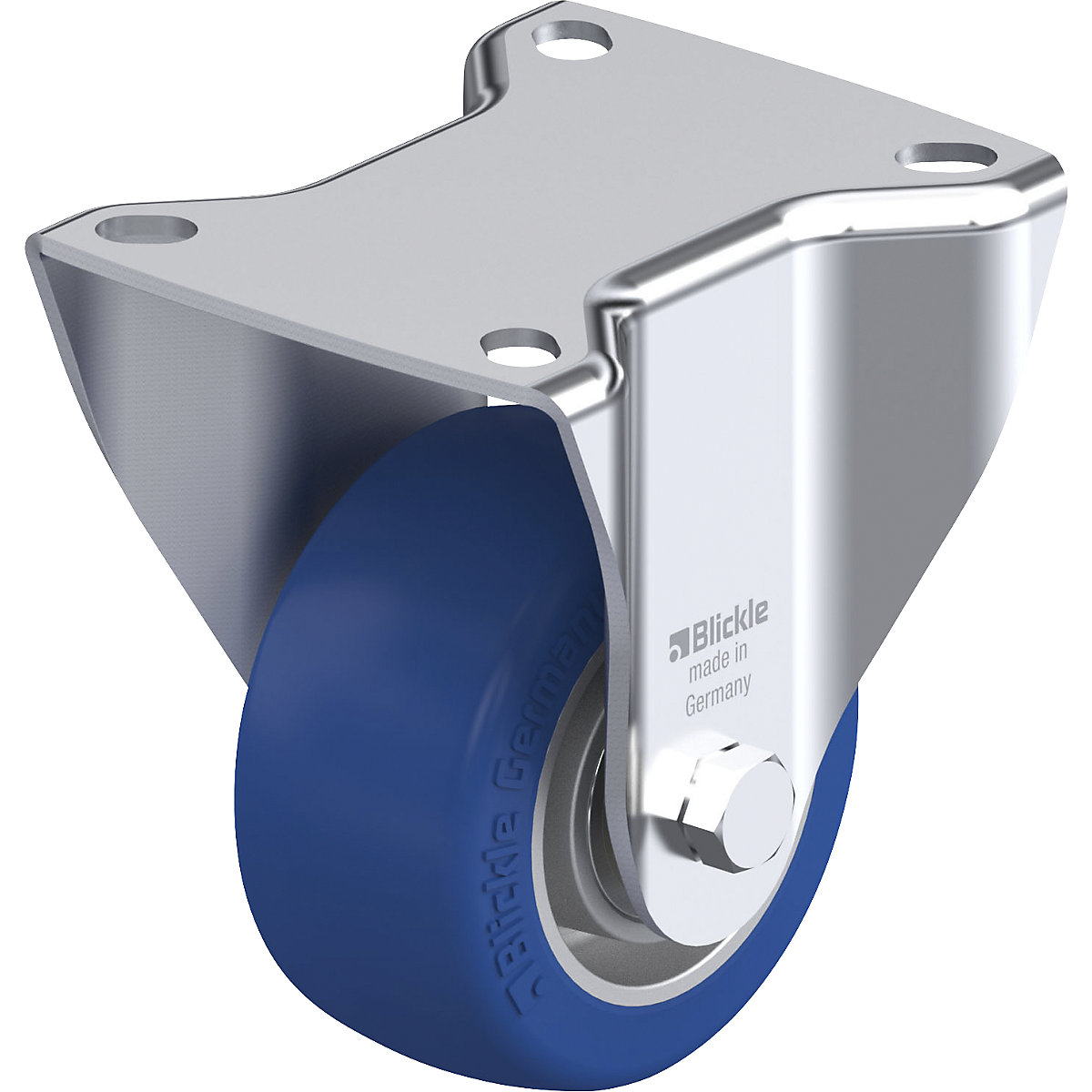

BK-ALBS fixed sheet steel castor – Blickle wheel Ø 80 mm, max. load 230 kg
plate dimensions 100 x 85 mm
Ref.: 762350 10
BK-ALBS fixed sheet steel castor – Blickle wheel Ø 80 mm, max. load 230 kg
plate dimensions 100 x 85 mm
plate dimensions 100 x 85 mm
Sustainability score:€ 99.90
Price / item (Excl. VAT)
Delivery time: 9-11 Working Days
Good reasons to purchase products from us
- Guarantee of up to 15 years
- 30 day right of return
- Free delivery from Germany
- Fast delivery
€ 99.90
Price / item (Excl. VAT)
€ 99.90
Price / item (Excl. VAT)
Delivery time: 9-11 Working Days
Good reasons to purchase products from us
- Guarantee of up to 15 years
- 30 day right of return
- Free delivery from Germany
- Fast delivery
Product description
- Thick sheet steel, electrolytically zinc plated, blue passivated, Cr6 free
- Tread: high quality Blickle Besthane® Soft polyurethane elastomer, non-marking
- Wheel body: die cast aluminium, silver grey
- High chemical resistance to many aggressive media
- Temperature resistance: –20 °C to +70 °C, reduced max. load above +40 °C
Fixed sheet steel castor, heavy model, with mounting plate.
Technical data
| Structure | fixed castor |
|---|---|
| Model | transport castors |
| Wheel diameter | 80 mm |
| Wheel material | polyurethane |
| Material of rim | cast aluminium |
| Type of mounting | with top plate |
| Housing material | steel |
| Max. load at 4 km/h | 230 kg |
| Wheel bearing | ball bearing |
| Shore hardness | 75 Shore A |
| Running surface colour | blue |
| Fixed castor plate dimensions | 100 x 85 mm |
| Overall height | 110 mm |
| Wheel width | 40 mm |
| Product type | fixed castors |
| Supplied | assembled |
| Weight | 0.7 kg |
| Manufacturer / EU responsible Person (GPSR) |
