Ref.: 762348 10

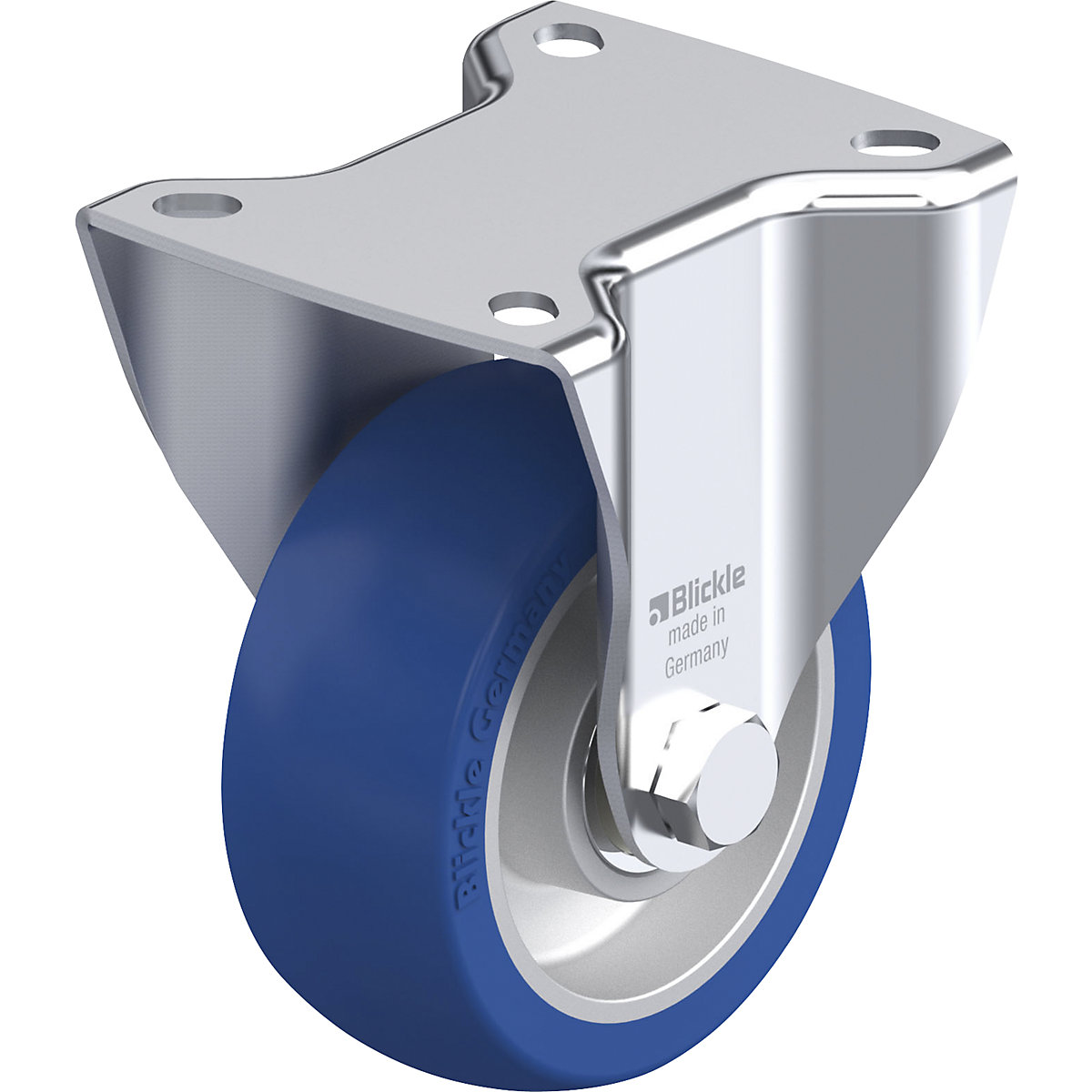

BK-ALBS fixed sheet steel castor – Blickle wheel Ø 100 mm, max. load 320 kg
plate dimensions 100 x 85 mm
Fixed castor plate dimensions [mm]
Ref.: 762348 10
BK-ALBS fixed sheet steel castor – Blickle wheel Ø 100 mm, max. load 320 kg
plate dimensions 100 x 85 mm

plate dimensions 100 x 85 mm
Fixed castor plate dimensions [mm]
€ 109.00
Price / item (Excl. VAT)
Delivery time: 9-11 Working Days
Good reasons to purchase products from us
- Guarantee of up to 15 years
- 30 day right of return
- Free delivery from Germany
- Fast delivery
We will be happy to help you
1 800 677 300
Monday-Friday 8am-5pm
Do you have any questions about this product?€ 109.00
Price / item (Excl. VAT)
Product description
- Thick sheet steel, electrolytically zinc plated, blue passivated, Cr6 free
- Tread: high quality Blickle Besthane® Soft polyurethane elastomer, non-marking
- Wheel body: die cast aluminium, silver grey
- High chemical resistance to many aggressive media
- Temperature resistance: –20 °C to +70 °C, reduced max. load above +40 °C
Fixed sheet steel castor, heavy model, with mounting plate.
Technical data
Wheel diameter | 100 mm |
---|---|
Structure | fixed castor |
Wheel material | polyurethane |
Material of rim | cast aluminium |
Type of mounting | with top plate |
Max. load at 4 km/h | 320 kg |
Wheel width | 40 mm |
Overall height | 130 mm |
Wheel bearing | ball bearing |
Model | transport castors |
Shore hardness | 75 Shore A |
Running surface colour | blue |
Product type | fixed castors |
Supplied | assembled |
Fixed castor plate dimensions | 100 x 85 mm |
Weight | 0.85 kg |
Sustainability
Sustainable product
This product actively contributes to protecting our environment and taking social responsibility. It meets our strict sustainability criteria and thus supports an economically, ecologically and socially viable future. The score asks the crucial question for every product: does this product contribute to creating sustainable and fair conditions for today and future generations? Below are the categories in which this product performs particularly well.
You can find out more about product evaluation and our sustainability initiative on our information page .
This product actively contributes to protecting our environment and taking social responsibility. It meets our strict sustainability criteria and thus supports an economically, ecologically and socially viable future. The score asks the crucial question for every product: does this product contribute to creating sustainable and fair conditions for today and future generations? Below are the categories in which this product performs particularly well.
You can find out more about product evaluation and our sustainability initiative on our information page .
Criteria | Weighting | Score |
---|---|---|
30% | 5.9 | |
30% | 2.0 | |
25% | 2.0 | |
10% | 0.5 | |
5% | 3.9 | |
Overall score | 3.6 |
